1976 Kz 900 A4 01 Jan 2021 10:00 #840973

  • Mikaw
  • Mikaw's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 4880
  • Thank you received: 1843
Marty. Thank you. Yes I’m going with the original paint in the root beer brown. Seems like every 900 A you see is green.

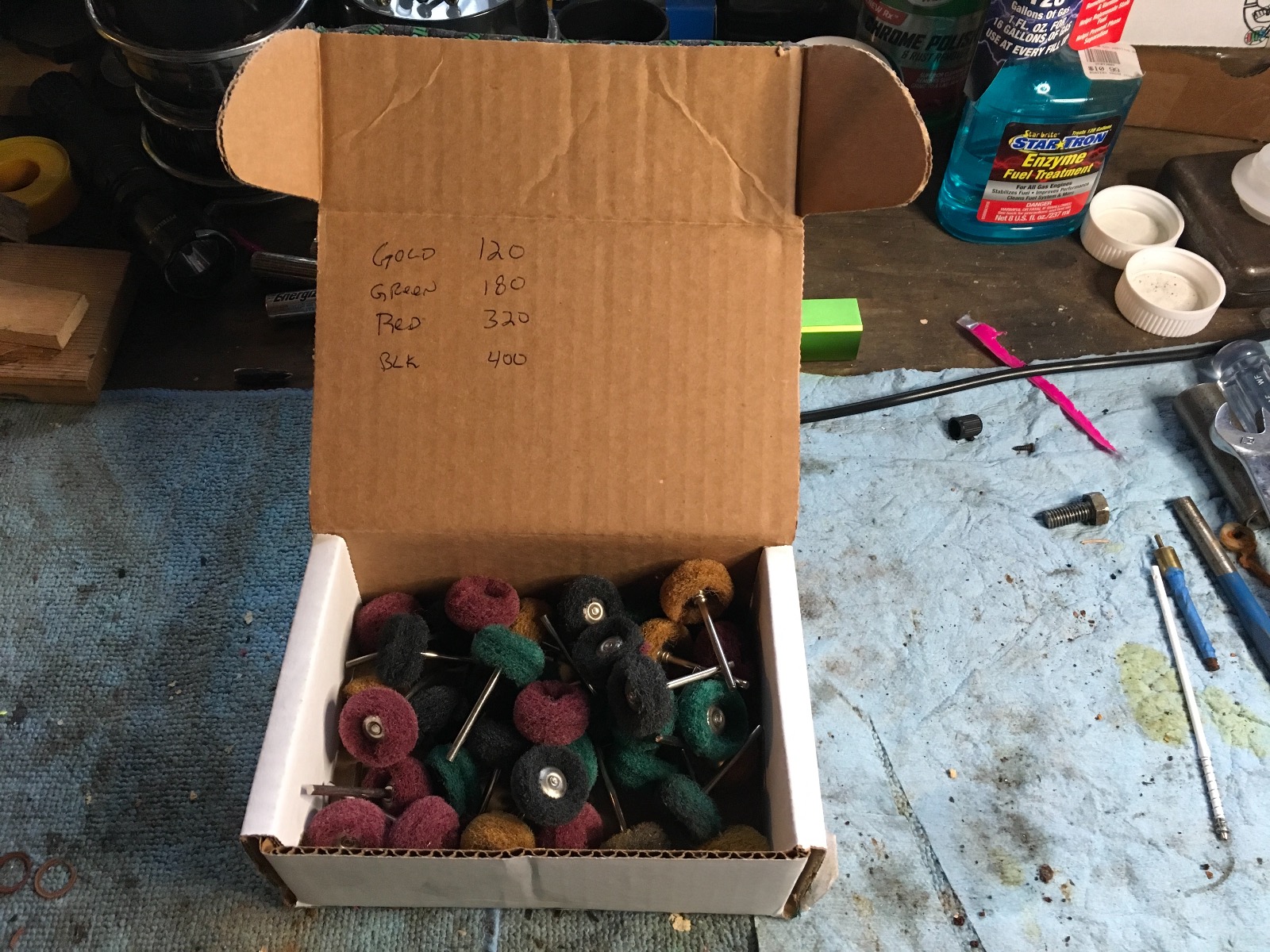

I do the same, and have all my smaller parts cleaned and blasted first, that way I can inspect, powder coat won’t fix flaws. Typically I cover the “not to coat” areas in blue painters tape and when dropping off to the coater I go over the details with them. I miss this one. Aslo missed excluding the brake pedal frame mount from powder coating. I’m not looking forward to cleaning that off. I used scotch bright type wheels for a dremel. They worked good not to aggressive which is what I wanted. I needed to remove enough mills to get the pad to fit but still keep it covered to protect it from rust. I cleaned up the corners with a very fine file. I noticed the pads were not very consistent so I filed them slightly to turn up surfaces.

1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by Mikaw.

1976 Kz 900 A4 01 Jan 2021 10:01 #840975

  • asphalt900
  • asphalt900's Avatar
  • Offline
  • User
  • Posts: 491
  • Thank you received: 166

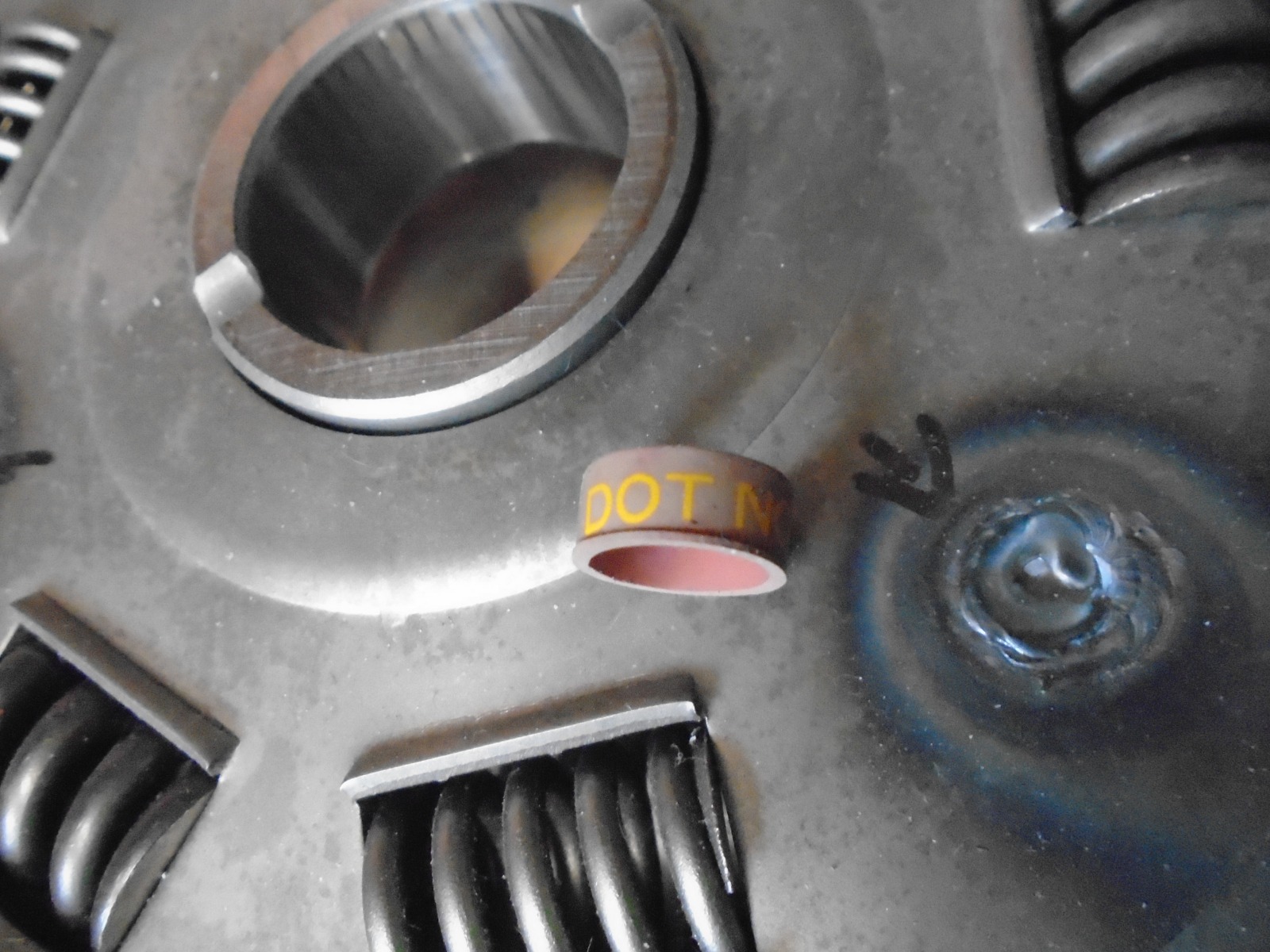

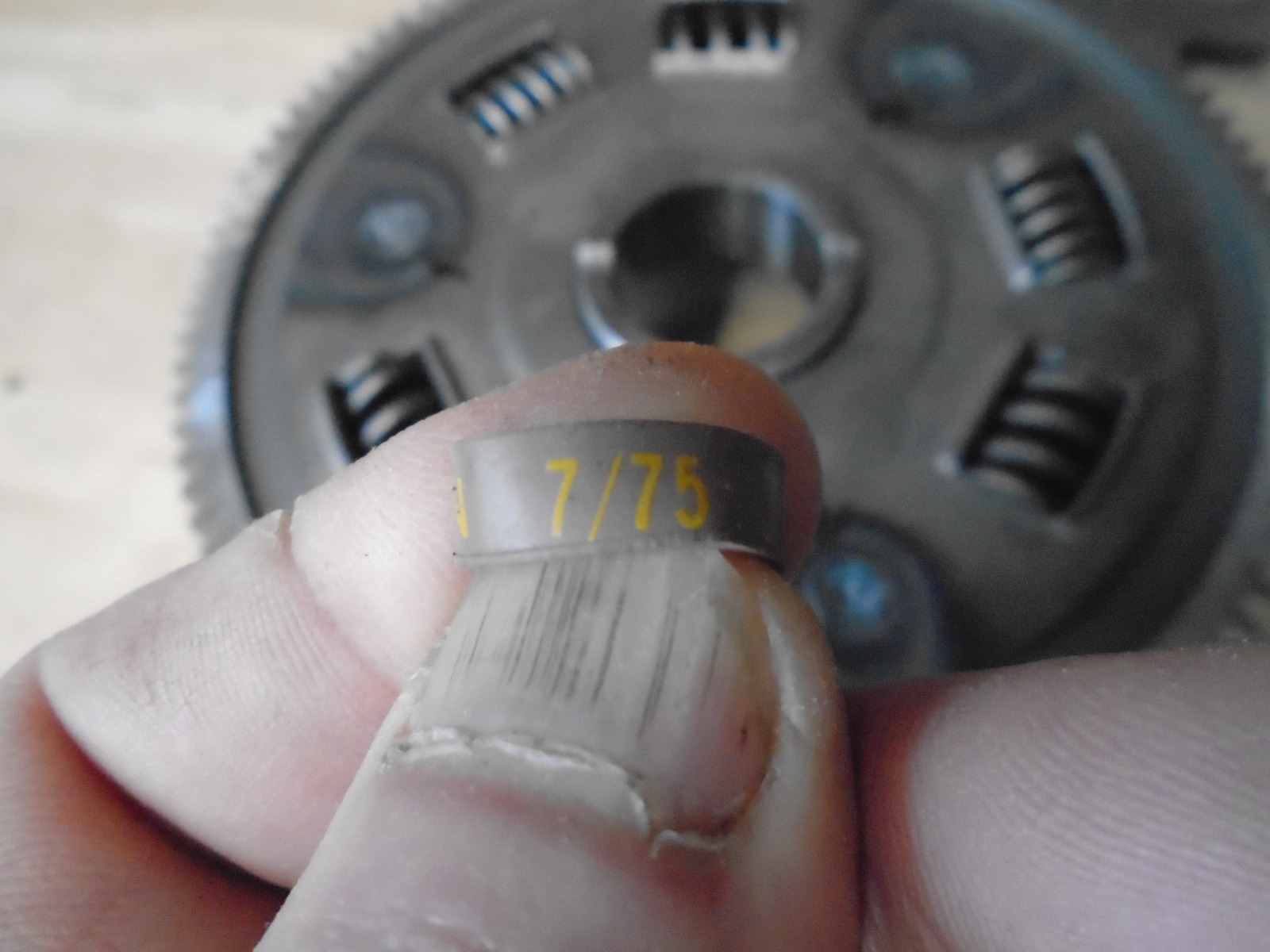

You're getting there Matt, always in the details ya know. Happy New Year BTW and everybody else! Maybe the new year will give a reprieve from the hiatus i'm sure everyone has been affected by, unless you're Steve. I don't think he ever leaves the shed, maybe for a ride or two. Anybody know someone can duplicate the dated rubber bands for the brake lines??
Attachments:

Please Log in or Create an account to join the conversation.

1976 Kz 900 A4 01 Jan 2021 13:21 #840990

  • Mikaw
  • Mikaw's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 4880
  • Thank you received: 1843
That’s a top level of restoration. I’d expect nothing less from you though
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

1976 Kz 900 A4 01 Jan 2021 15:31 #840993

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Posts: 2908
  • Thank you received: 1008
I don't remember the dated rubber bands but the hoses themselves should have a date code on them. I have a friend who restored S/N 1006 and he went so far as to find proper date coded hoses.
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.

Please Log in or Create an account to join the conversation.

1976 Kz 900 A4 02 Jan 2021 05:24 #841019

  • asphalt900
  • asphalt900's Avatar
  • Offline
  • User
  • Posts: 491
  • Thank you received: 166

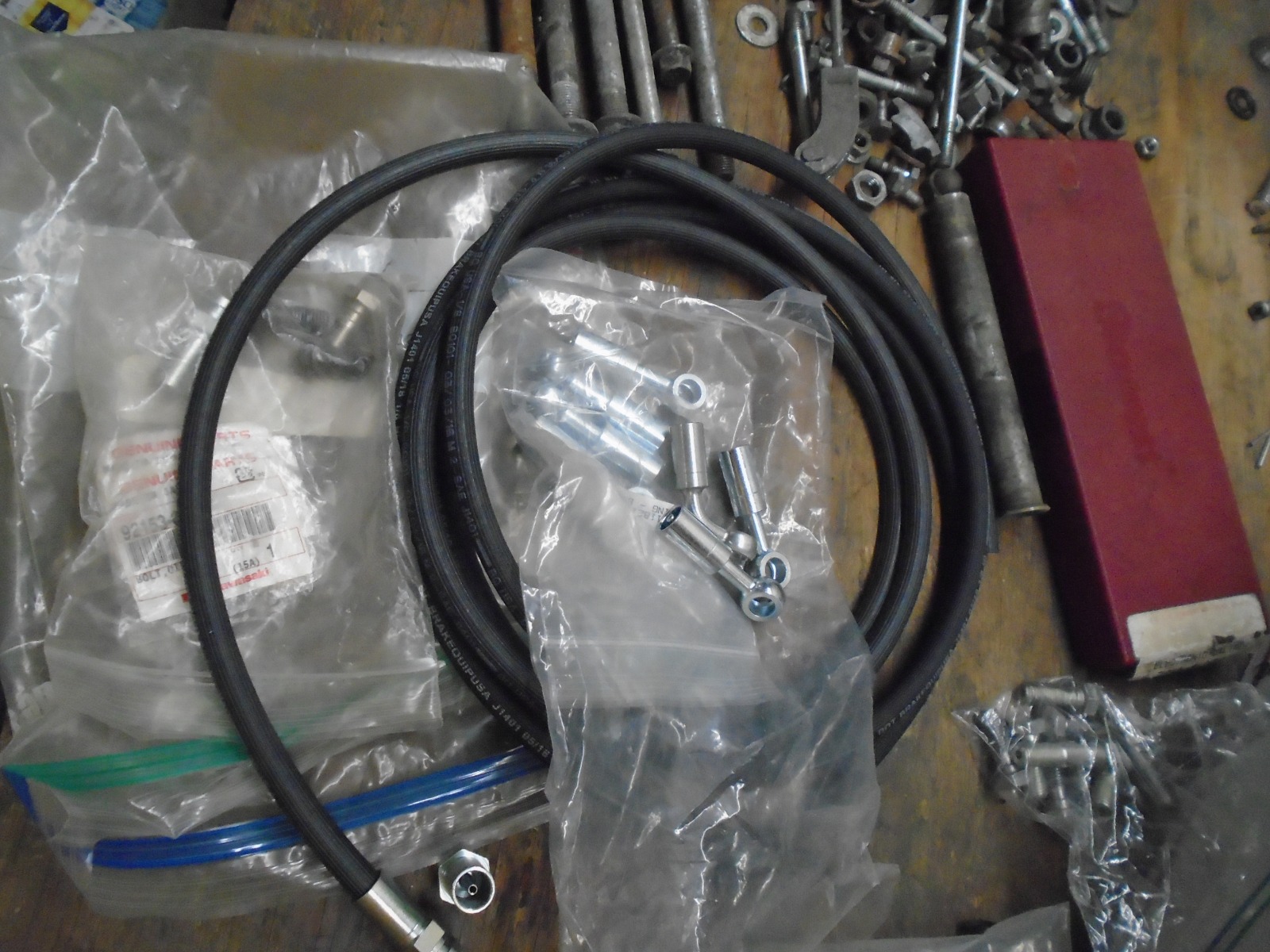

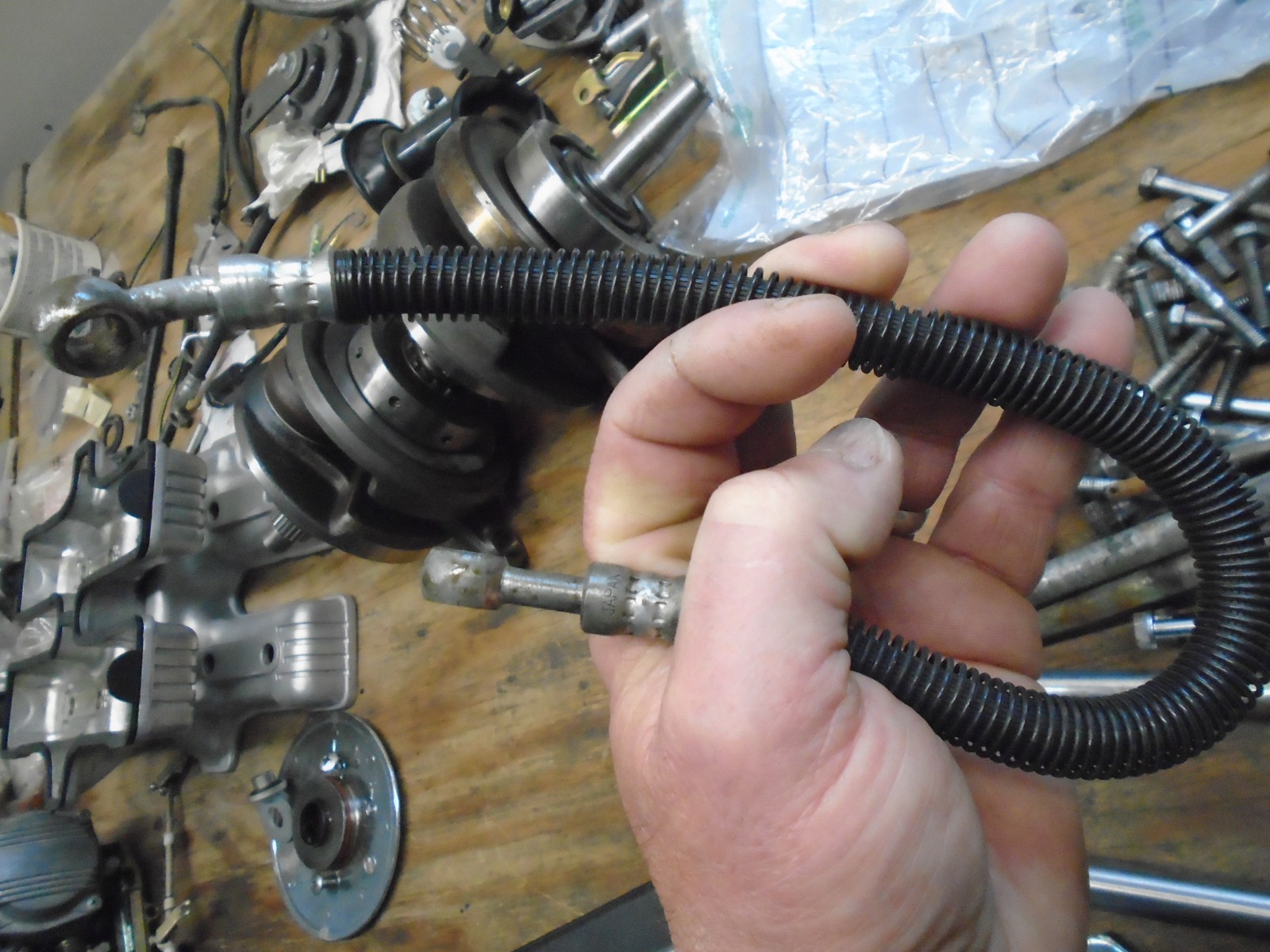

I don't think they used the "quick glance" rubberbands on the early models? I have a tupperware container of old hoses for just that, correct dates inked on the rubber hose. Like You mentioned on a correct low vin with no or little driving time an old correct dated hose is a super nice touch! I've had whole upper and lower brake lines barrel plated just to maintain the Nichirin Japan fittings and doesn't seem to affect the rubber at all but you do lose the clarity of the date code. But i restore for looks AND tooling around on so i have my own supply of fittings and 1/8" brake line to cut to proper length and index fittings. Then all i have to do is take them to the machine and have them crimped.
Attachments:
The following user(s) said Thank You: hardrockminer

Please Log in or Create an account to join the conversation.

1976 Kz 900 A4 03 Jan 2021 18:33 #841143

  • Mikaw
  • Mikaw's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 4880
  • Thank you received: 1843

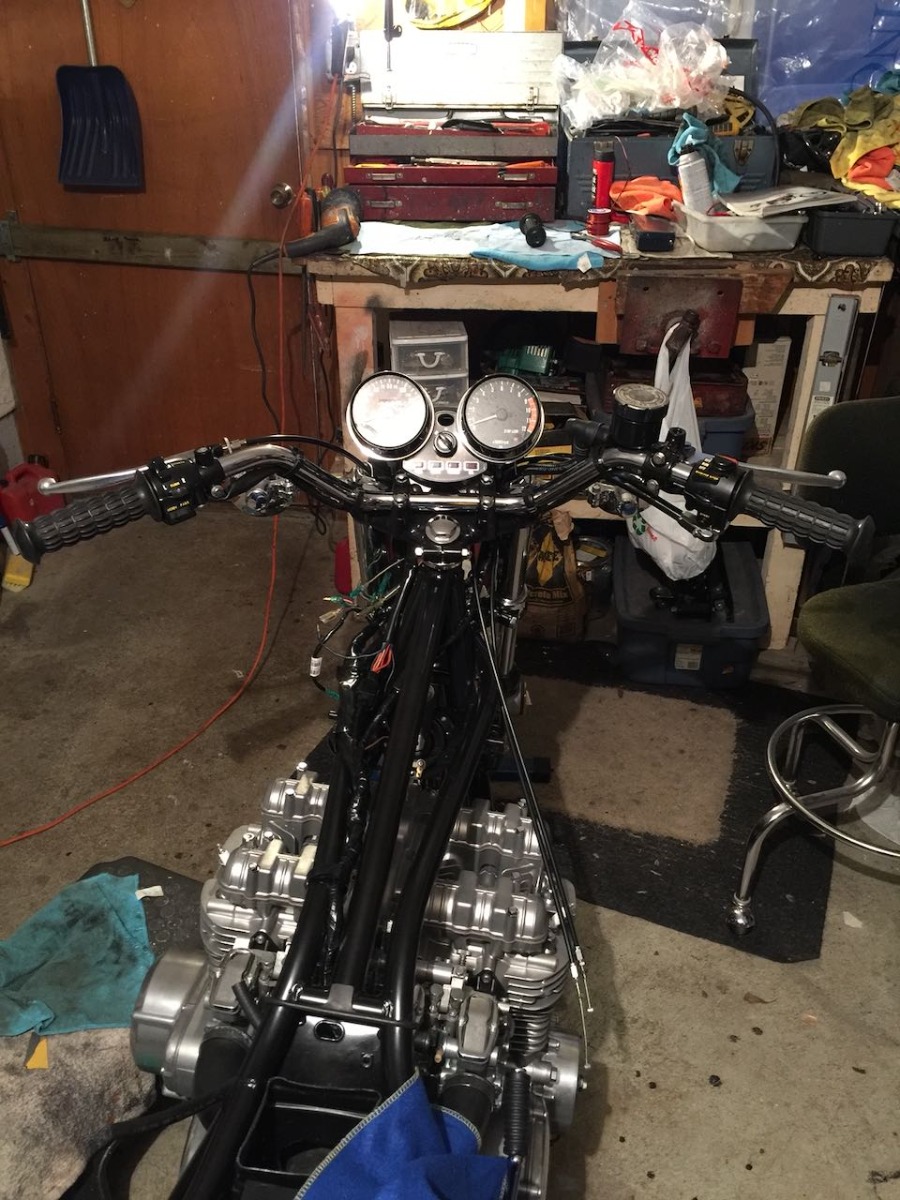

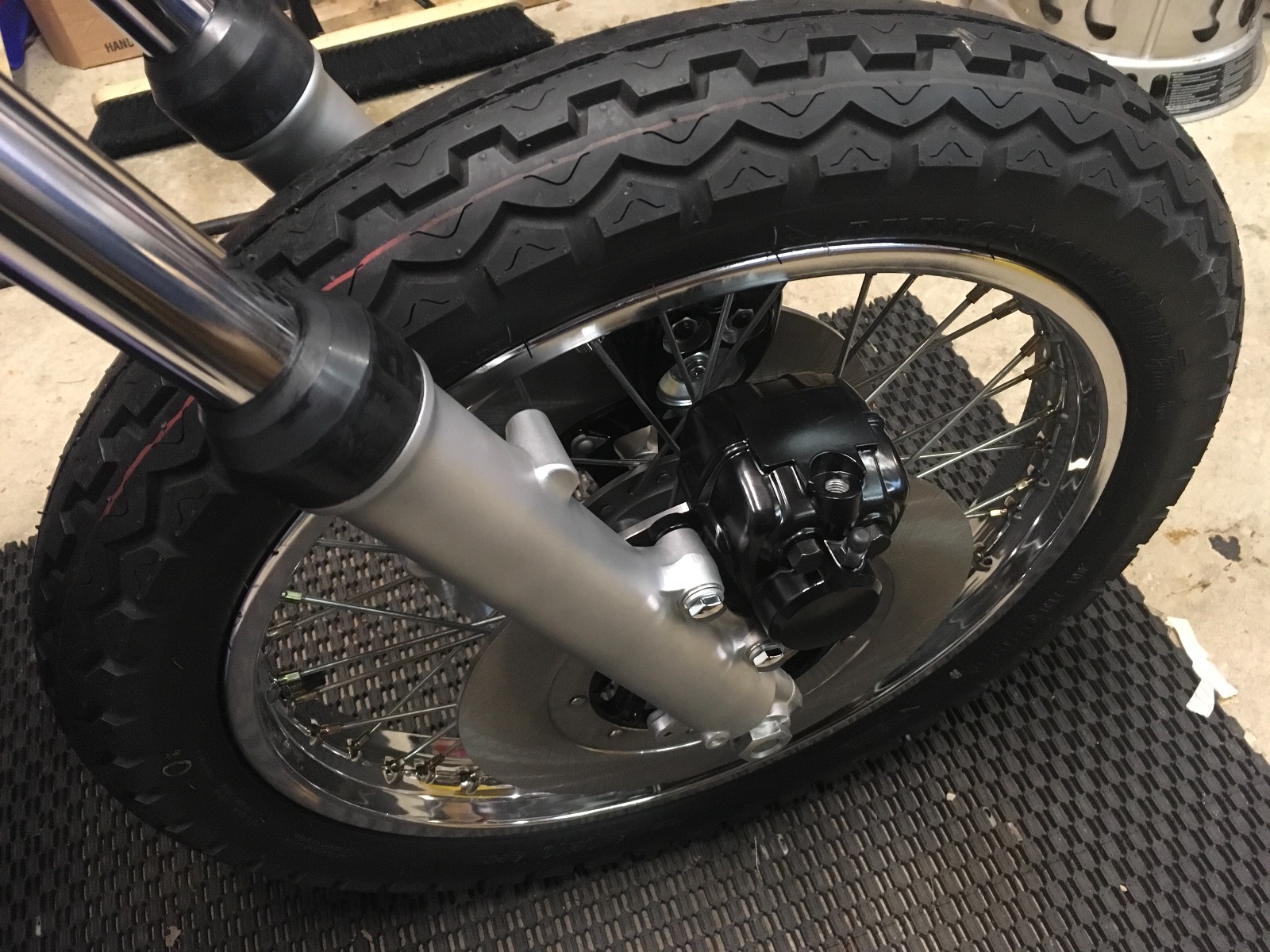

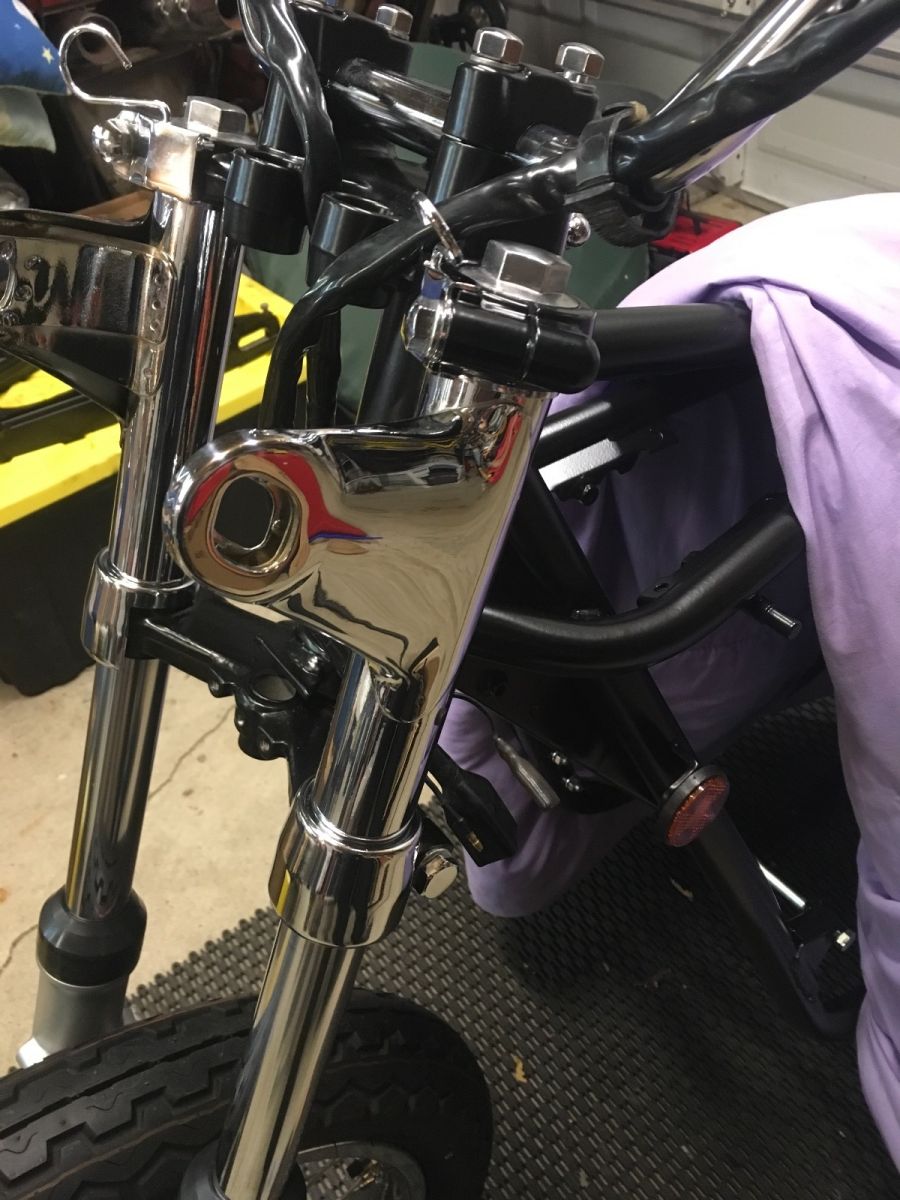

Slow but progress





1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Attachments:
The following user(s) said Thank You: Dragbike_Mike

Please Log in or Create an account to join the conversation.

Last edit: by Mikaw.

1976 Kz 900 A4 03 Jan 2021 18:43 #841144

  • Mikaw
  • Mikaw's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 4880
  • Thank you received: 1843

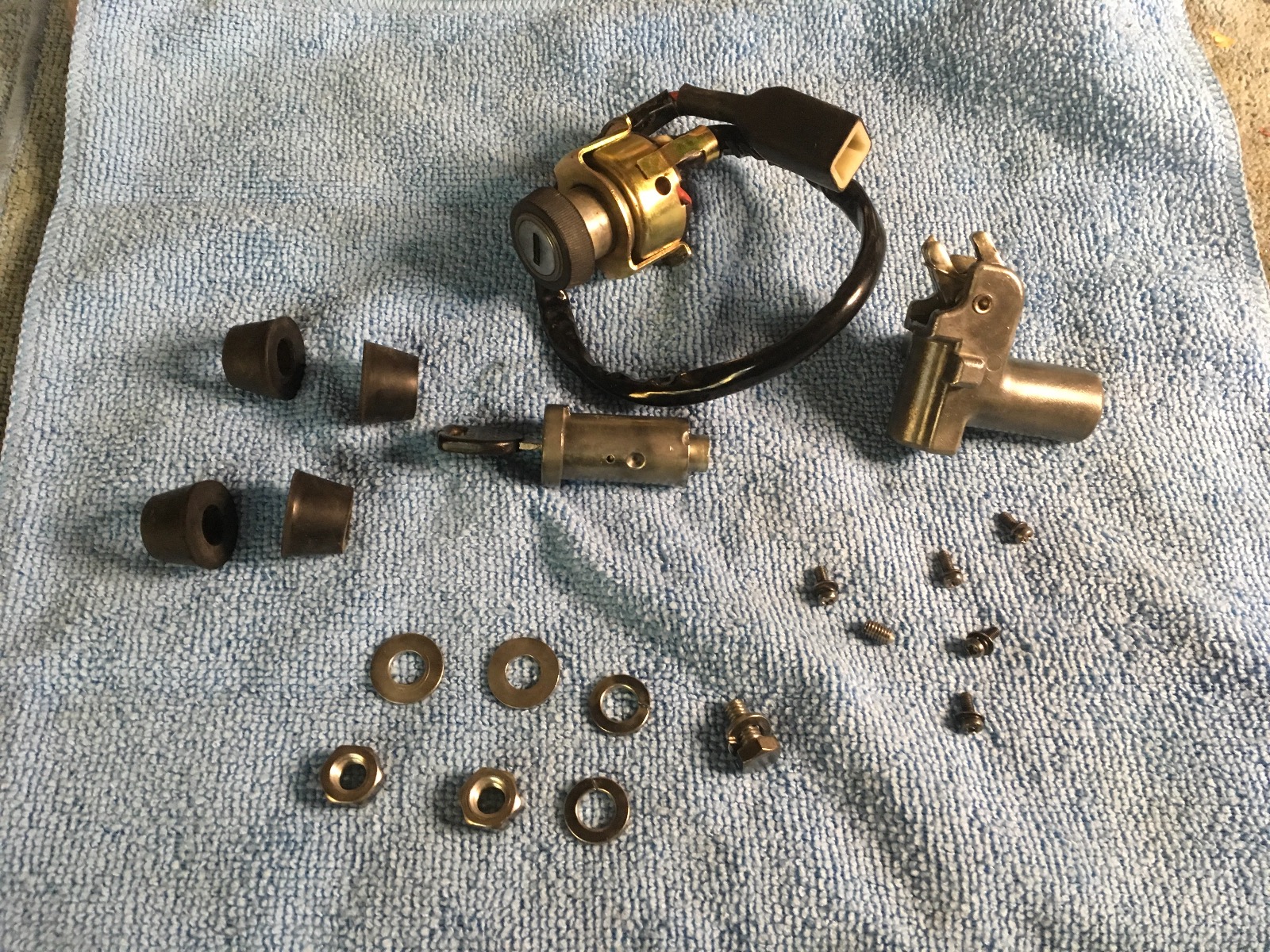

Spent most of my day after the front end taking care of the ignition, locks and related hardware.

Making sure everything is clean, oiled, NOS, re-plated, or restored is tough, but when I see good progress and a beautiful machine taking shape it’s more than worth it.

One real PITA is finding the stuff I’ve bought and stashed for the last year or so.

1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Attachments:

Please Log in or Create an account to join the conversation.

1976 Kz 900 A4 03 Jan 2021 19:03 #841146

  • asphalt900
  • asphalt900's Avatar
  • Offline
  • User
  • Posts: 491
  • Thank you received: 166
Looking groovy Matt!! Like putting a kit together after all the tidbits, and a lot of hard work, are done. Is that an oem 5/8 Tokico Master cylinder? I know they had the smooth reservoir.

Please Log in or Create an account to join the conversation.

1976 Kz 900 A4 03 Jan 2021 19:13 #841147

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Posts: 2908
  • Thank you received: 1008
Really nice! You're doing a great job!

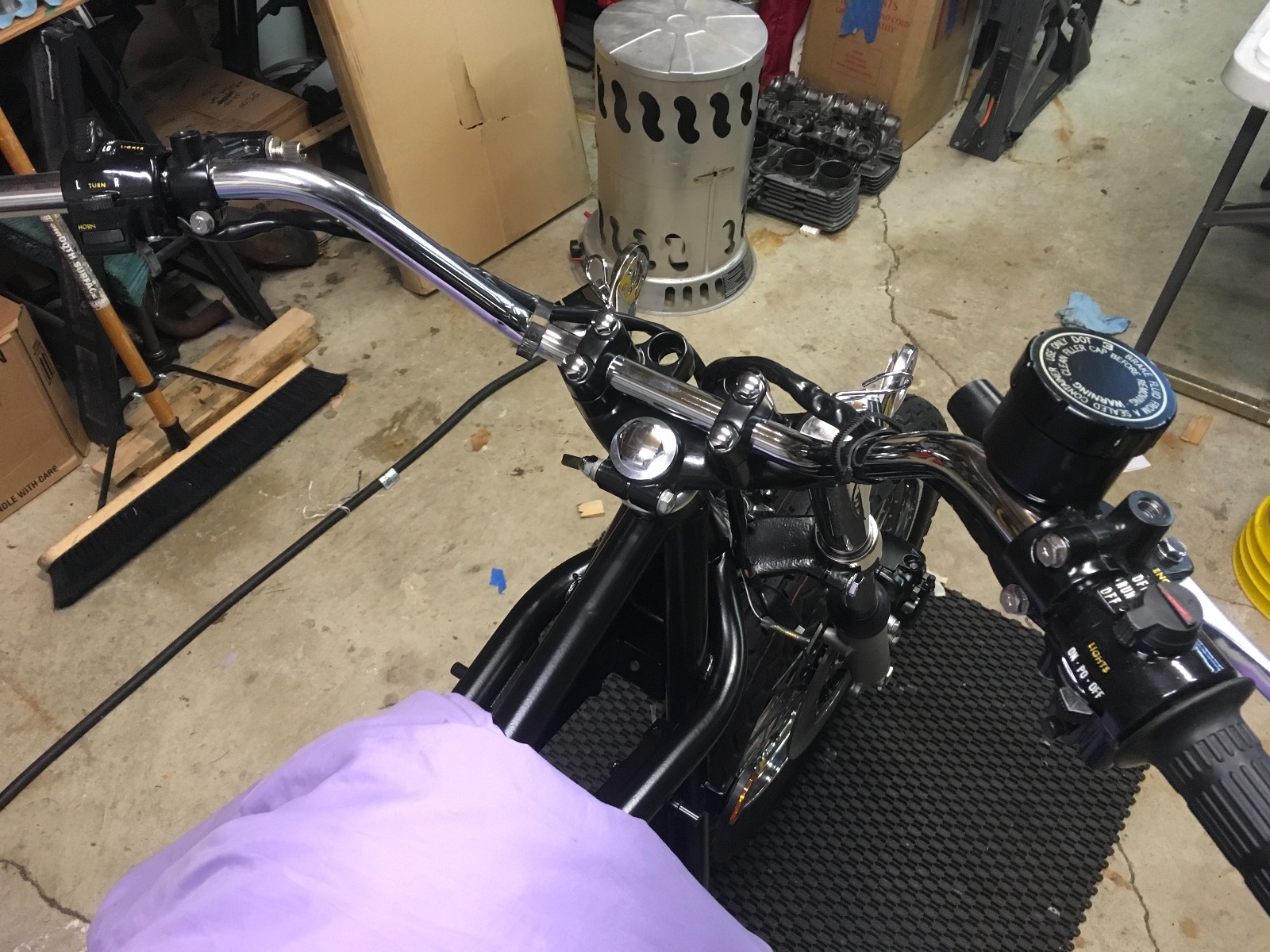

You should have two ties on each side of the bars. The one on the right side looks long for some reason.
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.

Please Log in or Create an account to join the conversation.

1976 Kz 900 A4 03 Jan 2021 19:28 #841149

  • Mikaw
  • Mikaw's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 4880
  • Thank you received: 1843

hardrockminer wrote: Really nice! You're doing a great job!

You should have two ties on each side of the bars. The one on the right side looks long for some reason.


Awesome input. Those are just what I had but looked to ratty to be permanent. I ordered NOS from Partzilla. They say 5 short and 4 long. So 4 shorties on the bars to tame the hand control wires?
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

1976 Kz 900 A4 03 Jan 2021 19:30 #841150

  • Mikaw
  • Mikaw's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 4880
  • Thank you received: 1843

asphalt900 wrote: Looking groovy Matt!! Like putting a kit together after all the tidbits, and a lot of hard work, are done. Is that an oem 5/8 Tokico Master cylinder? I know they had the smooth reservoir.


It is an OEM 5/8” MC. Not sure what you mean by “smooth reservoir”

EDIT, this was the reservoir on the bike for single disc, it has vertical ribs
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by Mikaw.

1976 Kz 900 A4 03 Jan 2021 19:48 #841153

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Posts: 2908
  • Thank you received: 1008
The bigger MC makes the brakes feel soft...I think that's what he's referring to. I have dual disc on one of my Zeds and it's nice and soft but lots of braking power.

Yes, short ones on the handles. The fifth one may be to tie off the rear brake harness on the right frame member but I'm not positive. Th e photo shows how I did mine on my blue Zed.

I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
Attachments:
The following user(s) said Thank You: Mikaw

Please Log in or Create an account to join the conversation.
