KZ900 - updated suspension 24 Jan 2020 12:08 #817762

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4894
  • Thank you received: 1849
I’m at work. I have an LTD I can get you photos of when I get home
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

KZ900 - updated suspension 24 Jan 2020 12:16 #817764

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4894
  • Thank you received: 1849

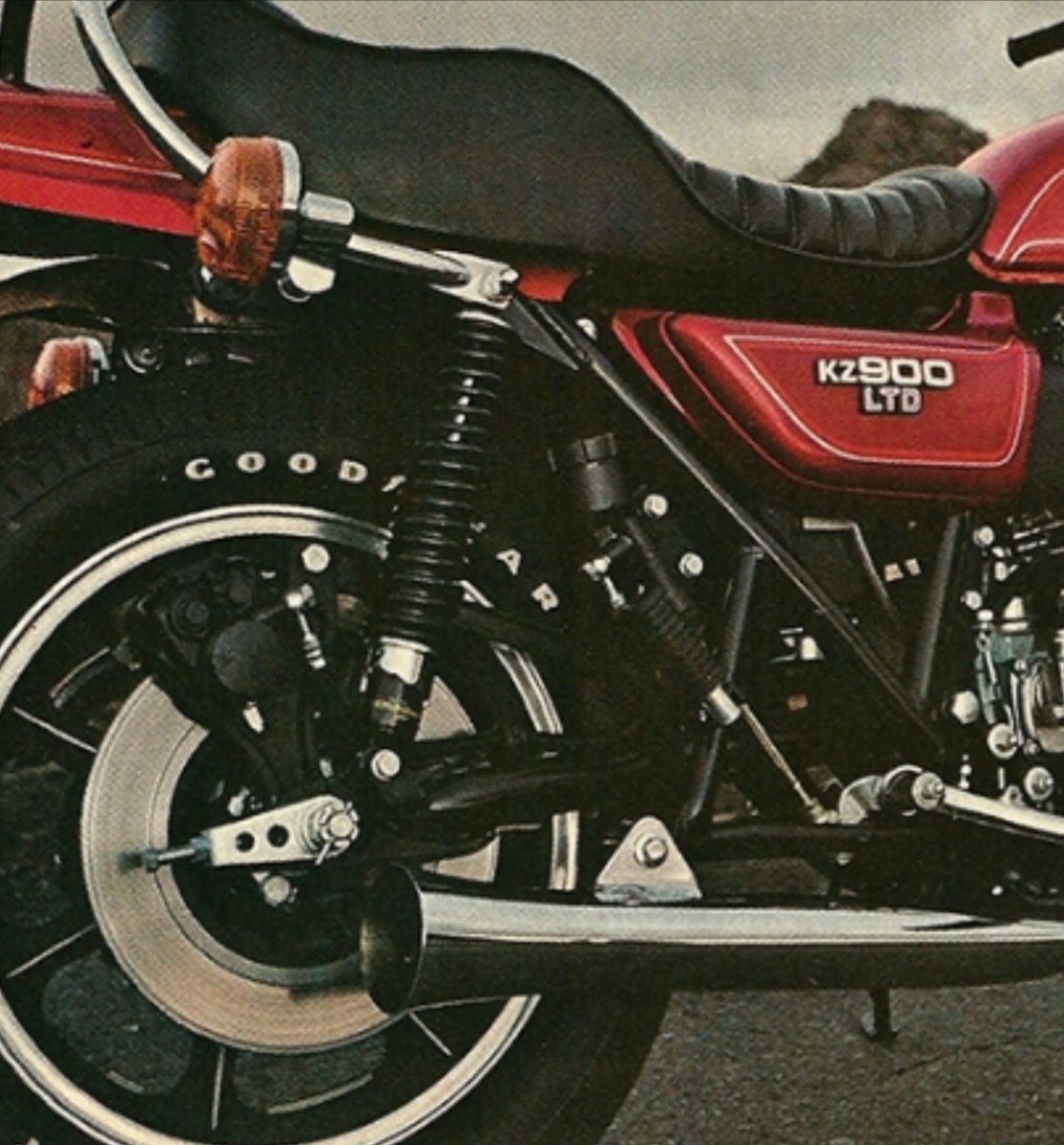

Here is something till I can get you some from mine
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Attachments:

Please Log in or Create an account to join the conversation.

KZ900 - updated suspension 24 Jan 2020 12:55 #817766

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4894
  • Thank you received: 1849
Just found this... I will do more research
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Attachments:

Please Log in or Create an account to join the conversation.

KZ900 - updated suspension 24 Jan 2020 13:49 #817768

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3923
  • Thank you received: 1895

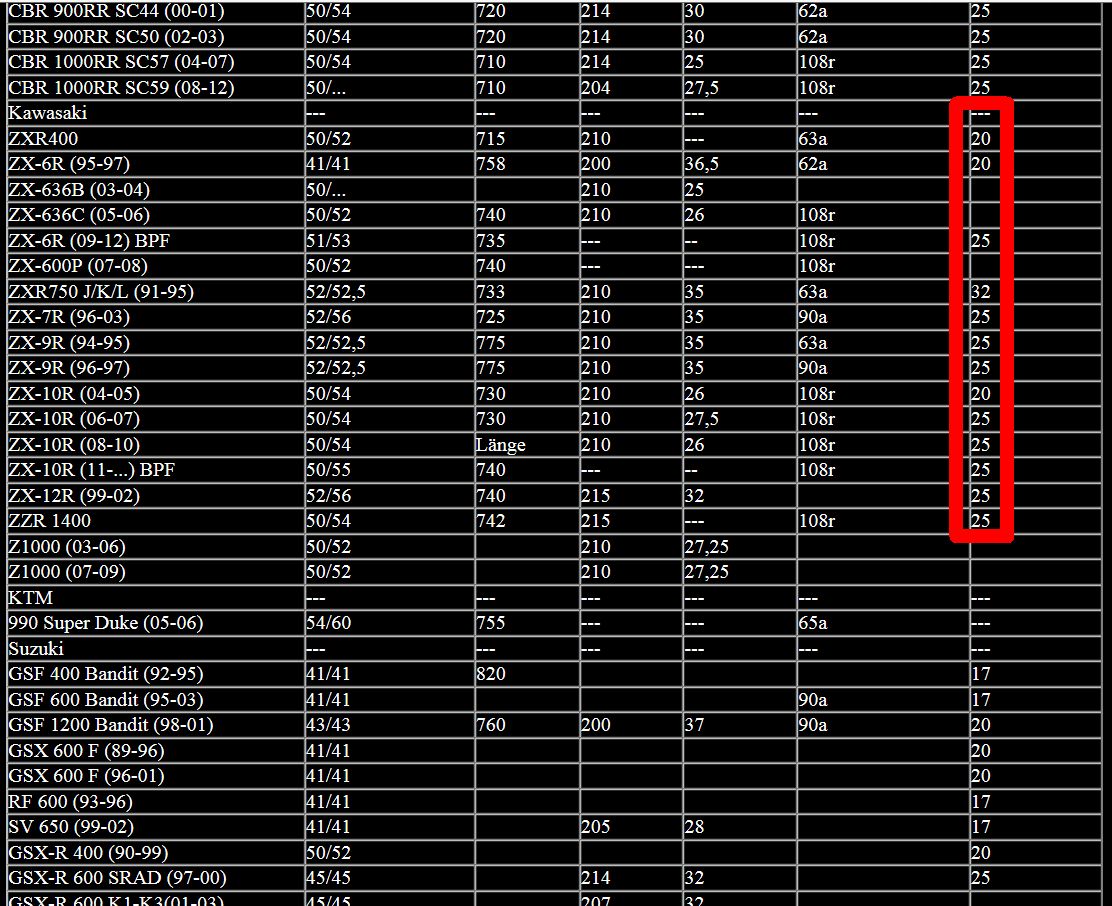

The axle Diameter for a ZX6R and ZX9R front and rear end is 25 mm

Attachments:
The following user(s) said Thank You: Mikaw

Please Log in or Create an account to join the conversation.

KZ900 - updated suspension 24 Jan 2020 13:54 #817770

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3923
  • Thank you received: 1895

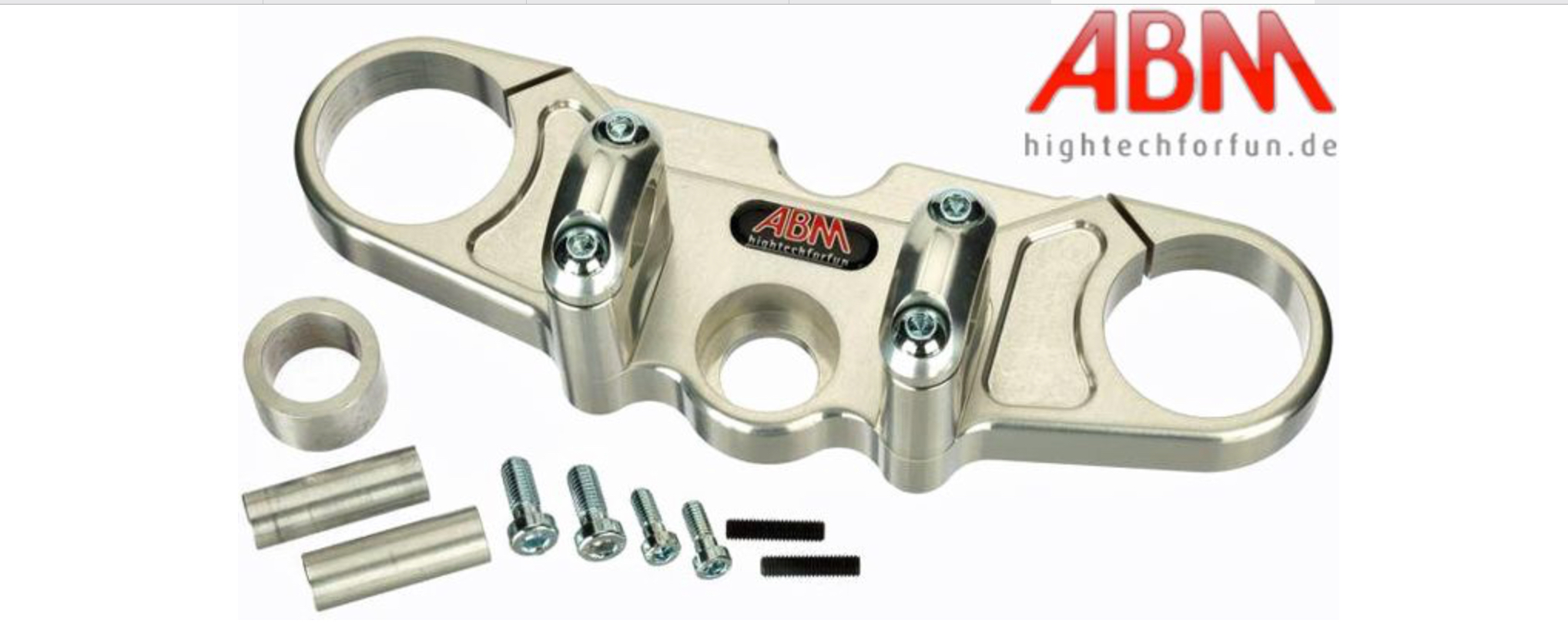

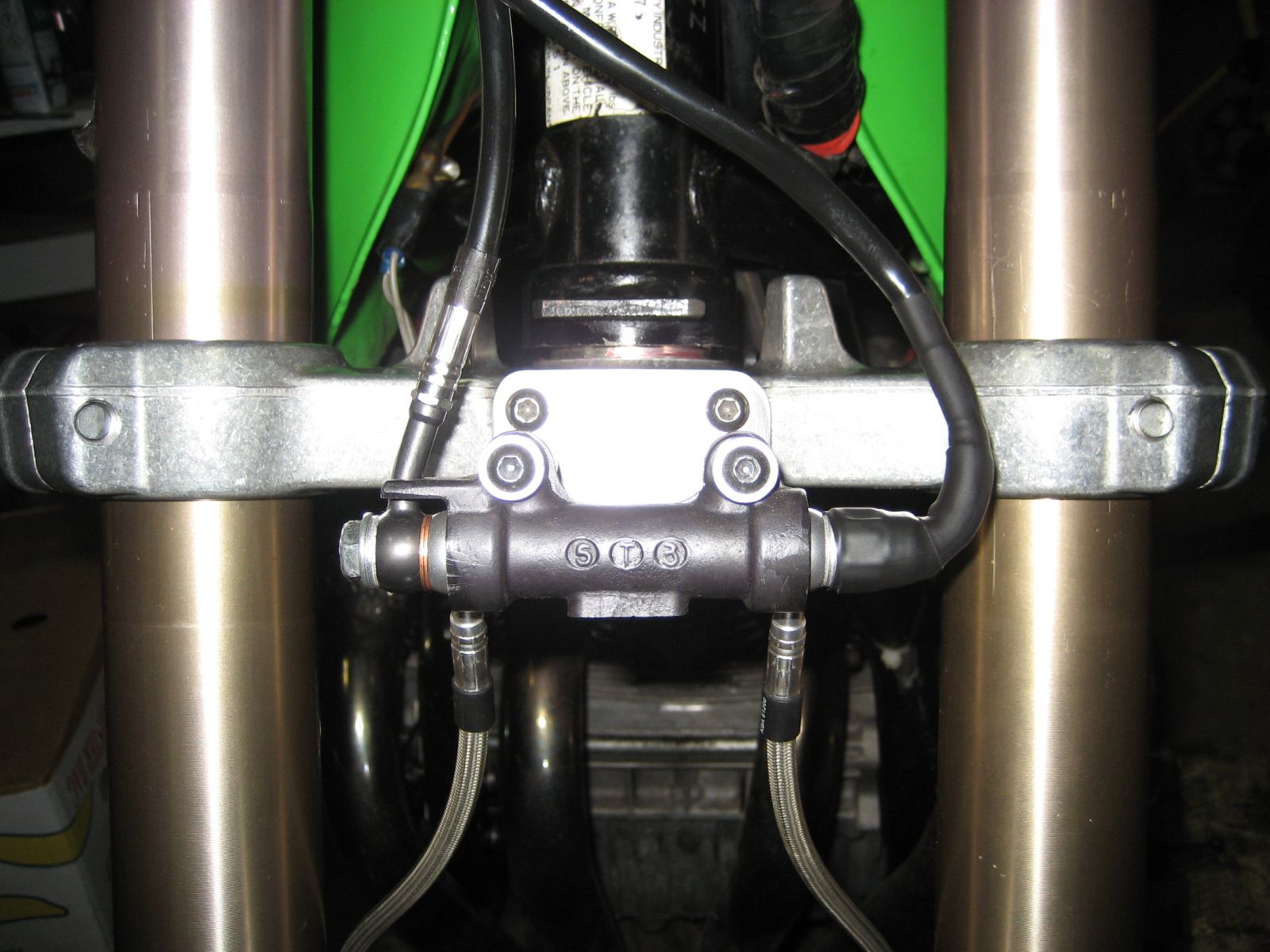

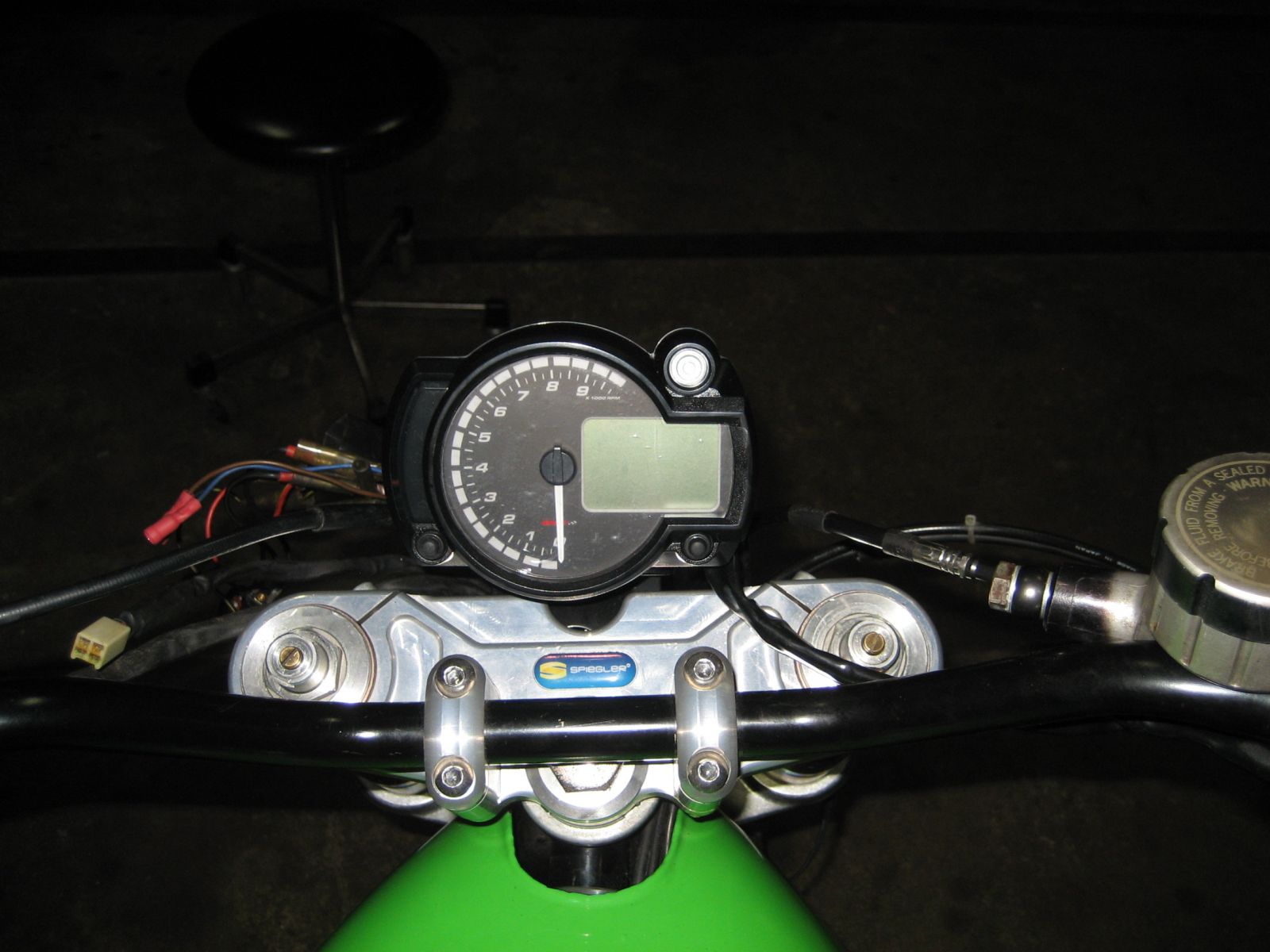

My ZX9R donor bike front end comes with an Spiegler SB upper triple yoke.

Attachments:

Please Log in or Create an account to join the conversation.

KZ900 - updated suspension 24 Jan 2020 14:00 #817771

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3923
  • Thank you received: 1895

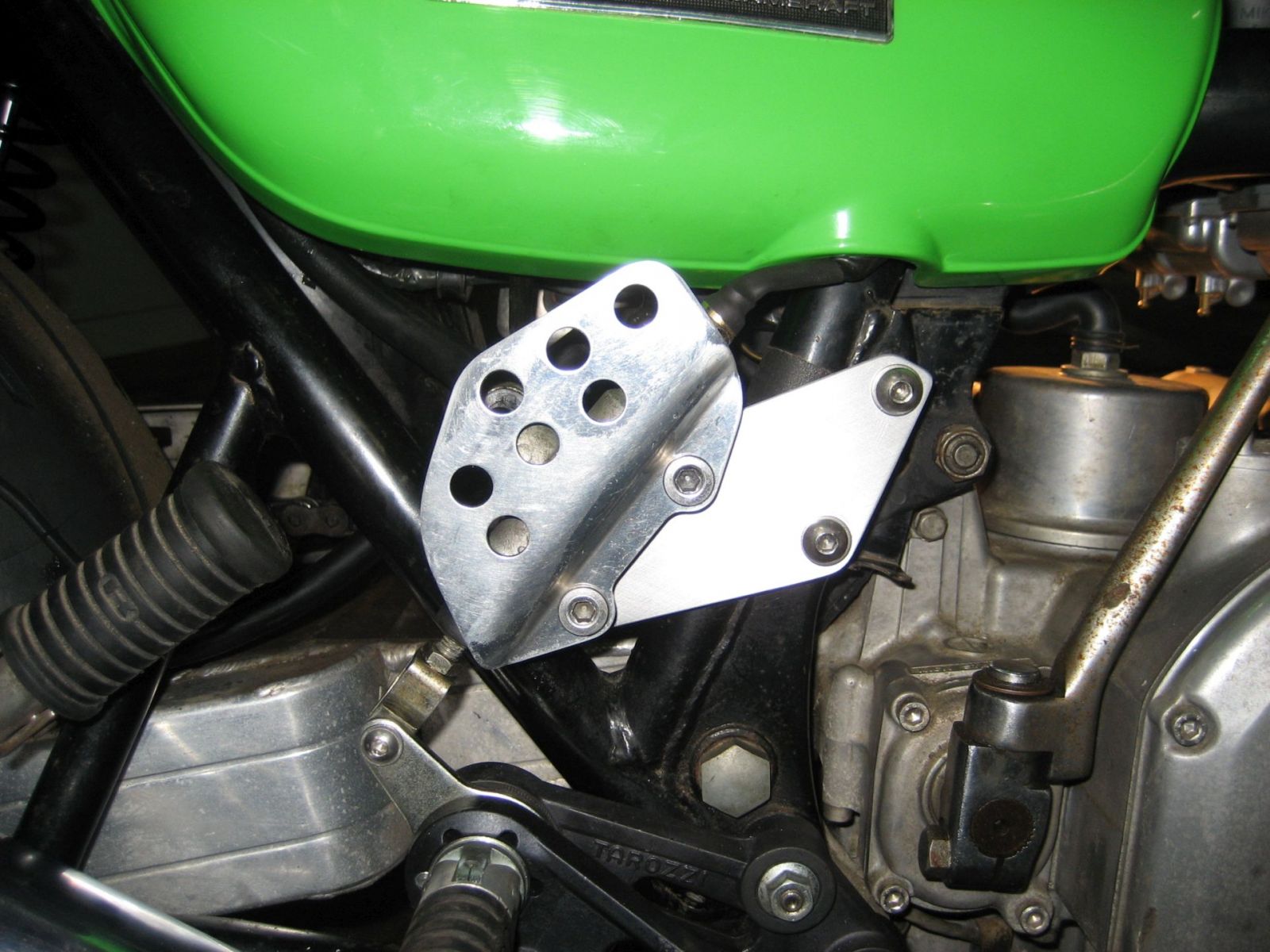

For the rear MC i made a bolt on aluminum adapter plate for my Tarozzi foot rest with a direct linkage and a hydraulic brake light Switch for the Banjo bolt.



Did the same break light Switch on the front end.

Attachments:
The following user(s) said Thank You: Mikaw

Please Log in or Create an account to join the conversation.

Last edit: by Scirocco.

KZ900 - updated suspension 24 Jan 2020 15:40 #817786

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4894
  • Thank you received: 1849
Nice work Scirocco
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

KZ900 - updated suspension 24 Jan 2020 15:43 #817788

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4894
  • Thank you received: 1849

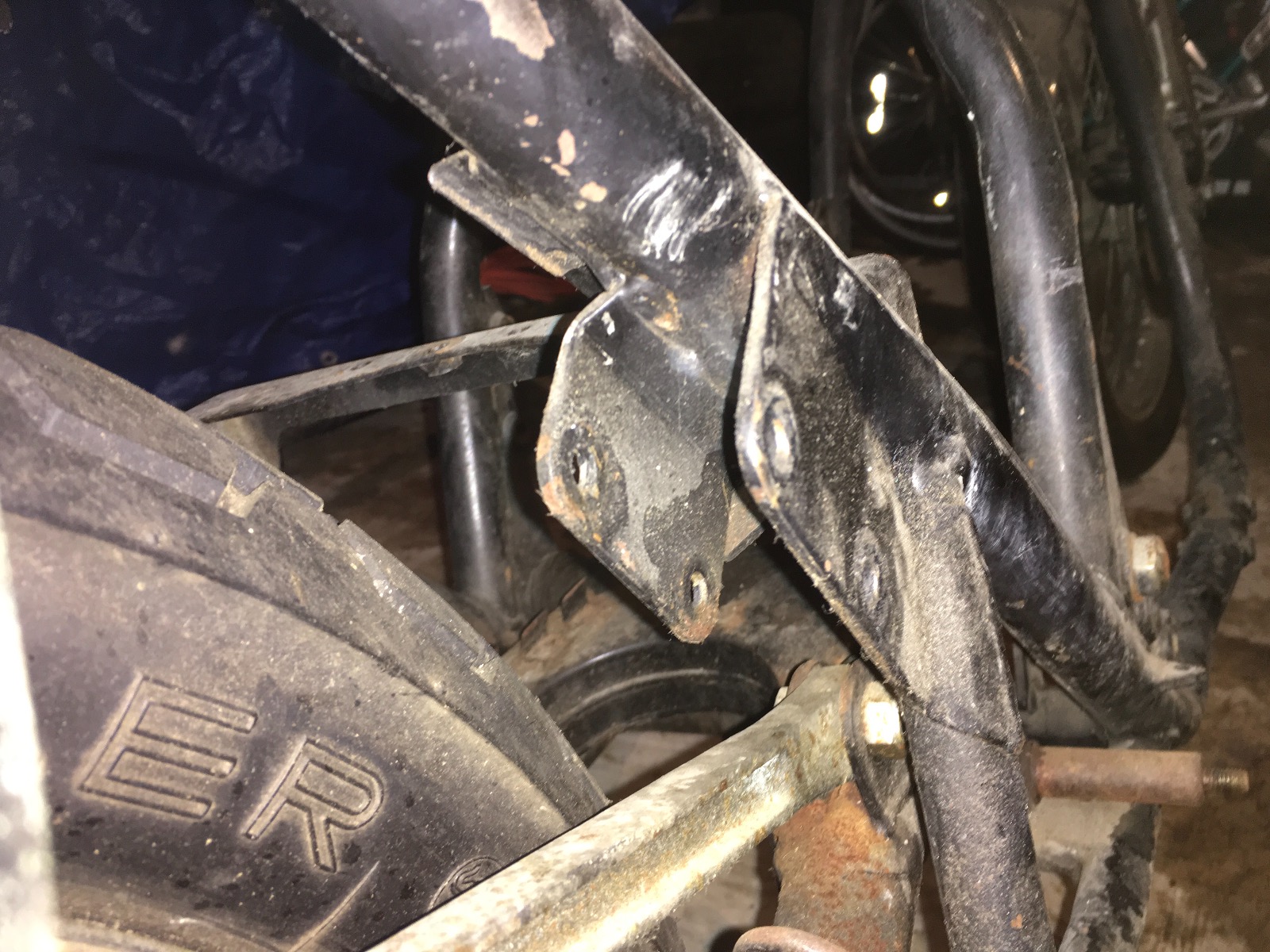

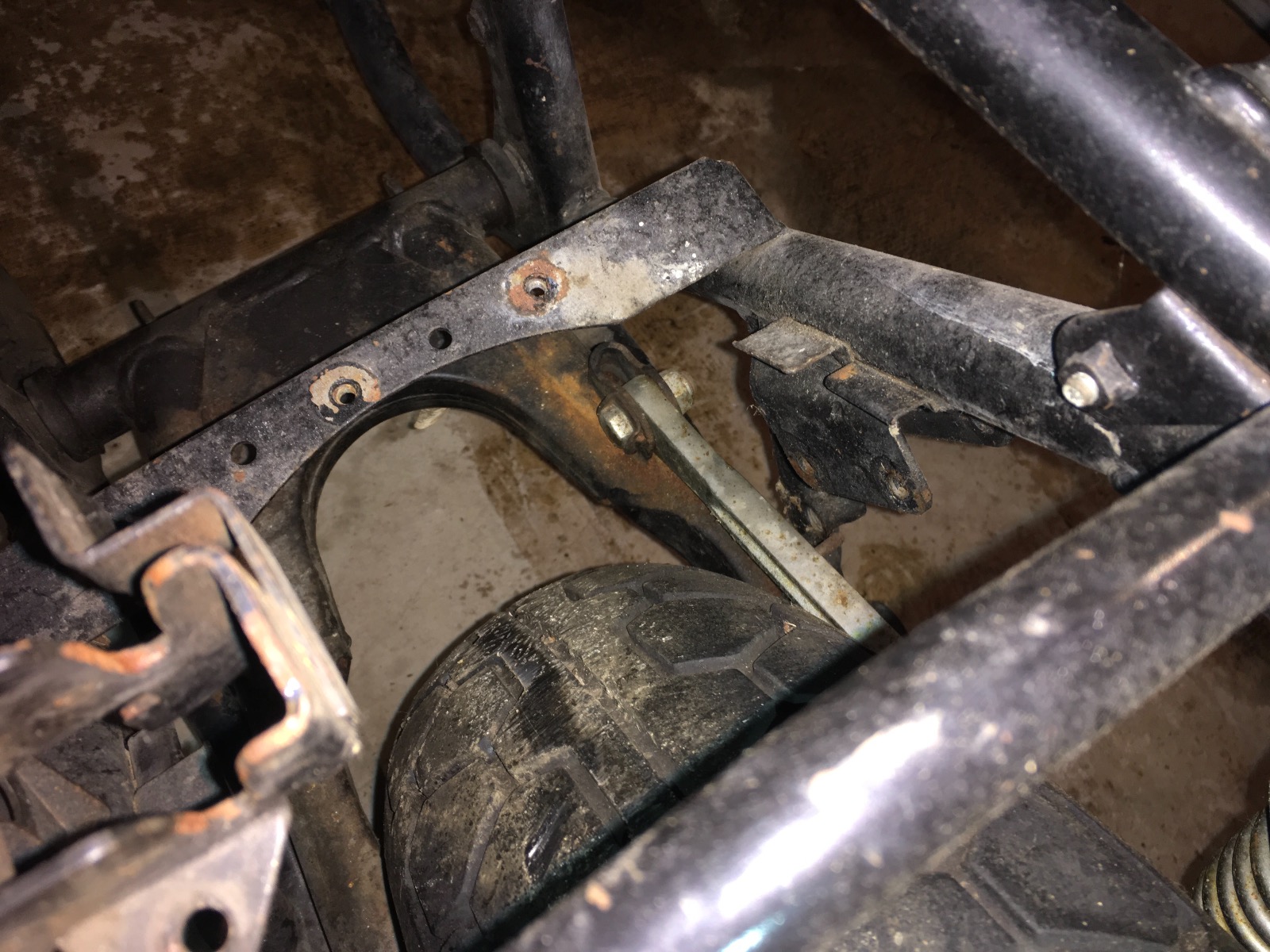

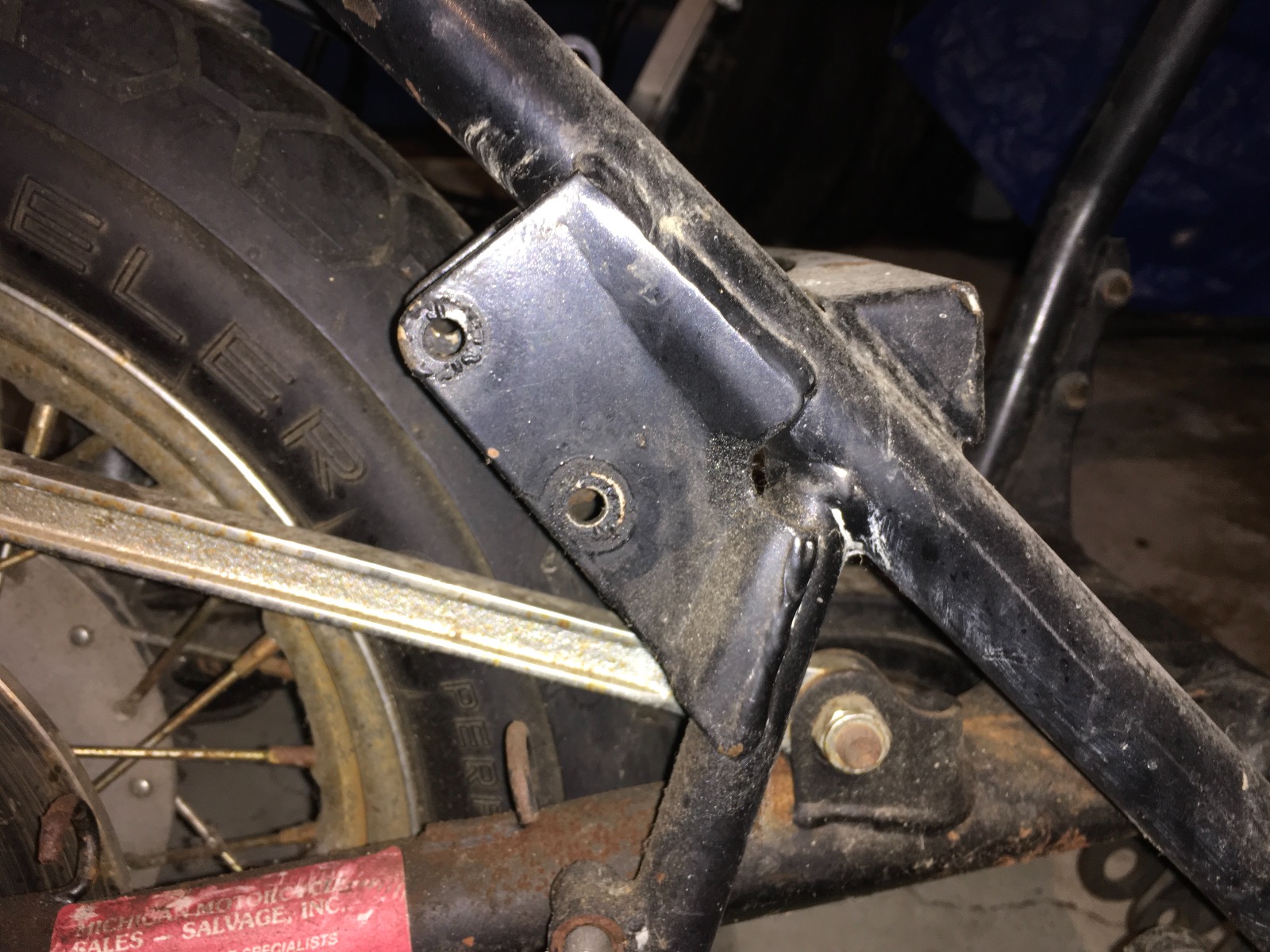

Supprised it’s just plate welded to the frame tube

1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Attachments:

Please Log in or Create an account to join the conversation.

KZ900 - updated suspension 24 Jan 2020 15:48 #817791

  • Dr. Gamma
  • Dr. Gamma's Avatar
  • Offline
  • Sustaining Member
  • Posts: 1221
  • Thank you received: 664

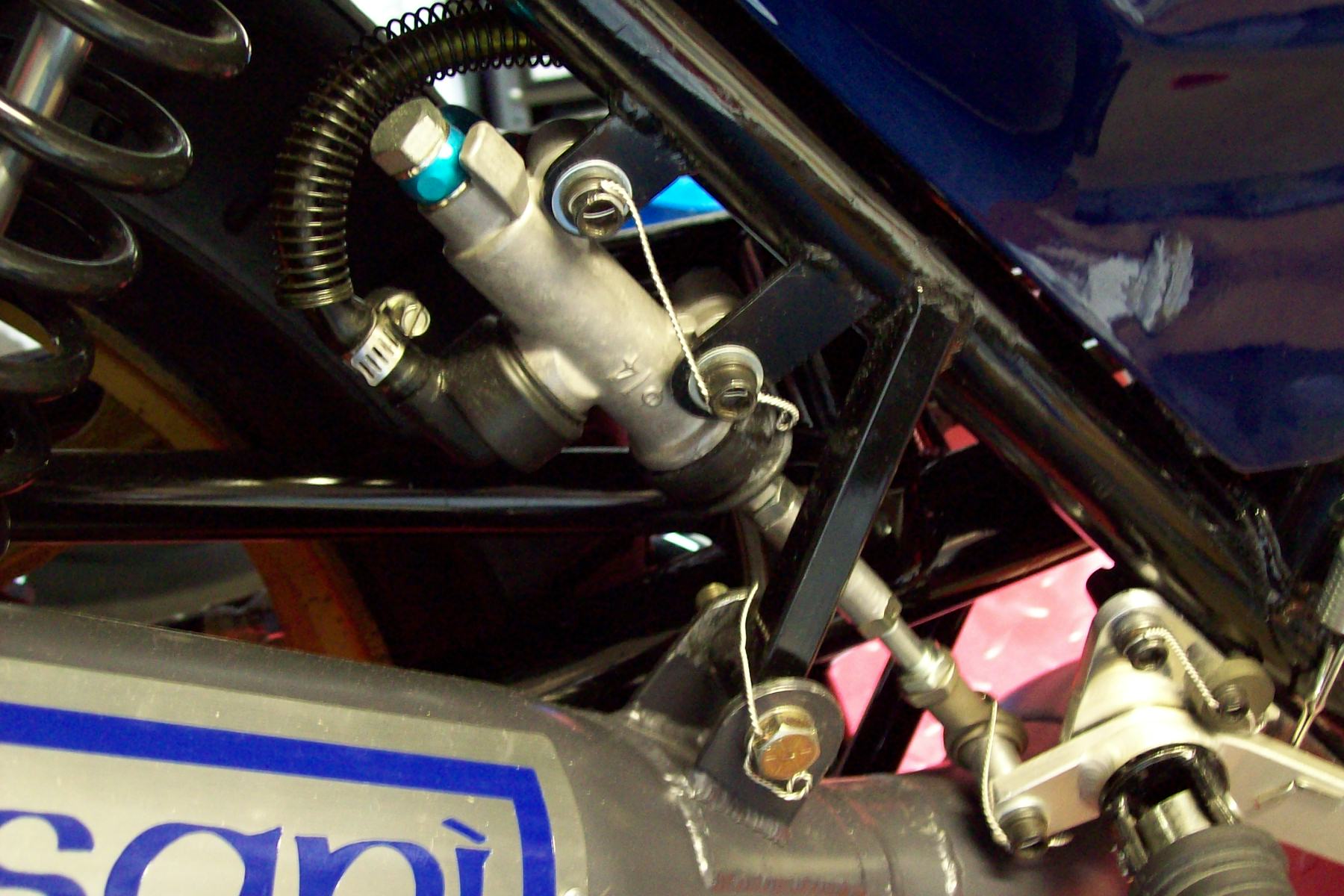

Your brake linkage is real close to the setup I use on my Kz1000.

There are a few master cylinders out there that you can just weld two simple flat brackets to the frame tube to mount them. I like plain and simple ways of doing things myself!!!

I mounted the reservoir for the master cylinder to the side of my battery box under the side cover.
1972 H2 750 Cafe Racer built in 1974.
1976 KH400 Production Road Racer.
1979 Kz1000 MK. II Old AMA/WERA Superbike.
1986 RG500G 2 stroke terror.
1986 GSXR750RG The one with the clutch that rattles!

Up in the hills near Prescott, Az.
Attachments:

Please Log in or Create an account to join the conversation.

KZ900 - updated suspension 26 Jan 2020 06:44 #817935

  • Bama704
  • Bama704's Avatar Topic Author
  • Offline
  • User
  • Posts: 202
  • Thank you received: 28
Thanks for those pics of the master, will have to do some mock ups.

For my issue with the chain hitting the tire a member on another forum suggested my hub could be incorrect and after looking at partzilla I do have the incorrect hub. Gotta love buying secondary. New and correct hub being sent via ebay and should arrive Friday. Hoping to know more after that, but will for sure have to buy another new rear sprocket.
1977 KZ900
Carbs are late model 1975 28mm

Please Log in or Create an account to join the conversation.

KZ900 - updated suspension 26 Jan 2020 07:30 #817938

  • Bulletkz
  • Bulletkz's Avatar
  • Offline
  • Sustaining Member
  • Posts: 125
  • Thank you received: 18

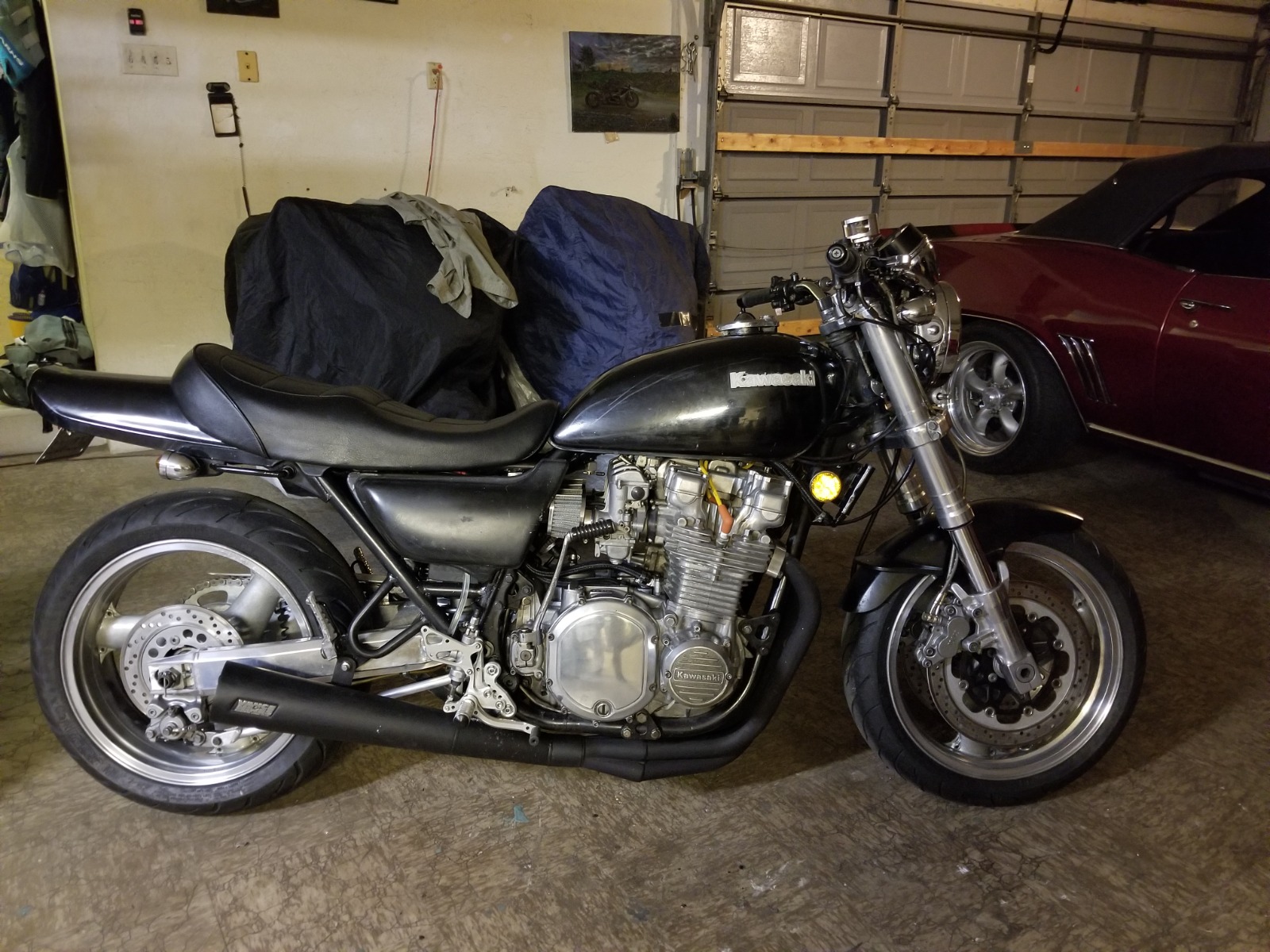

I used a gsxr aftermarket rearsets they have a mount for the master.
I used a brake light switch bolt.
For the handlebar mounts I just bought a set of stock Kawasaki bar clamps and used them on the bottom and bolted though the upper tree.
For the stainless brake hose I found used triumph 675 naked lines and a zx10 rear.
Attachments:

Please Log in or Create an account to join the conversation.

KZ900 - updated suspension 28 Jan 2020 00:43 #818072

  • Kidkawie
  • Kidkawie's Avatar
  • Offline
  • User
  • I bleed premix
  • Posts: 1919
  • Thank you received: 245
Is the GS swingarm longer than stock? Does it allow for a wider tire?
1975 Z1 900
1994 KX250 Supermoto
2004 KX125
