TOPIC: Z/KZ 1000 mk 3

Z/KZ 1000 mk 3 30 Sep 2019 14:47 #811537

  • deano68
  • deano68's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 34
  • Thank you received: 0

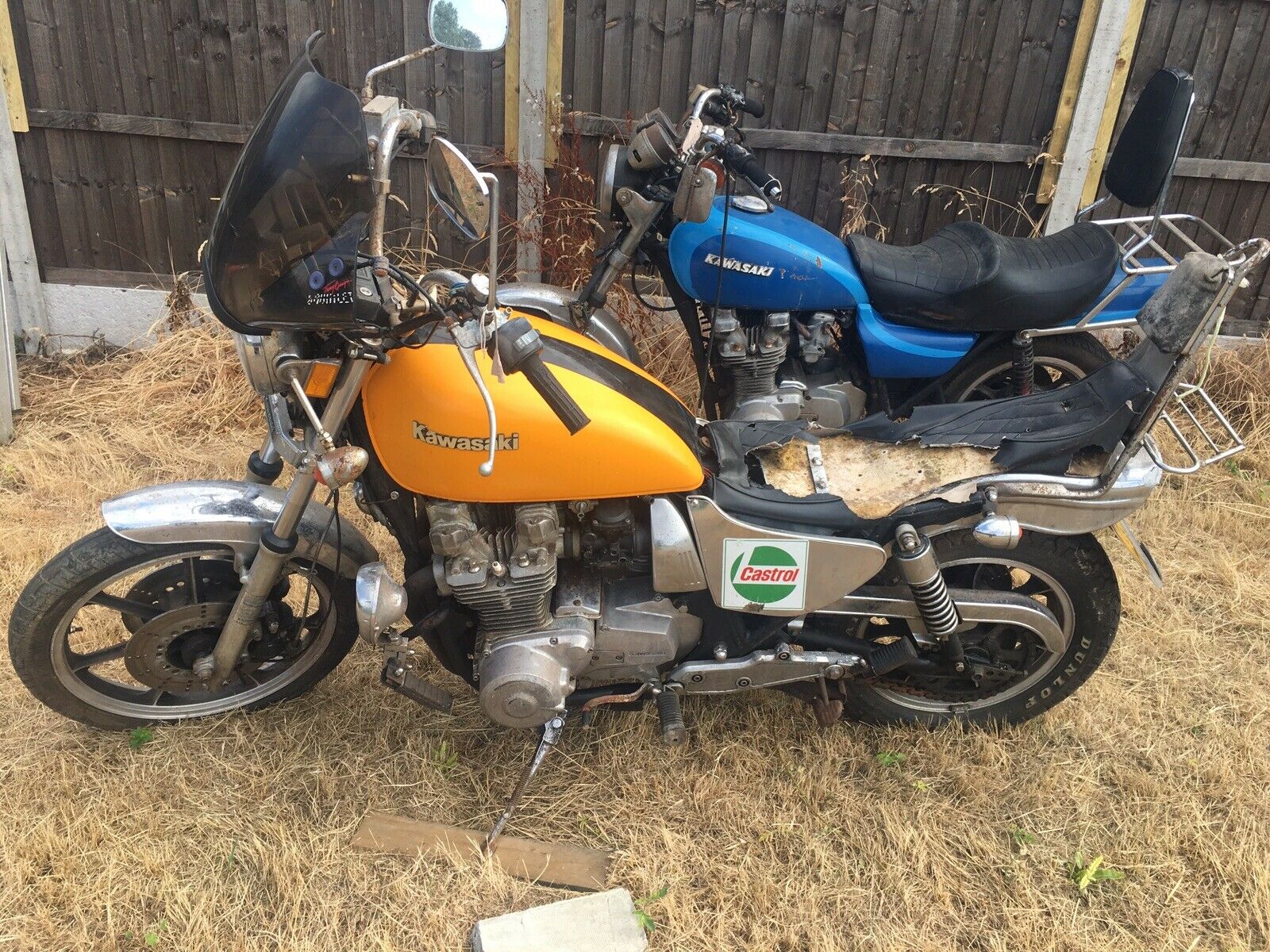

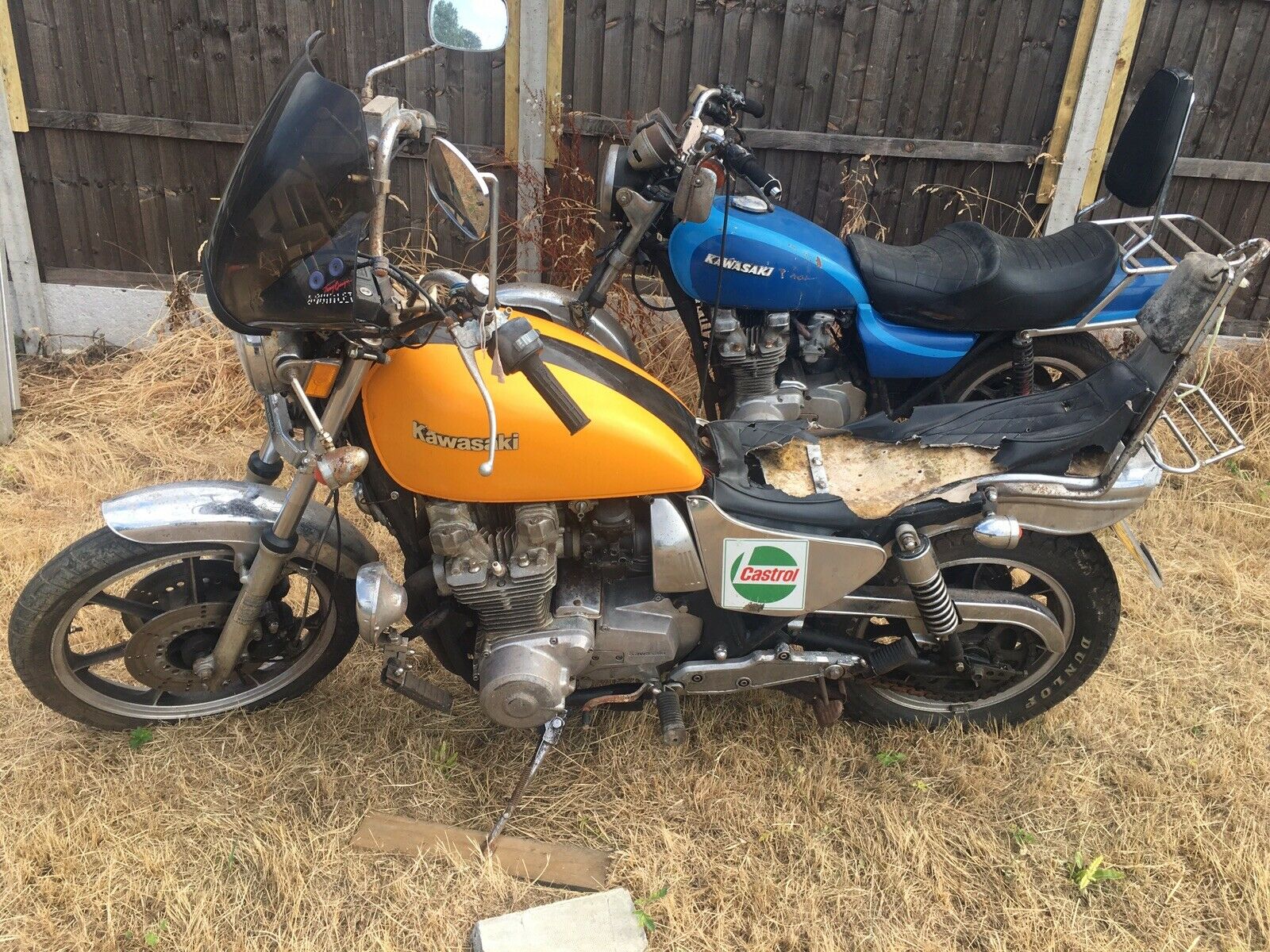

hello after posting about ST fuel tank fitting to CSR frame i thought id better put a post in the projects section about my alleged cunning plan! the bike was purchased via ebay a couple of weeks ago along with the 1000 LTD in the back ground it has been of the road since 1995 but seems to have been kept dry ish. the rats and mice have had a good chew on the wiring and the airbox but other than that its not too bad, the engine turns at least! the plan is to make a MK 3 Z1000 thingy . the running gear will be KZ1000 P, wheels , clocks etc. maybe some rearsets to get rid of the horrid standard foot peg mounts. the plan is to use as much kawasaki bits as possible. first pic shows bike as advertised. some body spent a lot of time making parts from stainless including the side panels!!!! the sissy bar and seat have gone in the skip as have the bars and highway pegs. heres some pics
76 KZ 400
78 KZ 650
82 Z 750(4)
80 KZ1000 ltd project
82 CSR 1000 work in progress

Please Log in or Create an account to join the conversation.

Z/KZ 1000 mk 3 30 Sep 2019 14:52 #811538

  • deano68
  • deano68's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 34
  • Thank you received: 0
tank fitted without too many issues. coil bracket had to be cut and bent and bit of hammer work on the inside to clear the frame rails. i need to fab up a rear tank mount and redo the front rubber mounts. the fork legs clear by about 6mm, so only just
76 KZ 400
78 KZ 650
82 Z 750(4)
80 KZ1000 ltd project
82 CSR 1000 work in progress
Attachments:

Please Log in or Create an account to join the conversation.

Z/KZ 1000 mk 3 30 Sep 2019 15:06 #811539

  • deano68
  • deano68's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 34
  • Thank you received: 0
hopefully a better pic this time i had a read of how to post a picture!!
76 KZ 400
78 KZ 650
82 Z 750(4)
80 KZ1000 ltd project
82 CSR 1000 work in progress
Attachments:

Please Log in or Create an account to join the conversation.

Z/KZ 1000 mk 3 06 Oct 2019 08:23 #811919

  • deano68
  • deano68's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 34
  • Thank you received: 0

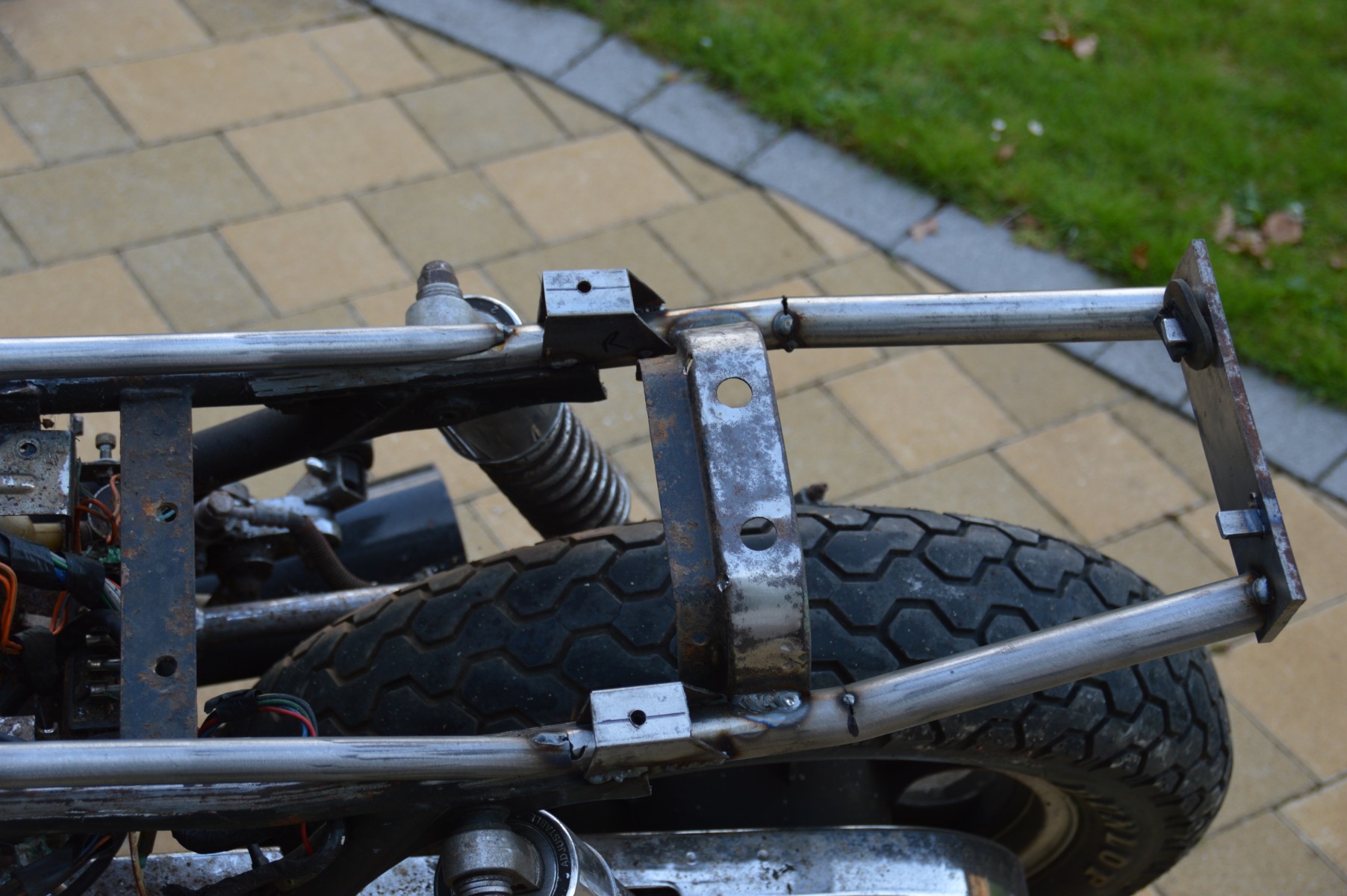

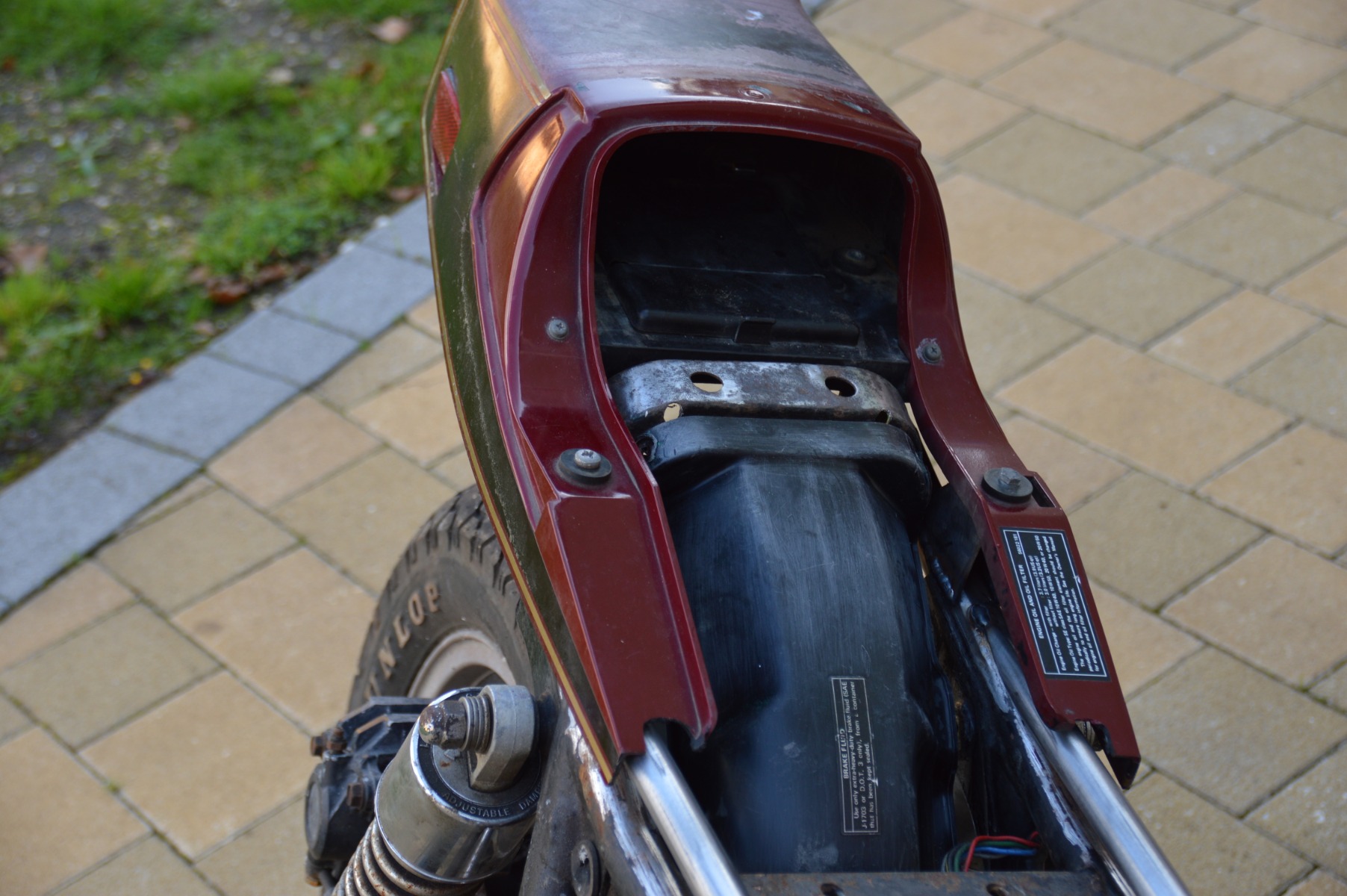

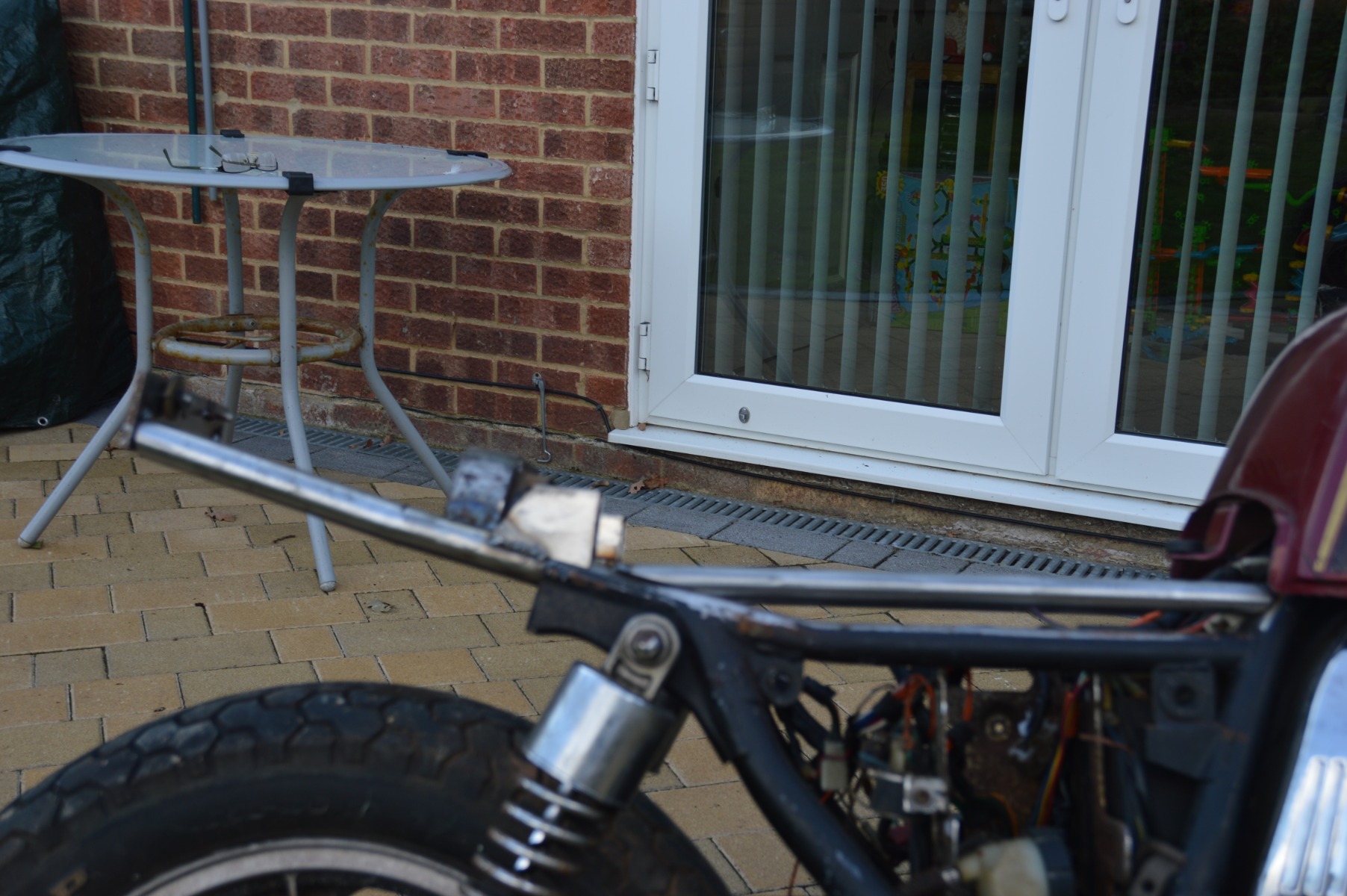

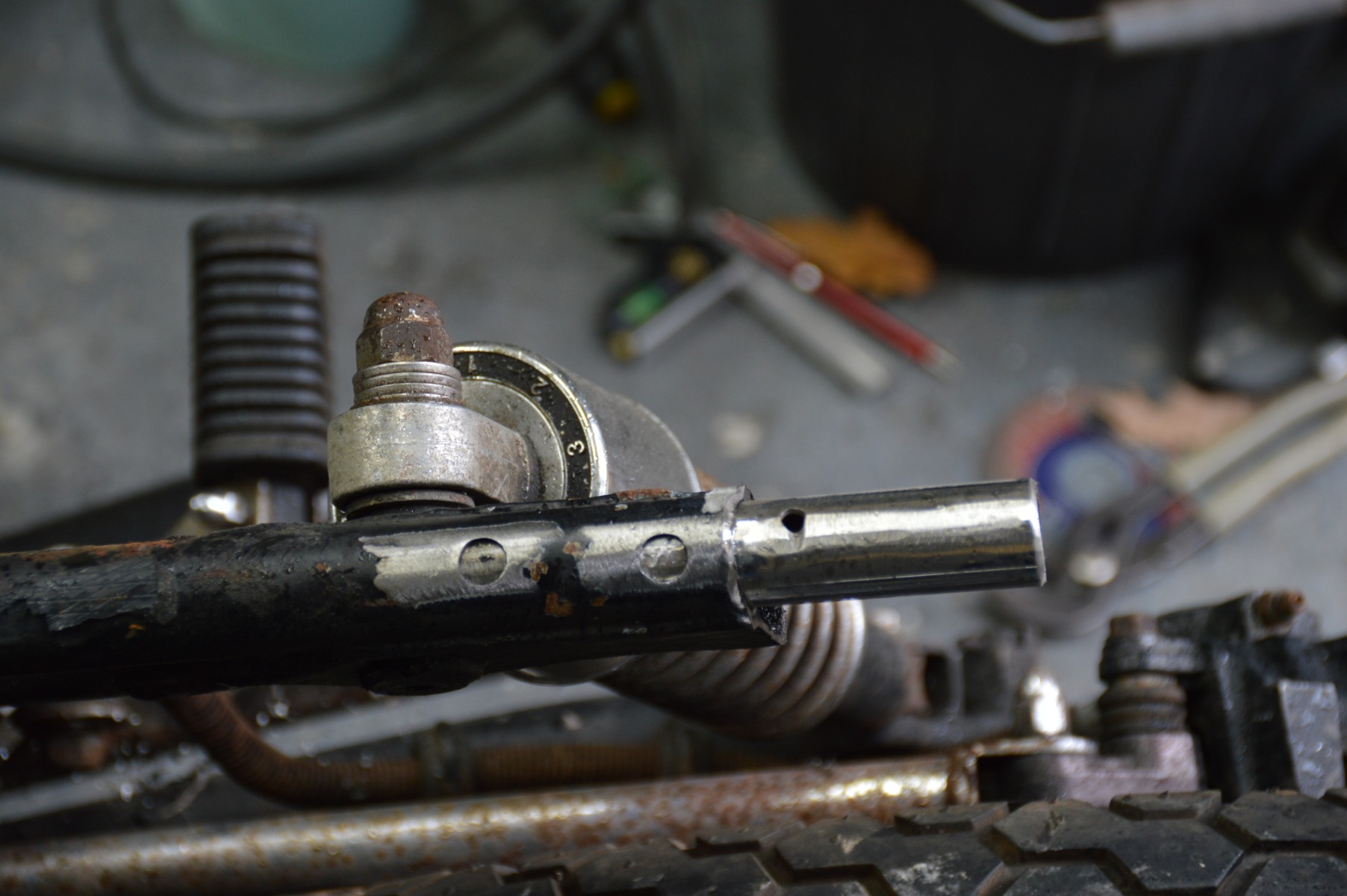

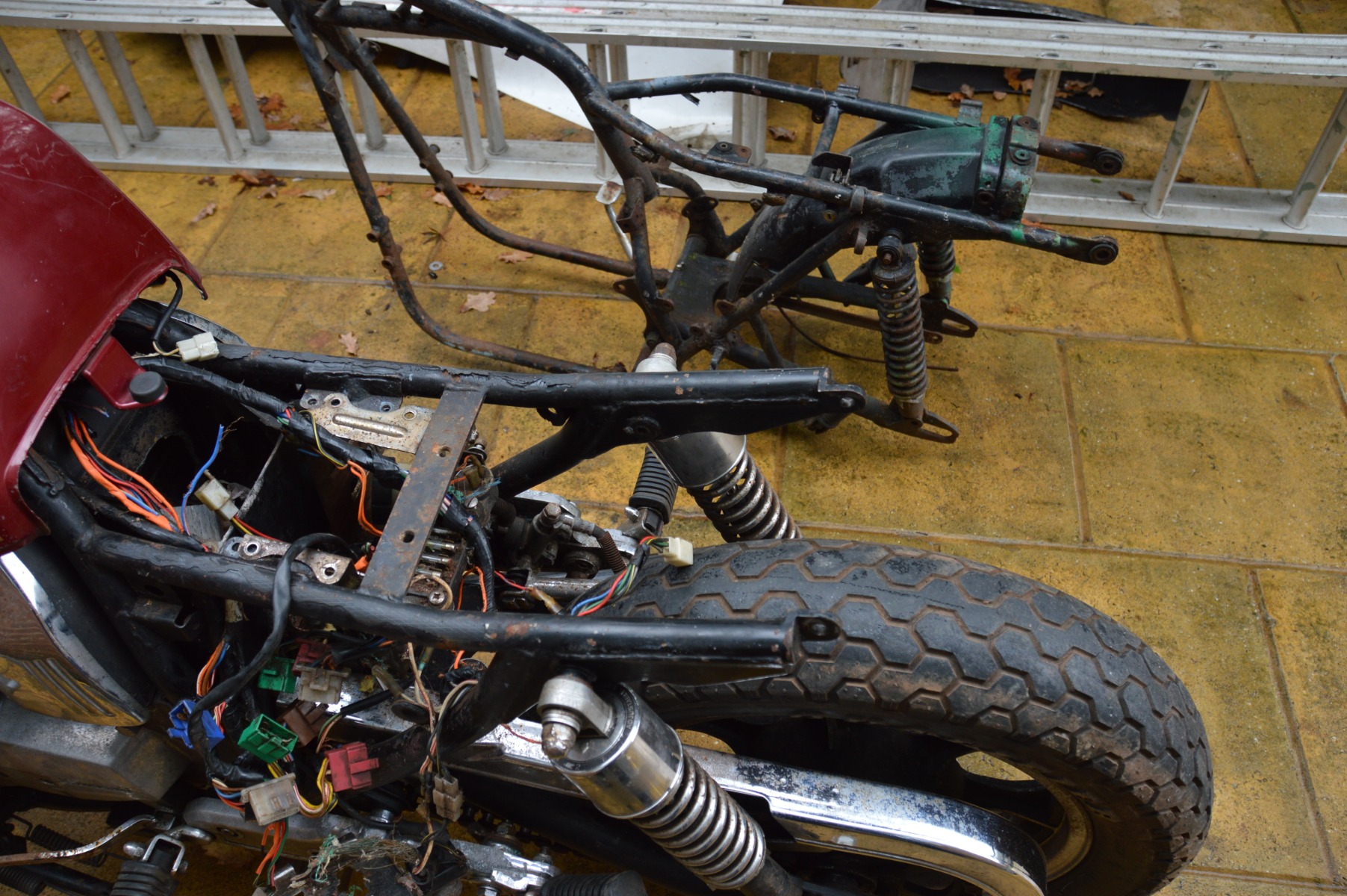

busy weekend getting the rear end back together after a PO cut it off. im sure the handling was great due to the lack of shock brace! work supplied a table for the frame tubing which was the perfect size inside and out,two chair legs for the seat riser tubing and a KZ 400 frame gave up the brace and inner rear mudguard
76 KZ 400
78 KZ 650
82 Z 750(4)
80 KZ1000 ltd project
82 CSR 1000 work in progress

Please Log in or Create an account to join the conversation.

Z/KZ 1000 mk 3 10 Oct 2019 14:10 #812192

  • 531blackbanshee
  • 531blackbanshee's Avatar
  • Offline
  • Vendor
  • Vendor
  • Posts: 7438
  • Thank you received: 787
interesting project keep us posted.

leon
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!

billybiltit.blogspot.com/

www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work

kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0

Please Log in or Create an account to join the conversation.

Z/KZ 1000 mk 3 11 Oct 2019 08:48 #812249

  • deano68
  • deano68's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 34
  • Thank you received: 0
thanks, i was beginning to think it wasnt!!! more updates to come ive been a busy boy
76 KZ 400
78 KZ 650
82 Z 750(4)
80 KZ1000 ltd project
82 CSR 1000 work in progress

Please Log in or Create an account to join the conversation.

Z/KZ 1000 mk 3 17 Oct 2019 07:47 #812585

  • deano68
  • deano68's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 34
  • Thank you received: 0

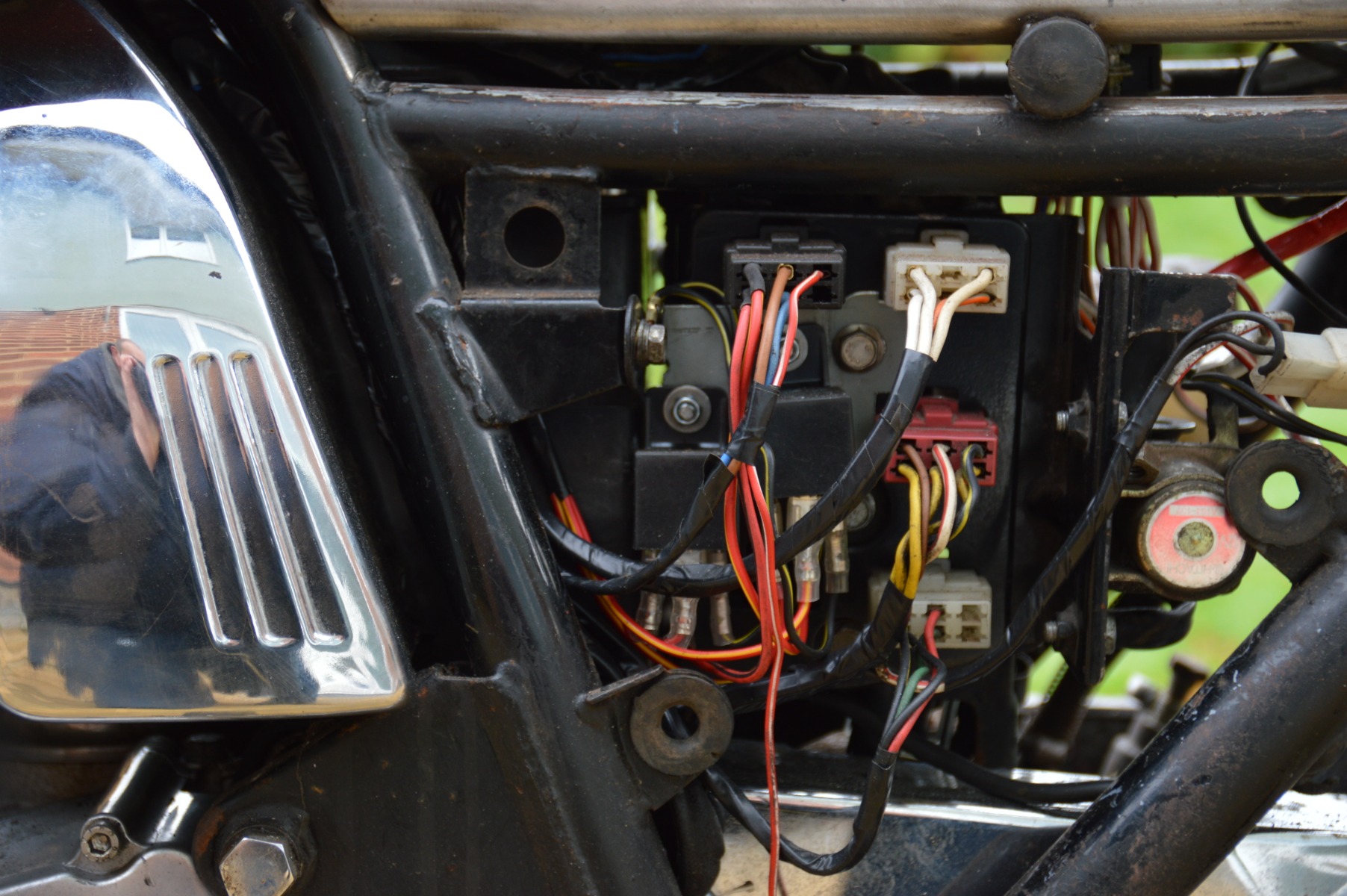

new fuse box fitted and moved up to make things a bit easier
76 KZ 400
78 KZ 650
82 Z 750(4)
80 KZ1000 ltd project
82 CSR 1000 work in progress
Attachments:

Please Log in or Create an account to join the conversation.

Z/KZ 1000 mk 3 17 Oct 2019 07:51 #812587

  • deano68
  • deano68's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 34
  • Thank you received: 0

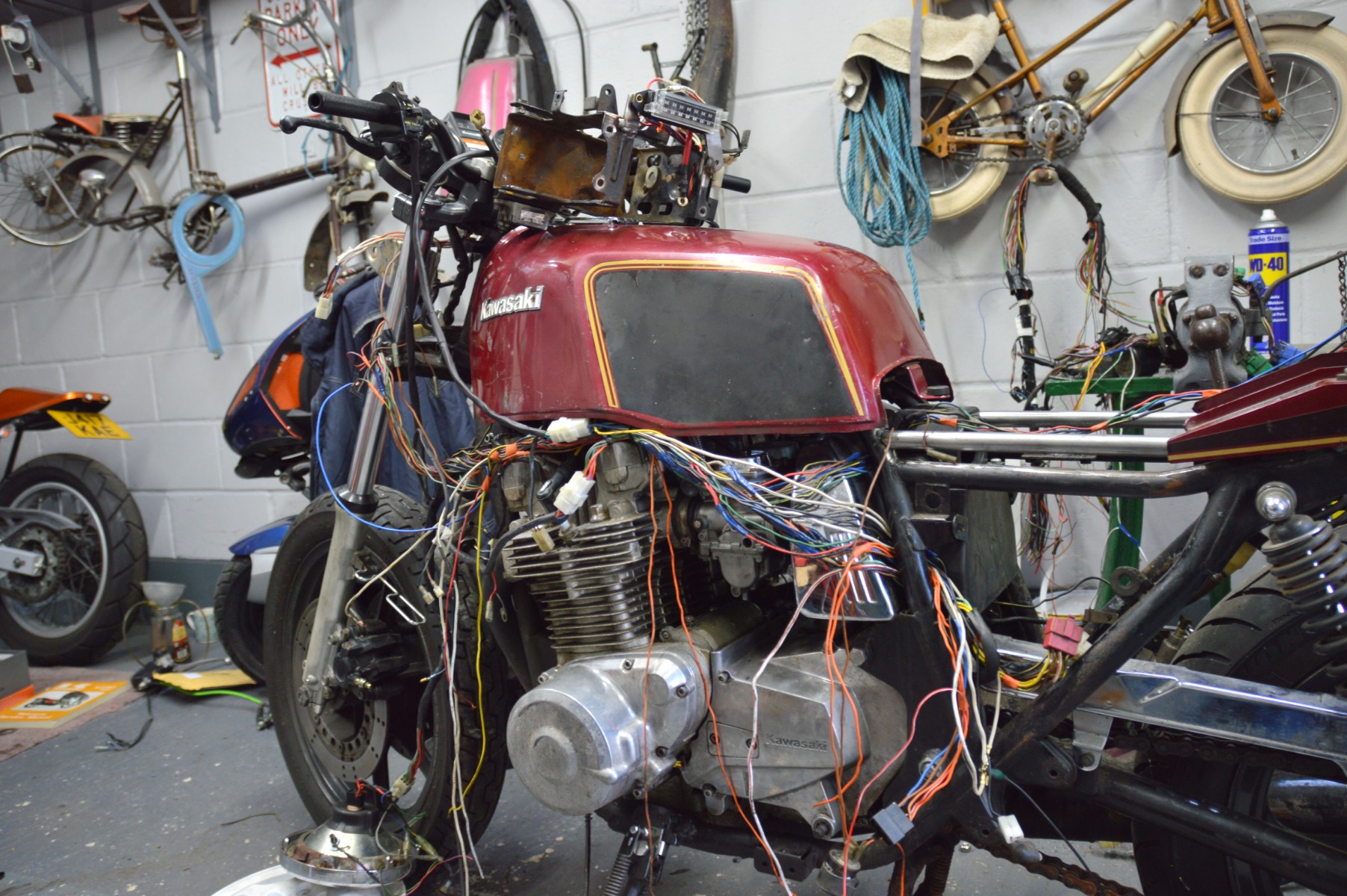

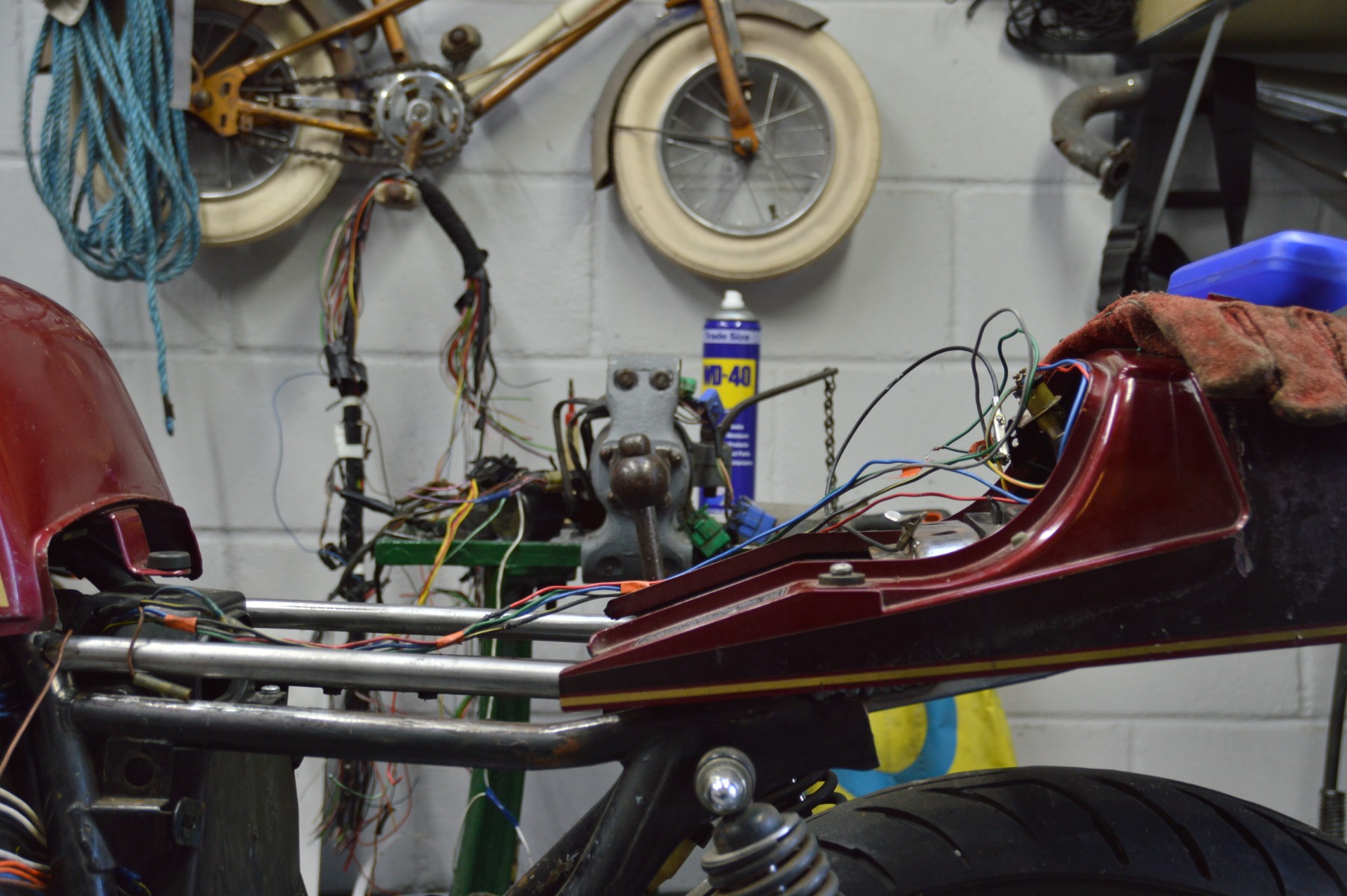

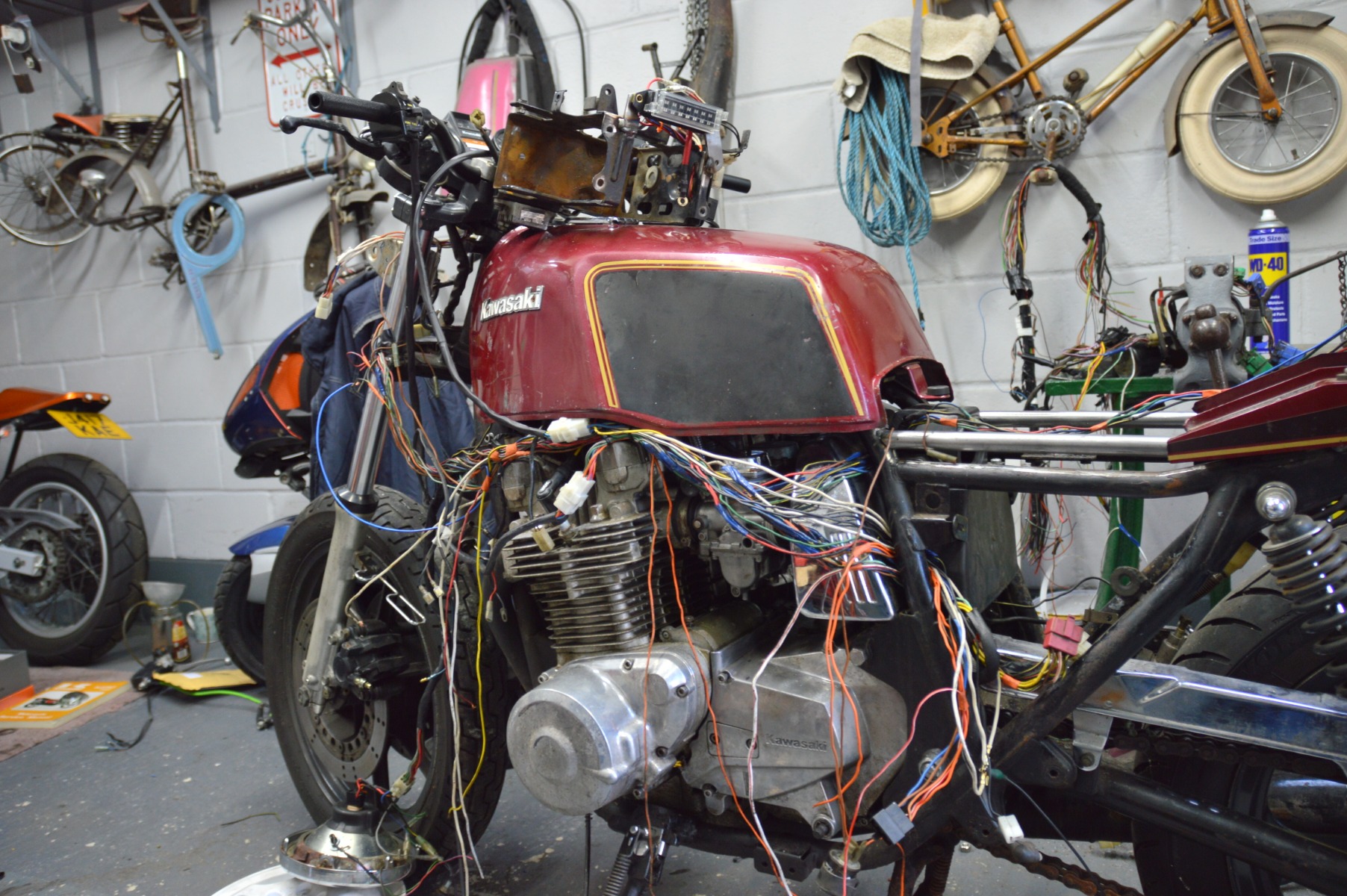

only a bit more spagetti to sort out !! newish switches on the way from an ER6 . two relays to wire in for the high/low lighting i should be able to use a larger bulb for the lights
76 KZ 400
78 KZ 650
82 Z 750(4)
80 KZ1000 ltd project
82 CSR 1000 work in progress
Attachments:

Please Log in or Create an account to join the conversation.

Z/KZ 1000 mk 3 26 Oct 2019 11:31 #813070

  • deano68
  • deano68's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 34
  • Thank you received: 0

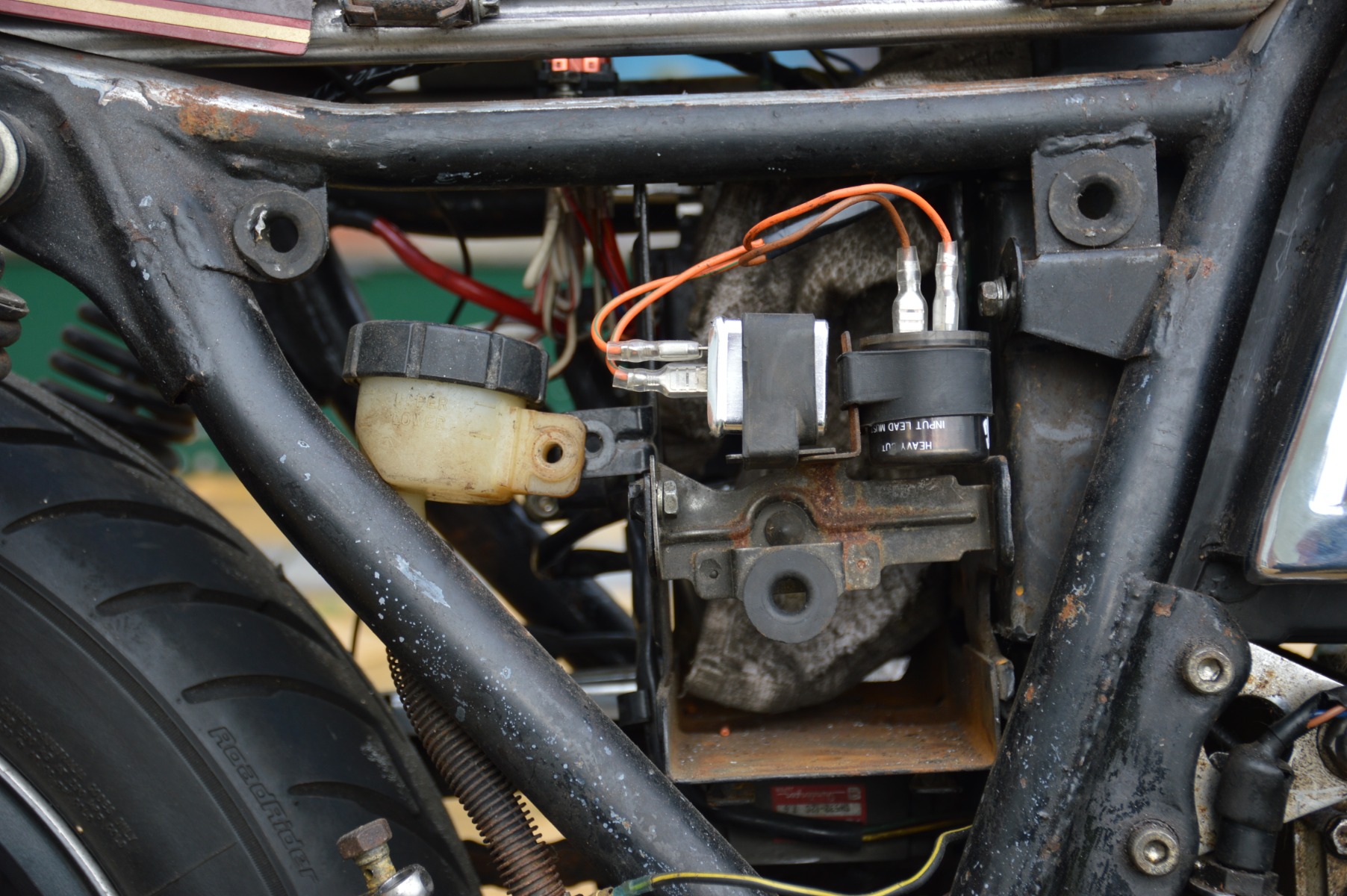

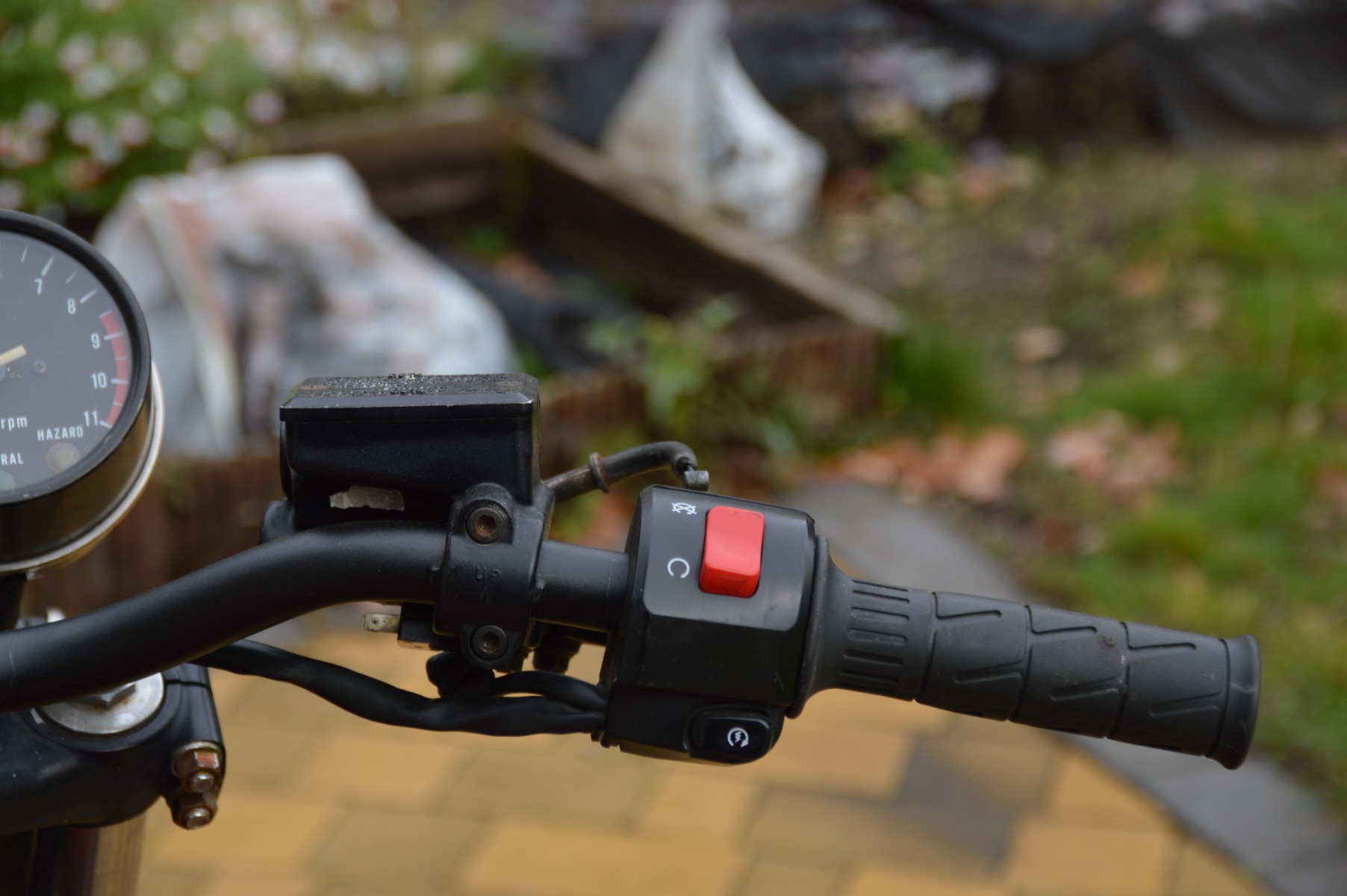

electrics finished, got rid of safety devices and light bulb fail unit thing. two relays added for high/low beam it even got hazzard light which is new for me on a motorbike. swiches are from ER 650 luckily it seems kawasaki havnt changed wire colours so they were not too bad to wire
76 KZ 400
78 KZ 650
82 Z 750(4)
80 KZ1000 ltd project
82 CSR 1000 work in progress
Attachments:

Please Log in or Create an account to join the conversation.

Z/KZ 1000 mk 3 26 Oct 2019 11:49 #813071

  • perrykz1000
  • perrykz1000's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Have a safe day !!
  • Posts: 132
  • Thank you received: 29
Great work. I used the ATC type fuses too. Much , much better system.

Please Log in or Create an account to join the conversation.

Z/KZ 1000 mk 3 26 Oct 2019 12:16 #813074

  • DoctoRot
  • DoctoRot's Avatar
  • Offline
  • Member
  • Member
  • Oh, the usual... I bowl, I drive around...
  • Posts: 1952
  • Thank you received: 344
already so much better. Im not a fan of the CSR styling personally. keep on keeping on.
-Vic
_________________________________
'78 kz1000 LTD long term project

'80 kz750G project

Please Log in or Create an account to join the conversation.

Z/KZ 1000 mk 3 02 Nov 2019 11:10 #813446

  • deano68
  • deano68's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 34
  • Thank you received: 0

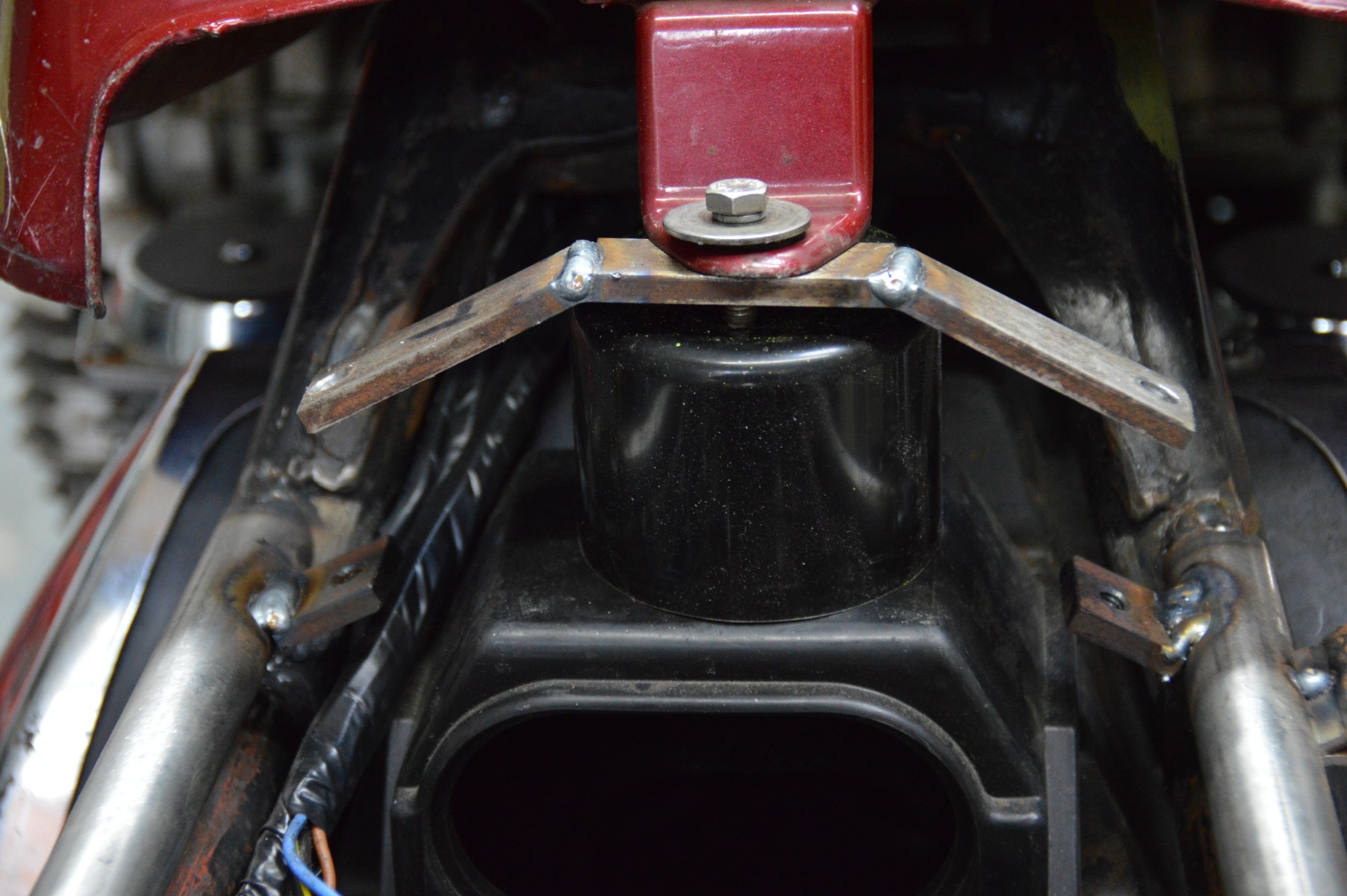

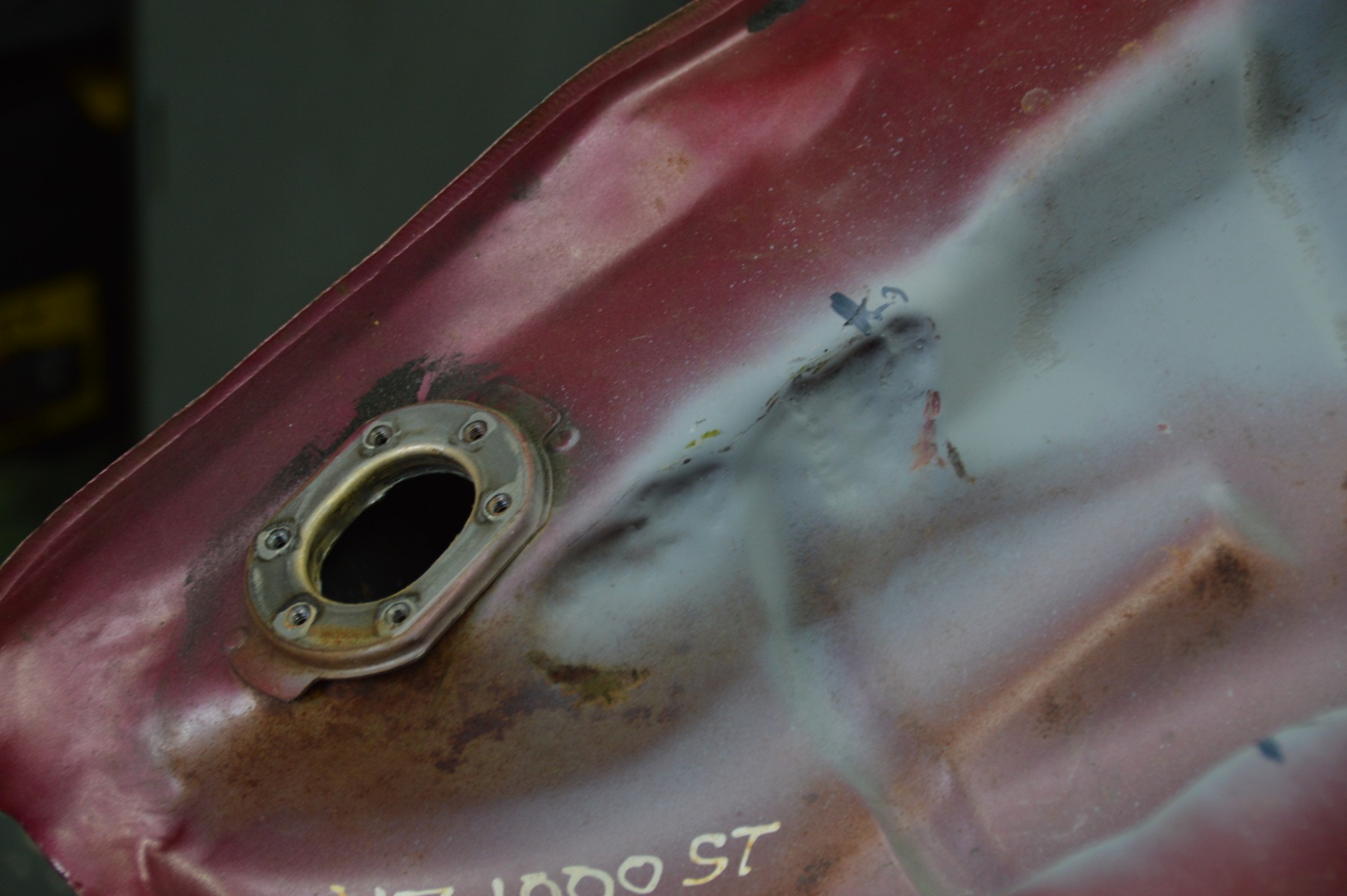

tank fitted without too much trouble and works with the CSR forks and triples and also KZ 1000p forks and triples. a bit of bashing on the inside to clear frame rail at the rear im going to be using the standard airbox so had to make something up for the rear that could unbolt
76 KZ 400
78 KZ 650
82 Z 750(4)
80 KZ1000 ltd project
82 CSR 1000 work in progress

Please Log in or Create an account to join the conversation.

Z/KZ 1000 mk 3 02 Nov 2019 11:11 #813447

  • deano68
  • deano68's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 34
  • Thank you received: 0
forgot this one
76 KZ 400
78 KZ 650
82 Z 750(4)
80 KZ1000 ltd project
82 CSR 1000 work in progress
Attachments:

Please Log in or Create an account to join the conversation.

Z/KZ 1000 mk 3 02 Nov 2019 11:18 #813448

  • deano68
  • deano68's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 34
  • Thank you received: 0

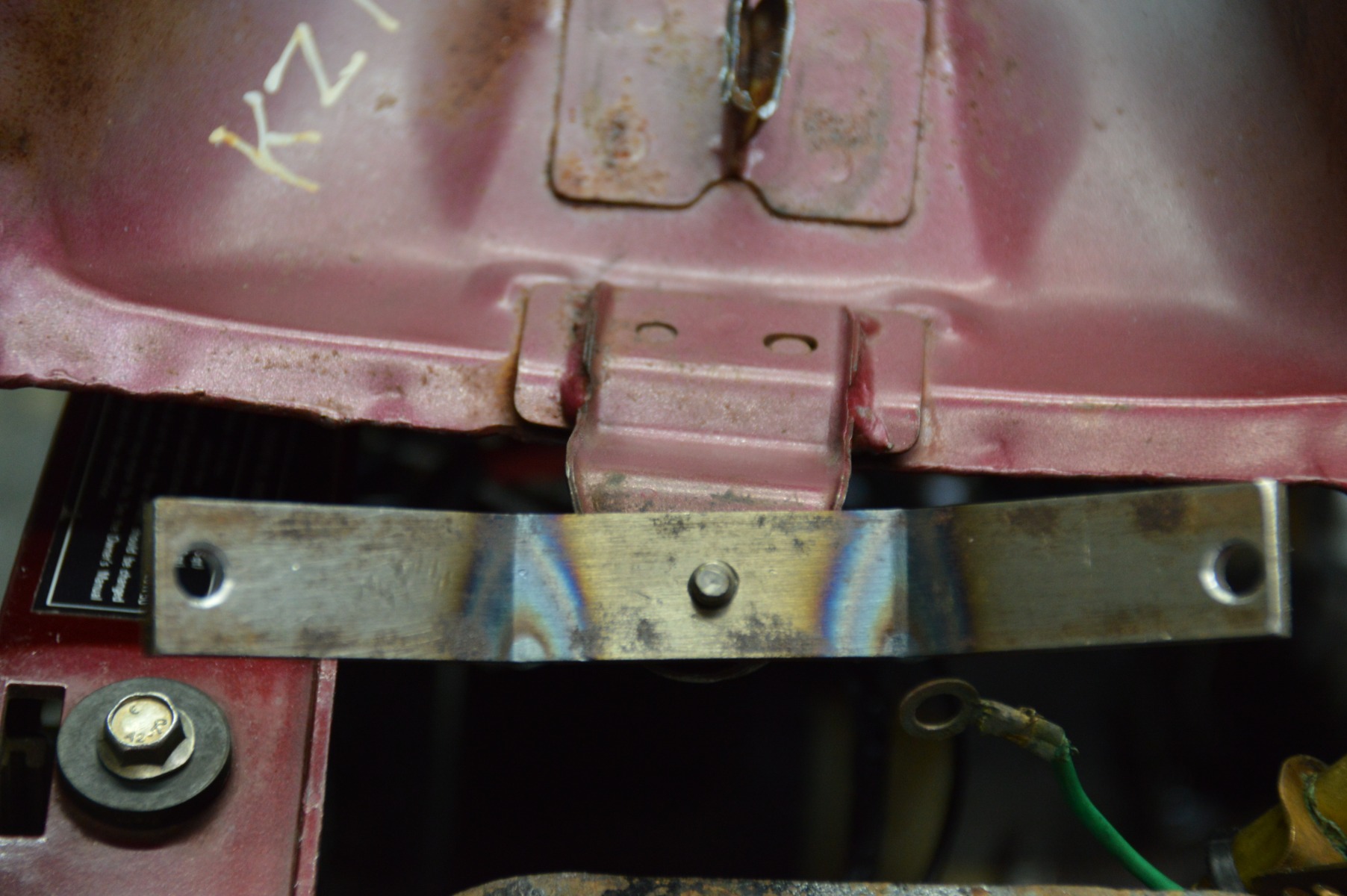

got my thick head on !! more of the same. front mounting pin again not too much of an issue coil mounting brackets also needed cutting and bending in to clear inner tank the coil fixing plates were also bent to get the coils back in the correct place
76 KZ 400
78 KZ 650
82 Z 750(4)
80 KZ1000 ltd project
82 CSR 1000 work in progress
Attachments:

Please Log in or Create an account to join the conversation.

Z/KZ 1000 mk 3 15 Nov 2019 06:39 #814019

  • deano68
  • deano68's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 34
  • Thank you received: 0
seat pan is nearly finished not sure weather to body work it and have a seat made to fit in it or to have the whole thing upholstered. dont worry nt going cafe style seat my arse likes a bit of comfort these days!!! hinges came from the kz400 frame and seat road signs seem to be perfect for seat bases! 5mm craft foam worked fine to make a former to place the fibre glass onto seat was made over size so i could cut it down later seat before cutting down to size
76 KZ 400
78 KZ 650
82 Z 750(4)
80 KZ1000 ltd project
82 CSR 1000 work in progress

Please Log in or Create an account to join the conversation.

Z/KZ 1000 mk 3 15 Nov 2019 08:13 #814023

  • baldy110
  • baldy110's Avatar
  • Offline
  • Member
  • Member
  • Posts: 2177
  • Thank you received: 444
I like projects like this. Keep the pics coming.

Please Log in or Create an account to join the conversation.

Z/KZ 1000 mk 3 16 Nov 2019 06:28 #814057

  • deano68
  • deano68's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 34
  • Thank you received: 0
another small victory today. indicators fitted. 02-06 Z1000 after buying cheap chinese indicators that only work when they feel like it or you have to bang them to come on OEM was a better choice! it would seem that kawasaki wanted indicators fitted in the reflector slots as they bring them nice and square
76 KZ 400
78 KZ 650
82 Z 750(4)
80 KZ1000 ltd project
82 CSR 1000 work in progress
Attachments:

Please Log in or Create an account to join the conversation.

Z/KZ 1000 mk 3 25 Nov 2019 05:28 #814509

  • deano68
  • deano68's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 34
  • Thank you received: 0

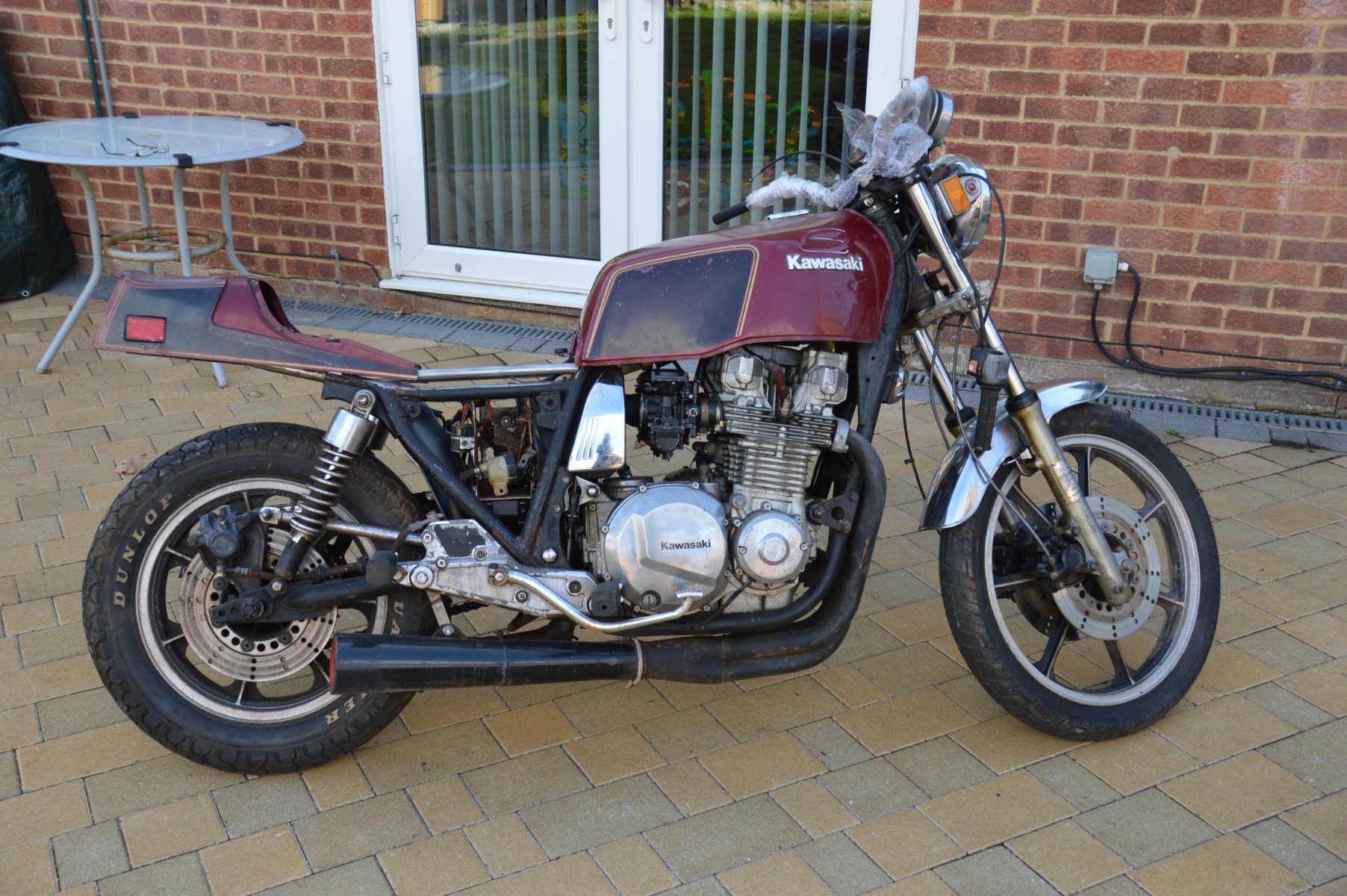

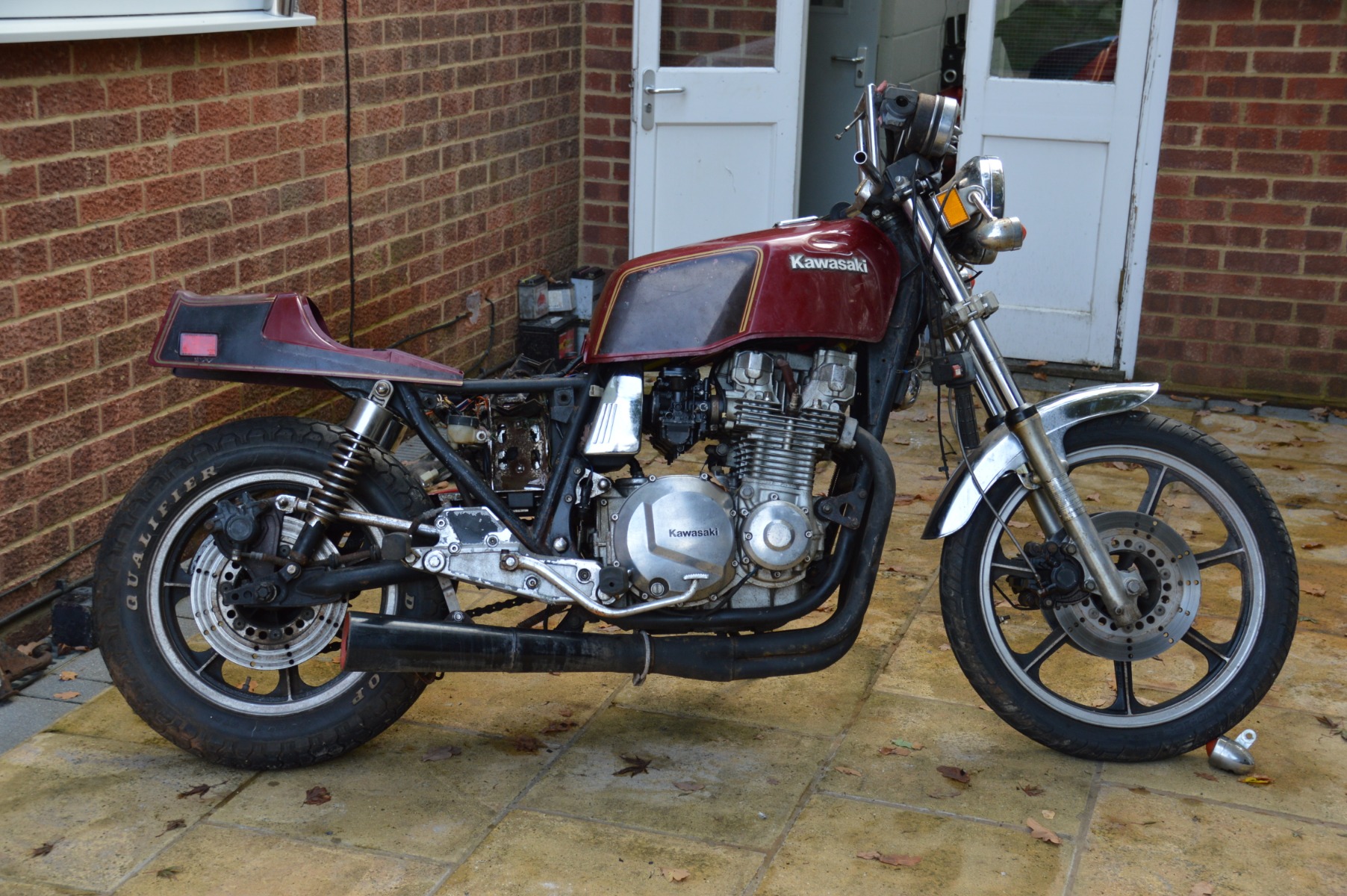

progress so far. its turned into the kawa parts bin special!! KZ 1000 police forks,clocks,wheels and swing arm. GPZ 500 front brake and clutch lever assy. 636 rearsets. ER6 switch gear and late Z1000 indicators St1000 tank and tail unit i think the front mudguard is LTD or CSR but not sure.inner rear mudguard is KZ400 and so are the seat fittings
76 KZ 400
78 KZ 650
82 Z 750(4)
80 KZ1000 ltd project
82 CSR 1000 work in progress

Please Log in or Create an account to join the conversation.

Z/KZ 1000 mk 3 30 Nov 2019 12:34 #814768

  • deano68
  • deano68's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 34
  • Thank you received: 0
after spending time making the bike look better IMO! i thought it was time to see if it runs , as far as i know it has not been used since 1995 so i was expecting a furry inside to the engine but had a nice suprise when the rocker cover came off,clean as whistle oil must have been changed before it was layed up i thought maybe the clutch would be stuck together but again all was good added fresh oil and fuel and she lives. took it for a spin gears seem good and no weird noises apart from the chain rubbing on the centre stand! once the bike is done it will be removed and only used when needed
76 KZ 400
78 KZ 650
82 Z 750(4)
80 KZ1000 ltd project
82 CSR 1000 work in progress
Attachments:

Please Log in or Create an account to join the conversation.

Z/KZ 1000 mk 3 01 Dec 2019 22:12 #814825

  • DoctoRot
  • DoctoRot's Avatar
  • Offline
  • Member
  • Member
  • Oh, the usual... I bowl, I drive around...
  • Posts: 1952
  • Thank you received: 344
nice work. i dig the stance. what are you doing for side-covers? I keep thinking a bikini fairing would look great on there.
-Vic
_________________________________
'78 kz1000 LTD long term project

'80 kz750G project

Please Log in or Create an account to join the conversation.

Last edit: by DoctoRot.
