KZ650 cafe-racer 12 Jul 2021 11:44 #851618

  • gazzz
  • gazzz's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 562
  • Thank you received: 281

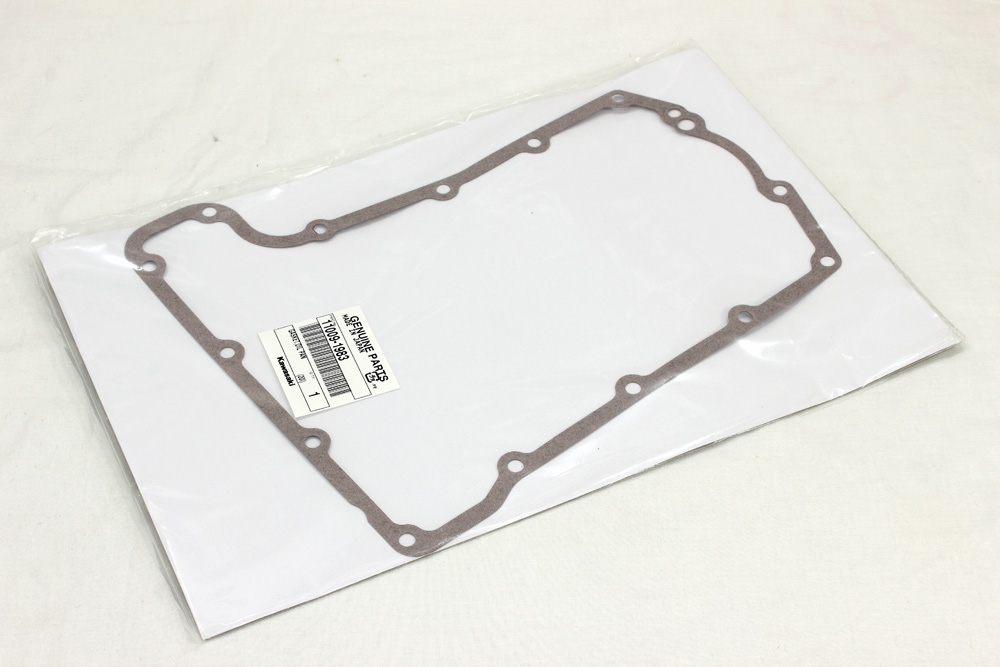

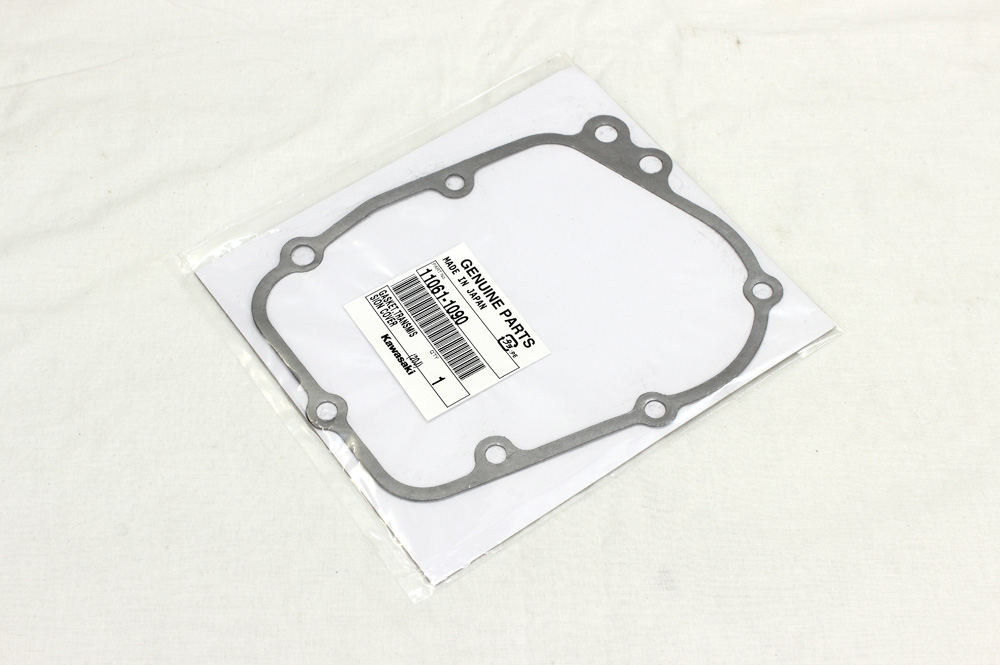

When I was checking if I have all necessary parts for the Kawasaki KZ650 engine assembling, I also checked the fitment of all aftermarket gaskets. After that I decided to buy an OEM oil pan and transmission/gearshift cover’ gaskets. Since I already have OEM cylinder head and cylinder base gaskets, this means that I am about to use aftermarket gaskets only for clutch cover, valve cover, alternator cover and ignition cover. Last two are least critical and clutch and valve covers are easy to replace. So all “significant” gaskets will be genuine/OEM.




Kawasaki KZ650 cafe-racer: in progress

Kawasaki Zephyr 750 (810ccm, 4in4, spoked wheels)
Honda CB815 "Eight Fifteen" cafe-racer
Yamaha XJ "Eight Ball" cafe-racer

www.gazzz-garage.com
Attachments:
The following user(s) said Thank You: ghostdive

Please Log in or Create an account to join the conversation.

KZ650 cafe-racer 12 Jul 2021 12:47 #851619

  • ghostdive
  • ghostdive's Avatar
  • Away
  • User
  • Posts: 400
  • Thank you received: 117
Smart to check - I didn't when I rebuilt my 305 engine, and most of the gaskets fit poorly. Fortunately the critical areas (base, cylinder head) were okay.
1982 KZ750 Spectre - 6 speed swap, BS34s, 18" rear wheel

2001 ZX-6R
The following user(s) said Thank You: gazzz

Please Log in or Create an account to join the conversation.

KZ650 cafe-racer 12 Jul 2021 13:07 #851620

  • gazzz
  • gazzz's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 562
  • Thank you received: 281
Thanks.

Lets continue.

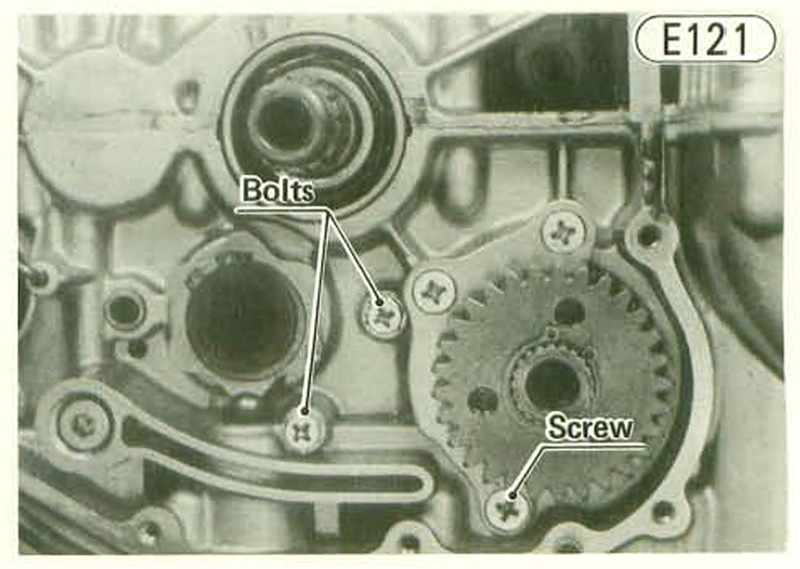

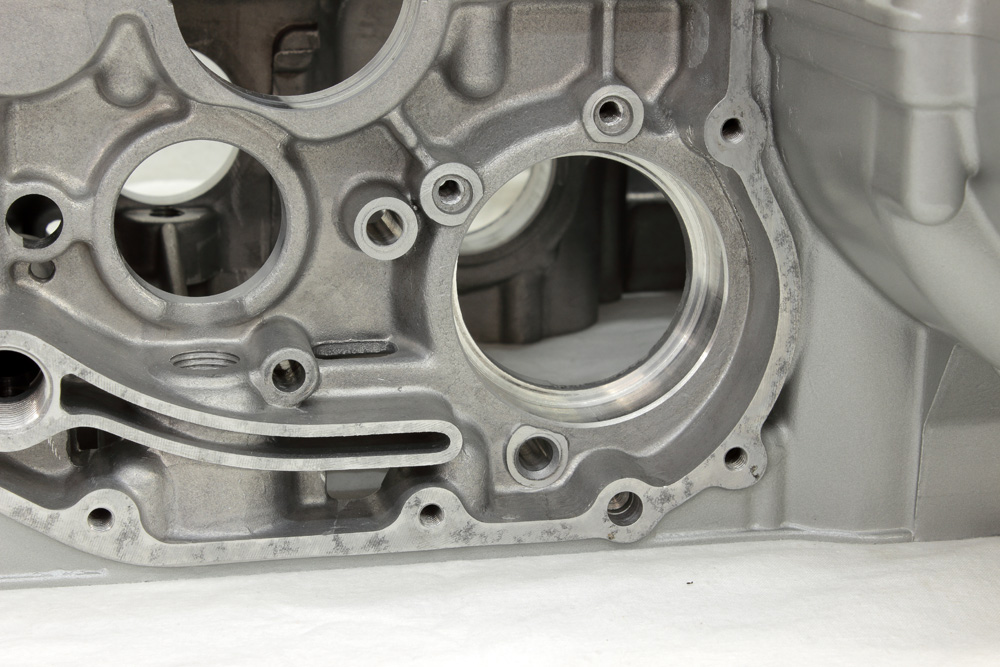

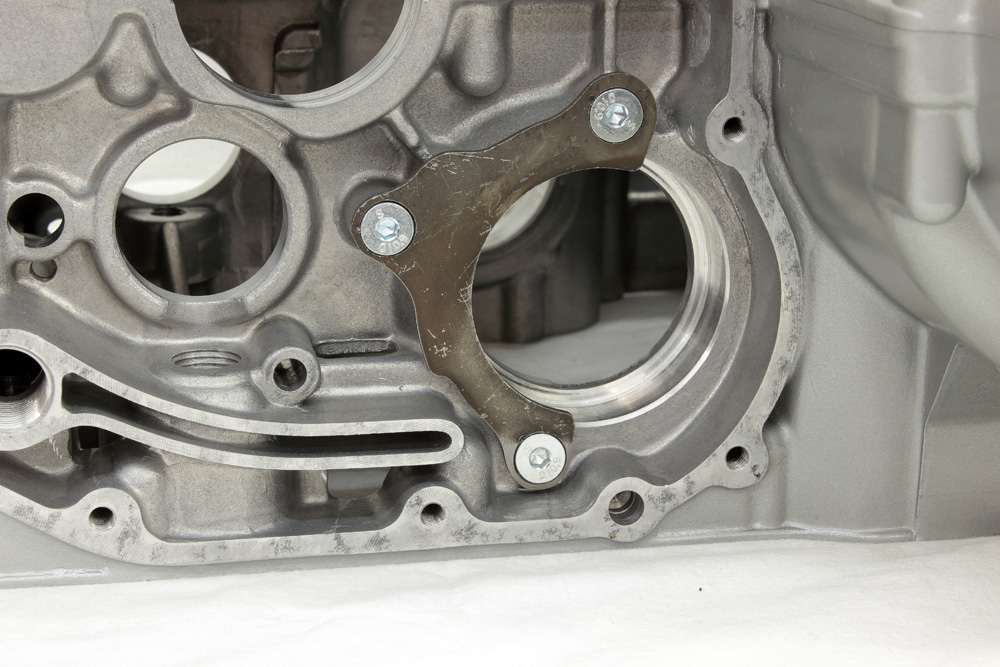

Later type of Kawasaki KZ650 crankcase (starting from C3 and B3 models) has a secondary shaft bearing’ stopper plate with three holes and the crankcase has three corresponding holes for that plate. Two of these points also serve for oil pump mounting and only one serves solely as plate mount point. Crankcase also has an additional hole that serves as the third mount point of the oil pump. In this way the total quantity of holes used to fit the secondary shaft bearing stopper and oil pump is four.






Kawasaki KZ650 cafe-racer: in progress

Kawasaki Zephyr 750 (810ccm, 4in4, spoked wheels)
Honda CB815 "Eight Fifteen" cafe-racer
Yamaha XJ "Eight Ball" cafe-racer

www.gazzz-garage.com
Attachments:

Please Log in or Create an account to join the conversation.

KZ650 cafe-racer 12 Jul 2021 13:08 #851621

  • gazzz
  • gazzz's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 562
  • Thank you received: 281

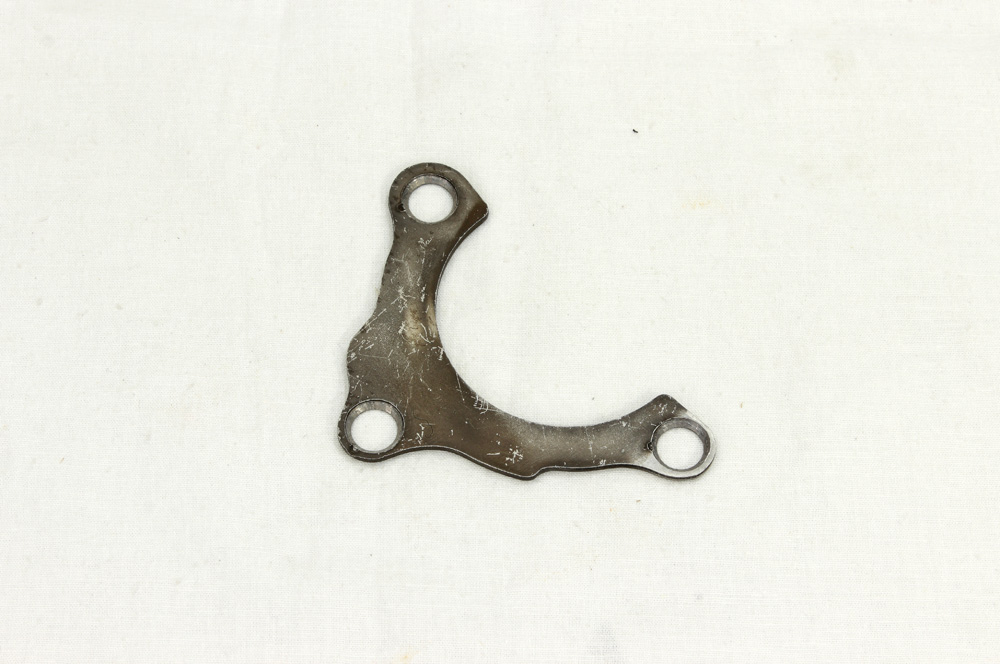

This design of stopper plate became classic and was inherited by all Kawasaki 750 inline air-cooled fours: KZ750, GPZ750, Zephyr 750 and ZR7. But it was not always like that.  The earliest secondary shaft bearing stoppers also had three holes for mounting, but unlike later plates only one of the holes  was simultaneously used to hold the plate and oil pump. Two holes in the crankcase served solely for oil pump fitting and another two –  solely for stopper plate fitment.  This gives us a total of five holes for the stopper and pump. The earliest type of bearing stopper could be found only in the earliest service manual (1976) and I could assume it didn’t come into series.






Kawasaki KZ650 cafe-racer: in progress

Kawasaki Zephyr 750 (810ccm, 4in4, spoked wheels)
Honda CB815 "Eight Fifteen" cafe-racer
Yamaha XJ "Eight Ball" cafe-racer

www.gazzz-garage.com
Attachments:

Please Log in or Create an account to join the conversation.

KZ650 cafe-racer 12 Jul 2021 13:09 #851622

  • gazzz
  • gazzz's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 562
  • Thank you received: 281

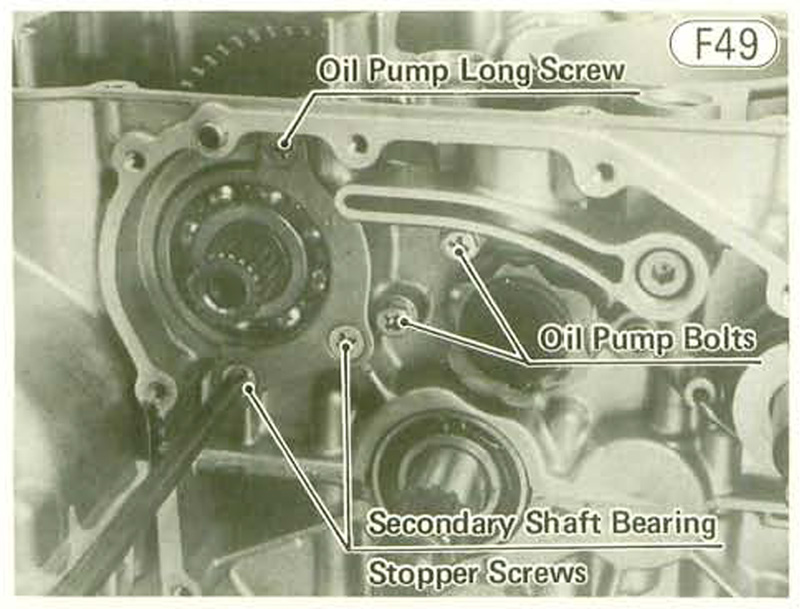

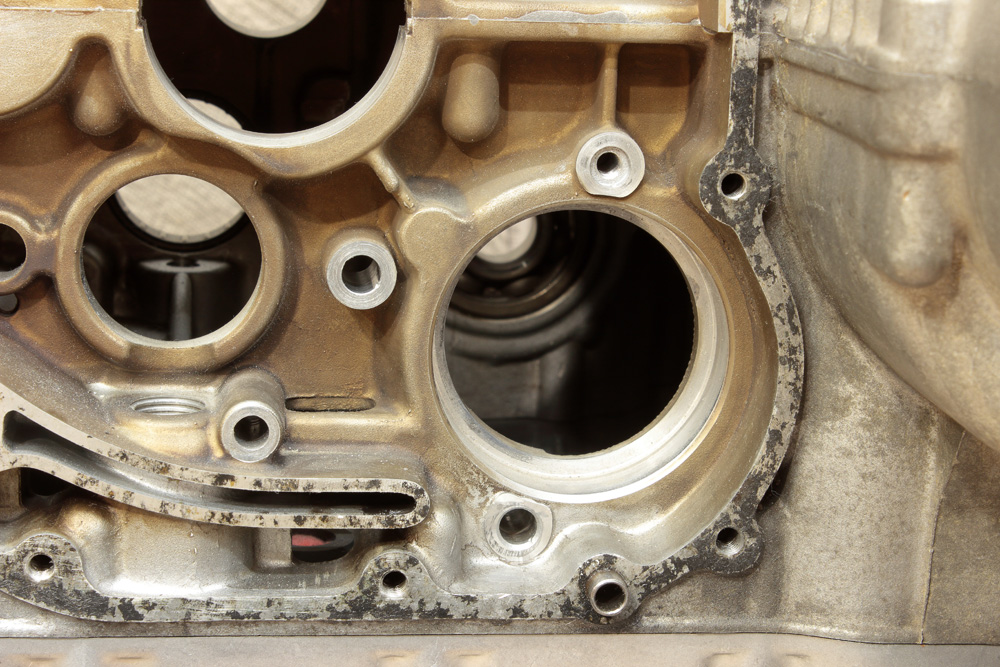

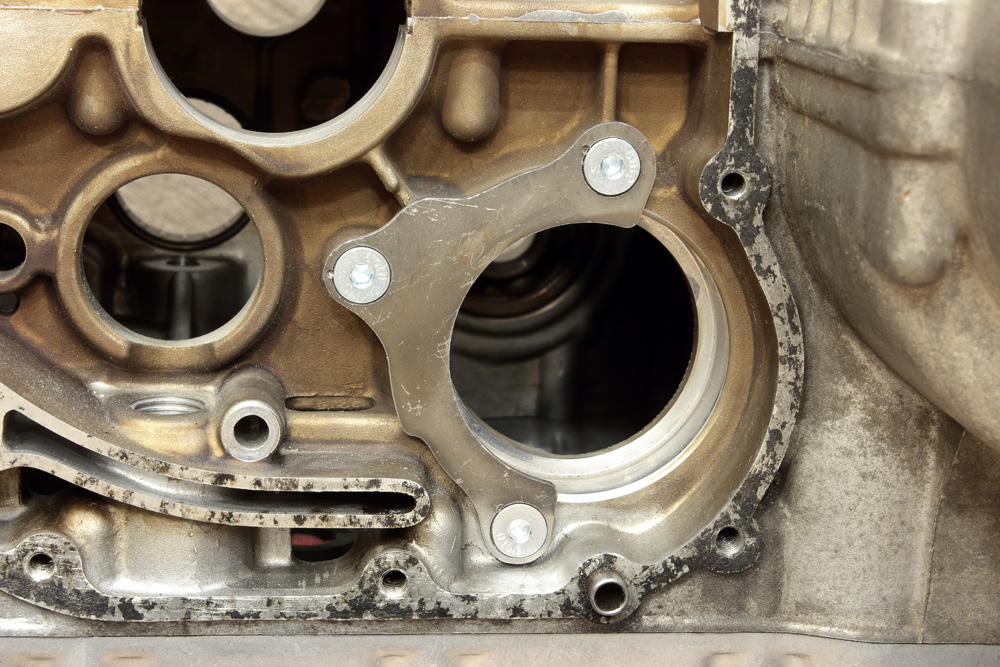

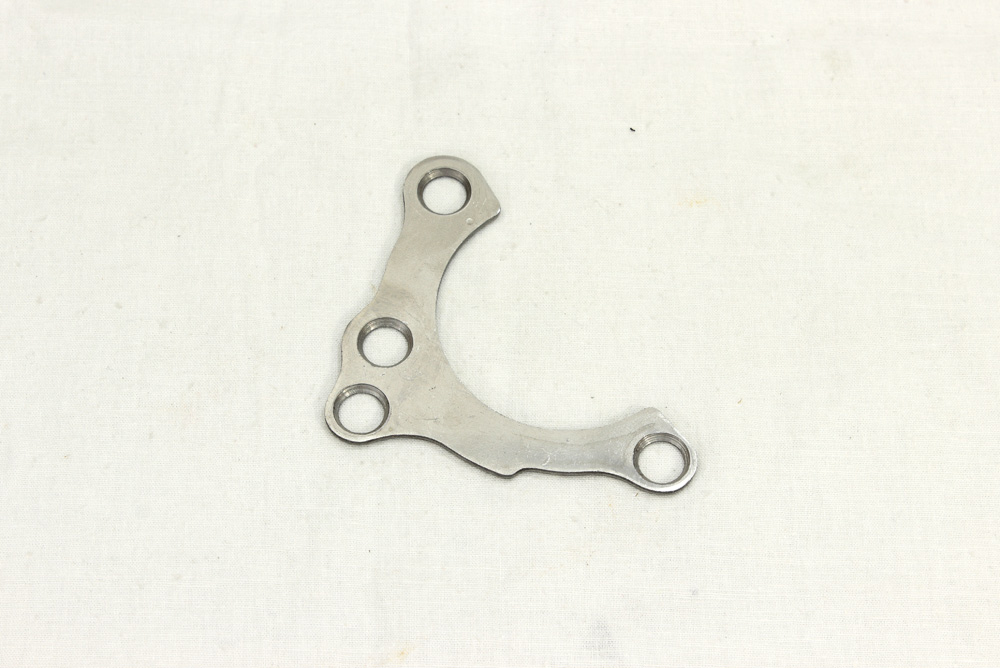

Kawasaki KZ650 of B1 and C1 models came with  secondary shaft stoppers of different design.  Total quantity of pump and stopper holes was similar to pre-serial crankcases (five), but the number of holes in the stopper plate were increased to four. Of these two holes served to secure the plate itself and two were used also for the oil pump mount. I could assume that along with this change of design also came a notion in the OEM service manual to stake stopper screws heads with punch to prevent them from loosening. Thus, the reason for such change is pretty obvious: the secure fitment of the oil pump. Even with one bolt loose it still was securely fixed by two staked screws (both of which go through long dowel pins).However, four holes in the stopper plate was overkill, since three points are enough to determine a plane (and fix it as well). Thus, no wonder that in later models (starting with C3 and B3) Kawasaki got rid of the fourth screw and its holes in both crankcase and stopper plate.At some point I noticed that crankcase I bought for project is of early type:

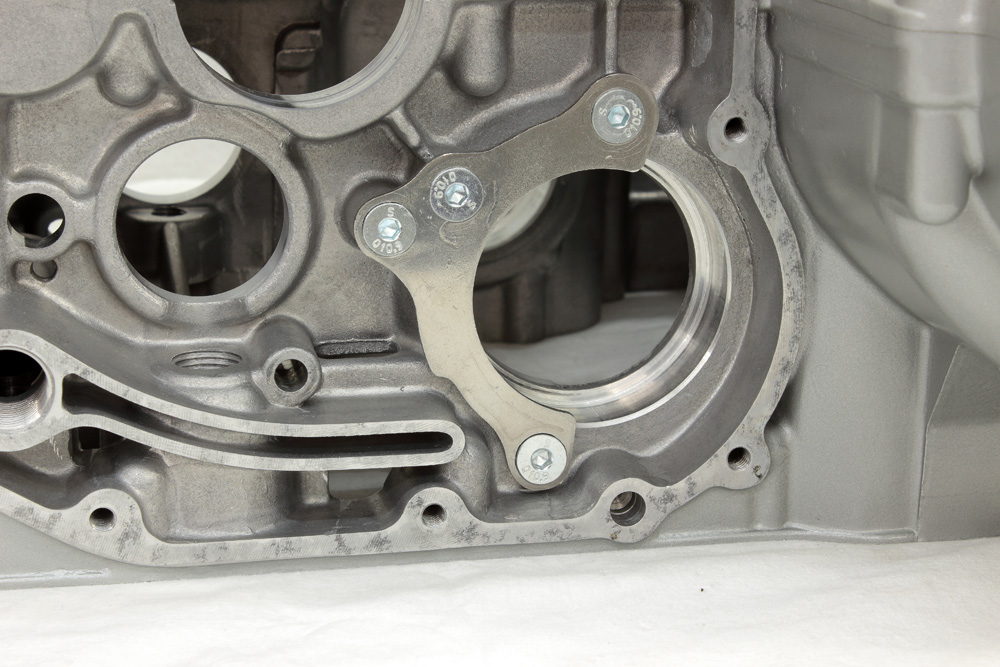

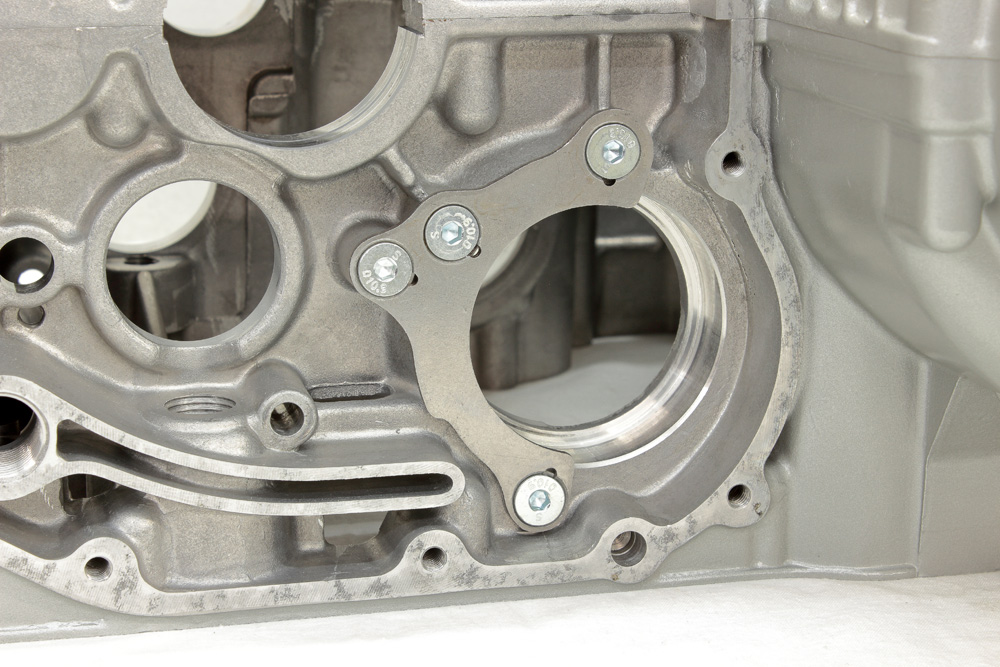

Sure, I could have used stopper plate of later type without issues:


Kawasaki KZ650 cafe-racer: in progress

Kawasaki Zephyr 750 (810ccm, 4in4, spoked wheels)
Honda CB815 "Eight Fifteen" cafe-racer
Yamaha XJ "Eight Ball" cafe-racer

www.gazzz-garage.com
Attachments:

Please Log in or Create an account to join the conversation.

KZ650 cafe-racer 12 Jul 2021 13:11 #851623

  • gazzz
  • gazzz's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 562
  • Thank you received: 281

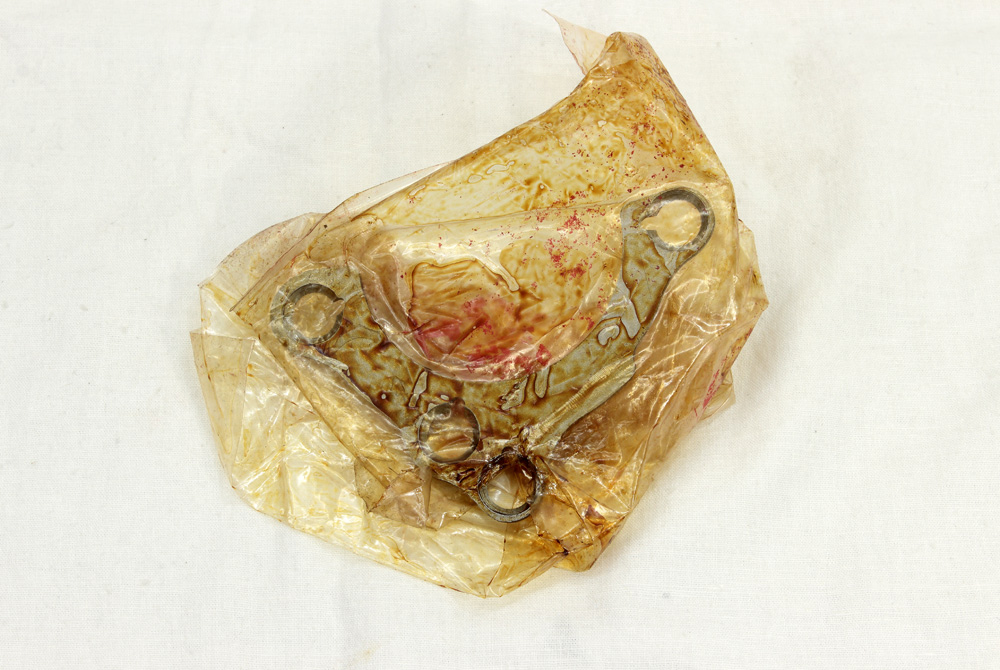

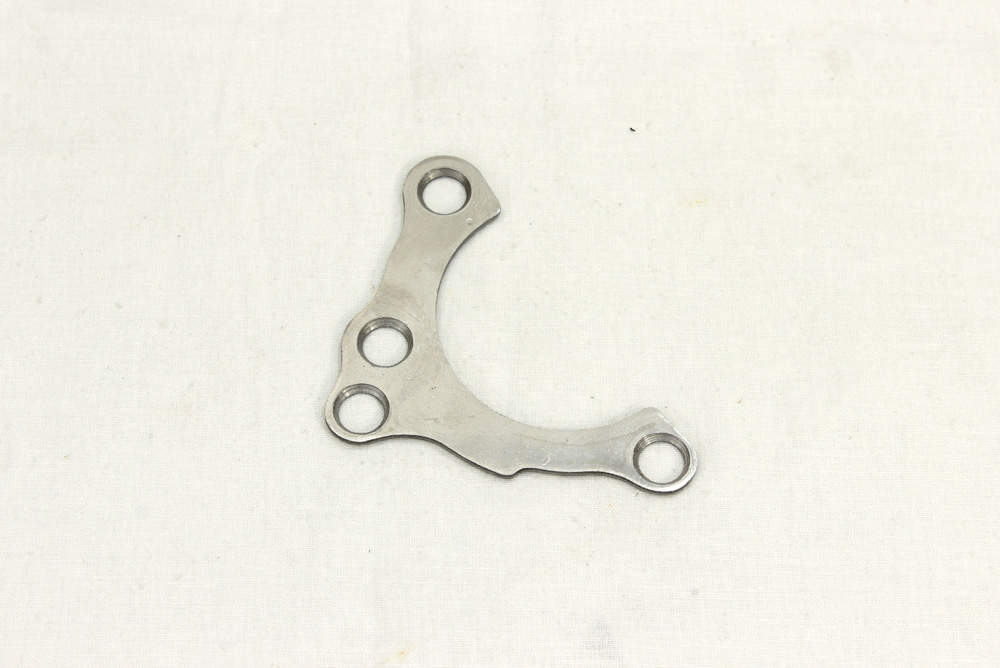

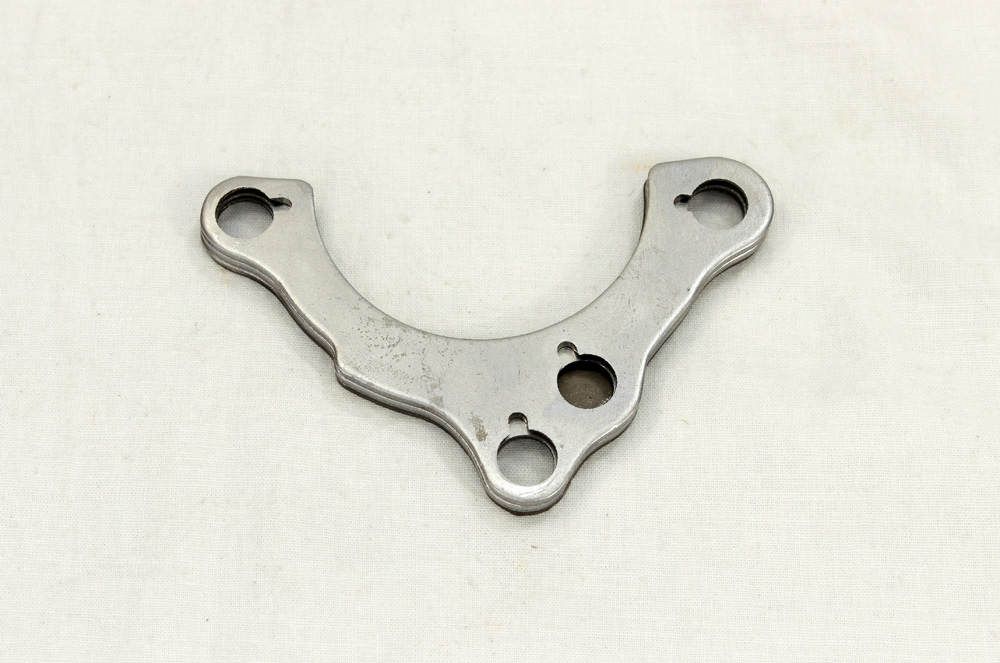

But it turned out that I couldn’t stand the idea of leaving that fourth hole without a screw and covered by plate… So I dug information a bit deeper (including scans of OEM parts lists with original, not yet superseded parts numbers) and that’s where I found that the design of the secondary shaft bearing stopper plate was changed not three, but four times. The earliest serial stopper had part number 14014-038 and was pretty hard to find. It arrived to me being still wrapped in  remains of OEM packaging:

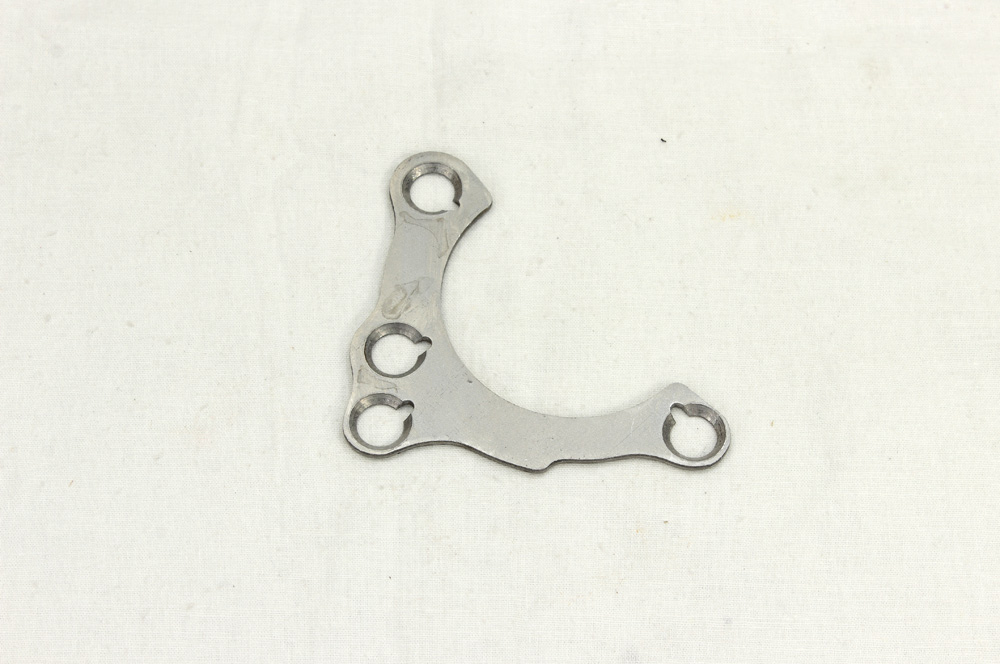

And here is this early stopper itself:



As you may see it has cut-outs for staking and it’s likely it could be reused without indication of how many times screws were staked.


Kawasaki KZ650 cafe-racer: in progress

Kawasaki Zephyr 750 (810ccm, 4in4, spoked wheels)
Honda CB815 "Eight Fifteen" cafe-racer
Yamaha XJ "Eight Ball" cafe-racer

www.gazzz-garage.com
Attachments:

Please Log in or Create an account to join the conversation.

KZ650 cafe-racer 12 Jul 2021 13:12 #851624

  • gazzz
  • gazzz's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 562
  • Thank you received: 281

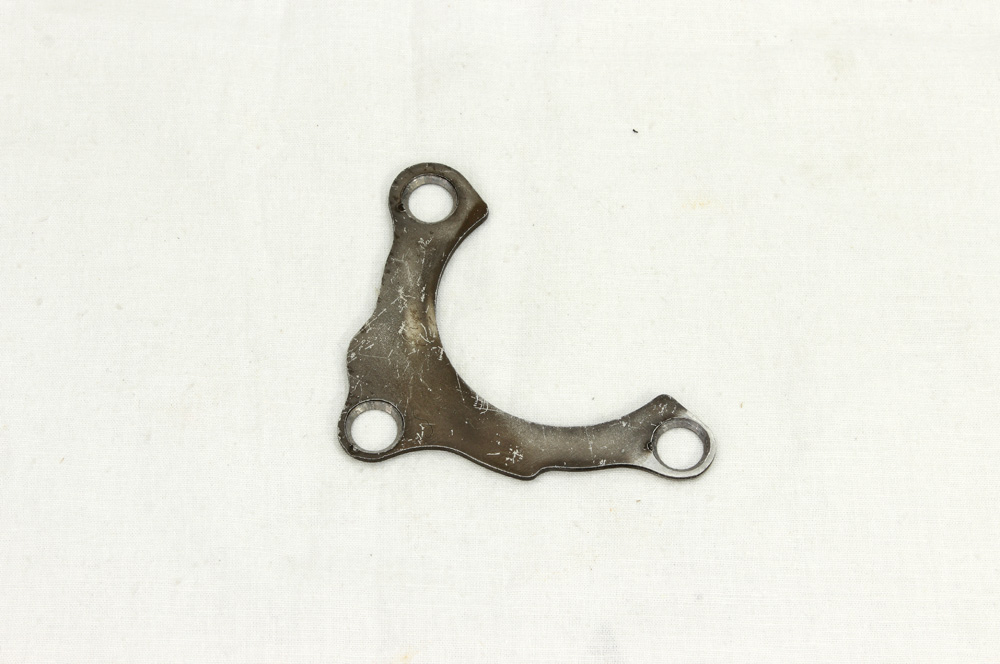

At some point it was replaced by  less-effortful-in-manufacturing  plate without cut-outs for staking. It turned out to be less hard to find and fetch.





Funny thing: part 14014-038  number  was superseded by 14014-1007, but there are no traces of further changing of part numbers. So it looks like the second serial type of stopper plate changed its design to the third without change of part number. But it’s not the first time that such a replacement was made by Kawasaki.
Kawasaki KZ650 cafe-racer: in progress

Kawasaki Zephyr 750 (810ccm, 4in4, spoked wheels)
Honda CB815 "Eight Fifteen" cafe-racer
Yamaha XJ "Eight Ball" cafe-racer

www.gazzz-garage.com
Attachments:

Please Log in or Create an account to join the conversation.

KZ650 cafe-racer 12 Jul 2021 13:13 #851625

  • gazzz
  • gazzz's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 562
  • Thank you received: 281

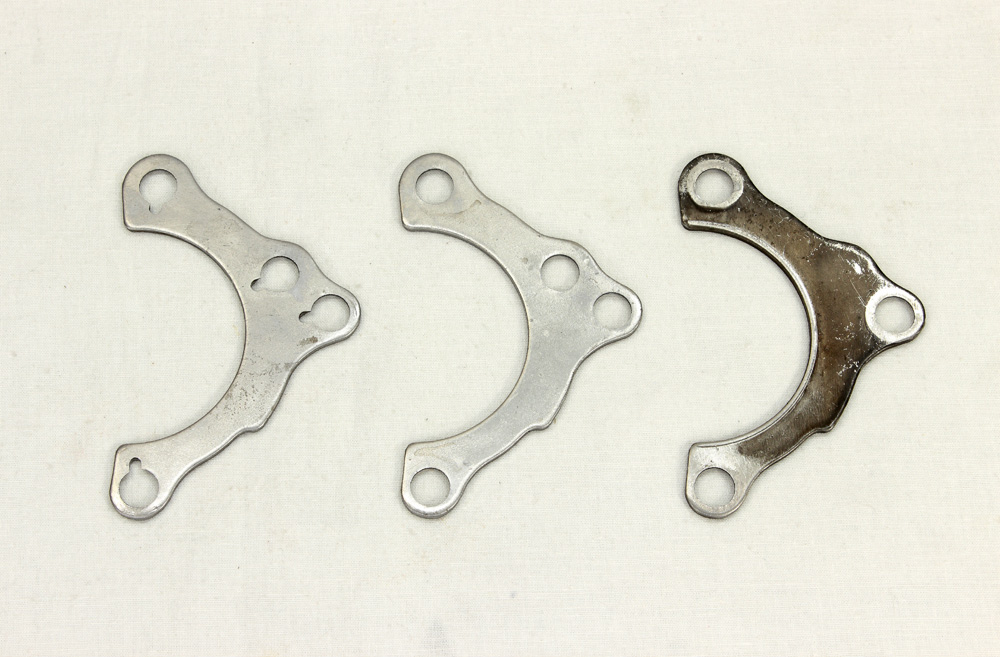

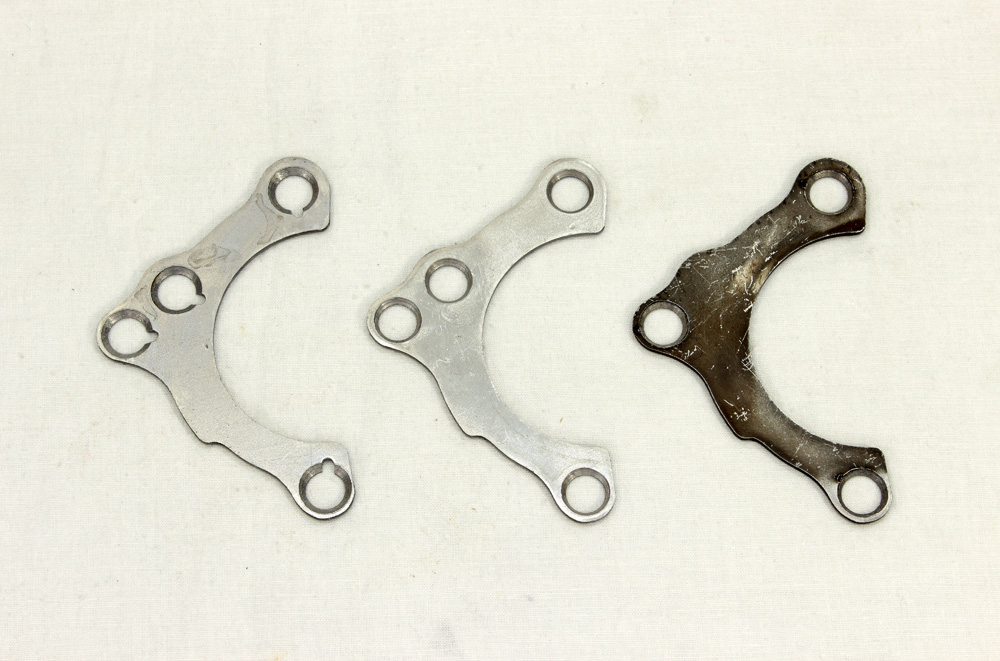

And here are all three models of serial stopper plates side by side, from earliest to latest.





Their outer shapes are completely identical:



I like to find out things like this: you see the thread, you pool it and the whole story unfolds before you. In this case it is the story of one part and the reasons due to which part’ design was changed four times in a matter of a couple of years.
