Rear brake pads replacement 12 Feb 2024 10:02 #895157

  • Fox
  • Fox's Avatar Topic Author
  • Offline
  • User
  • Posts: 209
  • Thank you received: 3
Hello,

Because i have to remove the rear wheel i replace the rear pads that are worn.
The old ones was easy to remove because slim but i can't add the new ones that are too wide.
That's the good parts.
I didn't find any informations on how to do for a kz1000 ltd 78.
Can you help me ?

Thank you


1978 KZ1000-B2 LTD
1977 kz1000-B1 LTD

Please Log in or Create an account to join the conversation.

Rear brake pads replacement 12 Feb 2024 10:17 #895160

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4866
  • Thank you received: 1830
Take the Rear master cap off and wrap a couple rags around it and use a C-Clamp to retract the caliper piston should give you the room you need. Removing the cap relieves the pressure caused by fluid flowing backwards. The shop rags will catch the overflow.

Are you asking for the process to replace rear pads on your LTD?
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
The following user(s) said Thank You: Fox

Please Log in or Create an account to join the conversation.

Rear brake pads replacement 12 Feb 2024 10:22 #895161

  • Fox
  • Fox's Avatar Topic Author
  • Offline
  • User
  • Posts: 209
  • Thank you received: 3
Ok i see i will try that :)
yes the process to replace the rear pads.
1978 KZ1000-B2 LTD
1977 kz1000-B1 LTD

Please Log in or Create an account to join the conversation.

Rear brake pads replacement 12 Feb 2024 15:46 #895172

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4866
  • Thank you received: 1830

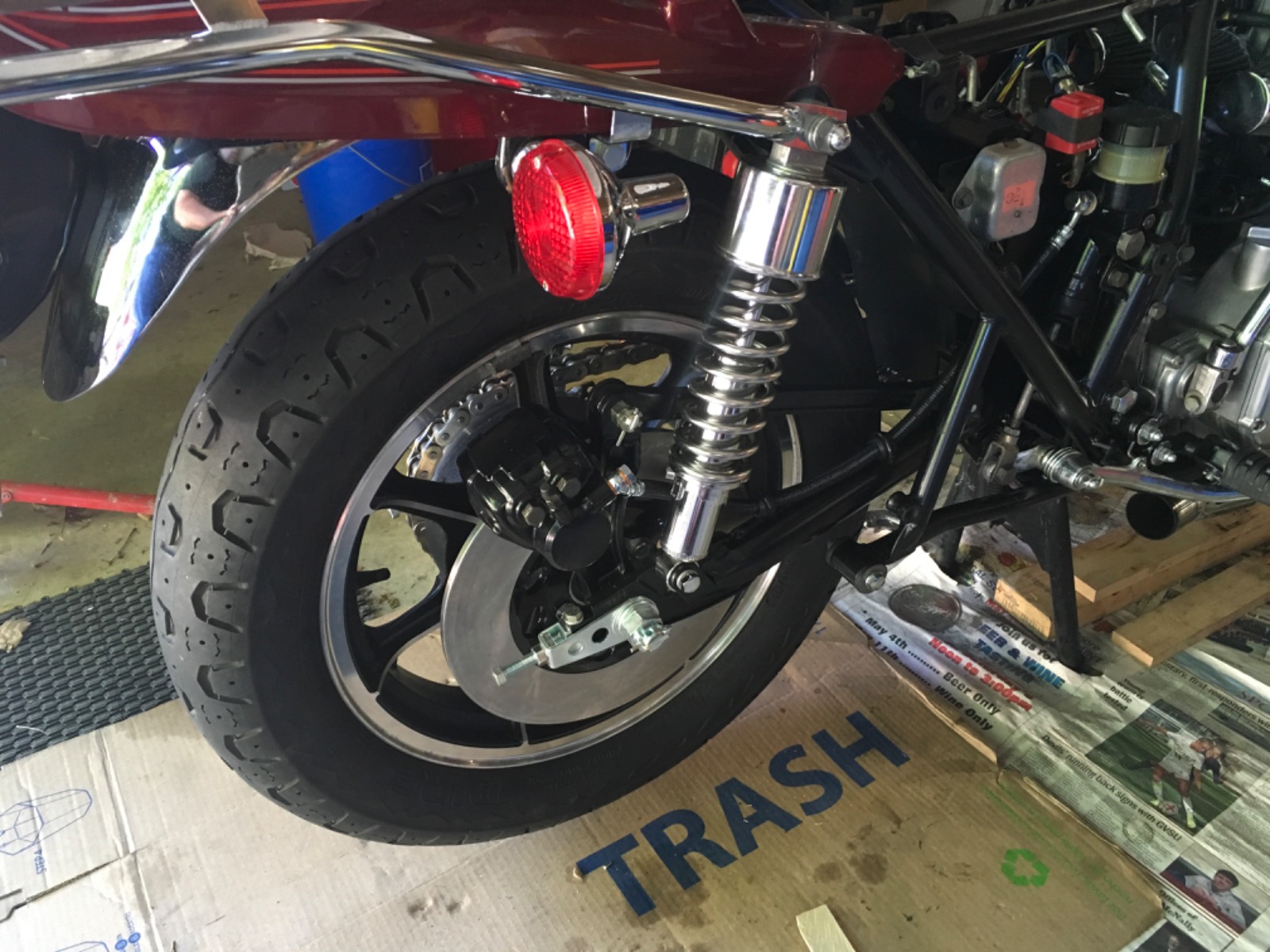

It’s basically a front rotor mounted in the rear. The inner pad is captured into the caliper via a screw through a disc into the steel backer of the pad. The outer pad floats inside the caliper bracket. Before removing the rear wheel reach through the spokes and break the Philips screw loose. Remove the wheel. Remove the Philips screw and disc completely. Push the caliper in (toward chain) it will slide on the caliper bolts and you will have room to remove the inner pad. Then the outer pad should have room to be slide away from the piston, out of the caliper bracket and become free of the bracket. If the caliper won’t slide on the slider bolts then it will need to be disassembled and serviced.
