Plastic for electrical contacts -74 Z1 900 10 Feb 2024 05:28 #895071

  • slmjim+Z1BEBE
  • slmjim+Z1BEBE's Avatar
  • Offline
  • User
  • Enjoy Life! IT HAS AN EXPIRATION DATE!
  • Posts: 1090
  • Thank you received: 572

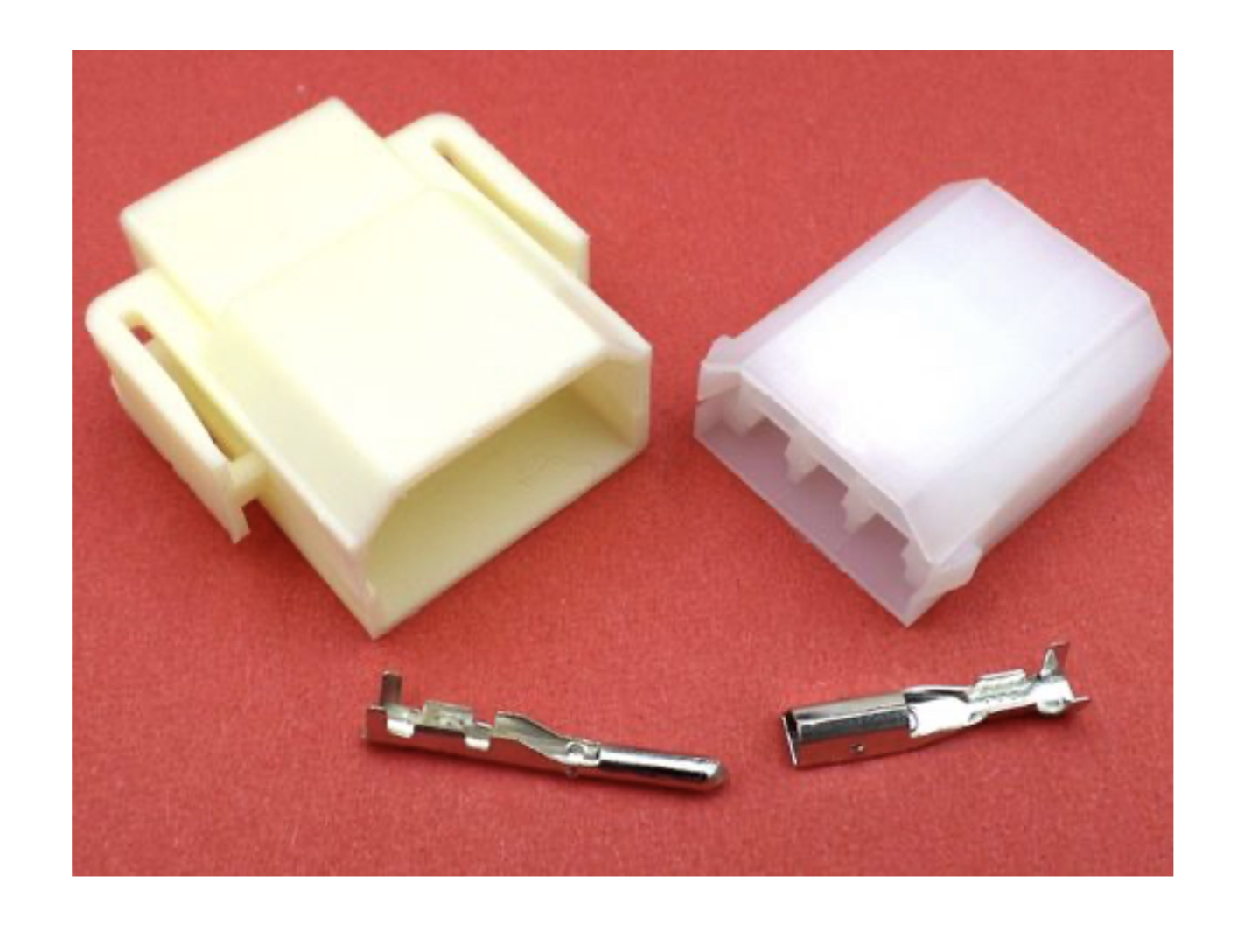

What is this contact type called, a male and a female part?



Male.  Nomenclature follows the conducting pins in this case.
