TOPIC: KZ1000p Hazard Lights

KZ1000p Hazard Lights 20 Apr 2020 11:16 #823734

  • 09marty
  • 09marty's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 9
  • Thank you received: 0
Hello,

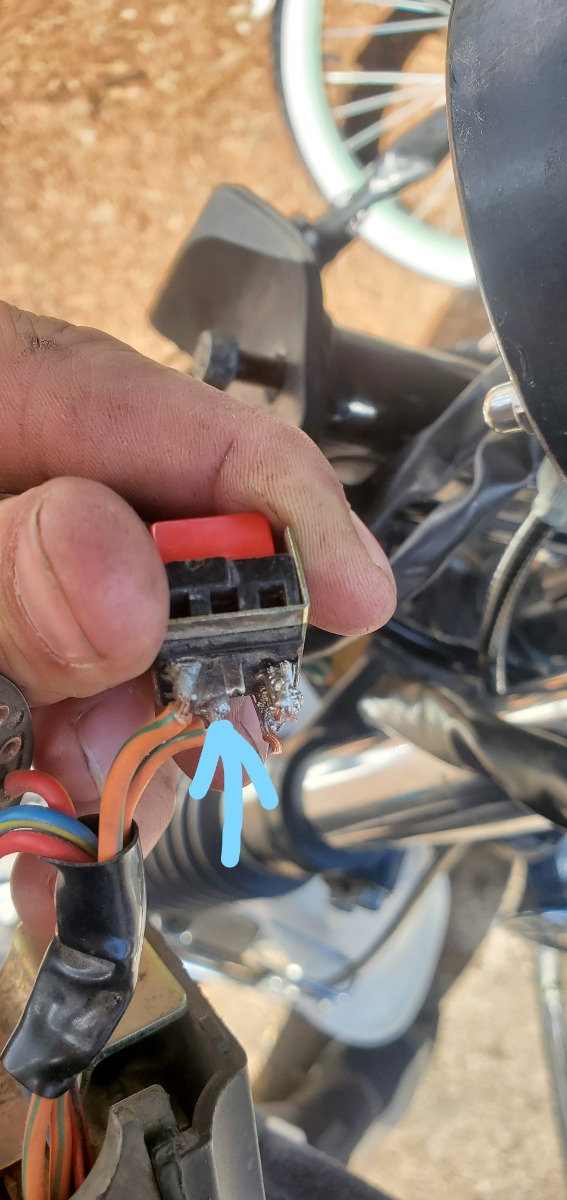

My Hazards have not been working on my 2001 KZ1000p so I finally tried to fix it. I have verified that the relay is good as I can manually get the hazard to work by connecting the output of the relay to the turn signal wires. I have attached some pictures of the hazard switch as this is where I have determined that things are going wrong. The connection with the arrow is the input from the relay and the one without the arrow is the output of the switch that goes to the rear turn signals. For the life of me, I can not figure out if this is wired incorrectly or not. There are three other connections on the switch that are not used. I tried grounding two of them to no success, as you can tell by the unique soldering job I did. Any help would be appreciated. Here is a link to the wiring diagram that I am having problems figuring out as well.
cyclepsycho.com/kz1000p/kz1000p.html
-Thanks a lot!

Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by 09marty.

KZ1000p Hazard Lights 30 Jun 2020 18:59 #829475

  • Setton
  • Setton's Avatar
  • Offline
  • Member
  • Member
  • Posts: 126
  • Thank you received: 10
Are you sure it's the switch? The hazard relay passes through a fuse that's often removed when they decommission the bike. In fact, the entire box the fuse is in is often removed (though it's present on mine, but missing the fuse). I replaced the fuse and the switch works fine now.

Also, don't use that wiring diagram. It's valid, but it's also a sorry mess. I recommend getting the Clymer manual. If you get that manual, the KZ1000P wiring harness is just a few pages from the very end. You can find it on Amazon and Ebay, brand new.
2001 Honda Rebel (backup transportation)
1982 KZ750-H3 LTD (frame's bent, no longer rideable, RIP)
1988 KZ1000 Police (well loved as my daily beater)

I don't understand soup. Put a flower on my nose.

Please Log in or Create an account to join the conversation.

KZ1000p Hazard Lights 30 Jun 2020 20:28 #829480

  • F64
  • F64's Avatar
  • Offline
  • Member
  • Member
  • 81-KZ440D2
  • Posts: 205
  • Thank you received: 39
Your switch is missing a solid orange wire.
The two orange with green stripe wires are correct for the hazard circuit.
The orange wire will be in the 9 wire connector within the red box on the attached image.


Actually, check this first. There is a white wire with a blue stripe. Check and see if you have 12v on this wire.
This may be the circuit that Setton was talking about as it ties into a 10 amp fuse located near the battery.
81-KZ440-D2. Louis Dudzik's GM HEI ignition module converted 2015--no issues, Motogadget m-unit blue.
