Engine crane adapter 28 Jul 2021 20:13 #852754

  • Saablord
  • Saablord's Avatar Topic Author
  • Offline
  • User
  • Posts: 224
  • Thank you received: 56
I needed an easy way to swap out a 650 motor in my turbo bike so I made my own version of the ones found in this thread: kzrider.com/forum/2-engine/615986-engine-removal#849410

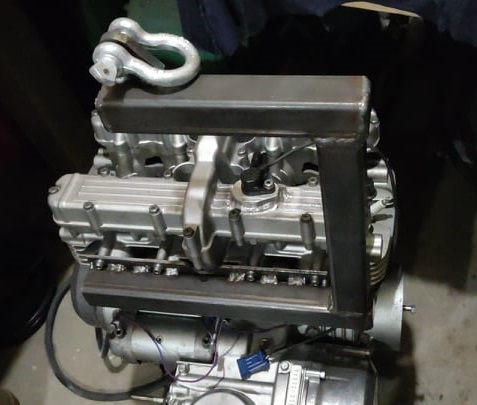

I did not like the plate version as it will place a lot of stress on the intake bolt nearest the vertical bit of metal. I made a 1.5" square tube frame and then welded a plate with the intake bolt pattern to that. i used a 1/2" shackle from menards for the hook which had a 5/8 bolt.



The tubes are lengths of 13.5" (across the intake), 10.5" (vertical), 8.4375" (top).

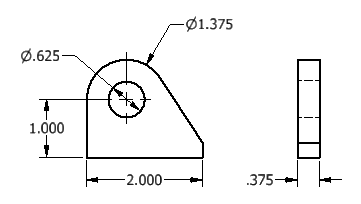

Plate drawings. DXF cut files in the zip attached.
