Piston Hole Kz1000LTD 1982 05 Jan 2023 00:24 #878543

  • Wookie58
  • Wookie58's Avatar
  • Offline
  • Moderator
  • Posts: 3539
  • Thank you received: 2023
Given what was done to the top yolk the PO was an "animal" who obviously abused this bike until it wouldn't run any longer, nice to see it being saved
The following user(s) said Thank You: cartal, hardrockminer

Please Log in or Create an account to join the conversation.

Piston Hole Kz1000LTD 1982 05 Jan 2023 01:25 #878544

  • cartal
  • cartal's Avatar Topic Author
  • Offline
  • User
  • Posts: 180
  • Thank you received: 75
Yes. A really abused bike in the past.
New carb boots, new carb internals, new air filter (new cap and funnel that were missing), and ngk right plugs are already waiting.

will take the head for new valves to a reputable shop and of course new valve seals. Head will be checked and skimmed if needed.

have already eyed some +0,50 pistons and will have the cylinders bored.will take The pan off for a check. I like the gas oil flush idea.

cheers

Please Log in or Create an account to join the conversation.

Piston Hole Kz1000LTD 1982 05 Jan 2023 05:49 #878545

  • cartal
  • cartal's Avatar Topic Author
  • Offline
  • User
  • Posts: 180
  • Thank you received: 75
Hello,

I´ve found this piston set at IMD Pistons in the UK. They have a lot of excellent opinions. I assume this is the kit for my "J" engine.

imdpistons.com/products/kawasaki-kz1000-csr-998cc-piston-kit

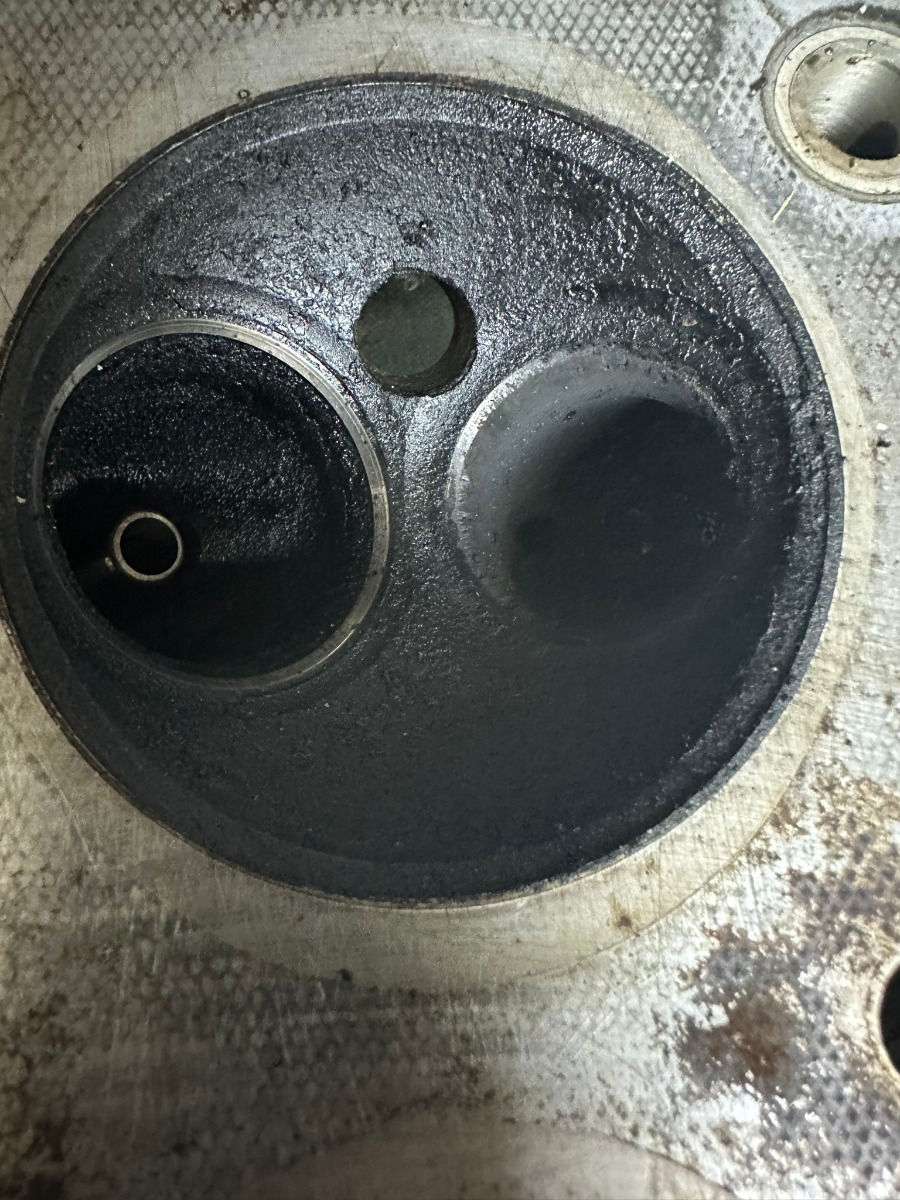

See some pics. Total dissasembly (pistons came out fairly easily). Some details on valve seats that will be done by a reputable shop. New valves and seals will also come in. There is also a pic from the underside of the piston with a hole. There is a little material projection to the underside, but the crank area right below was absolutely spotless.



I have no clue (although I believe so) if my pistons are standard. Can someone guide me here by taking a look at the markings inside the pics?

If they are standard, I should be OK with these pistons from IMD. They are a +0,50 oversize. I will of course get the cylinder block bored.

Thanks a ton.

Carlos
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by cartal. Reason: forgot a link!

Piston Hole Kz1000LTD 1982 05 Jan 2023 05:55 #878546

  • Wookie58
  • Wookie58's Avatar
  • Offline
  • Moderator
  • Posts: 3539
  • Thank you received: 2023
You would be best to carefully clean one of the piston crowns as this is where any oversize is marked (ref the below) and to be "belt and braces" you can measure them with a verier against the spec in the manual (I believe stock is 70mm in a "J" motor)


Attachments:
The following user(s) said Thank You: cartal

Please Log in or Create an account to join the conversation.

Last edit: by Wookie58.

Piston Hole Kz1000LTD 1982 05 Jan 2023 06:28 #878547

  • Warren3200gt
  • Warren3200gt's Avatar
  • Offline
  • User
  • Posts: 1473
  • Thank you received: 690
J is 69.4 bore.


Z1000J2 somewhat modified!

Attachments:
The following user(s) said Thank You: cartal, Wookie58

Please Log in or Create an account to join the conversation.

Piston Hole Kz1000LTD 1982 05 Jan 2023 06:37 #878548

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 4021
  • Thank you received: 1965
The KAWASAKI Z1000J standart bore diameter is 69,40 mm (998 ccm), Early KZ1000 is 70,00 mm (1015 ccm)
Over bore pistons are available in  + 0,35 / 0,50 / 0,85 / 1,00 mm

www.scheuerlein-motorentechnik.de/motorr...1000-modelle/z1000j/

Edit:
Warren3200gt  was faster
The following user(s) said Thank You: cartal, Warren3200gt, Wookie58

Please Log in or Create an account to join the conversation.

Last edit: by Scirocco.

Piston Hole Kz1000LTD 1982 05 Jan 2023 06:55 #878549

  • cartal
  • cartal's Avatar Topic Author
  • Offline
  • User
  • Posts: 180
  • Thank you received: 75
Will check with this info. You guys rock!

Please Log in or Create an account to join the conversation.

Piston Hole Kz1000LTD 1982 05 Jan 2023 07:08 #878550

  • Wookie58
  • Wookie58's Avatar
  • Offline
  • Moderator
  • Posts: 3539
  • Thank you received: 2023

Will check with this info. You guys rock!
Just one big happy family Carlos
The following user(s) said Thank You: cartal

Please Log in or Create an account to join the conversation.

Piston Hole Kz1000LTD 1982 05 Jan 2023 08:47 #878552

  • ronnieV
  • ronnieV's Avatar
  • Offline
  • Sustaining Member
  • Posts: 378
  • Thank you received: 301
Carlos,I hope you choose to donate on a regular basis,as you can see these guys know there shit.Wealth of information is here for the asking.
77 ltd1000 80 ltd1000 78kz1000a ,02 red zrx 12r, 94 cb1000 big one ,03 valkyrie (my couch) 65 olds 442
The following user(s) said Thank You: sf4t7, cartal

Please Log in or Create an account to join the conversation.

Piston Hole Kz1000LTD 1982 05 Jan 2023 09:27 #878553

  • cartal
  • cartal's Avatar Topic Author
  • Offline
  • User
  • Posts: 180
  • Thank you received: 75
Wow… pistons clean up really well with wire wheel.

yep. Standard measure no markings


Attachments:

Please Log in or Create an account to join the conversation.

Piston Hole Kz1000LTD 1982 05 Jan 2023 09:31 #878554

  • Wookie58
  • Wookie58's Avatar
  • Offline
  • Moderator
  • Posts: 3539
  • Thank you received: 2023
Look like "stock" to me, a set of +0.5's and a "head job" she should be fresh as a daisy

Please Log in or Create an account to join the conversation.

Piston Hole Kz1000LTD 1982 05 Jan 2023 09:38 #878556

  • zed1015
  • zed1015's Avatar
  • Offline
  • User
  • Posts: 2936
  • Thank you received: 1496
Pistons are stock.
Exhaust seats look like they've been run with insufficient valve clearance.
If you take the head to a shop make sure they know what they are doing with bucket and shim motors when they cut the seats.
