KZ900 Pushrod Not Moving 16 Jul 2021 07:20 #851847

  • Lebowski
  • Lebowski's Avatar Topic Author
  • Offline
  • User
  • Posts: 37
  • Thank you received: 3
I decided to start a new thread on this since I have a different bike/year than the one in this  thread . This is a 1976 KZ900. I have the new clutch cable installed and it seems to be functioning properly. The worm gear inside of the other gear rotates in and out smoothly. It only rotates out about 1/4 of an inch. I assume that is normal, but it's hard to know since the manual is so sparse on info when it comes to the clutch cable and adjustment. I have also made adjustments so that I have 1/8 inch of play at the clutch lever before the worm gear engages the pushrod. The problem I have is that the push rod will not budge at all. I did remove it to cleanup the drive sprocket and that whole area which was caked with grime and dirt over the years. I've been slowly working on this bike for a long time, and now I can't remember if the clutch ever actually functioned. The bike has never run...

Any thoughts on where to start?

Please Log in or Create an account to join the conversation.

Last edit: by Lebowski.

KZ900 Pushrod Not Moving 16 Jul 2021 09:27 #851852

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Posts: 1940
  • Thank you received: 565
You will find it very difficult to move by hand.  You need to use the clutch lever to move it.  If it still doesn't move then I would pull the clutch cover on the opposite side of the bike and check everything.  Something may be stuck...plates maybe?
I have a couple of Z1B's restored, an '80 KZ1000LTD restored, a 1981 KZ550 restored and a 2008 KLR 650 for off road fun. My wife has a 2019 Suzuki DR 650 for on and off road.

Please Log in or Create an account to join the conversation.

KZ900 Pushrod Not Moving 16 Jul 2021 10:14 #851855

  • Lebowski
  • Lebowski's Avatar Topic Author
  • Offline
  • User
  • Posts: 37
  • Thank you received: 3
Yes, I am using the clutch lever to push the rod and move the plates.

Please Log in or Create an account to join the conversation.

KZ900 Pushrod Not Moving 16 Jul 2021 13:54 #851869

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Posts: 1940
  • Thank you received: 565
Is the set screw/nut under the sprocket cover properly adjusted?  What do you feel when you pull the clutch lever.  Is there any resistance?
I have a couple of Z1B's restored, an '80 KZ1000LTD restored, a 1981 KZ550 restored and a 2008 KLR 650 for off road fun. My wife has a 2019 Suzuki DR 650 for on and off road.

Please Log in or Create an account to join the conversation.

KZ900 Pushrod Not Moving 16 Jul 2021 14:27 #851874

  • krazee1
  • krazee1's Avatar
  • Offline
  • User
  • Posts: 351
  • Thank you received: 141

You will find it very difficult to move by hand.  You need to use the clutch lever to move it.  If it still doesn't move then I would pull the clutch cover on the opposite side of the bike and check everything.  Something may be stuck...plates maybe?

I second this,  plates stuck together.

Mike


Former M.E. at Kawasaki Motors Manufacturing, Lincoln, NE
1966 W1 (the Z1 of 1966-50H.P. and 100mph!)
1974 Z1A (disassembled)
1976 KZ900B LTD (SOLD!) it's in GOOD Hands!
1978 KZ1000 LTD
1976 KZ900B LTD pile O parts!

Please Log in or Create an account to join the conversation.

KZ900 Pushrod Not Moving 23 Jul 2021 08:44 #852349

  • Lebowski
  • Lebowski's Avatar Topic Author
  • Offline
  • User
  • Posts: 37
  • Thank you received: 3
Yes, everything appears to be set correctly. I feel complete resistance when I pull the clutch lever. The rod is clearly not budging. I guess ill open the other side of the bike and post some pictures.

Please Log in or Create an account to join the conversation.

KZ900 Pushrod Not Moving 23 Jul 2021 09:50 #852358

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 3222
  • Thank you received: 810

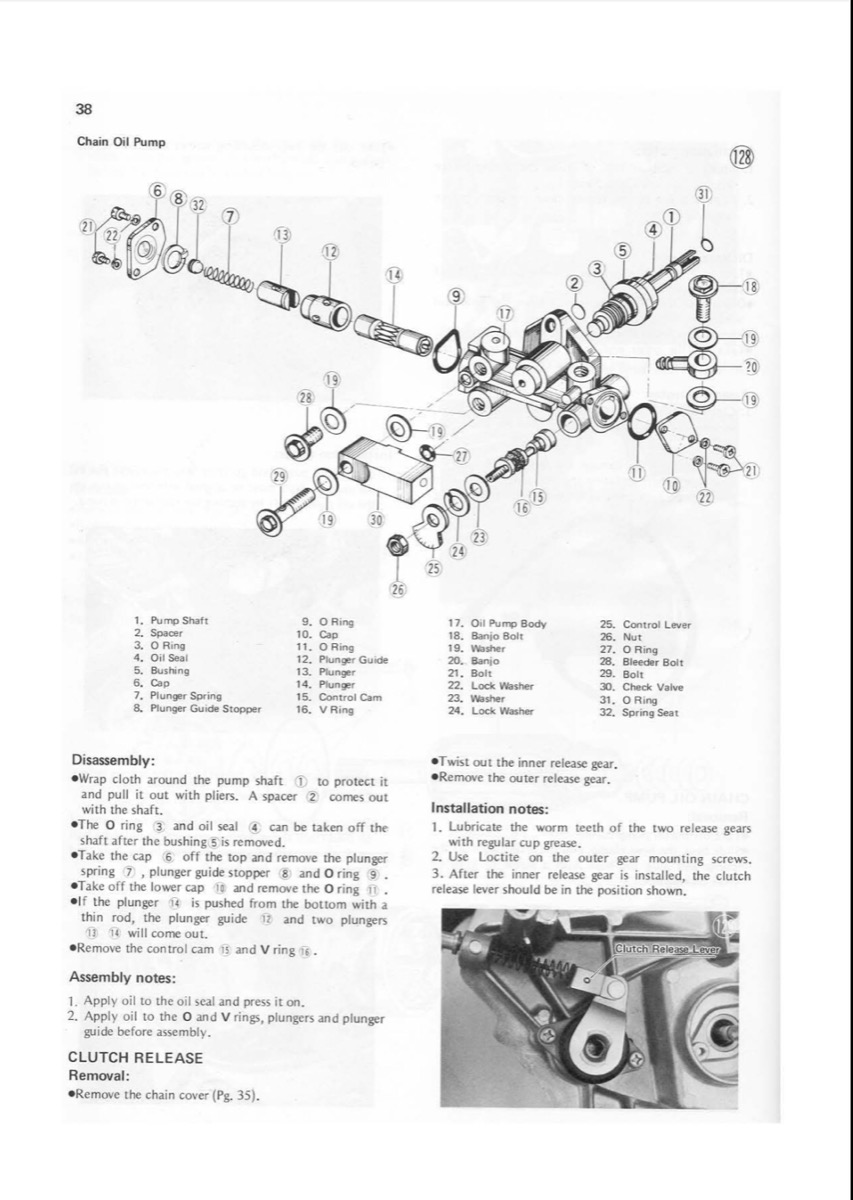

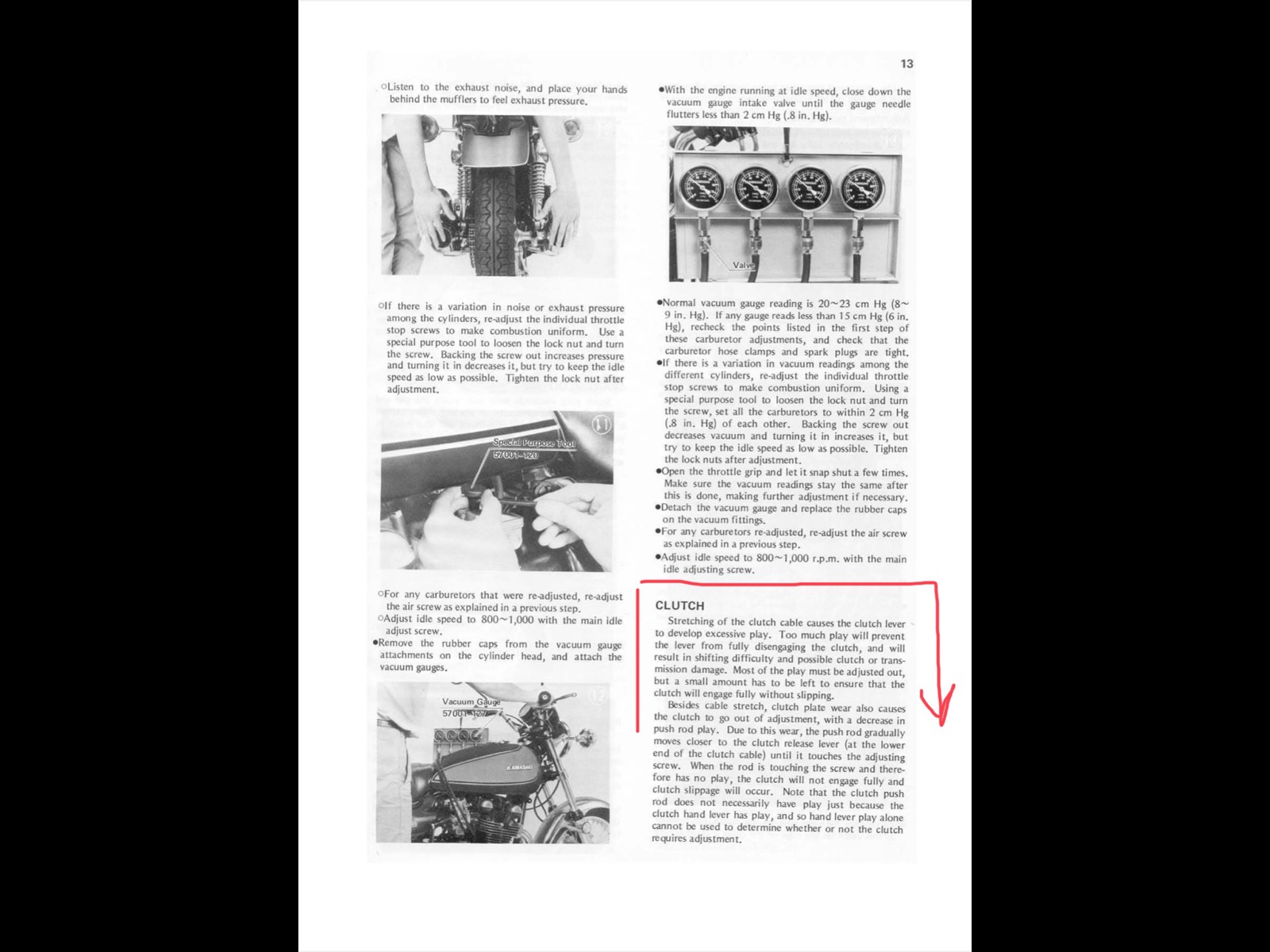

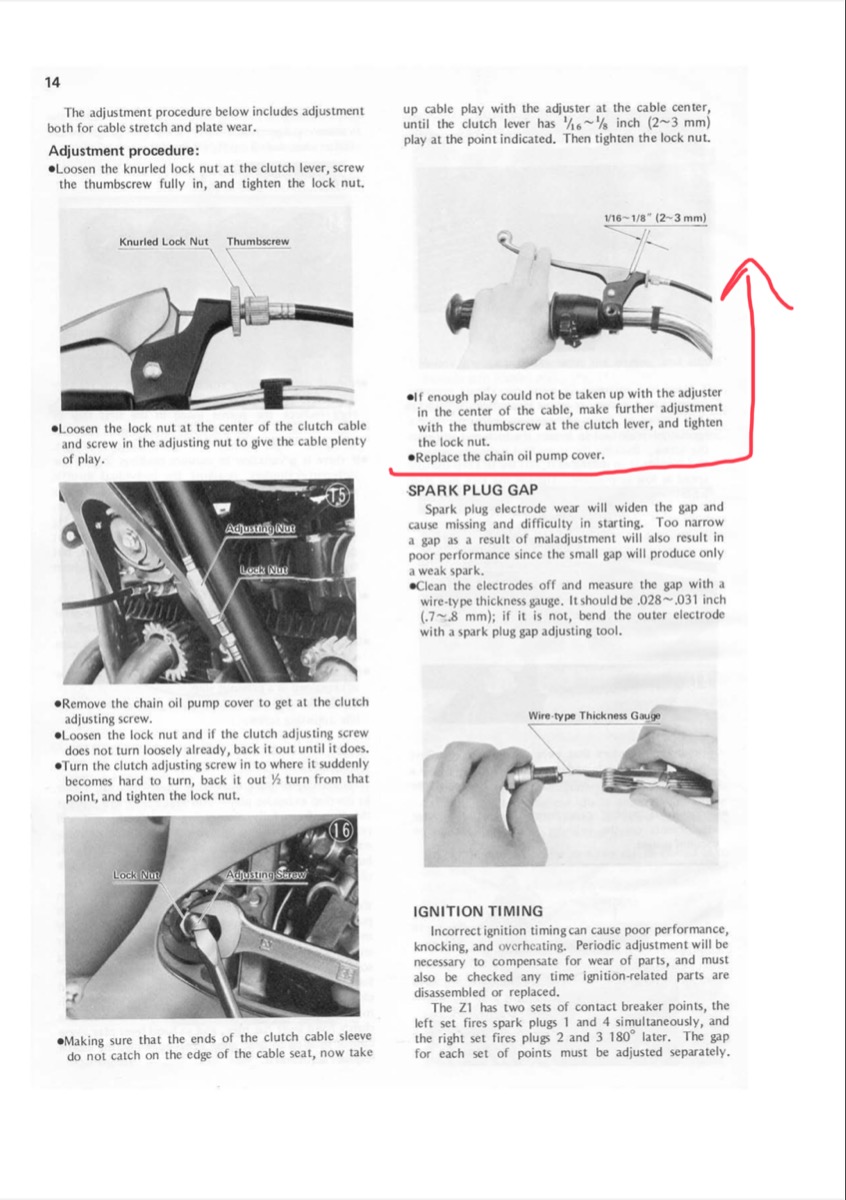

Here is the proper adjustment process



1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Attachments:

Please Log in or Create an account to join the conversation.

KZ900 Pushrod Not Moving 23 Jul 2021 09:53 #852359

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 3222
  • Thank you received: 810

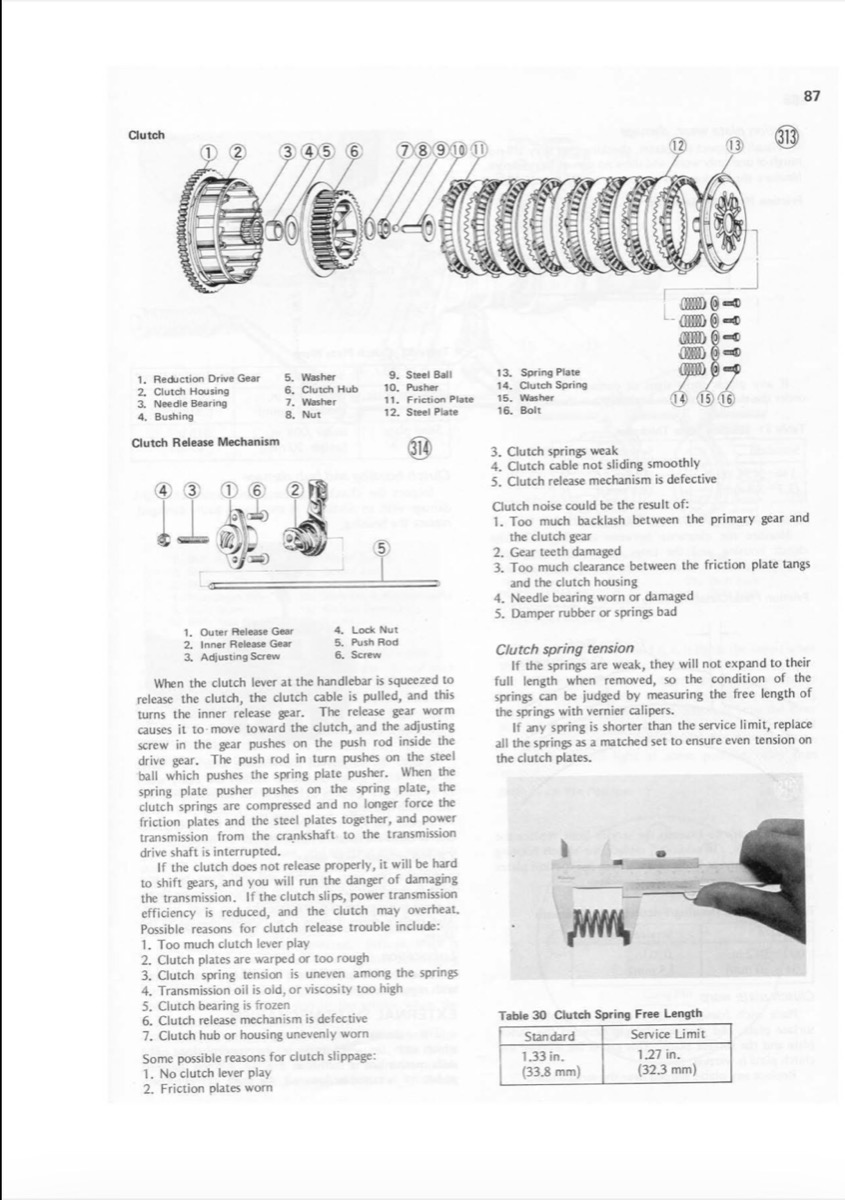

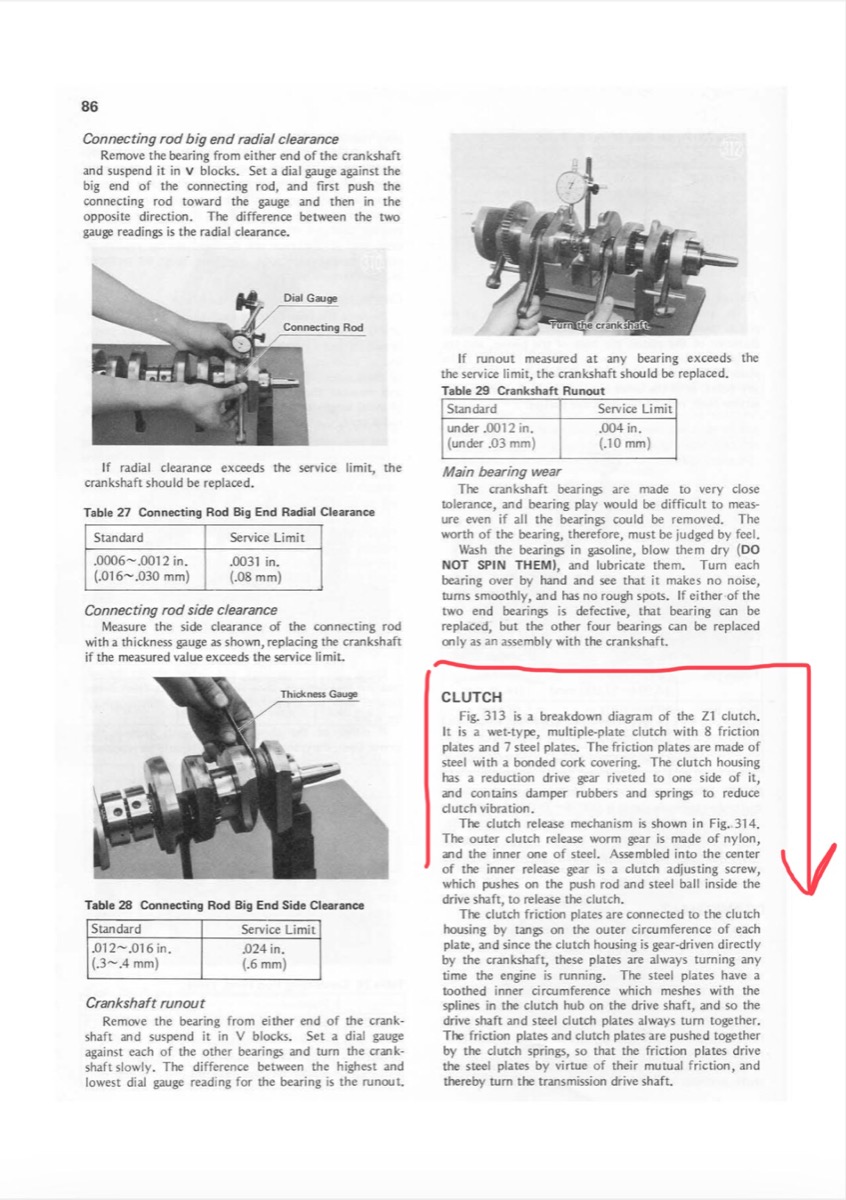

Is the release cam orintated correctly.


1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Attachments:

Please Log in or Create an account to join the conversation.

KZ900 Pushrod Not Moving 23 Jul 2021 09:59 #852361

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 3222
  • Thank you received: 810

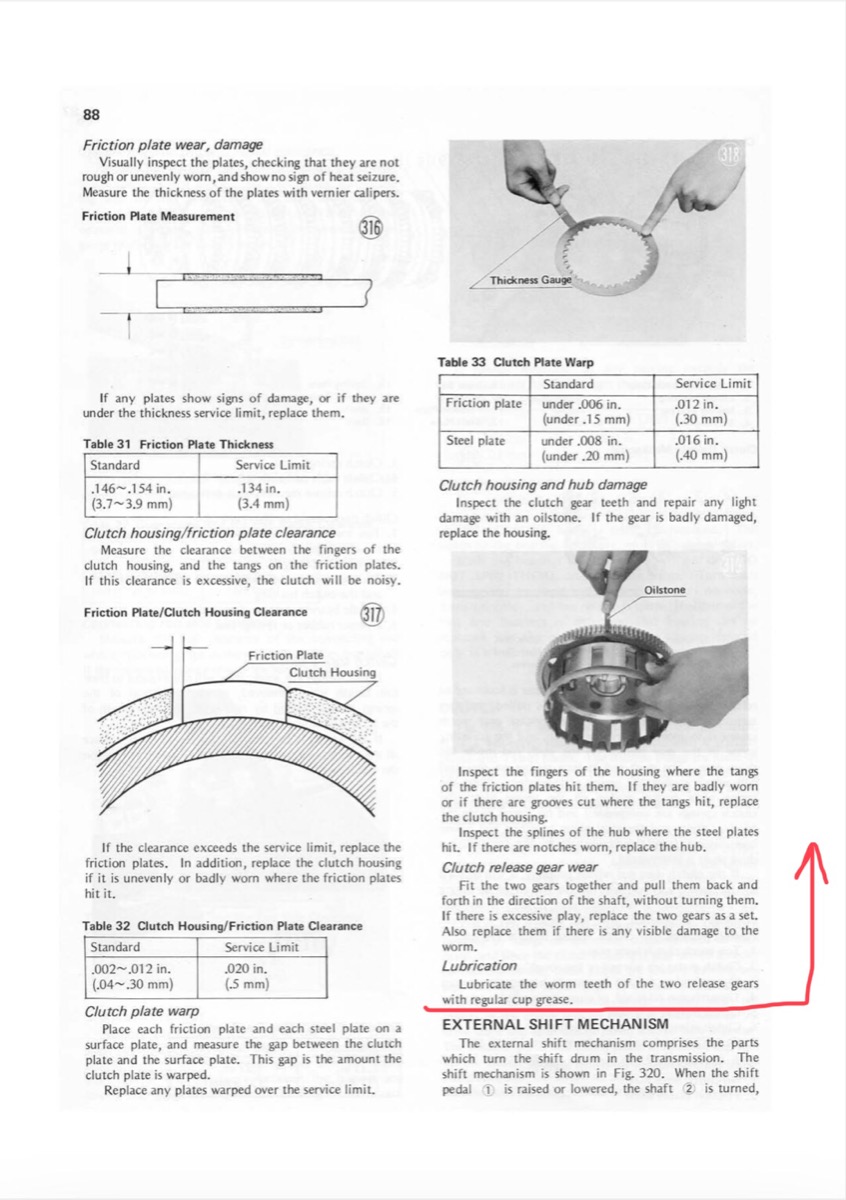

Here is more to read.





1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Attachments:

Please Log in or Create an account to join the conversation.

KZ900 Pushrod Not Moving 26 Jul 2021 15:15 #852592

  • ronnieV
  • ronnieV's Avatar
  • Offline
  • Sustaining Member
  • Posts: 184
  • Thank you received: 80
I had the same problem with a kz1000 that sat and the plates were stuck like mentioned earlier.
77 ltd1000 80 ltd1000 93 zr1100 zepher.02 red zrx 12r, 03 valkyrie (my couch) 65 olds 442

Please Log in or Create an account to join the conversation.

KZ900 Pushrod Not Moving 27 Jul 2021 15:40 #852653

  • slmjim+Z1BEBE
  • slmjim+Z1BEBE's Avatar
  • Offline
  • User
  • Enjoy Life! IT HAS AN EXPIRATION DATE!
  • Posts: 886
  • Thank you received: 387
The clutches on our Z1's usually stick after sitting a few years.  Haven't learned a way to keep it from happening.  We've always been able to free the clutch by placing the bike on the centerstand so the rear wheel is free to spin, start the motor & engage first gear, then give it a little throttle while simultaneously holding the clutch lever in & riding the rear brake.  It's much gentler to the gear dogs than slamming it into 1st gear with a stuck clutch when stationary on the ground.

Clutch pushrods have been known to bend.  Once bent, they just flex.  Lay the pushrod on a flat surface & roll it.  If it's bent replace it.

Good Ridin'
slmjim & Z1BEBE
A biker looks at your engine and chrome.
A Rider looks at your odometer and tags.

1972 Z1 x2
1974 Z1-A x2
1975 Z1-B x2
1993 CB 750 Nighthawk x2
2009 ST1300A

www.kawasaki-z-classik.com
An enthusiast's forum focused exclusively
on all things Z1, Z2 and KZ900.

Please Log in or Create an account to join the conversation.

KZ900 Pushrod Not Moving 09 Aug 2021 10:52 #853451

  • Lebowski
  • Lebowski's Avatar Topic Author
  • Offline
  • User
  • Posts: 37
  • Thank you received: 3

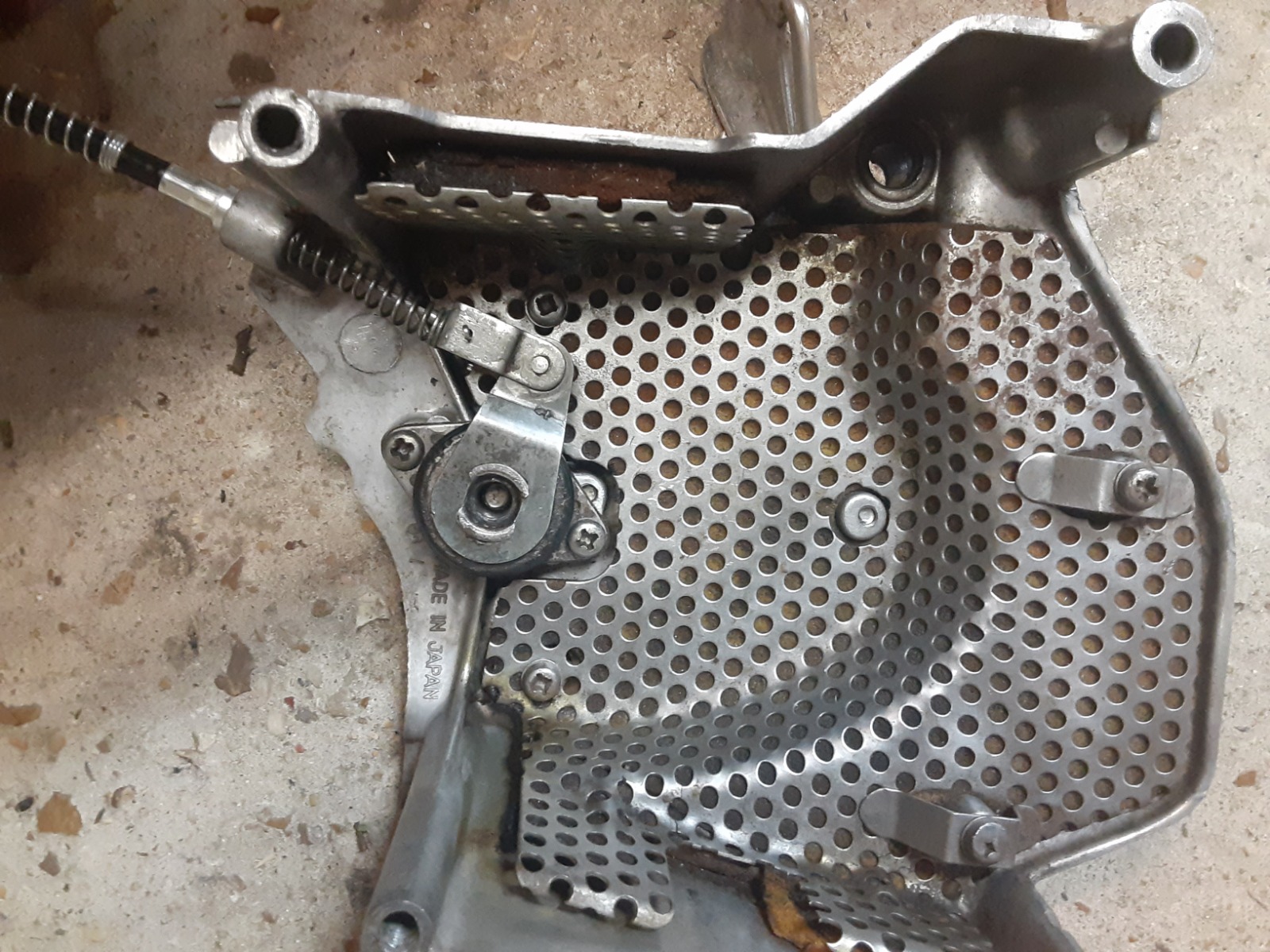

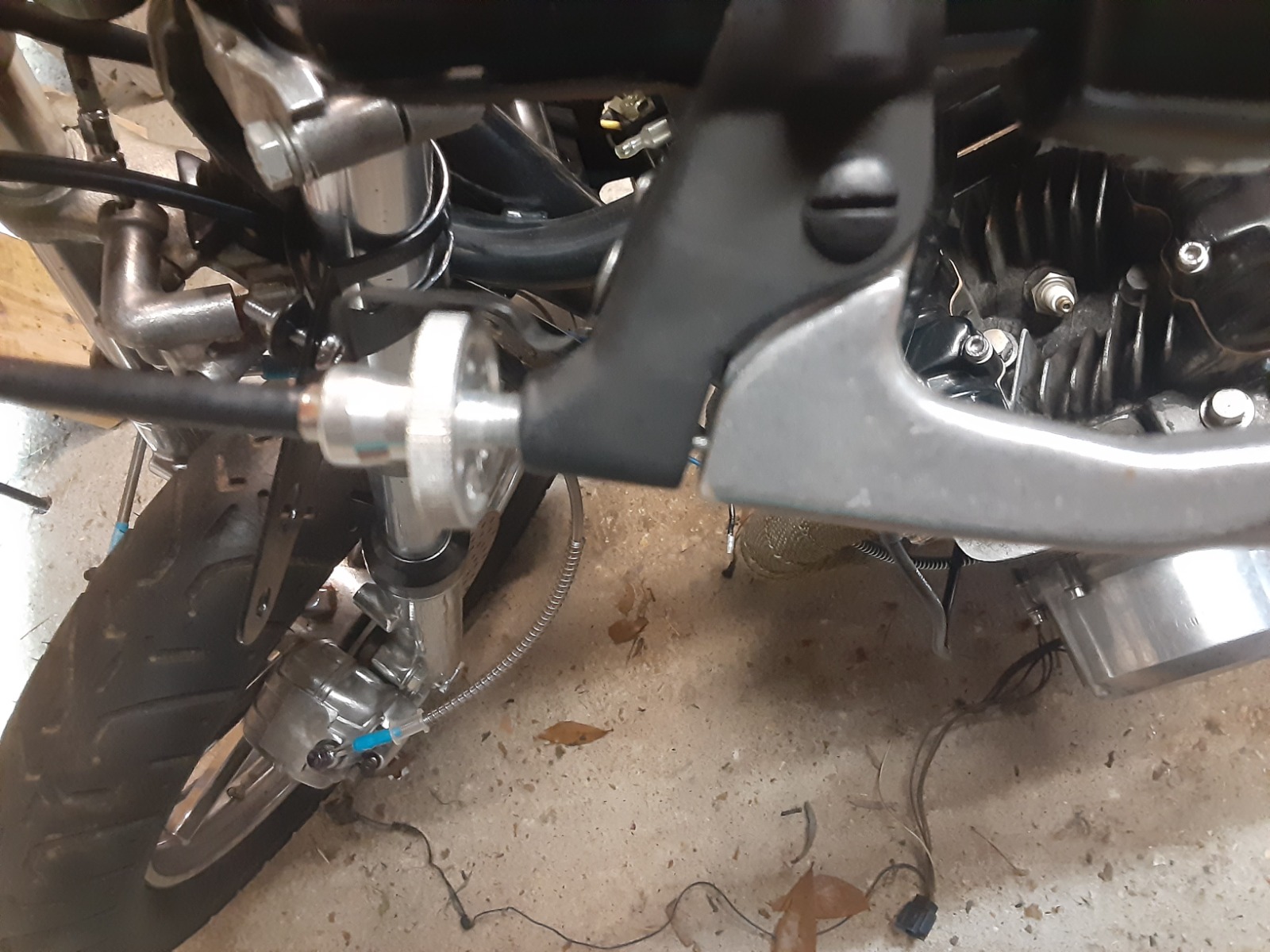

The bike is not in running condition yet. I will review those procedures and make sure I have done this correctly. Here are some pictures though:


Attachments:
