1978 KZ650 Bike Build 03 Jan 2021 19:33 #841151

  • hardrockminer
  • hardrockminer's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 2050
  • Thank you received: 583
All the bikes are finally cleaned up and put to bed for the winter. The last week or two have been pretty boring so I started looking for a project. Today I found a 1978 KZ650 for sale....well just the frame, engine, carbs and a couple of the electrical bits. This will be a challenge, but it's not intended to be a restoration. I have some spare Z1 stuff that will probably fit....wheels, gauges, lights, etc. So it will be a bit of a frankenbike. The goal is to get it back to reasonable condition over the next year or so.

My first problem is the frame. Someone at some point had the bright idea to make a bobber out of the bike, so they cut the frame just behind the back seat hinge. There are a few tail pieces available on ebay and I want to buy one but I want the best one available. There are '78, '79. and '80 sections available. My question is whether they are all the same or do I need to stick to '78 only?

You can see where the frame was cut, just behind the rear seat hinge. I guess the plan was to build a hardtail because the shock mounts are missing.



The engine was supposedly rebuilt by the PO, who apparently is a diesel mechanic with access to a full shop. The engine is still pretty dirty so I wonder. Same with the carbs...said he pulled them apart and replaced all the brass, but there is so much dirt on them I'm pretty sure they didn't come fully apart.




Closer view of the frame where it was cut

I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by hardrockminer.

1978 KZ650 Bike Build 03 Jan 2021 19:42 #841152

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 3411
  • Thank you received: 878
That one will keep you busy. What flavor of 650? A ‘78 C2 was my high school transportation.
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

1978 KZ650 Bike Build 03 Jan 2021 19:51 #841156

  • hardrockminer
  • hardrockminer's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 2050
  • Thank you received: 583
Yes, busy for sure...I need pretty much everything. It's a B version. Original had spoke wheels, same size as the Zed. I have a spare front from a 77 KZ1000 and a spare hub and rim from a Z1B, so I only need spokes and I've got a roller!!
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.

Please Log in or Create an account to join the conversation.

1978 KZ650 Bike Build 03 Jan 2021 20:41 #841164

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 3411
  • Thank you received: 878
I might have, might I say twice. A counter sprocket cover. I had a few 650 item tossed into a parts lot I bought several years ago. It could be from a 79 1000 though. I’ll dig it up
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

1978 KZ650 Bike Build 08 Jan 2021 16:04 #841386

  • seanbarney41
  • seanbarney41's Avatar
  • Offline
  • User
  • '79 kz1000 LTD '75 Honda CB750
  • Posts: 436
  • Thank you received: 23
I think B and C model have the same rear subframe, but D won't accept B/C ducktail and rear fender.

Please Log in or Create an account to join the conversation.

1978 KZ650 Bike Build 08 Jan 2021 18:51 #841399

  • hardrockminer
  • hardrockminer's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 2050
  • Thank you received: 583
Thanks so much for that comment seanbarney. I bought one on ebay two days ago...it came off a '79. Should do the job.

I've finished cleaning the frame and set it aside until the tail piece arrives. Then off to a welder to attach it and then down to a friends place in Chilliwack to sand blast the entire frame. He also has a dry vapour blaster and an aquablaster so I will try to disassemble the engine and take the parts down for cleaning.

Today I started taking the engine apart. The PO said he rebuilt the bottom end and changed the valve guides. At first I thought he was lying, but as I pulled the engine apart and saw the new gaskets I realized he had actually had the engine apart. For the most part it looks clean, but dry...no evidence of reassembly oil. The piston tops are still pretty black. Most of the exterior needs a thorough cleaning. The M6 bolts felt really tight when I removed them...not sure if they were torqued properly.

This photo shows the valve cover. It needs a good cleaning. PO had bought a set of NGK B7 plugs. B8 are the standards according to the book. Note how the valve gasket was designed for a smog head.


Photo of the back end, showing the dirt left on the engine during the PO's rebuild. He used Permatex on the cases and it looks to be a bit excessive on the outside. Hopefully not the same on the inside...this would have plugged the oil strainer if the engine had been run like that.


This photo shows the front...more dirt.
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
Attachments:

Please Log in or Create an account to join the conversation.

1978 KZ650 Bike Build 08 Jan 2021 21:48 #841408

  • katit
  • katit's Avatar
  • Offline
  • User
  • Posts: 327
  • Thank you received: 22
I think kz650 uses B7 plugs

Please Log in or Create an account to join the conversation.

1978 KZ650 Bike Build 09 Jan 2021 05:24 #841417

  • hardrockminer
  • hardrockminer's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 2050
  • Thank you received: 583
The downloadable manual on this site for the '77 version says B8. I haven't found a '78 manual but am assuming it's the same.
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.

Please Log in or Create an account to join the conversation.

1978 KZ650 Bike Build 09 Jan 2021 07:33 #841422

  • 650ed
  • 650ed's Avatar
  • Offline
  • User
  • Posts: 15429
  • Thank you received: 2836

The downloadable manual on this site for the '77 version says B8. I haven't found a '78 manual but am assuming it's the same.

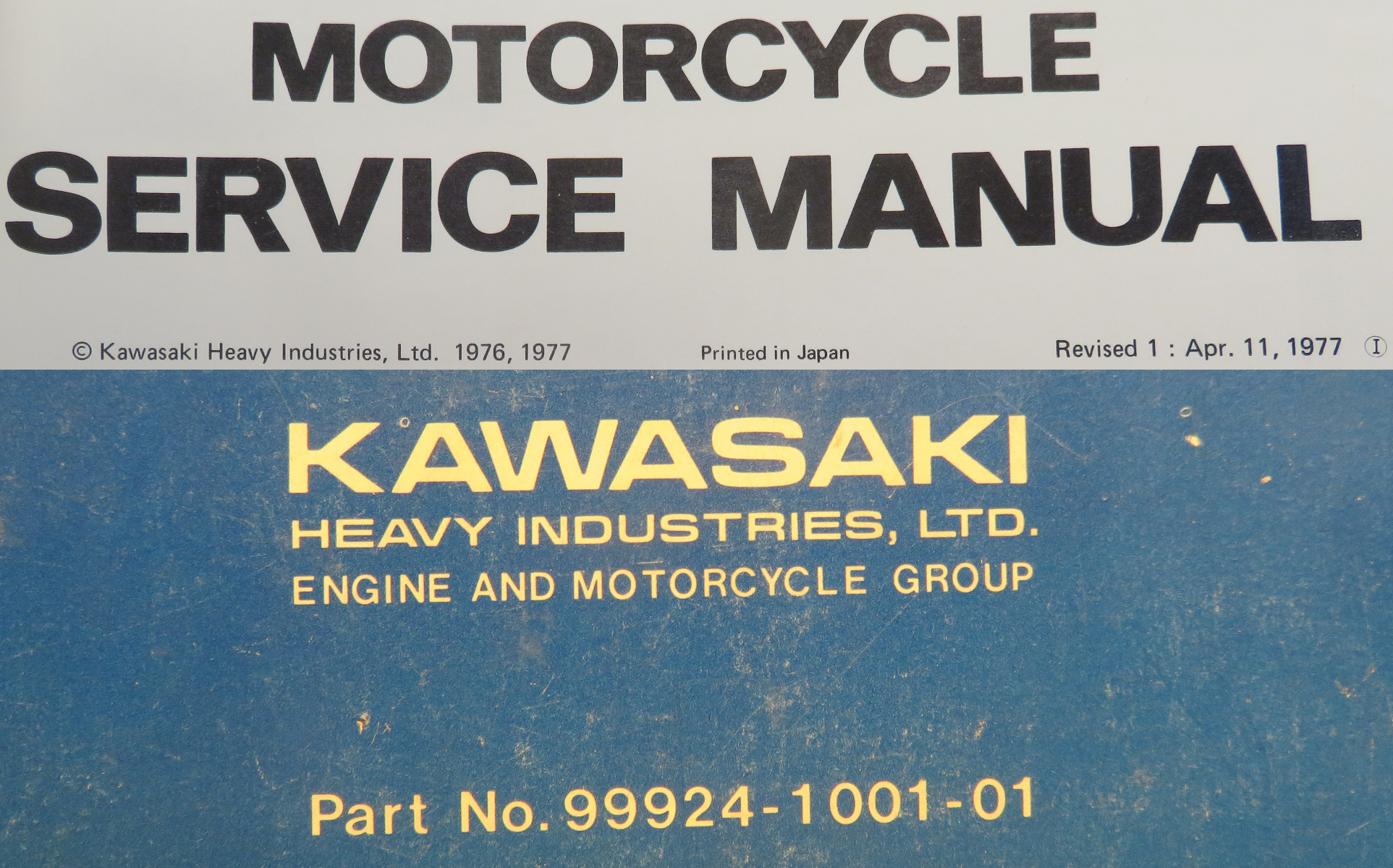

Be very careful about the plugs. The original manual shows B8ES but that was an error. Every later Kawasaki Service Manual specifies NGK B7ES or ND W22ES-U spark plugs. I am very familiar with this issue because I am the original owner of a 1977 KZ650-C1. The first time I changed the spark plugs I used those specified in the original manual and those plugs fouled and had problems. I bought a later manual and found the correction, and after changing plugs to the new specification I never had another fouling problem. I have found that the ND (may be labeled Nippondenso or Denso) ND W22ES-U spark plugs work great in my 1977 KZ650. Ed



1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Attachments:
The following user(s) said Thank You: Saablord

Please Log in or Create an account to join the conversation.

Last edit: by 650ed.

1978 KZ650 Bike Build 09 Jan 2021 08:26 #841427

  • hardrockminer
  • hardrockminer's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 2050
  • Thank you received: 583
Thanks for that information Ed. B7 it is then. The plugs I have are brand new.
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.

Please Log in or Create an account to join the conversation.

1978 KZ650 Bike Build 09 Jan 2021 11:24 #841434

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 3411
  • Thank you received: 878
Here are the counter sprocket covers. If they fit one is yours.

If they are not 650, then I’d appreciate it if a member can identify them.



1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by Mikaw.

1978 KZ650 Bike Build 09 Jan 2021 12:19 #841440

  • DoctoRot
  • DoctoRot's Avatar
  • Offline
  • Sustaining Member
  • Oh, the usual... I bowl, I drive around...
  • Posts: 2443
  • Thank you received: 573

Yes, busy for sure...I need pretty much everything. It's a B version. Original had spoke wheels, same size as the Zed. I have a spare front from a 77 KZ1000 and a spare hub and rim from a Z1B, so I only need spokes and I've got a roller!!


the Z1 hub is different from the KZ650. also KZ650 has a 17mm rear axle. im sure it could be made to work.

Please Log in or Create an account to join the conversation.
