Saving a '81 KZ750-E 28 Jul 2021 19:05 #852751

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Posts: 5860
  • Thank you received: 1769
Please forgive it you know this already but the harness is NOT wrapped with electrical tape.  The wrap is non adhesive.  Elliot tape is one option.  The high heat version.

Please Log in or Create an account to join the conversation.

Saving a '81 KZ750-E 28 Jul 2021 19:27 #852752

  • Mikaw
  • Mikaw's Avatar
  • Away
  • Sustaining Member
  • Posts: 3251
  • Thank you received: 819

Please forgive it you know this already but the harness is NOT wrapped with electrical tape.  The wrap is non adhesive.  Elliot tape is one option.  The high heat version.

Thank you, I knew it wasn’t electric tape, I attempted to describe it as friction tape, without knowing what the correct term was. If you know of a source please. Also any tips on how’s its installed. It appears to be started near the terminal end and wrap over itself, then continue till it is covered by the plastic like sheathing. How is that end terminated that keeps it from unraveling.
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

Saving a '81 KZ750-E 29 Jul 2021 07:47 #852771

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Member
  • Posts: 6082
  • Thank you received: 1493
I do not know if the company sells directly to customers, but if not, I bet someone there would be happy to direct you to a local source.

www.egitape.com/product-category/type/pvc-vinyl-Tape

EDIT: The tapes at the link above all have adhesive. The only non-adhesive one I could find on their website is this one, but it is not black.
www.egitape.com/product/stretch-seal-self-fusing-silicone-tape/
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

Please Log in or Create an account to join the conversation.

Last edit: by TexasKZ.

Saving a '81 KZ750-E 29 Jul 2021 07:58 #852772

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Member
  • Posts: 6082
  • Thank you received: 1493
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

Please Log in or Create an account to join the conversation.

Saving a '81 KZ750-E 29 Jul 2021 11:51 #852786

  • Skidmark
  • Skidmark's Avatar Topic Author
  • Offline
  • User
  • Posts: 868
  • Thank you received: 138
I know this bracket holds the fuse holder, but have a head scratcher on its orientation and location.  Can anyone post a pic of where theirs is mounted?  Thanks.


Retired gearhead
'81 KZ-750 E2
'86 Suzuki Savage 650
Attachments:

Please Log in or Create an account to join the conversation.

Saving a '81 KZ750-E 29 Jul 2021 17:45 #852811

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Posts: 5860
  • Thank you received: 1769
That bracket does hold a small fuse holder, and it mounts under the LH side cover.  It's the silver plated part in the photo below.


Attachments:
The following user(s) said Thank You: Skidmark

Please Log in or Create an account to join the conversation.

Last edit: by Nessism.

Saving a '81 KZ750-E 30 Jul 2021 10:21 #852848

  • Skidmark
  • Skidmark's Avatar Topic Author
  • Offline
  • User
  • Posts: 868
  • Thank you received: 138
The wiring harness is in, and everything is hooked up with the following exceptions - 1) the battery,  2) both handlebar controls/switches, 3) the headlight.  Since I had to purchase some repop controls for a Z1, this is the part of the wiring I been stalling on.  Time to get creative, and blend these into the KZ750 wiring. Many of the wires are the same color with the same function, but have position changes in connectors.  The others I need to figure out.  Reading two different wiring diagrams, and trying to just blend... (movie quote - "Yeah, right...  you blend!")
Retired gearhead
'81 KZ-750 E2
'86 Suzuki Savage 650

Please Log in or Create an account to join the conversation.

Saving a '81 KZ750-E 30 Jul 2021 11:14 #852852

  • Skidmark
  • Skidmark's Avatar Topic Author
  • Offline
  • User
  • Posts: 868
  • Thank you received: 138

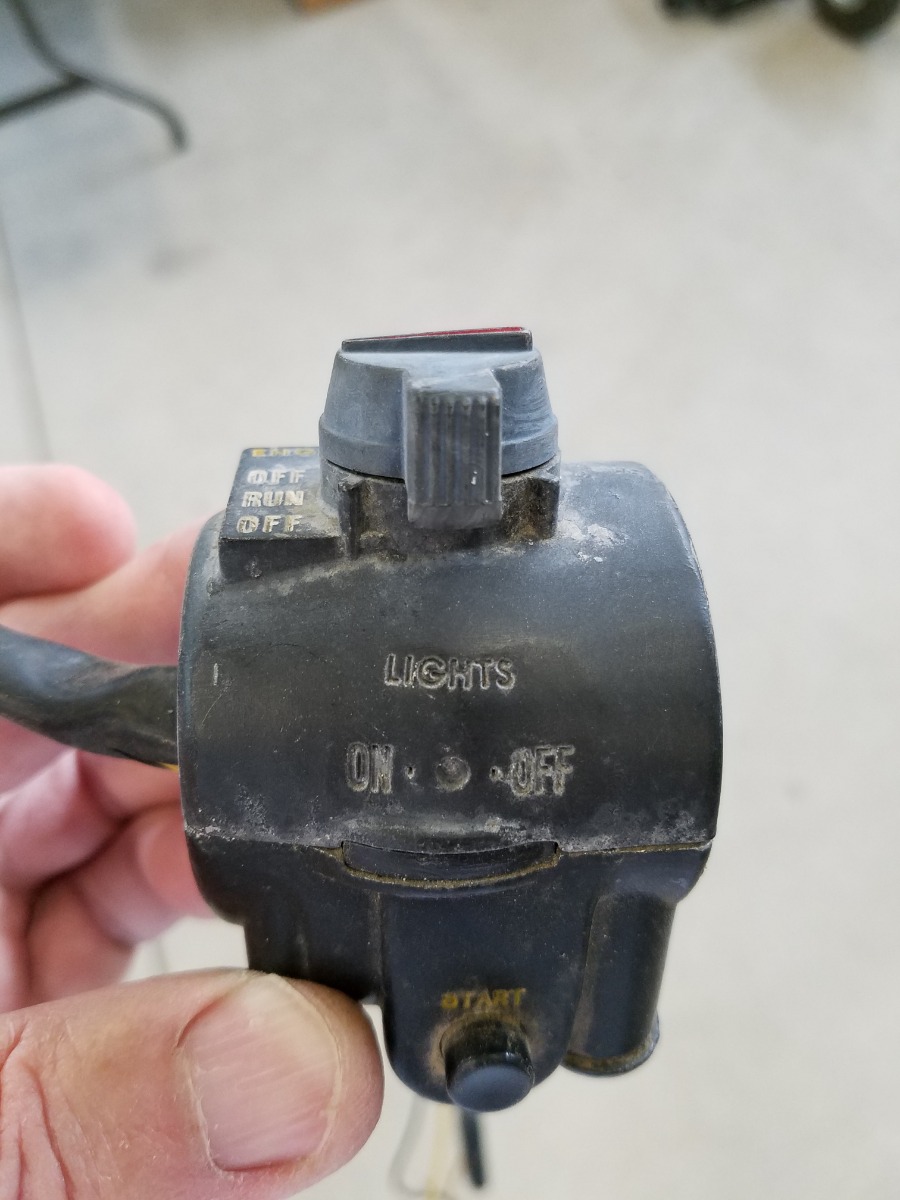

This is a pure curiosity question for the Z1 gurus on here.  There is a light switch on the right handlebar control - on/po/off.  What does the "po" stand for?


The reason it is curiosity only is this swicth was not utilized on the '81 KZ750E  (US model).  The lights were always on when the ignition key was in the "on" position.  The control housing did not have the lettering painted, and the slot for the switch arm was filled in.

Retired gearhead
'81 KZ-750 E2
'86 Suzuki Savage 650
Attachments:

Please Log in or Create an account to join the conversation.

Saving a '81 KZ750-E 30 Jul 2021 11:19 #852853

  • Skidmark
  • Skidmark's Avatar Topic Author
  • Offline
  • User
  • Posts: 868
  • Thank you received: 138
The other difference between the stock handlebar controls and the new Z1 repops is the stock left hand control had a hazard switch that was wired into a relay and the turn signals.  This switch would cause all four turn signals to flash until the switch was turned off.
Retired gearhead
'81 KZ-750 E2
'86 Suzuki Savage 650

Please Log in or Create an account to join the conversation.

Saving a '81 KZ750-E 30 Jul 2021 11:33 #852855

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3252
  • Thank you received: 1424
The "PO" position is for the position light, a smal 12 Volt 5 Watt bulb in the headlight reflector.
It´s like an emergency light if your main head light bulb is blown.







Attachments:
The following user(s) said Thank You: Skidmark

Please Log in or Create an account to join the conversation.

Last edit: by Scirocco.

Saving a '81 KZ750-E 30 Jul 2021 12:29 #852859

  • Mikaw
  • Mikaw's Avatar
  • Away
  • Sustaining Member
  • Posts: 3251
  • Thank you received: 819
I’m sure by far there are cheaper options but this was the hazard switch on the ‘76-‘77 900. It bolts the the Rh handle bar clamp.

Number 20 here is the bracket www.partzilla.com/catalog/kawasaki/motor...electrical-equipment

Kawasaki NOS NEW 27014-008 Hazard Switch KZ KZ900
Buy It Now
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

Last edit: by Mikaw.

Saving a '81 KZ750-E 30 Jul 2021 12:44 #852863

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3252
  • Thank you received: 1424
400 bucks for a switch to turn on/connect the L/R front and rear turning lights together is absolut insane
