82 kz1000 ground up build
- davido
- Offline
- User
www.kzrider.com/forum/11-projects/594313-csr1000-project-build
CB550 (1978)
CB500/4 (1972)*
KZ1000CSR (1981)
XT 600E (1999)
TDM900 (2003)
Please Log in or Create an account to join the conversation.
- jowek70
- Topic Author
- Offline
- User
- Posts: 158
- Thank you received: 30
davido wrote: I tried the GS swingarm on my build.It wouldnt take a 160 tyre,(I think it was designed to take a 130 or 140). Your ZX6 wheel must be at least 160.Hows it working out??
I don't have a tire on my rim yet and I'm in the process of getting the rear caliper mount sorted out but I think i'll find a way to make it fit. it might be tight and I might have to run the chain longer than normal but I'm going to give it a shot.
Please Log in or Create an account to join the conversation.
- 750 R1
- Offline
- User
- Posts: 1215
- Thank you received: 394
jowek70 wrote:
davido wrote: I tried the GS swingarm on my build.It wouldnt take a 160 tyre,(I think it was designed to take a 130 or 140). Your ZX6 wheel must be at least 160.Hows it working out??
I don't have a tire on my rim yet and I'm in the process of getting the rear caliper mount sorted out but I think i'll find a way to make it fit. it might be tight and I might have to run the chain longer than normal but I'm going to give it a shot.
I have a GS arm too, if using a 17 inch rear rim you can fit up to a 170, so a 160 should be fine, you will have to modify the rear brake arm to clear the tire, if using a 18 inch rear rim you will possibly only fit a 150, some 160's may fit.. The inside gusset can be modified to help with clearance... Not all tires inflate to the exact sizes so finding a tire to fit helps. Try google or the GS resources forum , there are quite a few guys over there running 160/170 tires in the GS arm...
Please Log in or Create an account to join the conversation.
- kaw-a-holic
- Offline
- User
- Posts: 1808
- Thank you received: 249
davido wrote: I tried the GS swingarm on my build.It wouldnt take a 160 tyre,(I think it was designed to take a 130 or 140). Your ZX6 wheel must be at least 160.Hows it working out??
I am running an 89 GS1100e swingarm with a 160, no issues at all.
Jon
1977 KZ1000a1
Mesa, AZ
Phoenix Fighter Project
Please Log in or Create an account to join the conversation.
- jowek70
- Topic Author
- Offline
- User
- Posts: 158
- Thank you received: 30
750 R1 wrote:
jowek70 wrote:
davido wrote: I tried the GS swingarm on my build.It wouldnt take a 160 tyre,(I think it was designed to take a 130 or 140). Your ZX6 wheel must be at least 160.Hows it working out??
I don't have a tire on my rim yet and I'm in the process of getting the rear caliper mount sorted out but I think i'll find a way to make it fit. it might be tight and I might have to run the chain longer than normal but I'm going to give it a shot.
I have a GS arm too, if using a 17 inch rear rim you can fit up to a 170, so a 160 should be fine, you will have to modify the rear brake arm to clear the tire, if using a 18 inch rear rim you will possibly only fit a 150, some 160's may fit.. The inside gusset can be modified to help with clearance... Not all tires inflate to the exact sizes so finding a tire to fit helps. Try google or the GS resources forum , there are quite a few guys over there running 160/170 tires in the GS arm...
Thanks for the input
My dad has fitted a 180 rear with the gs arm but everything isn't squared away yet
I'm planning a 180 rear tire as well
Just from looking I think it'll fit
I'm also running a different engine tho
Please Log in or Create an account to join the conversation.
- jowek70
- Topic Author
- Offline
- User
- Posts: 158
- Thank you received: 30
kaw-a-holic wrote:
davido wrote: I tried the GS swingarm on my build.It wouldnt take a 160 tyre,(I think it was designed to take a 130 or 140). Your ZX6 wheel must be at least 160.Hows it working out??
I am running an 89 GS1100e swingarm with a 160, no issues at all.
Good to hear
My rim is 5.5 wide so I can run a 180 tire
I'm modifying the entire rear brake set up to fit using a gs rear axle, zx6 caliper and caliper mount with custom spacers
Please Log in or Create an account to join the conversation.
- jowek70
- Topic Author
- Offline
- User
- Posts: 158
- Thank you received: 30
Mounted front end
Fitted 03/04 zx6 front brakes (leftovers from track bike)
Almost have a rolling chassis
Have the rear brake set up sorted out in 3d but need some prints and spacers made up
Going to modify swingsrm and rear caliper mount similar to a modern sportbike set up in place of the bar the kz/gs use stock
flic.kr/p/ETtbgf
www.flickr.com/gp/156485208@N03/5z07C7
Please Log in or Create an account to join the conversation.
- jowek70
- Topic Author
- Offline
- User
- Posts: 158
- Thank you received: 30

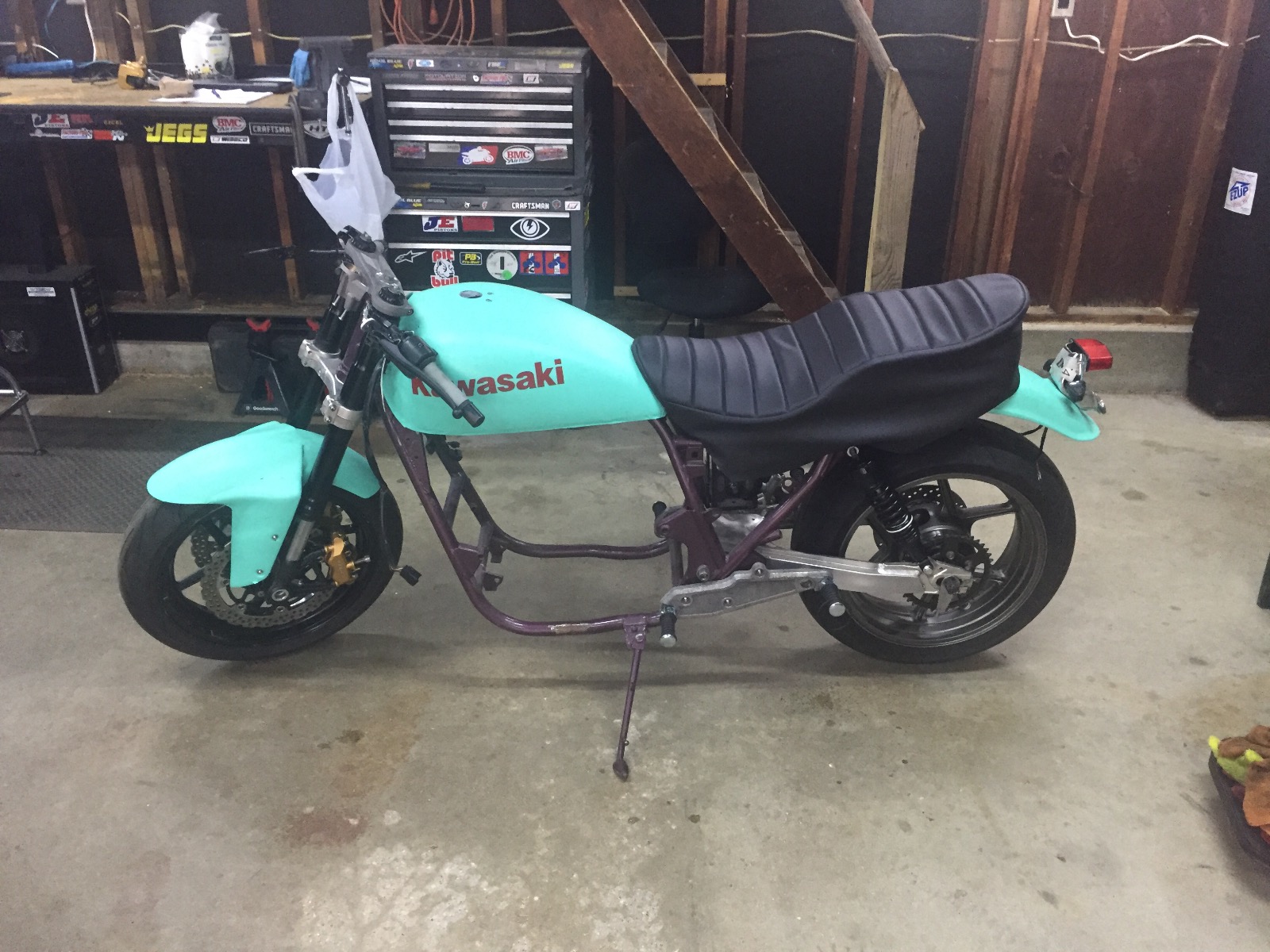

Waiting for rear wheel spacers from shop
Got front end sorted out and nearing rear ended completion
Still on the lookout for a donor z1000 engine but have started sorting out most of the electrical
Builds coming along well and it’s fun to roll around on the chassis
Pretty good riding position and decent ergonomics for a Frankenstein build
Please Log in or Create an account to join the conversation.
- TexasKZ
- Offline
- Platinum Member
- Posts: 7569
- Thank you received: 2235
Did you by any chance make some engine noises as you rolled around the shed?:silly: :whistle:
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
Please Log in or Create an account to join the conversation.
- jowek70
- Topic Author
- Offline
- User
- Posts: 158
- Thank you received: 30
Please Log in or Create an account to join the conversation.
- jowek70
- Topic Author
- Offline
- User
- Posts: 158
- Thank you received: 30
Found donor engine today to round out my build. Should have in a couple days. 03-06 z1000 with custom mounting for the kz frame. Will update with photos
