Decal placement 78 KZ1000 17 Mar 2021 08:57 #845072

  • BCScott
  • BCScott's Avatar
  • Offline
  • Sustaining Member
  • Posts: 156
  • Thank you received: 53

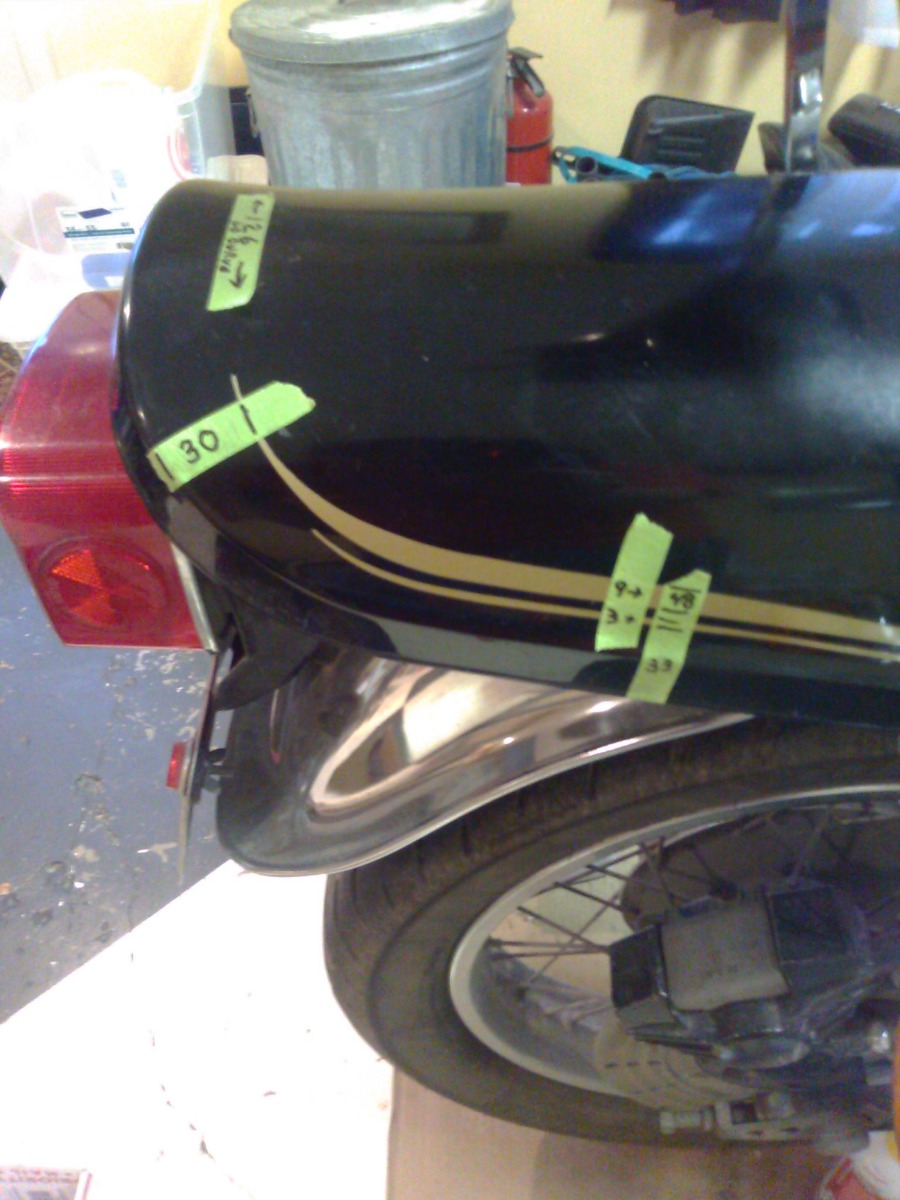

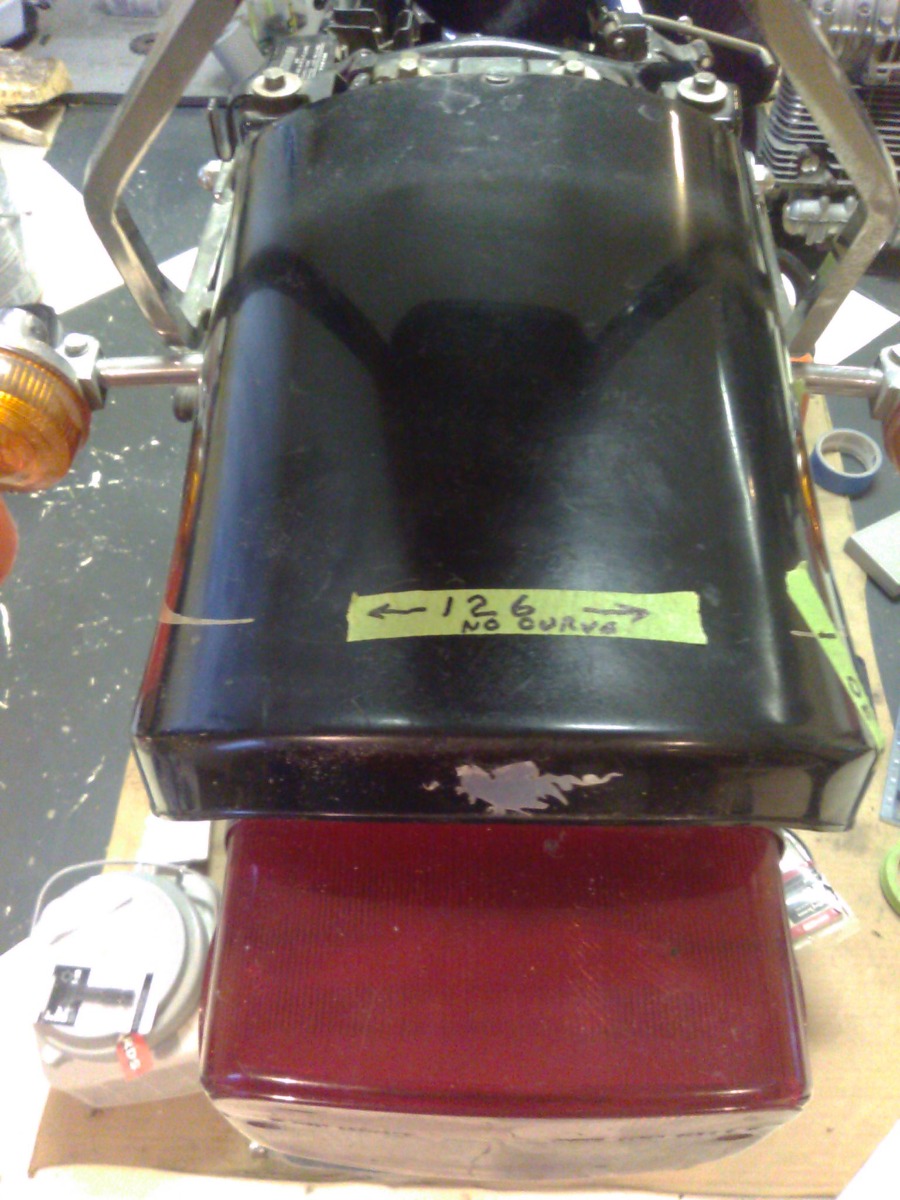

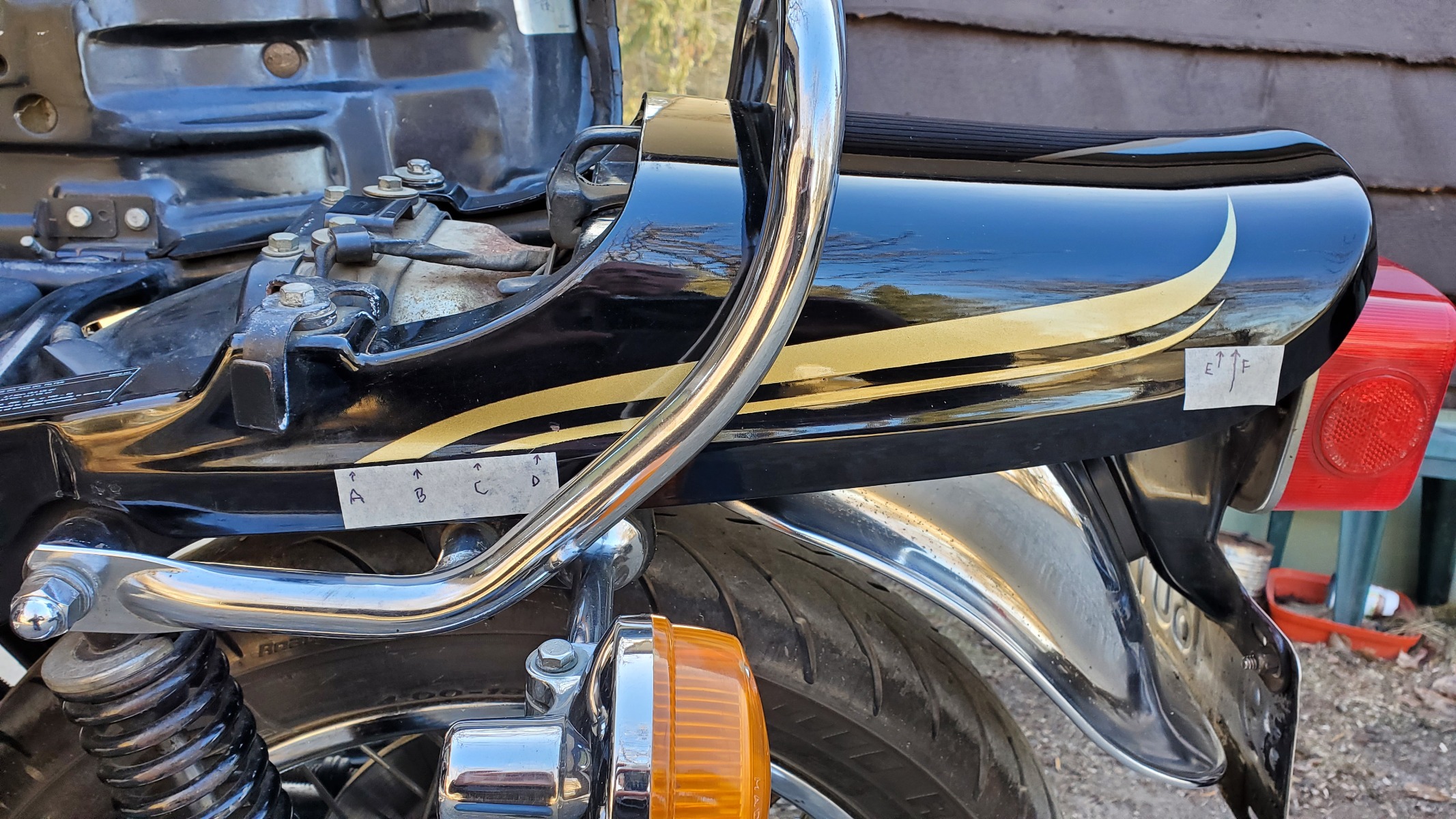

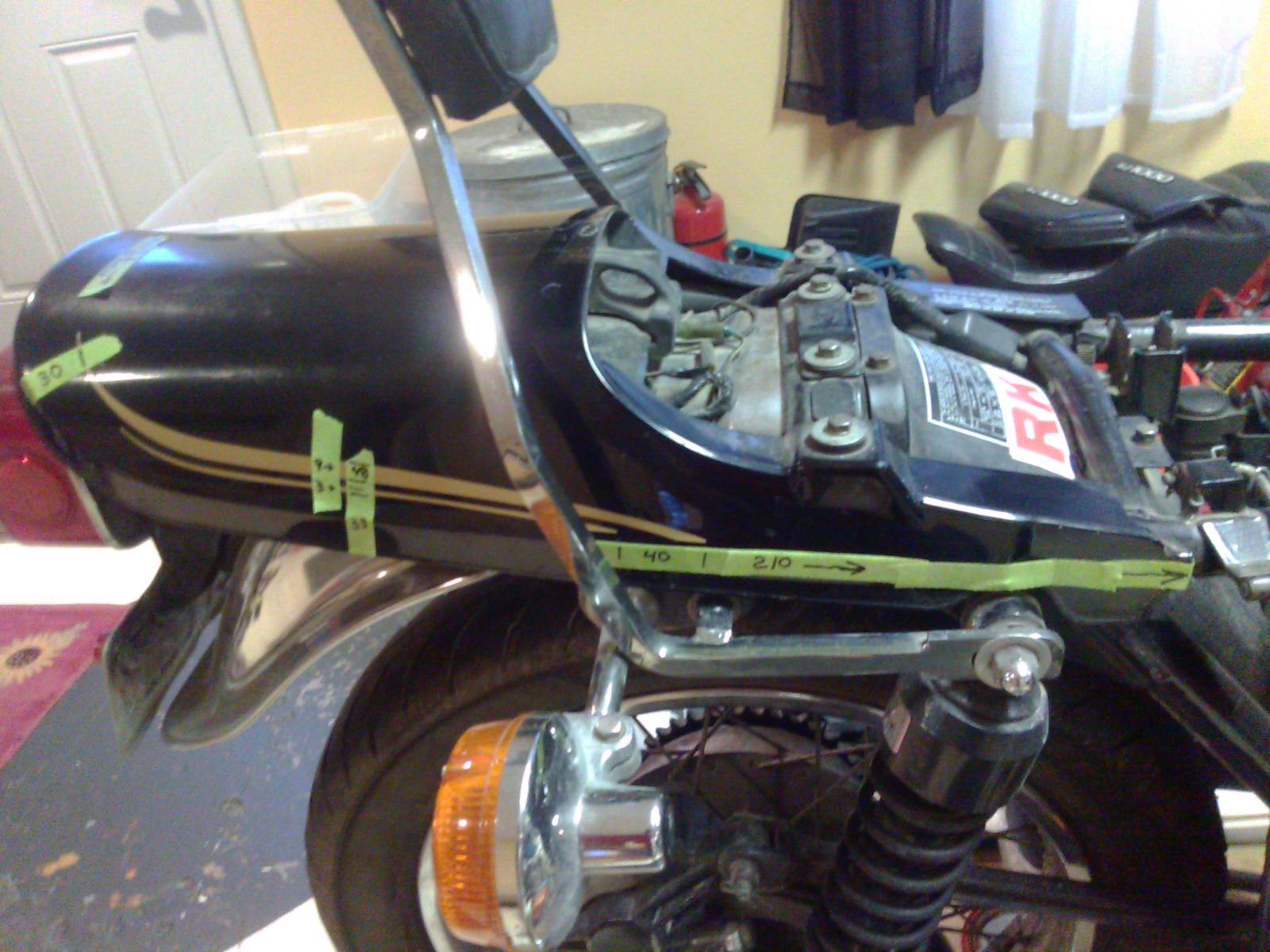

Sure. What do you need? Looking at the final photo, from the front edge to A is 7 1/8". From A to B is 7/8". From B to C is 11/16". From C to D is 13/16". From A to F (on the tape) is 12 7/8". From C to the actual point of E is 11". Point to point on the heavy line is 4 13/16". From the point of the heavy line to the edge is 2 1/4". From the point of the thin line to the edge is 1 3/4". The fat line is 9/16" at its widest and the thin line is 5/32" at its widest. Let me know if you need anything else.
Back in the saddle and loving it! KZ1000A1
Attachments:
The following user(s) said Thank You: Kaylinator

Please Log in or Create an account to join the conversation.

Last edit: by BCScott.

Decal placement 78 KZ1000 17 Mar 2021 16:50 #845109

  • bluej58
  • bluej58's Avatar
  • Offline
  • Sustaining Member
  • The chrome don't get you home
  • Posts: 2490
  • Thank you received: 491

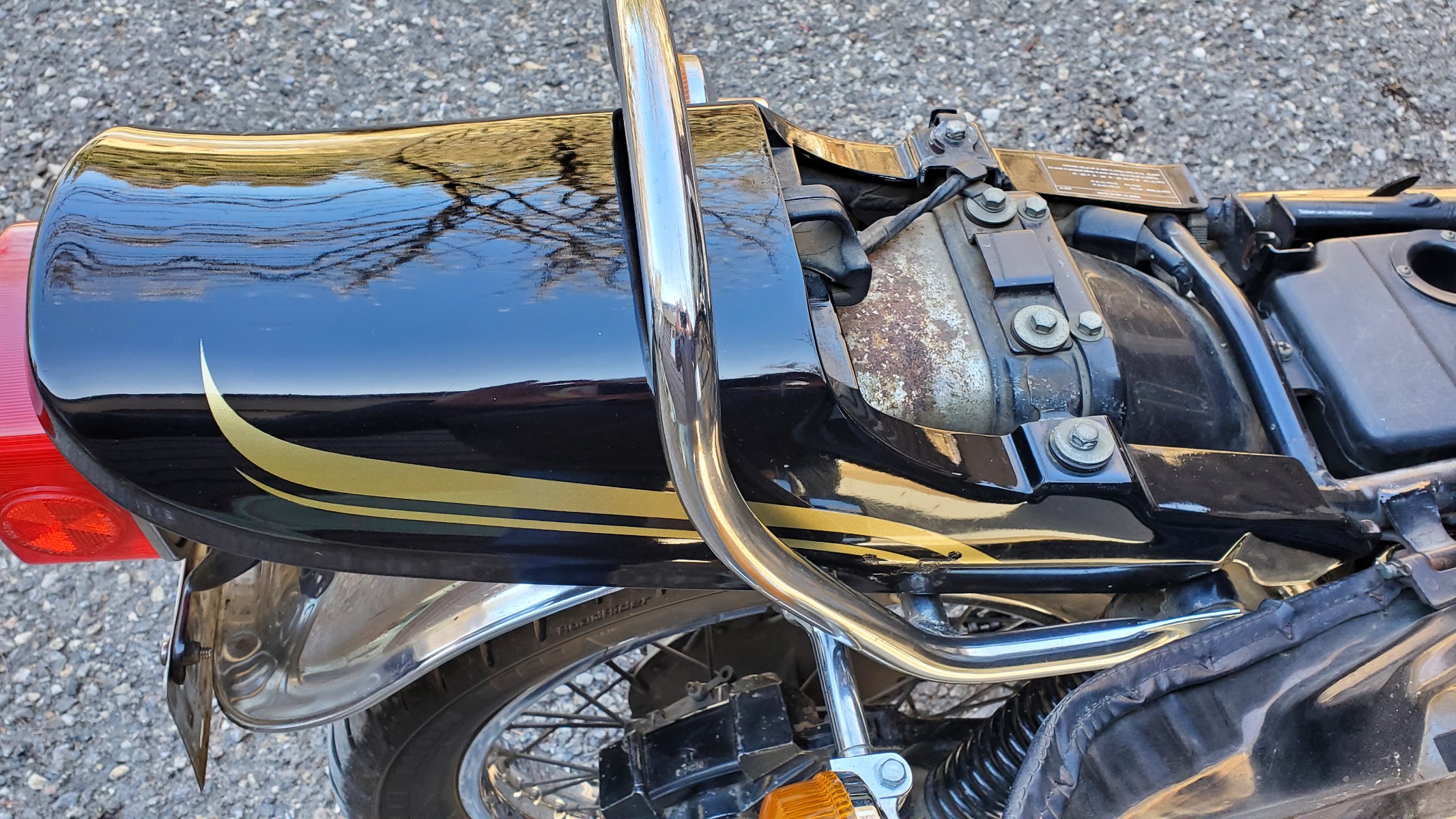

BC, I love your bike it puts mine to shame, but this is what a 44 year old paint job with decals looks like.
Sorry for the crappy pics but they hide a lot,


78 KZ1000 A2A
Attachments:
The following user(s) said Thank You: BCScott

Please Log in or Create an account to join the conversation.

Decal placement 78 KZ1000 17 Mar 2021 18:31 #845113

  • BCScott
  • BCScott's Avatar
  • Offline
  • Sustaining Member
  • Posts: 156
  • Thank you received: 53
I always try to take them from a "certain distance". Up close, it's nowhere near as nice as some of the bikes I see here. Not too bad for 44 years, original paint and nearly 80,000 kms, though! I've always tried to take care of it. I'm getting ready to put on a new to me OEM exhaust in the next few weeks. That will improve the up close looks considerably.
Back in the saddle and loving it! KZ1000A1

Please Log in or Create an account to join the conversation.

Last edit: by BCScott.

Decal placement 78 KZ1000 17 Mar 2021 20:28 #845120

  • Kaylinator
  • Kaylinator's Avatar
  • Offline
  • Sustaining Member
  • Posts: 294
  • Thank you received: 68

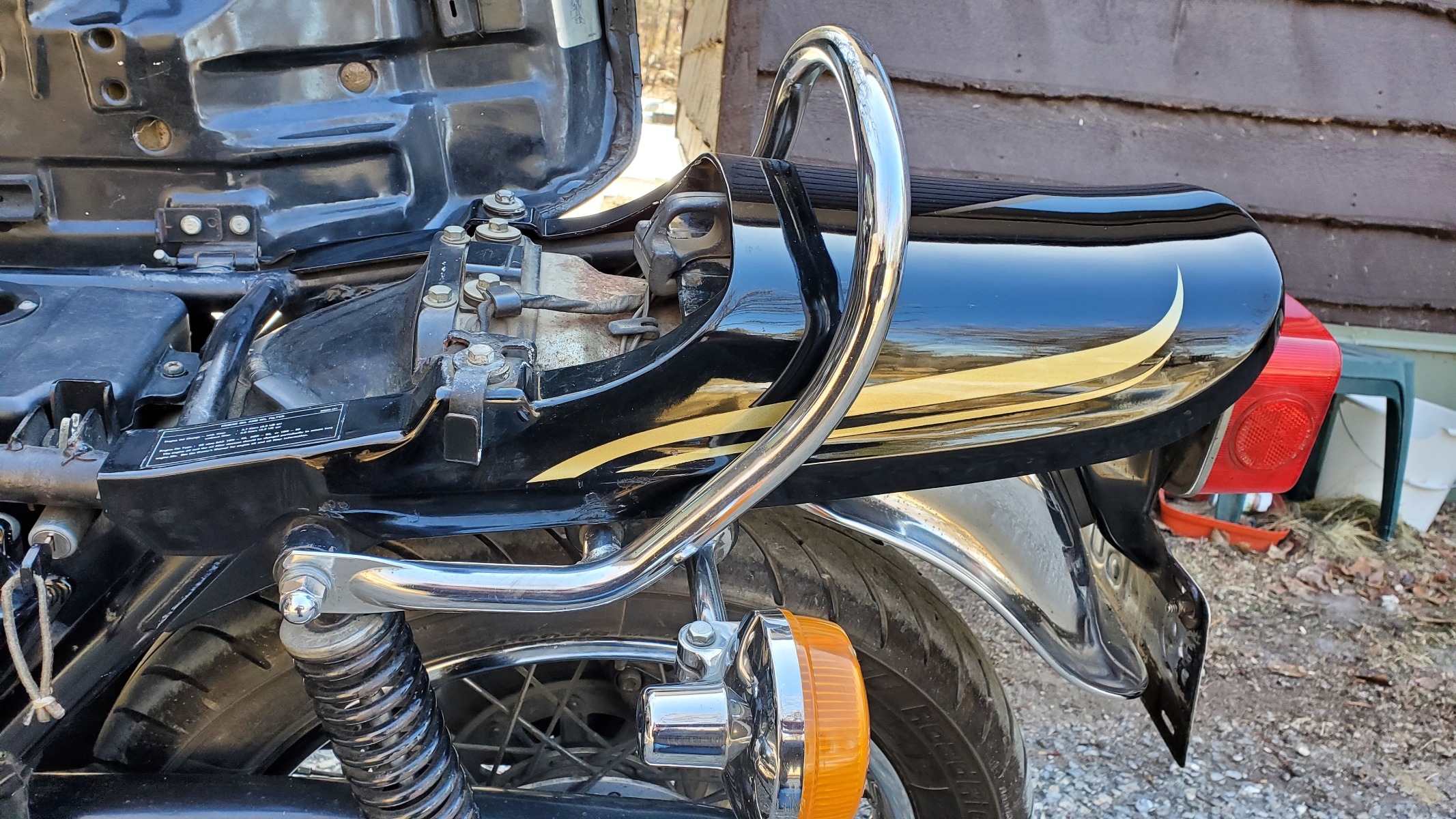

I honestly don't think any two pieces left the factory with the decals in the same place. Once I wet sanded my tailpiece I could just barely make out where the original decals ended. I also looked back at photos of the bike from last year before I stripped it, and the skinny decal vegan almost centered above the rear signal light stems.

Mine definitely sit a little farther back than yours Scott.
Attachments:

Please Log in or Create an account to join the conversation.

Decal placement 78 KZ1000 17 Mar 2021 21:35 #845125

  • BCScott
  • BCScott's Avatar
  • Offline
  • Sustaining Member
  • Posts: 156
  • Thank you received: 53
You're probably right. They likely varied as at that time, I'm sure they were laid by hand. I think as long as both sides match, it should look good. Yours look very similarly placed as bluej58's.
Back in the saddle and loving it! KZ1000A1

Please Log in or Create an account to join the conversation.

Last edit: by BCScott.
