11 Jun 2015 17:17 #676223 by weales
Bodywork Repairs was created by weales
G'day all, The tail piece on my Z1-R has been well and truly butchered by some PO for some "who-knows-what" reason - see pic!




Not only was the internal brace separated from the tailpiece but it had been melted/drilled/buggered up! So I had to come up with a repair scheme.
I found this product called "Rapid Fix" which is a 2 part adhesive/bonding/filling product which I used to re-attach the internal brace to the inside of the tailpiece - see pics.




It's just like araldite but much quicker/stronger and easier to use. One part of the kit is a fine powder which is applied to the area needed to be bonded/filled/joined,. Drops of the the liquid adhesive are then applied (sparingly) to the powder and an instant "weld" or patch is made.

I had to make a patch to strengthen the brace where it had been butchered - I used a couple of pieces of plastic and just glued these on using high strength araldite - thought the Rapidfix would be overkill and it would consume a lot of the kit - which is not cheap.





I have also used Rapidfix to fill some holes in my sidecovers which a PO had drilled. Just blanked off one side of the hole with tape , filled the hole with the powder then added a drop of the adhesive ; then turned the cover over, removed the tape, added a bit more powder and a drop of adhesive - job done!
Be sure to not apply too much powder of youre filling something which needs to be sanded back - there is very little shrinkage and the RapidFix is very hard - can be drilled/sanded once the adhesive has been applied!
I'll be using this to repair my fairing which has some splits/damage also

Current Project
1968 Norton P11A Desert Sled
Other bike (and daily ride)
2004 Yamaha FZR 600
Previous Bikes
78 Z1-R (resto)
91 Zephyr 750
73 Mach IV (Resto)
78 Z1-R
78 Z1-R (stolen)
76 Z900
76 Z650
73 Mach IV
72 Mach III
Attachments:

Please Log in or Create an account to join the conversation.

More
11 Jun 2015 17:32 #676224 by weales
Replied by weales on topic Bodywork Repairs

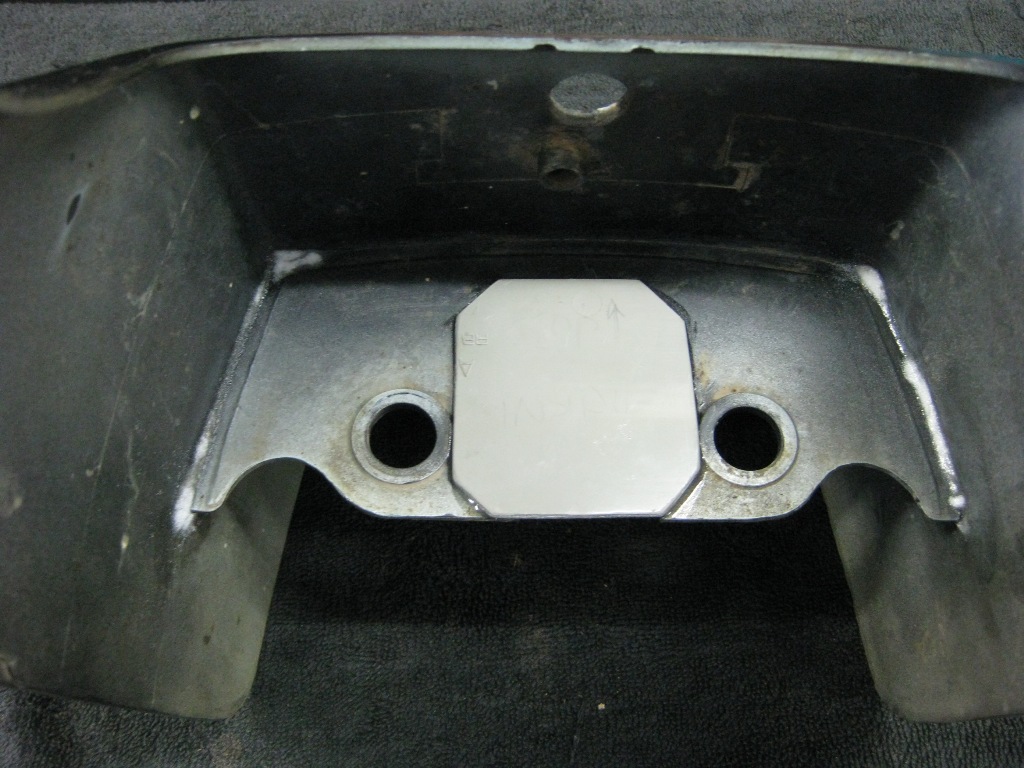

My apologies for the attachments all being the same ! I have some trouble putting multiple images into my posts! So I'll put them in singly the first one in my previous post shows the completed repair. (not pretty but structurally ok and can't be seen.

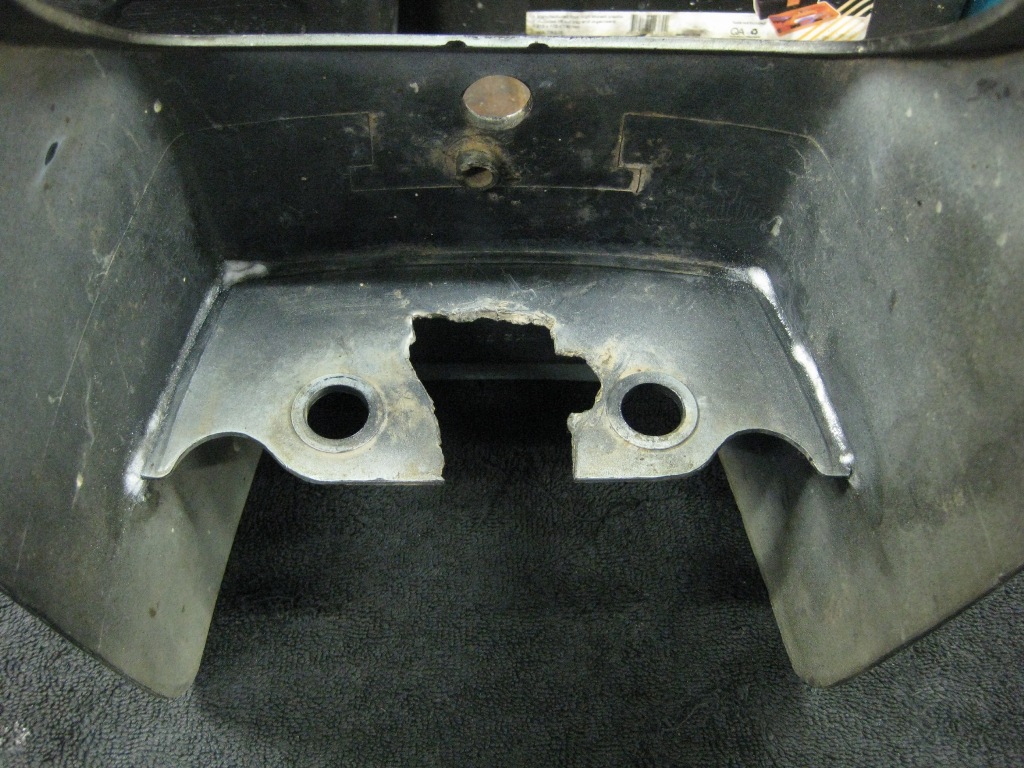

The pic is attached is of the tailpiece after the brace repair and shows the extent of the butchery with which I had to deal!



Current Project
1968 Norton P11A Desert Sled
Other bike (and daily ride)
2004 Yamaha FZR 600
Previous Bikes
78 Z1-R (resto)
91 Zephyr 750
73 Mach IV (Resto)
78 Z1-R
78 Z1-R (stolen)
76 Z900
76 Z650
73 Mach IV
72 Mach III
Attachments:

Please Log in or Create an account to join the conversation.

More
11 Jun 2015 17:37 #676225 by weales
Replied by weales on topic Bodywork Repairs

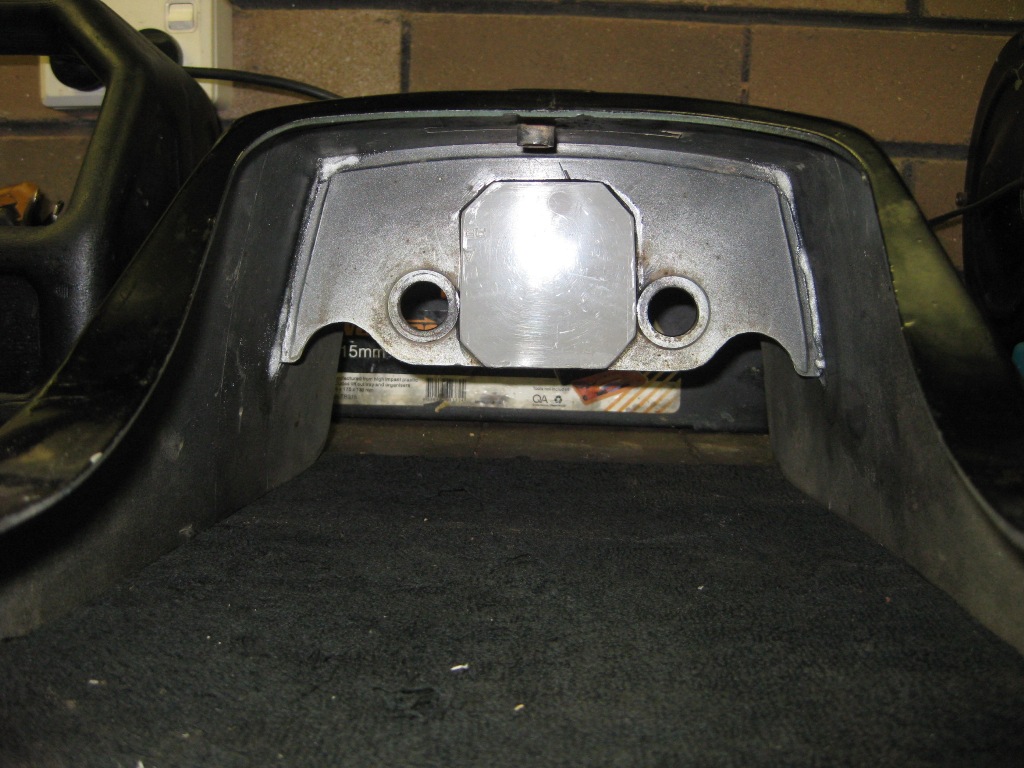

Another pic of the outer patch after both patches were glued in place.

Current Project
1968 Norton P11A Desert Sled
Other bike (and daily ride)
2004 Yamaha FZR 600
Previous Bikes
78 Z1-R (resto)
91 Zephyr 750
73 Mach IV (Resto)
78 Z1-R
78 Z1-R (stolen)
76 Z900
76 Z650
73 Mach IV
72 Mach III
Attachments:

Please Log in or Create an account to join the conversation.

More
11 Jun 2015 17:42 #676226 by weales
Replied by weales on topic Bodywork Repairs

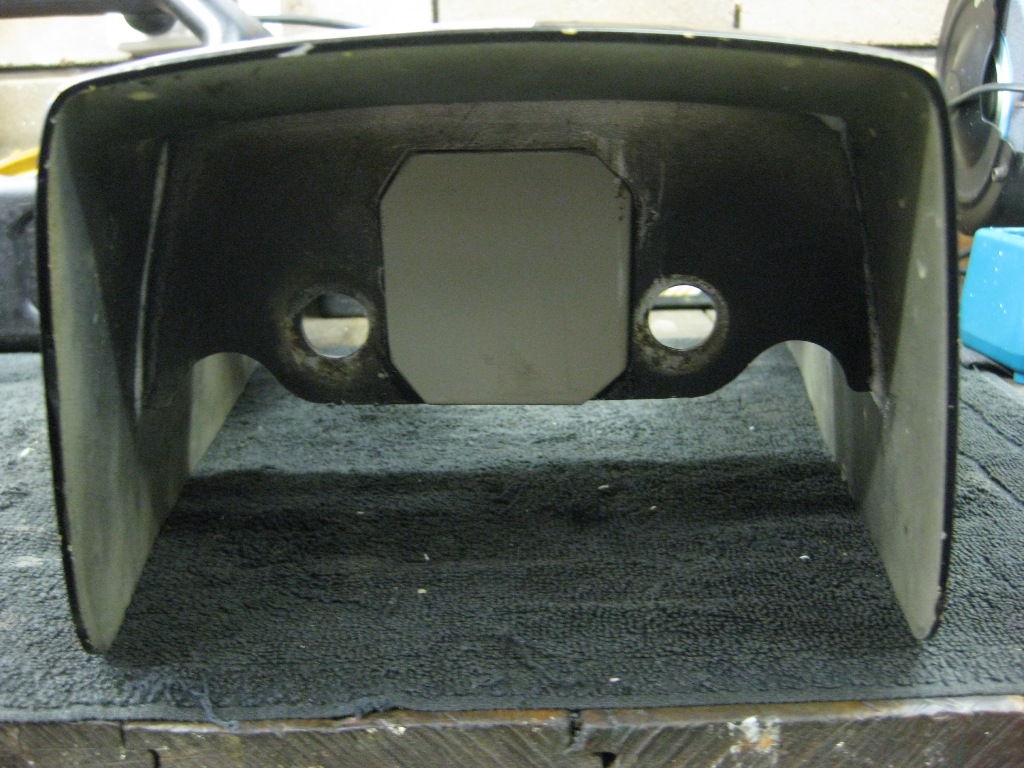

Final repair pic (this time with correct pic -
