15 Dec 2011 15:27 #493260 by mtkawboy
Change LTD 1000 body parts to MkII was created by mtkawboy
I have an 80 KZ1000 LTD and Id like to covert it to the KZ1000 MkII type tank, seat, side covers & tail section. What I need to know if will this work without major problems. Ive never even seen a MKII bike in person. Any help or advise would be great.
78-KZ1000/1105, 80 KZ1000, 82 Kawasaki GPZ750, 95 Harley Fatboy, 80 Suzuki GS1100ET, 81 GS1100E parts bike, 83 GS1100SD Katana/1394,78 Yamaha XT500, 81 Yamaha XS650, 78 Yamaha XS650E, 48 Whizzer model J motorbike, 71 Honda CT70H, 71 Honda CT70, 81 IT 250 Yamaha,82 Honda XL100S owned

Please Log in or Create an account to join the conversation.

  • wireman
  • Offline
  • User
  • The most interesting prick in the world
More
15 Dec 2011 15:49 #493262 by wireman
Replied by wireman on topic Change LTD 1000 body parts to MkII
Pm trianglelaguna/craig,hes got a couple kzs and a mkII sitting around B)
posting from deep under a non-descript barn in an undisclosed location southwest of Omaha.
The following user(s) said Thank You: jydog

Please Log in or Create an account to join the conversation.

More
15 Dec 2011 16:29 - 15 Dec 2011 16:31 #493263 by etbike3135
Replied by etbike3135 on topic Change LTD 1000 body parts to MkII

Anything is posible with a welder and some fab skills. The rear of the frame where the fender mounts is different. More like a shaft drive or Z1R. The MKII tail, fender and tail light wont mount without some fab work but then your going to be doing that with the triangle side covers too.
You might end up sawing the rear end of your frame off, your best bet would be to have a shaft drive frame or something you could take off what you need.

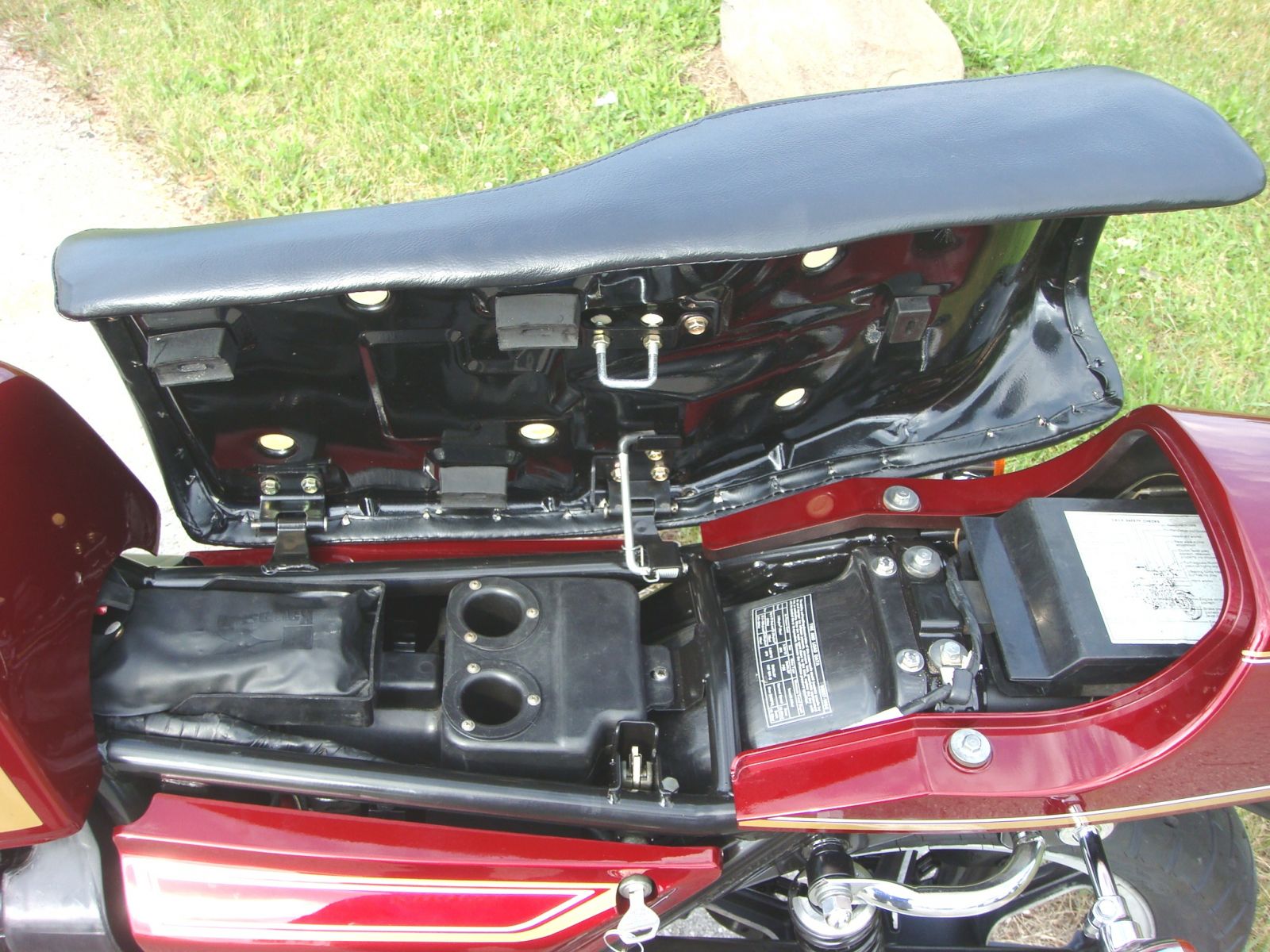

The seat latch is different also so I dont know how it would line up with a stock LTD frame if you do have the MKII seat.
Do you have all the MKII stuff already?
1973 Kawasaki Z1
18 years in dragbikes
Attachments:
Last edit: 15 Dec 2011 16:31 by etbike3135.

Please Log in or Create an account to join the conversation.

More
15 Dec 2011 20:47 #493295 by mtkawboy
Replied by mtkawboy on topic Change LTD 1000 body parts to MkII
No, it has std KZ1000 tank, seat, body parts, wheels & tires on it now and I guess Ill just leave it like that. Ive been wanting a Mk1I for a long time but you just dont see them out here
78-KZ1000/1105, 80 KZ1000, 82 Kawasaki GPZ750, 95 Harley Fatboy, 80 Suzuki GS1100ET, 81 GS1100E parts bike, 83 GS1100SD Katana/1394,78 Yamaha XT500, 81 Yamaha XS650, 78 Yamaha XS650E, 48 Whizzer model J motorbike, 71 Honda CT70H, 71 Honda CT70, 81 IT 250 Yamaha,82 Honda XL100S owned
