Air box stay on 1976 KZ 900

  • Tjpgi
  • Tjpgi's Avatar Topic Author
  • Offline
  • User
  • User
    Registered
  • Posts: 24
  • Thanks: 3

Air box stay on 1976 KZ 900

23 Mar 2026 09:17 - 23 Mar 2026 09:28
#922500
1976 KZ 900 A4

Previous owner removed airbox and installed air filtration pods. I purchased an airbox that I'll install soon. I plan on using g K&N RU-2600 filter in place of silencer. I also have to find an airbox stay.
Question: Does the back of the airbox just sit on top of the stay or is it somehow attached? Does the stay attach to frame utilizing the same bolts that hold the battery box ( hard to tell from Kawasaki.com parts diagram)? Has anyone fabricated an airbox stay?
Has anyone purchased parts from PowerSportsEast out of Bear Delaware?
Thanks

Last edit: 23 Mar 2026 09:28 by Tjpgi. Reason: Additional text

Please Log in or Create an account to join the conversation.

  • KZQ
  • KZQ's Avatar
  • Online
  • Administrator
  • Administrator
    Registered
  • Walking Behind the Corn May Not Be All That!
  • Posts: 4978
  • Thanks: 1811

Re: Air box stay on 1976 KZ 900

24 Mar 2026 19:25 - 24 Mar 2026 21:04
#922511
Tjpgi post=922500 userid=194961976 KZ 900 A4

Previous owner removed airbox and installed air filtration pods. I purchased an airbox that I'll install soon. I plan on using g K&N RU-2600 filter in place of silencer. I also have to find an airbox stay.
Question: Does the back of the airbox just sit on top of the stay or is it somehow attached? Does the stay attach to frame utilizing the same bolts that hold the battery box ( hard to tell from Kawasaki.com parts diagram)? Has anyone fabricated an airbox stay?
Has anyone purchased parts from PowerSportsEast out of Bear Delaware?
Thanks

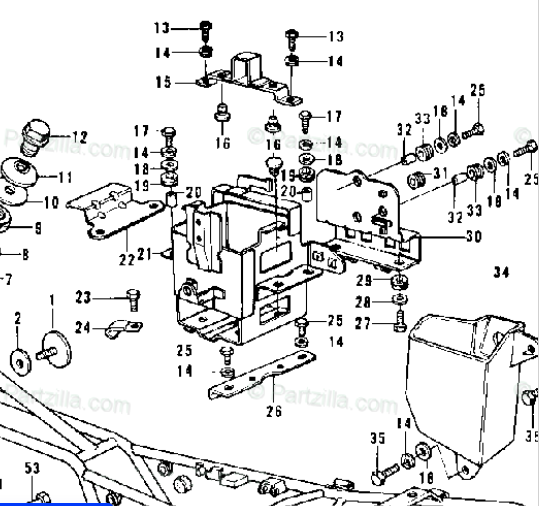

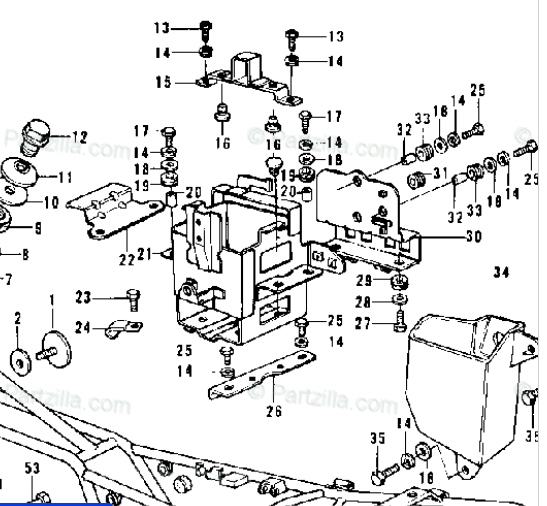

I took a look couldn't identify it. PartZilla had the drawing. Part Number 22.
