'81 KZ750H2 Sprocket Cover Assembly Help

SnyperX
Topic Author
Offline
User
Posts: 54
Thanks: 9

'81 KZ750H2 Sprocket Cover Assembly Help

17 Dec 2024 16:06 - 18 Dec 2024 06:58

So I need to install my sprocket cover back on my '81 KZ750H2. Does anyone have a pic of how the cable is fastened into the cover and where the cotter pin goes? I have the Clymer's manual, but it doesn't have a very good pic for reassembly purposes. Thanks for reading.

Regards,
SnyperX

====================
1981 KZ750H2 LTD

Last edit: 18 Dec 2024 06:58 by SnyperX.

Please Log in or Create an account to join the conversation.

JR
Offline
Sustaining Member
Posts: 2936
Thanks: 450

Re: '81 KZ750H2 Sprocket Cover Assembly Help

18 Dec 2024 06:54

#906966

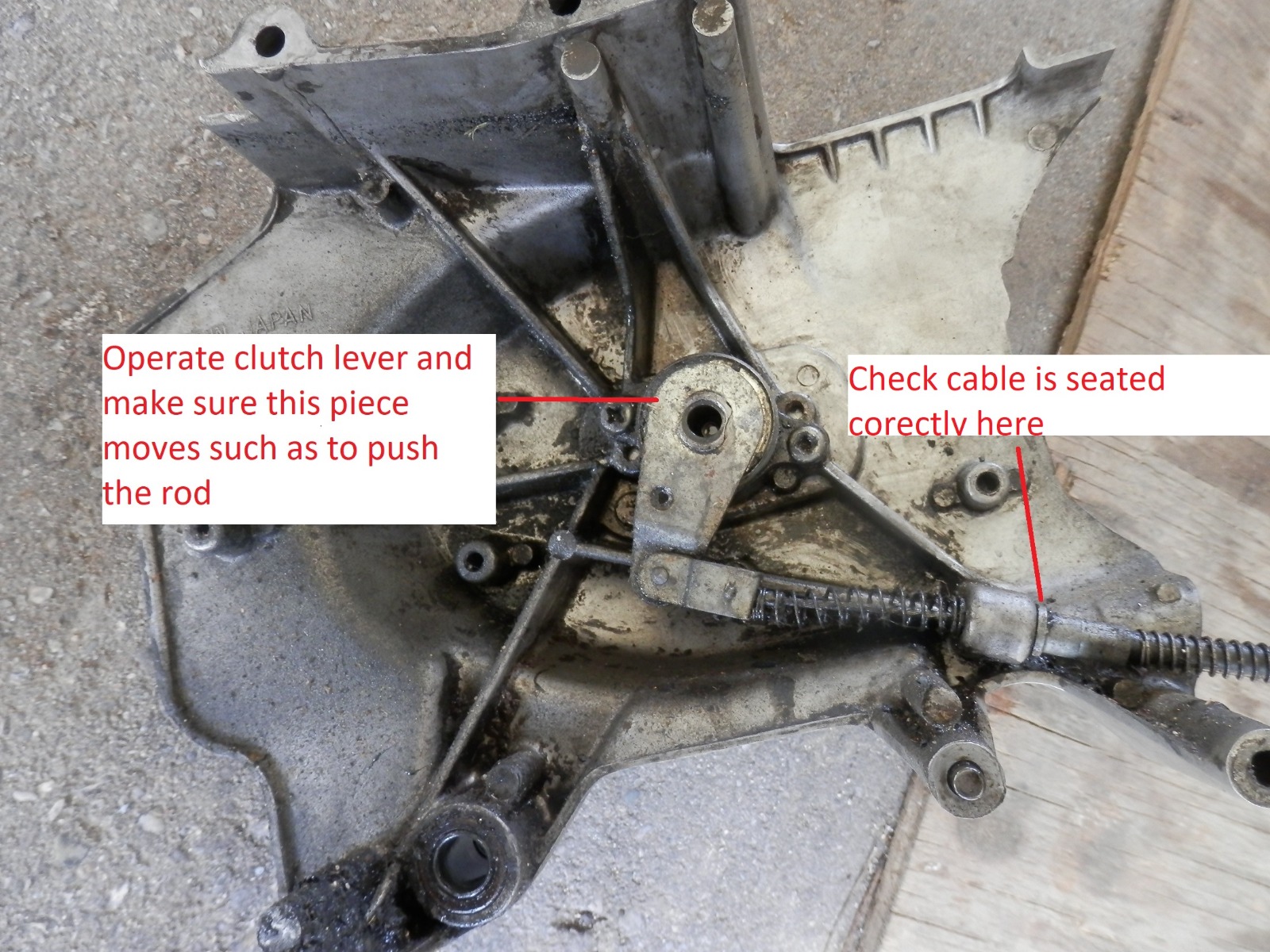

Assuming your is same as 1980 KZ750E1

1980 kz750E1, Delkevic exhaust

The following user(s) said Thank You: Nessism, SnyperX

Please Log in or Create an account to join the conversation.

SnyperX
Topic Author
Offline
User
Posts: 54
Thanks: 9

Re: '81 KZ750H2 Sprocket Cover Assembly Help

18 Dec 2024 06:59

#906967

JR wrote:

Assuming your is same as 1980 KZ750E1

Yup, that is the same cover. Thanks for the pic.

Regards,
SnyperX

====================
1981 KZ750H2 LTD

Please Log in or Create an account to join the conversation.

H1Vindicator
Offline
User
Posts: 668
Thanks: 66

Re: '81 KZ750H2 Sprocket Cover Assembly Help

18 Dec 2024 08:32 - 18 Dec 2024 08:35

#906969

SnyperX wrote:

... I have the Clymer manual, but it doesn't have a very good pic for reassembly purposes.

1980-85. 750-4. Kawasaki FSM. w yellowish cover and color wiring diagrams. KZ750.KZ700.ZX750A.
750Turbo.com. resource zone. downloads. gpz750 workshop manual. full manual (128mb pdf).
www.750turbo.com/forum/viewtopic.php?f=24&t=13320

Last edit: 18 Dec 2024 08:35 by H1Vindicator.
