Rear wheel alignment

12 May 2023 08:06
#884547
Hi Guys,

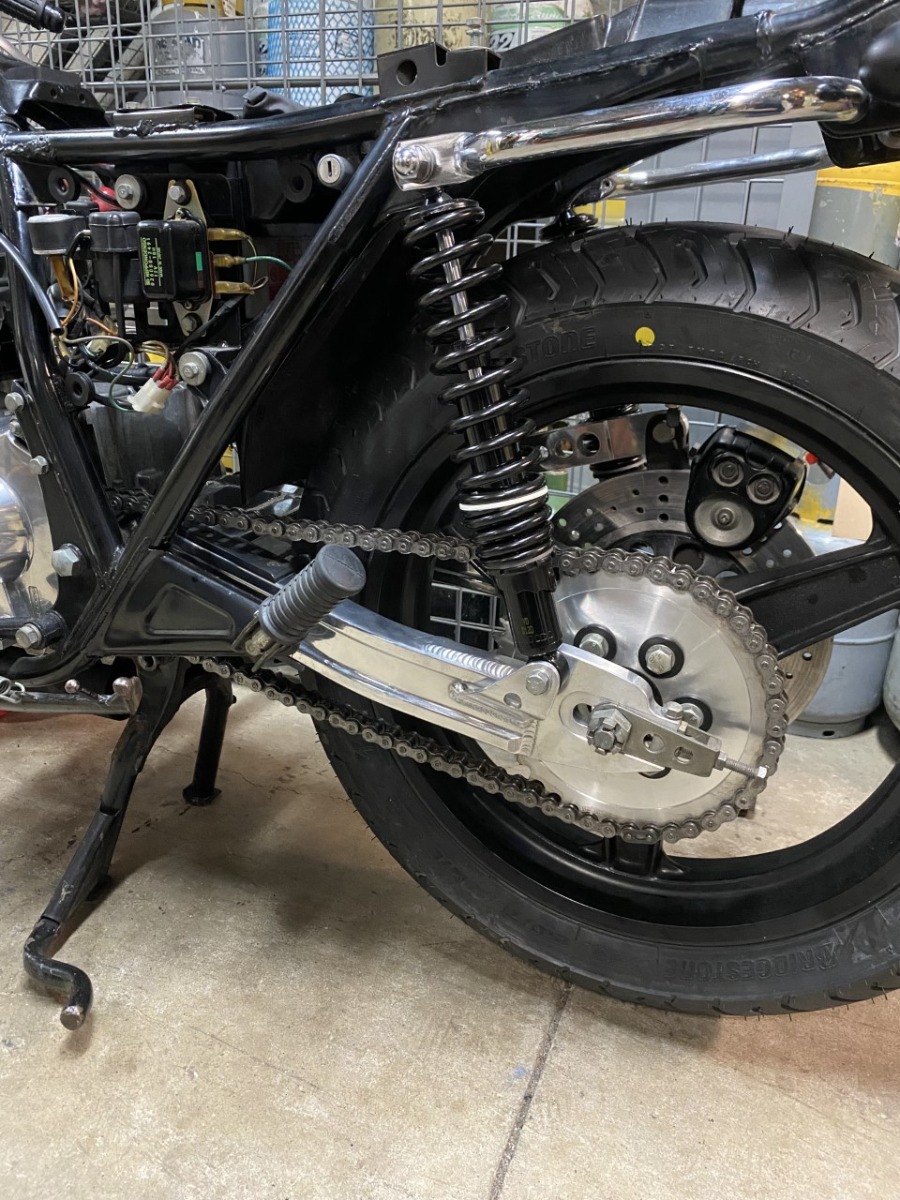

I am mounting and trying to check alignment on my rear wheel. I am doing this by measuring from the swing arm pivot to the rear axle center to center on each side. Once I get these dimensions setup I am finding the axle is in a different position on each side of the swing arm, as if the swing arm itself is not equal length on each side. This is an old CalFab swing arm that the previous owner installed. Has anyone ever seen this before, and is it a big concern?

Please Log in or Create an account to join the conversation.

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Premium Member
    Registered
  • Never change a running system
  • Posts: 4420
  • Thanks: 2268

Re: Rear wheel alignment

12 May 2023 11:50
#884550

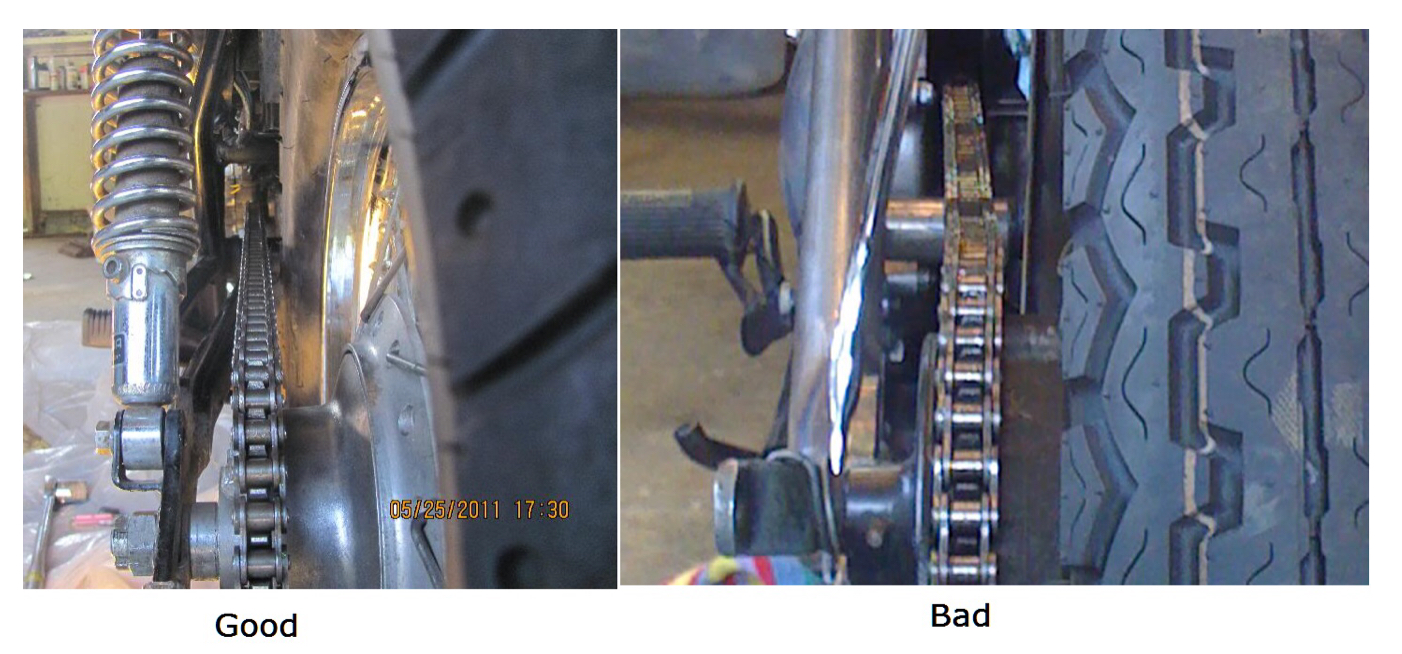

Is your chain/wheel line alignment good?

kzrider.com/forum/11-projects/610746-kz6...cer?start=108#814131


The following user(s) said Thank You: sflesch94

Please Log in or Create an account to join the conversation.

  • sflesch94
  • sflesch94's Avatar Topic Author
  • Offline
  • User
  • User
    Registered
  • Posts: 43
  • Thanks: 4

Re: Rear wheel alignment

12 May 2023 12:37
#884555

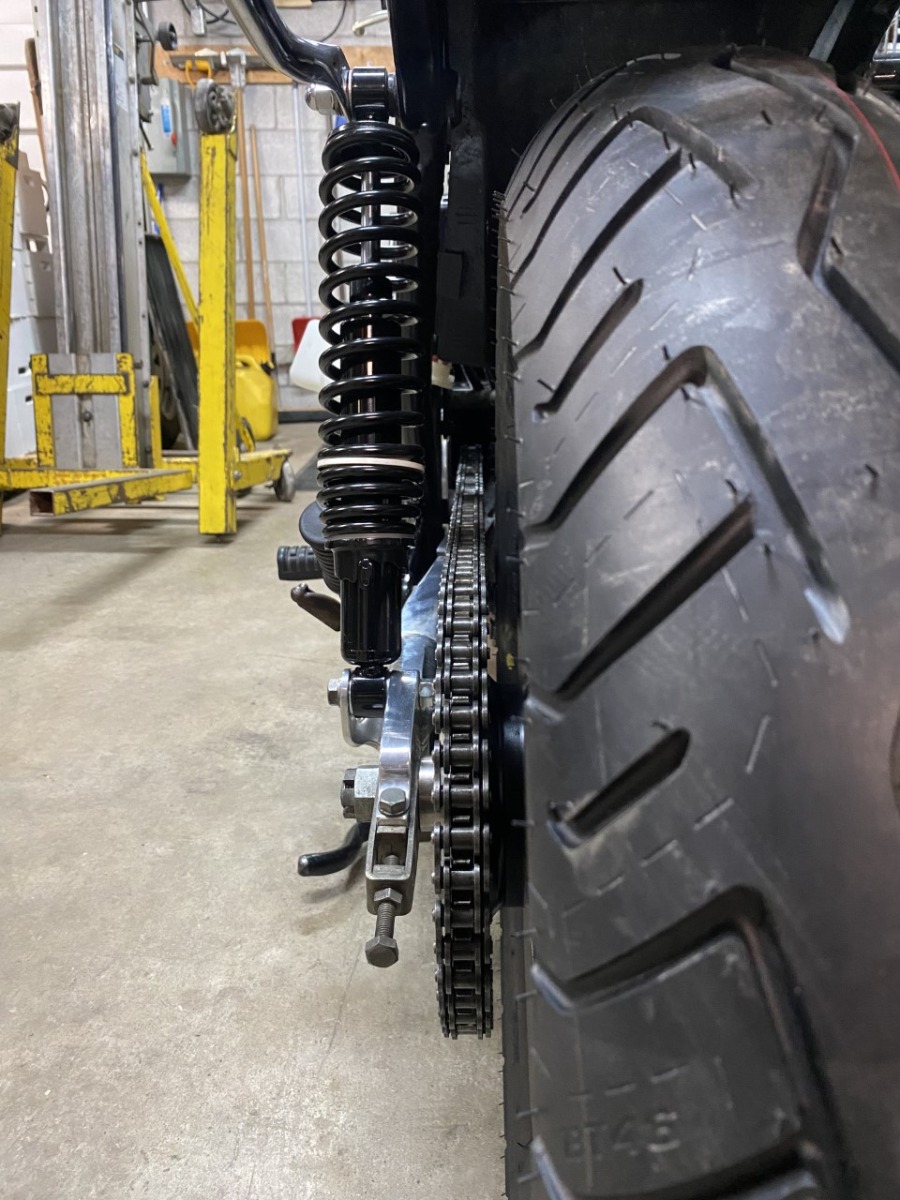

I think it looks pretty good. I put a straight edge on the sprocket and it seems to line up with the chain.

Please Log in or Create an account to join the conversation.

  • Wookie58
  • Wookie58's Avatar
  • Away
  • Moderator
  • Moderator
    Registered
  • Posts: 5116
  • Thanks: 3133

Re: Rear wheel alignment

12 May 2023 12:42
#884556

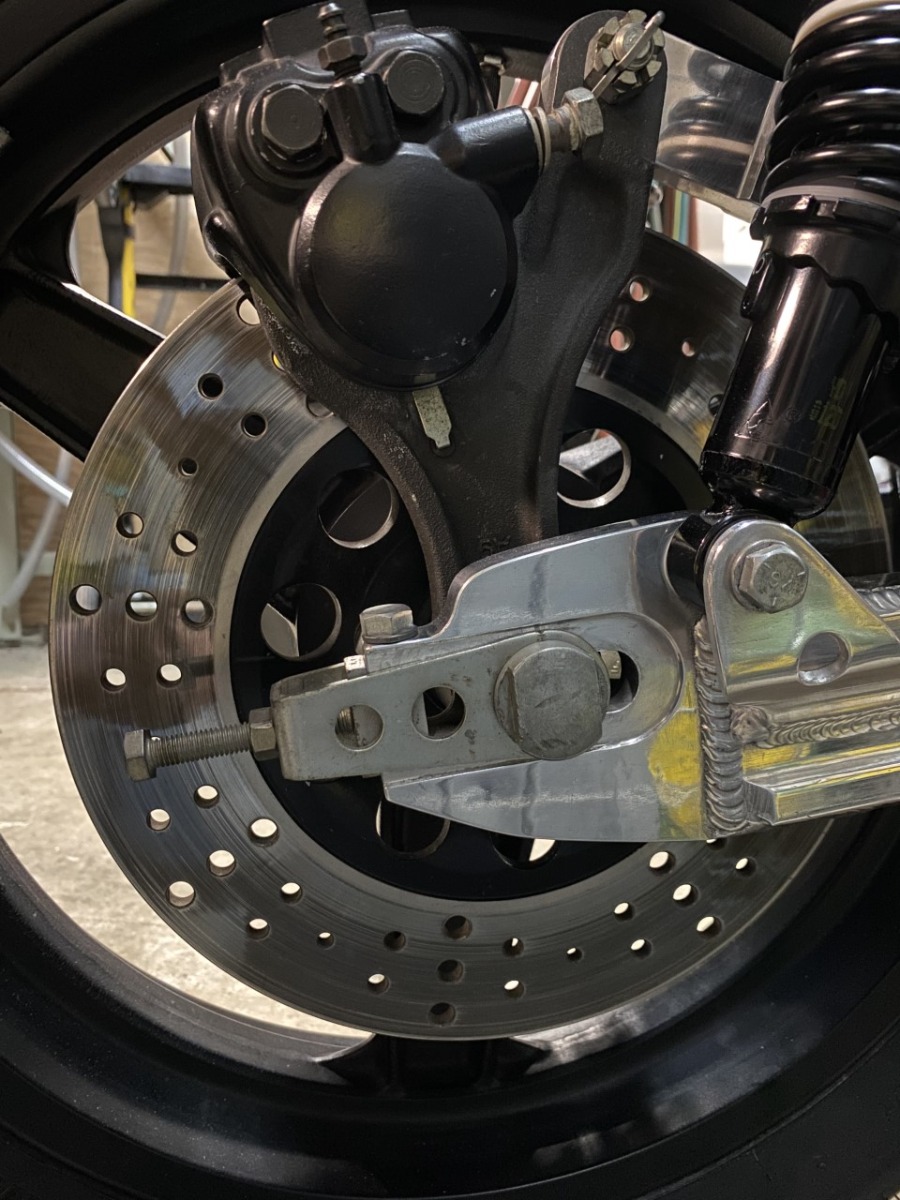

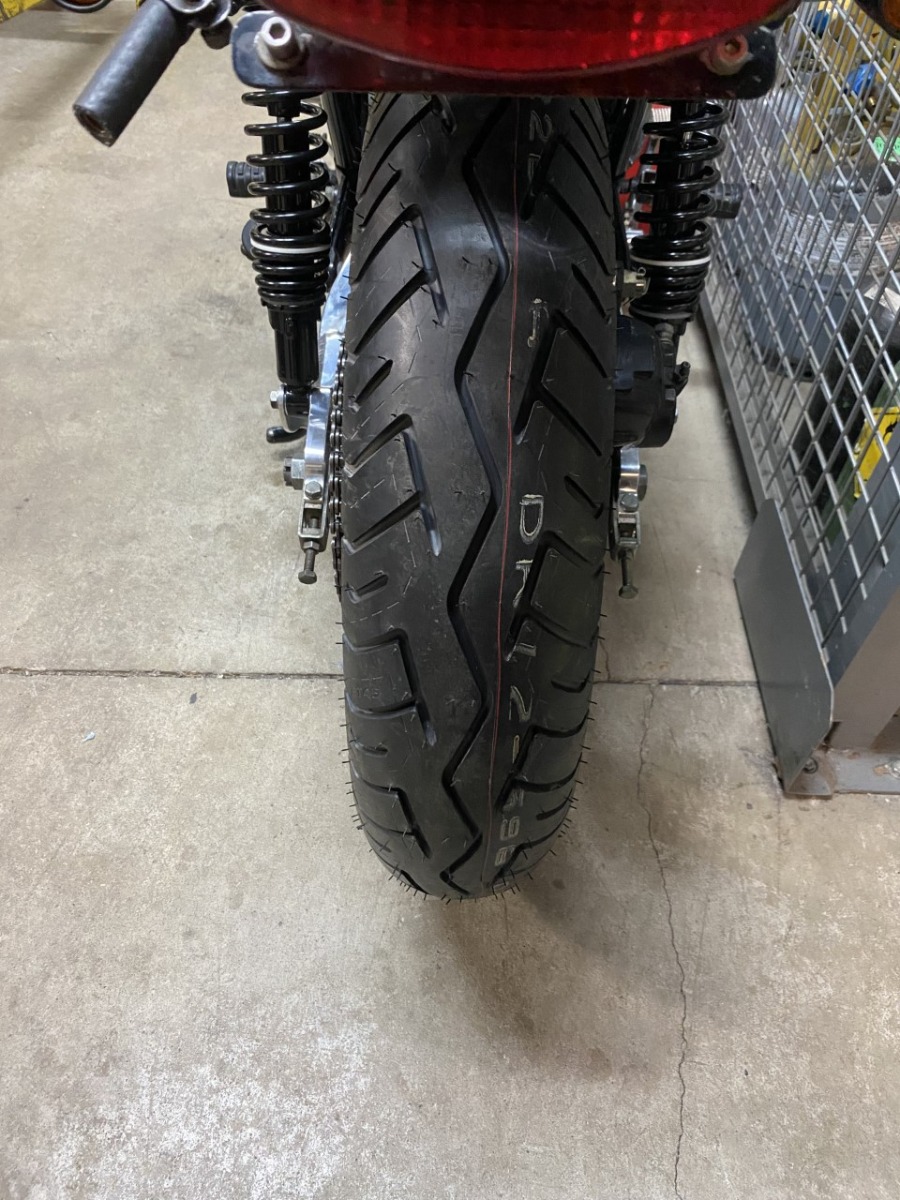

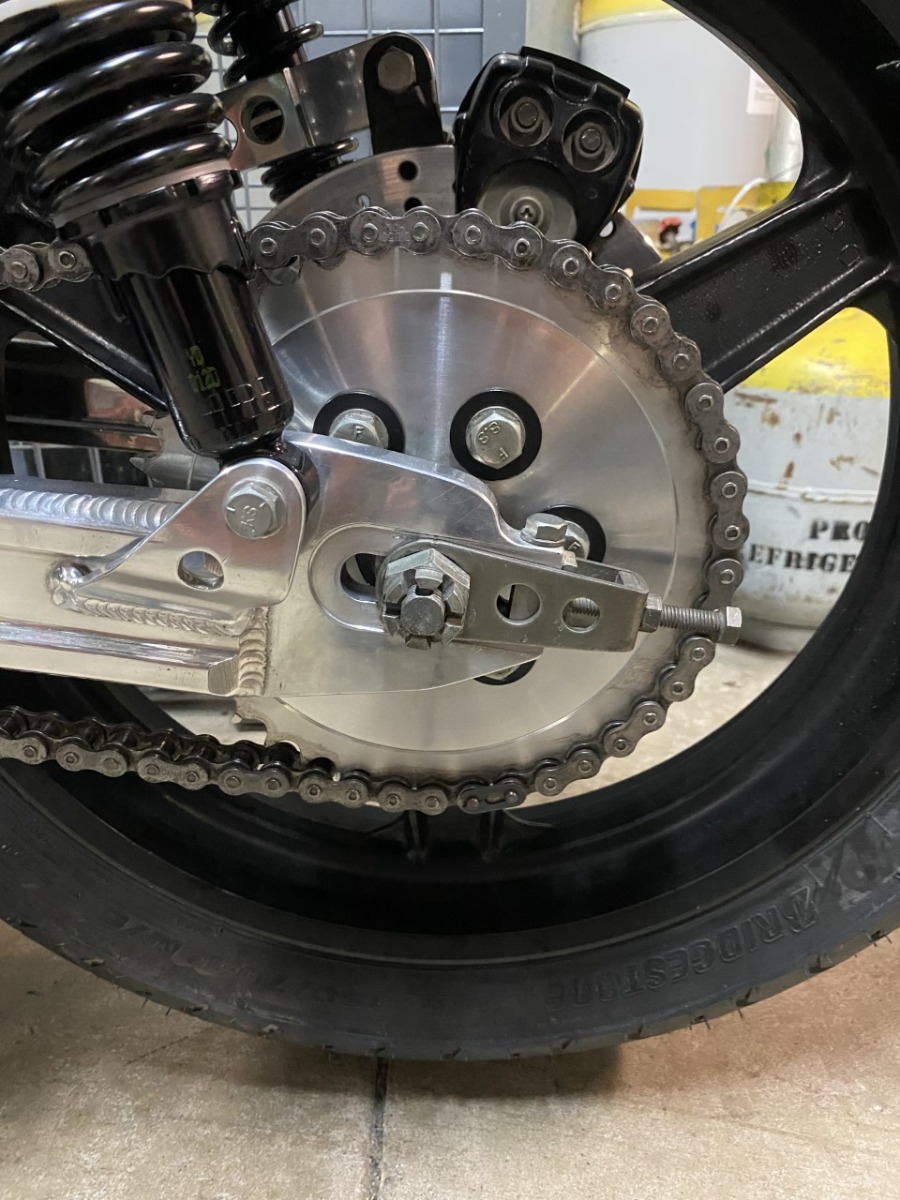

Looks pretty good to me, to be honest if your swing arm pivot to axle measurements are equal I wouldn't loose sleep over the axle position in the chain adjusters (especially an aftermarket swingarm - even if it is a really good one) as they don't look symmetrical from the pictures
