Fork tube amount of oil?
- gordone
- Topic Author
- Offline
- Sustaining Member
Less
More
29 Mar 2023 10:24 - 29 Mar 2023 10:25 #882148
by gordone
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).
Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine
Fork tube amount of oil? was created by gordone
How much oil should I add to the front suspension, 1981 KZ650-D4, with 1981 z750L engine?
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).
Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine
Last edit: 29 Mar 2023 10:25 by gordone.
Please Log in or Create an account to join the conversation.
- Nessism
- Offline
- Sustaining Member
Less
More
- Posts: 7465
- Thank you received: 2830
29 Mar 2023 10:34 #882149
by Nessism
Replied by Nessism on topic Fork tube amount of oil?
Please Log in or Create an account to join the conversation.
- gordone
- Topic Author
- Offline
- Sustaining Member
Less
More
- Posts: 1376
- Thank you received: 67
29 Mar 2023 11:33 #882150
by gordone
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).
Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine
Replied by gordone on topic Fork tube amount of oil?
So I can use what the service manual still, nothing have change when it comes to type of oil etc?
245cl +/- 4cl. Ok
245cl +/- 4cl. Ok
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).
Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine
Please Log in or Create an account to join the conversation.
- F64
- Offline
- User
- 81-KZ440D2
Less
More
- Posts: 1117
- Thank you received: 401
29 Mar 2023 13:12 #882153
by F64
81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY
Replied by F64 on topic Fork tube amount of oil?
Measure the amount of oil you dump out.
If you just add what is in the service manual you may have a bit too much.
I measure the level with a stiff rubber hose attached to a syringe. I would put a ziptie on the hose... 375mm from the bottom of the hose. I rest the bottom of the ziptie on the top of the fork with the rubber hose inside the fork. Then draw fluid out until i couldn't pull anymore out. Then i know the level of the oil inside the fork is 375mm from the top.

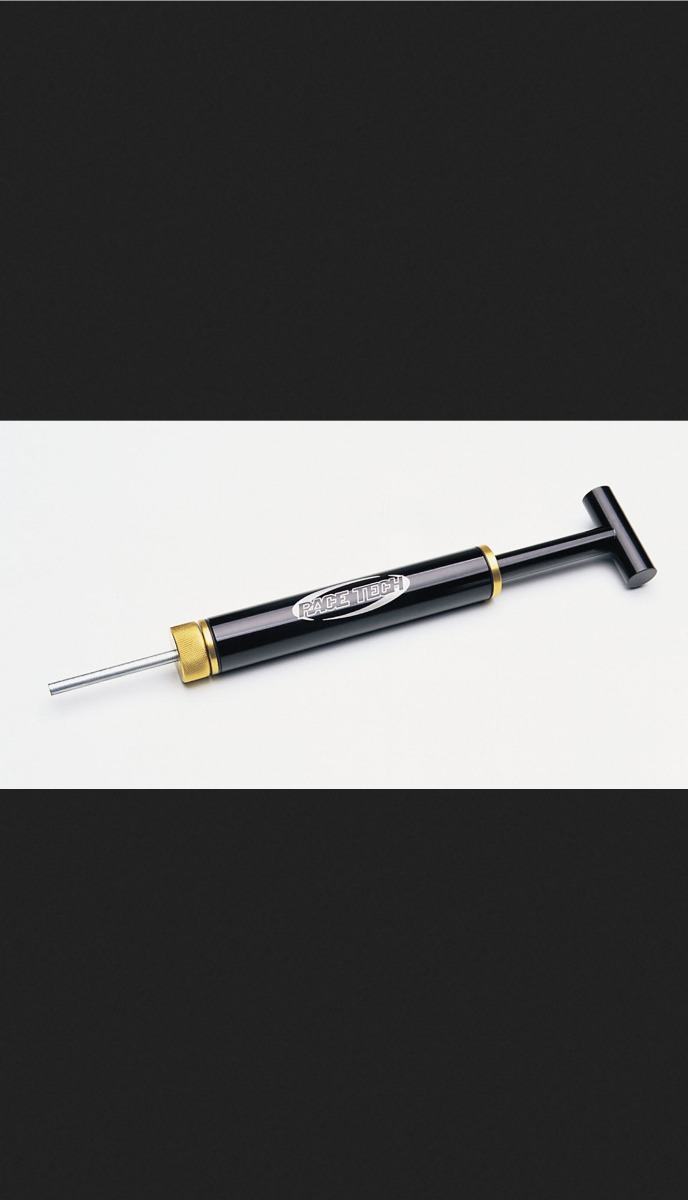

Racetech sells a tool that does this for $144.
I think you could make mine for less than $10 .
photo: racetech.com/page/id/70
If you just add what is in the service manual you may have a bit too much.
I measure the level with a stiff rubber hose attached to a syringe. I would put a ziptie on the hose... 375mm from the bottom of the hose. I rest the bottom of the ziptie on the top of the fork with the rubber hose inside the fork. Then draw fluid out until i couldn't pull anymore out. Then i know the level of the oil inside the fork is 375mm from the top.
Racetech sells a tool that does this for $144.
I think you could make mine for less than $10 .
photo: racetech.com/page/id/70
81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY
The following user(s) said Thank You: Wookie58
Please Log in or Create an account to join the conversation.
- Nessism
- Offline
- Sustaining Member
Less
More
- Posts: 7465
- Thank you received: 2830
29 Mar 2023 13:51 #882154
by Nessism
Replied by Nessism on topic Fork tube amount of oil?
Measuring the oil inside the fork is no assurance that amount is correct. Never trust the previous owner...
I'd drain the oil, then fill to the level shown in the manual. Get a small ruler, or mark a stick, and then use it as a dipstick to check level. Very easy.
I'd drain the oil, then fill to the level shown in the manual. Get a small ruler, or mark a stick, and then use it as a dipstick to check level. Very easy.
Please Log in or Create an account to join the conversation.
- gordone
- Topic Author
- Offline
- Sustaining Member
Less
More
- Posts: 1376
- Thank you received: 67
29 Mar 2023 22:08 #882171
by gordone
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).
Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine
Replied by gordone on topic Fork tube amount of oil?
Thank you all!
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).
Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine
Please Log in or Create an account to join the conversation.
- martin_csr
- Offline
- User
Less
More
- Posts: 8019
- Thank you received: 1645
30 Mar 2023 05:52 - 30 Mar 2023 06:07 #882178
by martin_csr
Replied by martin_csr on topic Fork tube amount of oil?
Did you rebuild the forks? or just changing the oil? or only adding oil?

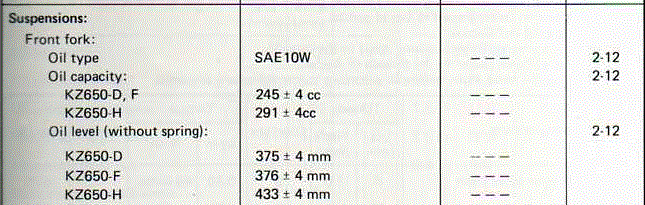

In the 1981 KZ650 FSM pdf:
Service Data page 1-13 (pdf pg 17).
Fork oil Table 2-12 on page 2-21 (pdf pg 51).
Fork Spring free length: Table 4-16 on page 4-15 (pdf pg 105).
In the 1981 KZ650 FSM pdf:
Service Data page 1-13 (pdf pg 17).
Fork oil Table 2-12 on page 2-21 (pdf pg 51).
Fork Spring free length: Table 4-16 on page 4-15 (pdf pg 105).
Last edit: 30 Mar 2023 06:07 by martin_csr.
Please Log in or Create an account to join the conversation.
- gordone
- Topic Author
- Offline
- Sustaining Member
Less
More
- Posts: 1376
- Thank you received: 67
30 Mar 2023 06:48 #882181
by gordone
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).
Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine
Replied by gordone on topic Fork tube amount of oil?
Change the oil, but I rebuilded my kz650 fork with kz 750 innerfork 39093-1067 some years ago.
Do these effect the anount of oil?
Do these effect the anount of oil?
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).
Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine
The following user(s) said Thank You: Wookie58
Please Log in or Create an account to join the conversation.
- blipco
- Offline
- User
- 2002 KZ1000P
Less
More
- Posts: 555
- Thank you received: 212
30 Mar 2023 11:07 #882193
by blipco
"Swim against the current, even a dead fish can go with the flow"-somebody (I forget Who)
Replied by blipco on topic Fork tube amount of oil?
The oil height just creates an air spring of sorts. As long as the fork tube is filled to the specified level, I don’t think what internals you have inside matters that much. Whats important is that both forks are filled to equal levels.
Some people add oil to improve the situation of the forks bottoming out.
You could go slightly higher than what’s specified and if the forks are to stiff or harsh over bumps it’s an easy job to remove a little.
Some people add oil to improve the situation of the forks bottoming out.
You could go slightly higher than what’s specified and if the forks are to stiff or harsh over bumps it’s an easy job to remove a little.
"Swim against the current, even a dead fish can go with the flow"-somebody (I forget Who)
Please Log in or Create an account to join the conversation.
- gordone
- Topic Author
- Offline
- Sustaining Member
Less
More
- Posts: 1376
- Thank you received: 67
30 Mar 2023 13:28 #882199
by gordone
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).
Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine
Replied by gordone on topic Fork tube amount of oil?
Thank you for your advice!
things like that are not written in the service manual
things like that are not written in the service manual
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).
Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine
Please Log in or Create an account to join the conversation.
- blipco
- Offline
- User
- 2002 KZ1000P
Less
More
- Posts: 555
- Thank you received: 212
30 Mar 2023 17:01 - 30 Mar 2023 17:02 #882206
by blipco
"Swim against the current, even a dead fish can go with the flow"-somebody (I forget Who)
Replied by blipco on topic Fork tube amount of oil?
"Swim against the current, even a dead fish can go with the flow"-somebody (I forget Who)
Last edit: 30 Mar 2023 17:02 by blipco.
Please Log in or Create an account to join the conversation.
- gordone
- Topic Author
- Offline
- Sustaining Member
Less
More
- Posts: 1376
- Thank you received: 67
30 Mar 2023 22:38 #882208
by gordone
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).
Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine
Replied by gordone on topic Fork tube amount of oil?
Very intresting!
always nice and intresting now more about the theory behind !
I have caps with a tiny whole for the gas valve… (are not using compressed air).
I was thinking drilling up the whole in size so I can add oil by taking out the screw I have inside the whole where the air valve was presented before?
It’s to much work unscrew the caps each time, adding some oil when trying to find the correct amount.
always nice and intresting now more about the theory behind !
I have caps with a tiny whole for the gas valve… (are not using compressed air).
I was thinking drilling up the whole in size so I can add oil by taking out the screw I have inside the whole where the air valve was presented before?
It’s to much work unscrew the caps each time, adding some oil when trying to find the correct amount.
