Zrx swinging arm

  • DerZed
  • DerZed's Avatar Topic Author
  • Offline
  • User
  • Posts: 13
  • Thanks: 0

Zrx swinging arm

06 Sep 2022 11:19
#873459
Hi i have a z1 rear wheel with standard hub with 5.75inch rim will zrx1200 swinging arm fit in frame thanks

Please Log in or Create an account to join the conversation.

  • slayer61
  • slayer61's Avatar
  • Offline
  • User
  • KZR FLAG RELAY CARRIER #62
  • Posts: 910
  • Thanks: 277

Re: Zrx swinging arm

07 Sep 2022 09:03
#873505
Get out yer tape measure or use the search function right here on KZR.

BTW, Welcome to KZR.
Don't be ridiculous! It's only a flesh wound!

[strike]Wife's little bike... 1984 GPZ 550 Kerker and DynaJet stage I kit[/strike]
Wife's BIG bike......[strike] 1981 GPZ 1100 Kerker and [strike]factory FI[/strike] Mikuni RS34s W/ K&N pods[/strike] SOLD

Please Log in or Create an account to join the conversation.

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 4255
  • Thanks: 2114

Re: Zrx swinging arm

07 Sep 2022 12:28
#873516
5.75 inch sound like an Akront wheel (5.75 x 18).
Your frame to swing arm pivot width is 235 mm (Z1, KZ900/1000).
The ZRX swingarm pivot to frame width is 245 mm, so you have to do some machinig/mods to fit/center the wheel and swingarm.
My 1975 Z 1 B 900 Project

www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode

Please Log in or Create an account to join the conversation.

  • DerZed
  • DerZed's Avatar Topic Author
  • Offline
  • User
  • Posts: 13
  • Thanks: 0

Re: Zrx swinging arm

08 Sep 2022 02:21 - 08 Sep 2022 17:41
#873544

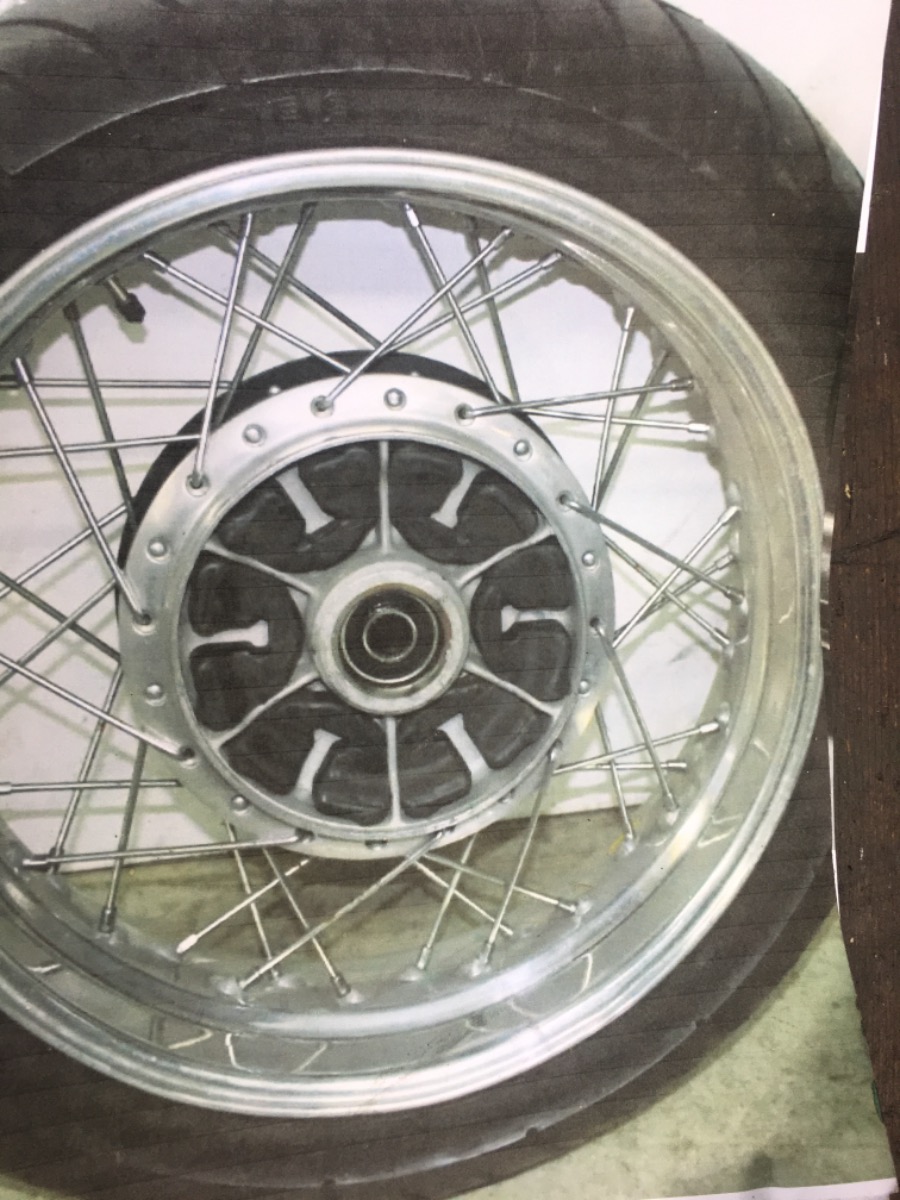

[img
 thanks for your reply. Do I take 5mm off both sides of inner frame as wheel is offset to let chain pass tyre yes it’s an Akron’s rim kind regards DerZed
Last edit: 08 Sep 2022 17:41 by Street Fighter LTD.

Please Log in or Create an account to join the conversation.

  • kzstreetfighter71
  • kzstreetfighter71's Avatar
  • Offline
  • User
  • Atlantic West Coast
  • Posts: 823
  • Thanks: 208

Re: Zrx swinging arm

08 Sep 2022 23:39 - 08 Sep 2022 23:40
#873591
The smart money would be on a modification to the swingarm not the frame, if things need to be altered after the fact you only have one frame and the are multiple swingarms out there and yes, offsetting sprockets will need to be done.
06 Gsf 1200 bandit, 08 Triumph tiger 1010
05 Yam xv1700 , 02 Hon shadow 1100
1975 Z1 (currently working on)
1977 Z1000 ( running and in storage)
1978 Z1000 (currently working on)
1978 Z1r "skinny tank" (currently working on)
1978 Z1r "fat tank (gathering parts)
1979 z1000st (currently working on)
Last edit: 08 Sep 2022 23:40 by kzstreetfighter71.

Please Log in or Create an account to join the conversation.

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 4255
  • Thanks: 2114

Re: Zrx swinging arm

09 Sep 2022 12:05
#873613
You need a 10 mm offset front sprocket and a 10 mm spacer ring on the rear sprocket hub.


My 1975 Z 1 B 900 Project

www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
The following user(s) said Thank You: kzstreetfighter71

Please Log in or Create an account to join the conversation.

  • DerZed
  • DerZed's Avatar Topic Author
  • Offline
  • User
  • Posts: 13
  • Thanks: 0

Re: Zrx swinging arm

10 Sep 2022 03:42
#873637
Hi I haven’t bought a swinging arm yet could you please advise on best swinging arm for z900 frame with 5.75 inch rear wheel rim thanks kind regards DerZed
[img
 thanks for your reply. Do I take 5mm off both sides of inner frame as wheel is offset to let chain pass tyre yes it’s an Akron’s rim kind regards DerZed

Please Log in or Create an account to join the conversation.

  • DerZed
  • DerZed's Avatar Topic Author
  • Offline
  • User
  • Posts: 13
  • Thanks: 0

Re: Zrx swinging arm

10 Sep 2022 03:47
#873638
Hi I haven’t bought a swinging arm yet could you please advise on best swinging arm for z900 frame with 5.75 inch rear rim thanks kind regards DerZed

Please Log in or Create an account to join the conversation.

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 4255
  • Thanks: 2114

Re: Zrx swinging arm

10 Sep 2022 15:20 - 10 Sep 2022 15:21
#873676

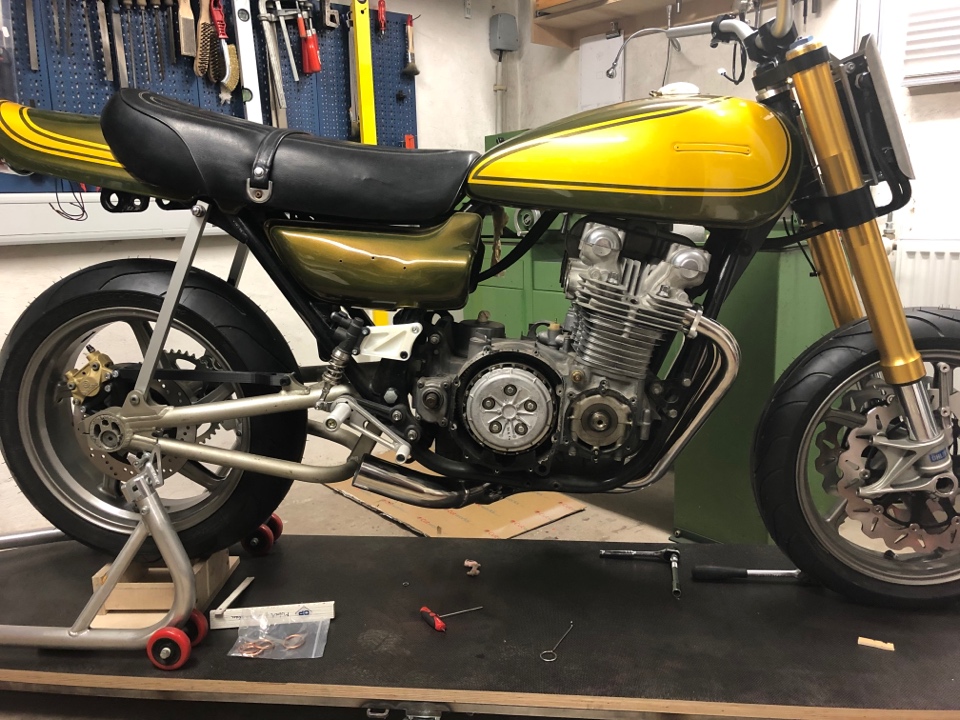

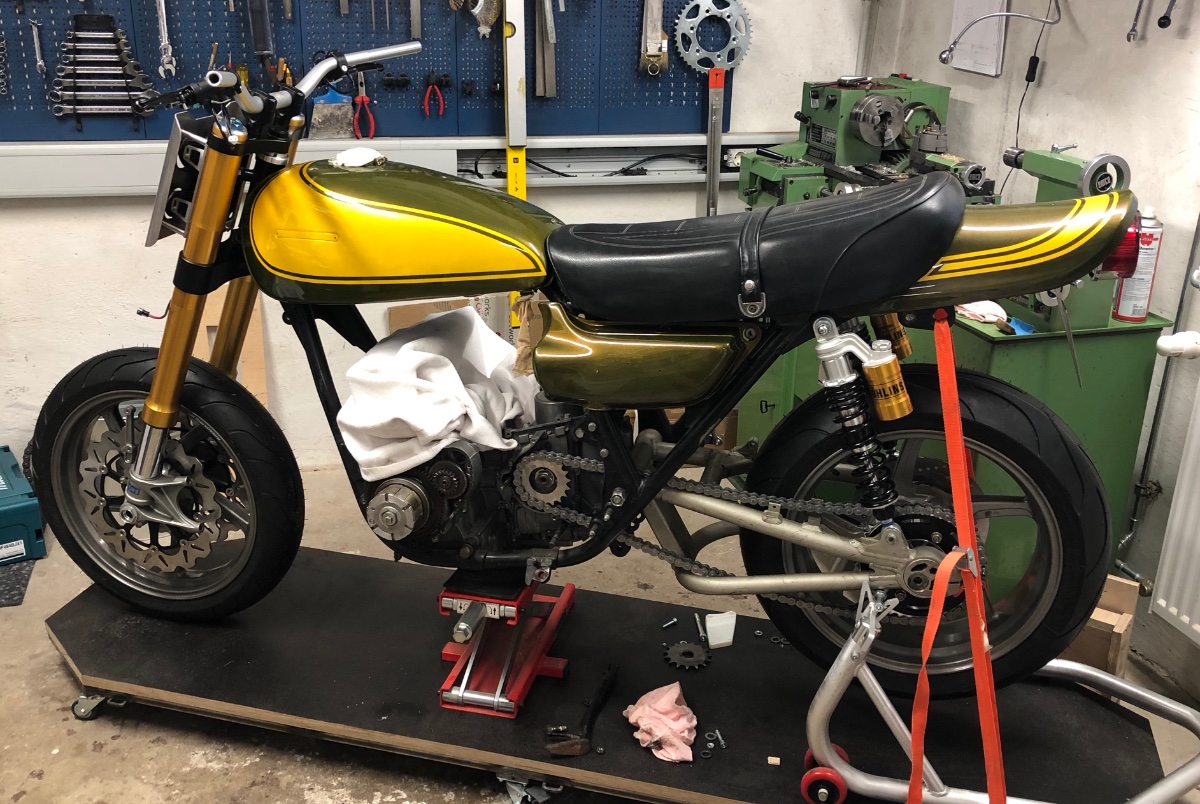

A Zephyr 750/1100 or ZRX 400 swingarm is a good starting point.




www.caferacer-forum.de/viewtopic.php?t=1...526dde1ed3faa7342ba4

vimeo.com/348065800


My 1975 Z 1 B 900 Project

www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Last edit: 10 Sep 2022 15:21 by Scirocco.

Please Log in or Create an account to join the conversation.

  • DerZed
  • DerZed's Avatar Topic Author
  • Offline
  • User
  • Posts: 13
  • Thanks: 0

Re: Zrx swinging arm

11 Sep 2022 03:18
#873692
Hi I had look on eBay none of afore mentioned swinging arms available  will any other arms fit thanks kind regards DerZed

Please Log in or Create an account to join the conversation.

  • DerZed
  • DerZed's Avatar Topic Author
  • Offline
  • User
  • Posts: 13
  • Thanks: 0

Re: Zrx swinging arm

11 Sep 2022 08:56
#873711
Has anyone used gsx1400 as pivot point is 236mm in length thanks kind regards DerZed

Please Log in or Create an account to join the conversation.

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4837
  • Thanks: 1851

Re: Zrx swinging arm

11 Sep 2022 09:07
#873713
PDM custom fabrication sells a ZRX style swingarm. He advertises on this forum
