Fork stem question/part
- rscone11
- Topic Author
- Offline
- User
27 Jul 2022 07:12 #871115
by rscone11
Fork stem question/part was created by rscone11
good morning gents,
Can someone assist with the order these parts go together? From what I see #40 should be like a dust cover over the bearing and goes below the #4(head steering stem)? Is that correct. Does anyone have a spare #40 (oil seal) since it is no longer available? #39 goes above 40 and 9 on top them the head?
Thanks in advance.
Can someone assist with the order these parts go together? From what I see #40 should be like a dust cover over the bearing and goes below the #4(head steering stem)? Is that correct. Does anyone have a spare #40 (oil seal) since it is no longer available? #39 goes above 40 and 9 on top them the head?
Thanks in advance.
Please Log in or Create an account to join the conversation.
- TexasKZ
-
- Offline
- Platinum Member
- Mikaw
-
- Offline
- Sustaining Member
- Mikaw
-
- Offline
- Sustaining Member
27 Jul 2022 18:25 #871166
by Mikaw
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Replied by Mikaw on topic Fork stem question/part
Are these what your looking for
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Please Log in or Create an account to join the conversation.
- z1kzonly
-
- Offline
- User
- Sustaining Member
27 Jul 2022 18:51 #871168
by z1kzonly
Livin in "CheektaVegas, NY
Went thru 25 of these in 40 yrs.
I SOLD OUT! THE KAW BARN IS EMPTY.
More room for The Old Girl, Harley 75 FLH Electra Glide,
Old faithful! Points ign. Bendix Orig. carb.
Starts everytime!
Replied by z1kzonly on topic Fork stem question/part

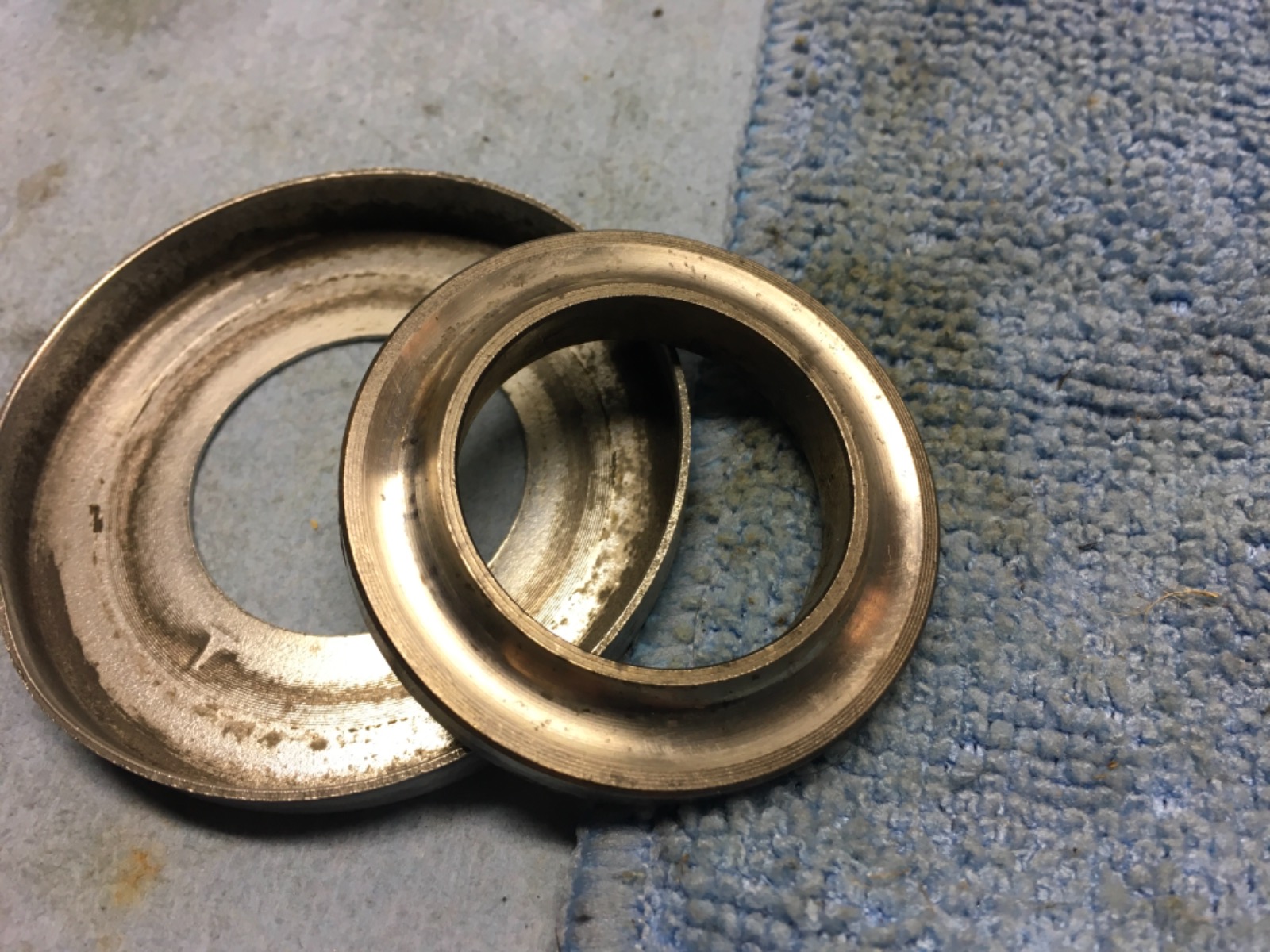

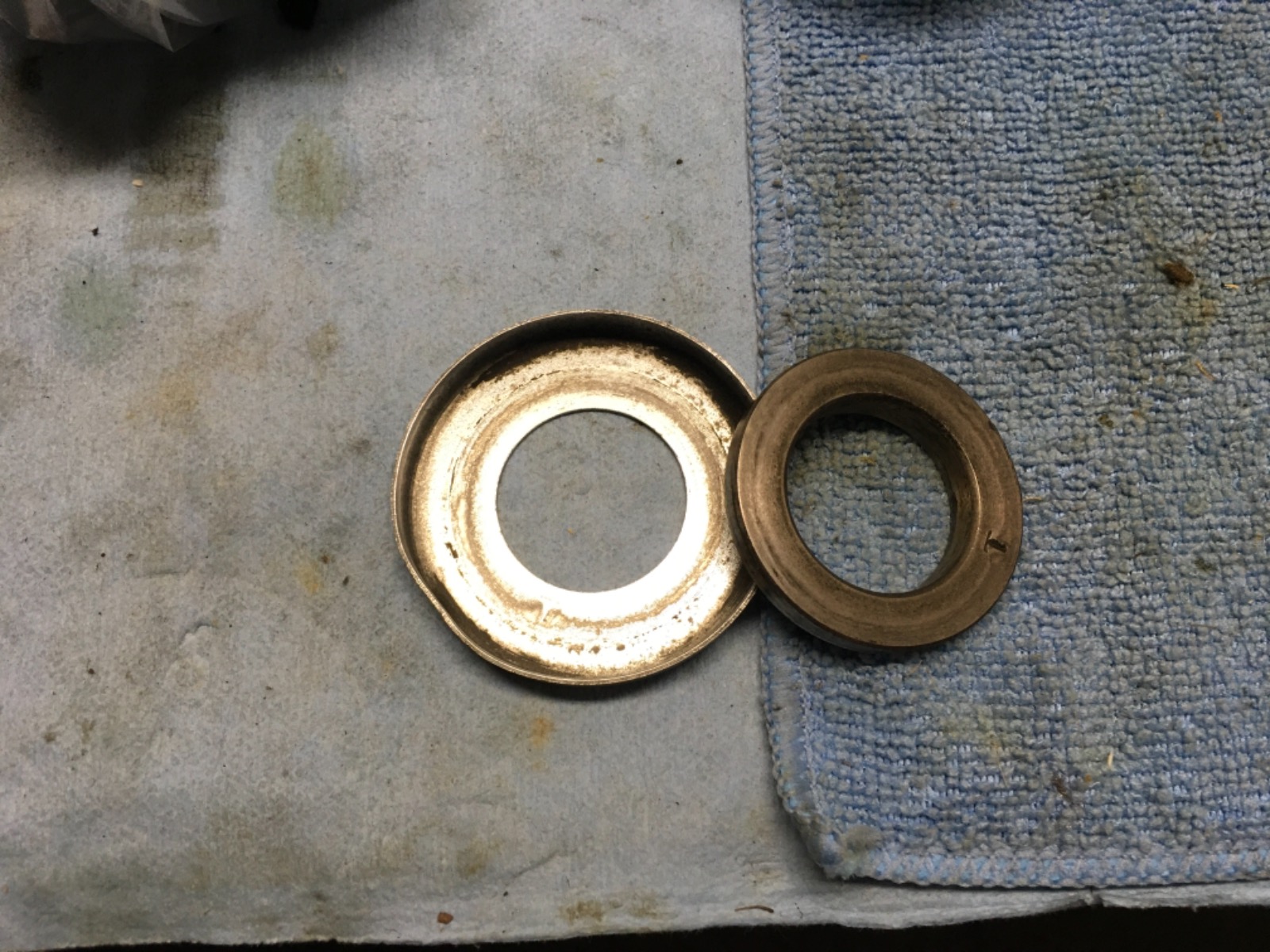

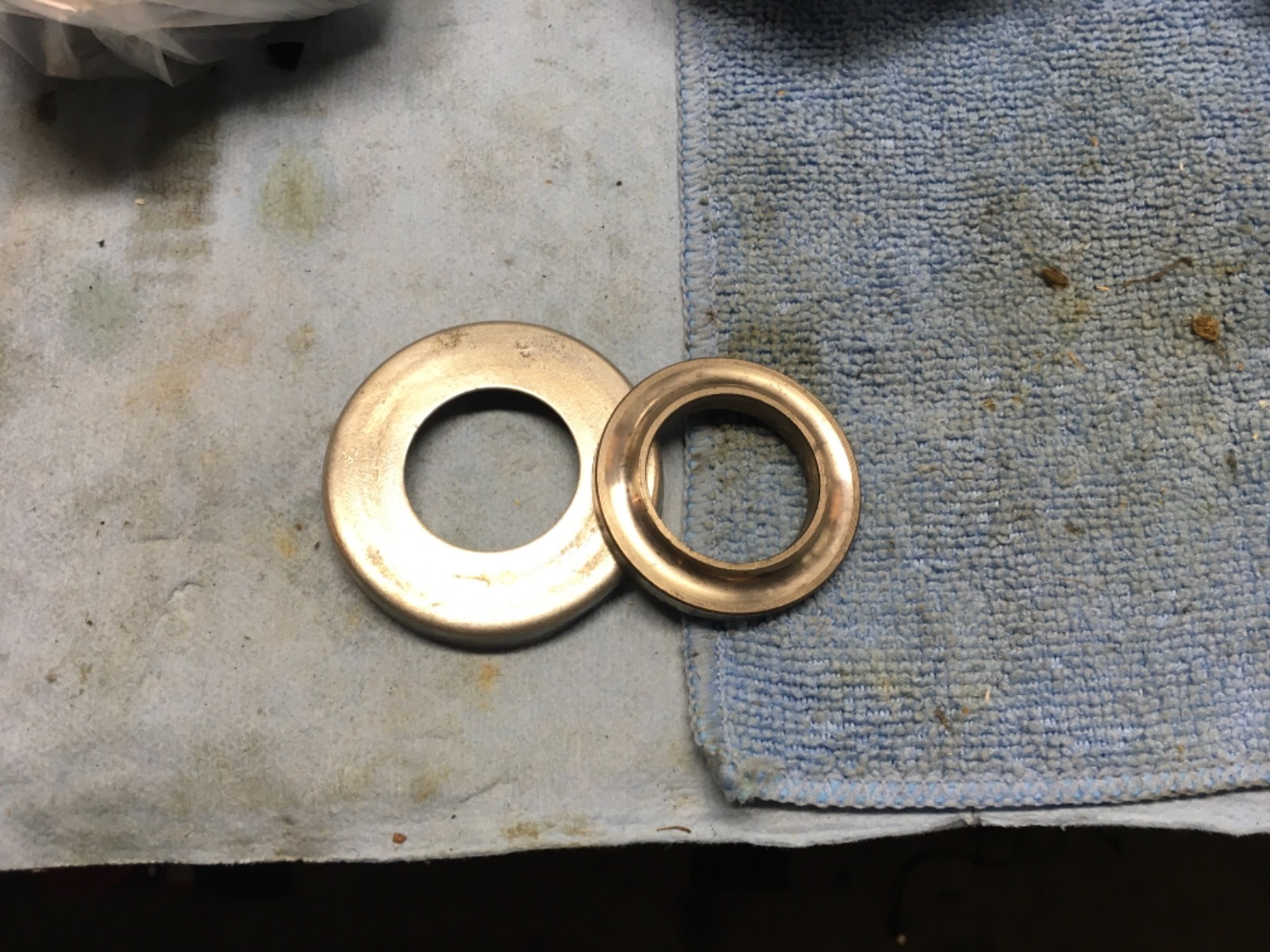

Hi Matt. Might be this oil seal that sits on base of tripie stem before the bottom race gets put on?
Livin in "CheektaVegas, NY
Went thru 25 of these in 40 yrs.
I SOLD OUT! THE KAW BARN IS EMPTY.
More room for The Old Girl, Harley 75 FLH Electra Glide,
Old faithful! Points ign. Bendix Orig. carb.
Starts everytime!
Please Log in or Create an account to join the conversation.
- DoctoRot
-
- Offline
- Sustaining Member
- Oh, the usual... I bowl, I drive around...
- Mikaw
-
- Offline
- Sustaining Member
- TexasKZ
-
- Offline
- Platinum Member
- Mikaw
-
- Offline
- Sustaining Member
28 Jul 2022 08:18 - 28 Jul 2022 08:20 #871196
by Mikaw
Here’s an alternate. You can by your choice of brand. Will have to contact allballs to see if they sell the seals À la cart.
Credit Wookie for finding the following
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Replied by Mikaw on topic Fork stem question/part
I was just posting that thank you.I do not know which year and model you have, but AllBalls Racing have bearings for a 1978 Kz1000B in stock. These are tapered roller bearings which most folks prefer to the old ball bearing setup.
www.allballsracing.com/22-1014.html
Here’s an alternate. You can by your choice of brand. Will have to contact allballs to see if they sell the seals À la cart.
Credit Wookie for finding the following
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Last edit: 28 Jul 2022 08:20 by Mikaw.
