Fork seal removal

  • Will2000
  • Will2000's Avatar Topic Author
  • Offline
  • User
  • Posts: 20
  • Thanks: 2

Fork seal removal

19 Jul 2022 00:22
#870600
I have a 83 kz1100 and I’m redoing the fork seals but I can’t seem to get the fork seals out. I’ve tried just muscling the upper and lower parts of the forks as well as slamming them apart and tried to pick the old seal out with a screwdriver (carefully as to not scratch the chrome) but nothing seems to work. Any tricks y’all have found to getting stubborn seals out?

Please Log in or Create an account to join the conversation.

  • kevski
  • kevski's Avatar
  • Offline
  • User
  • Posts: 431
  • Thanks: 160

Re: Fork seal removal

19 Jul 2022 01:13 - 19 Jul 2022 01:14
#870603
Heat up the the outside of the leg and seal once warm enough they will move, then they should pry out using the correct tool and even a screwdriver, just done a set that had been replaced before by a blind man with a hammer and screwdriver, some should get them done by pet monkey's.
Last edit: 19 Jul 2022 01:14 by kevski.

Please Log in or Create an account to join the conversation.

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 4255
  • Thanks: 2114

Re: Fork seal removal

19 Jul 2022 02:51
#870604
Are you sure you have removed the retainer clip?


My 1975 Z 1 B 900 Project

www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode

Please Log in or Create an account to join the conversation.

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Posts: 2991
  • Thanks: 1090

Re: Fork seal removal

19 Jul 2022 04:19
#870608
I do it as kevski says...proper tool and a bit of heat if necessary.
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.

Please Log in or Create an account to join the conversation.

  • Will2000
  • Will2000's Avatar Topic Author
  • Offline
  • User
  • Posts: 20
  • Thanks: 2

Re: Fork seal removal

19 Jul 2022 09:26
#870619
Haha Yeah I can see where people could get “enthusiastic” with the removals. I’ll give that a try thanks! What type of tool do you mean when you say proper tool, are there specialized seal removers?

Please Log in or Create an account to join the conversation.

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Posts: 2991
  • Thanks: 1090

Re: Fork seal removal

19 Jul 2022 10:25
#870627
It's called a seal puller.   www.z1enterprises.com/seal-puller-adjustable.html
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
The following user(s) said Thank You: Wookie58

Please Log in or Create an account to join the conversation.

  • Will2000
  • Will2000's Avatar Topic Author
  • Offline
  • User
  • Posts: 20
  • Thanks: 2

Re: Fork seal removal

19 Jul 2022 15:48
#870647
wrote:
It's called a seal puller.   www.z1enterprises.com/seal-puller-adjustable.html

I checked and it looks like those are a “pickaxe” style ones that I need to take the upper tube out for them to work. Can they be used with both tubes still together? I have to get the seal out to even take them apart.


Please Log in or Create an account to join the conversation.

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 4255
  • Thanks: 2114

Re: Fork seal removal

19 Jul 2022 17:24 - 19 Jul 2022 17:28
#870668

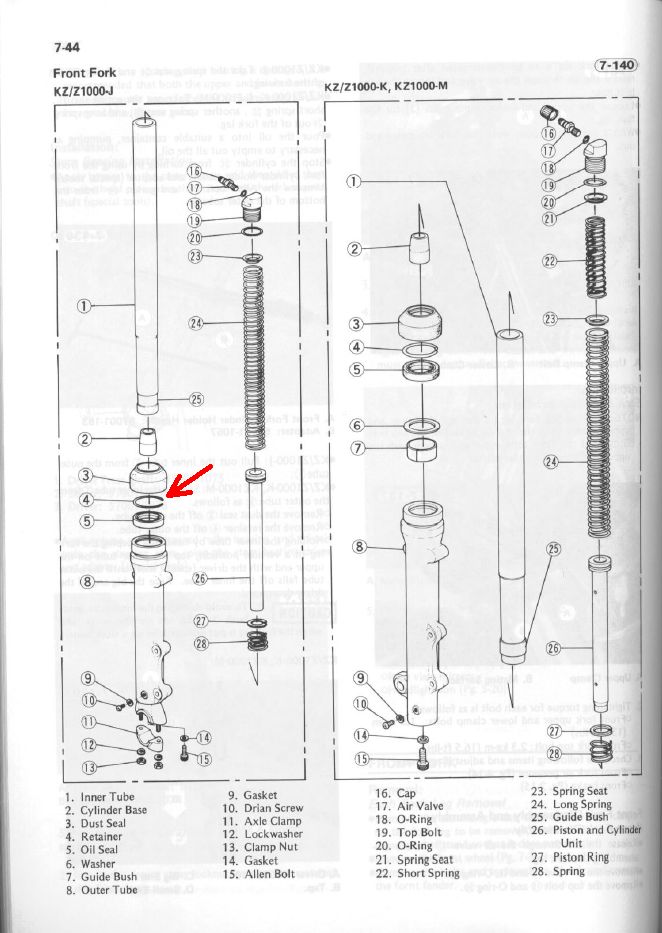

I never ever had any problems to remove any kind of oil and dust seals. If the retainer clip #4 and the allen bolt #15 is removed, you could slide hammering the seals easy out with some wags. Before you doing any un-nessesary force, please show us some pics of your problem area.....
