What is these part called?

  • gordone
  • gordone's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 1427
  • Thanks: 74

What is these part called?

26 Mar 2022 03:52
#864312

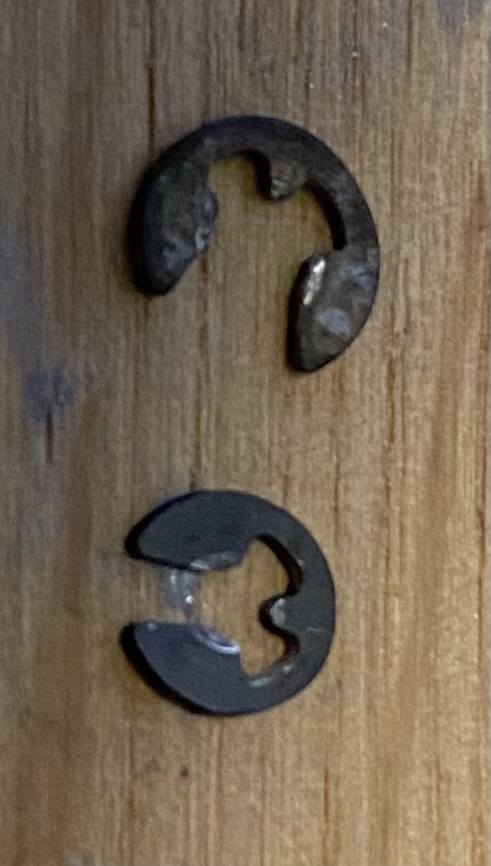

Please photo below, what is the name for these part?

what is the right way of measure the size?


1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).

Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine

Please Log in or Create an account to join the conversation.

  • kzstreetfighter71
  • kzstreetfighter71's Avatar
  • Offline
  • User
  • Atlantic West Coast
  • Posts: 823
  • Thanks: 208

Re: What is these part called?

26 Mar 2022 04:23 - 26 Mar 2022 04:24
#864313
"E type" circlip my good man and by the internal diameter.
06 Gsf 1200 bandit, 08 Triumph tiger 1010
05 Yam xv1700 , 02 Hon shadow 1100
1975 Z1 (currently working on)
1977 Z1000 ( running and in storage)
1978 Z1000 (currently working on)
1978 Z1r "skinny tank" (currently working on)
1978 Z1r "fat tank (gathering parts)
1979 z1000st (currently working on)
Last edit: 26 Mar 2022 04:24 by kzstreetfighter71.

Please Log in or Create an account to join the conversation.

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • Posts: 8019
  • Thanks: 1645

Re: What is these part called?

26 Mar 2022 07:12 - 26 Mar 2022 08:03
#864318
Where are those on the motorcycle? just curious.  I looked thru the diagrams for the 1981 KZ650-CSR but only found 1.

Here's a sample Kawasaki circlip at Cmsnl.com in the UK. #92033-036:   www.cmsnl.com/products/circlip10mm_92033036/

#92033-036 is superseded by 482J0100:  www.cmsnl.com/products/circlip-10mm_482j0100/
note: these are just examples. I have no idea what size you have.
1981 KZ650 Competition Sports and Road
Last edit: 26 Mar 2022 08:03 by martin_csr.

Please Log in or Create an account to join the conversation.

  • Ian_B
  • Ian_B's Avatar
  • Offline
  • User
  • Posts: 86
  • Thanks: 12

Re: What is these part called?

26 Mar 2022 07:15 - 26 Mar 2022 07:16
#864319
E clip, C clip - plenty of suppliers, here's one at random: eBay item number: 271704858948

Also in stainless: eBay item number: 224303815118

Ian
Last edit: 26 Mar 2022 07:16 by Ian_B.

Please Log in or Create an account to join the conversation.

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4837
  • Thanks: 1851

Re: What is these part called?

26 Mar 2022 07:42
#864320
Taking a guest that the picture appears zoomed in to show them larger than actual size, my guess is e-clip/circlip that retain the choke plunger spools.

Evilbay item number 115288353622

1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • Posts: 8019
  • Thanks: 1645

Re: What is these part called?

26 Mar 2022 08:08 - 26 Mar 2022 08:09
#864321
Taking a cue from Mikaw. See drawing reference numbers 92037 & 92037A.

1981 KZ650-CSR w VM24 carburetors:  www.partzilla.com/catalog/kawasaki/motor...retor-parts-kz650-h1
1981 KZ650 Competition Sports and Road
Last edit: 26 Mar 2022 08:09 by martin_csr.

Please Log in or Create an account to join the conversation.

  • gordone
  • gordone's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 1427
  • Thanks: 74

Re: What is these part called?

26 Mar 2022 15:13
#864334
Thank you all !
1981 KZ650-D4, with 1981 z750L engine (Wiensco 810 big bore).

Project:
www.kzrider.com/forum/11-projects/607213...sr-1981-z750l-engine

Please Log in or Create an account to join the conversation.

  • PoodlePuncher
  • PoodlePuncher's Avatar
  • Offline
  • User
  • Posts: 56
  • Thanks: 8

Re: What is these part called?

26 Mar 2022 17:44
#864344
I keep one of these sets on hand...   can find them pretty much anywhere for less than $10
Never know when you're gonna need one.
'75 KZ400S & '81 XS1100

Please Log in or Create an account to join the conversation.

  • davido
  • davido's Avatar
  • Offline
  • User
  • Posts: 1582
  • Thanks: 291

Re: What is these part called?

27 Mar 2022 07:25
#864365
They are used on the carb linkages. I know as one went flying across the room when I was seperating my carbs. I bought an assortment box of e-clips from;
www.toolstation.nl/set-locking-clips-e-model/p65099?searchstr=e
(I dont know if you have Toolstation in Norway?)
www.kzrider.com/forum/11-projects/594313-csr1000-project-build
CB550 (1978)
CB500/4 (1972)*
KZ1000CSR (1981)
XT 600E (1999)
TDM900 (2003)

Please Log in or Create an account to join the conversation.
