Kz550 pivot shaft dimensions 15 Nov 2021 22:12 #857974

  • Sooper_arthur
  • Sooper_arthur's Avatar Topic Author
  • Offline
  • User
  • Posts: 3
  • Thank you received: 0
Hi, I'm looking to verify that 1980-81 kz550 rear axle is 15mm and I'm trying to find the length of it. If someone has one to measure... Or better yet sell, that would be greatly appreciated!

Please Log in or Create an account to join the conversation.

Kz550 pivot shaft dimensions 16 Nov 2021 06:20 #857983

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • Posts: 7751
  • Thank you received: 1520
Howdy. Partzilla lists the castle nut as 16mm.  The axle part number is 41068-1086 & the cross-reference there at partzilla
says it was used on a bunch of 550/650/750 models, so you should be able to source one on EB.
Search eb by either part number or part name (KZ550 rear axle for example).

ps: topic title kinda confusing. pivot shaft would be the swing arm or center stand I guess.

Please Log in or Create an account to join the conversation.

Last edit: by martin_csr.

Kz550 pivot shaft dimensions 16 Nov 2021 09:37 #857987

  • JR
  • JR's Avatar
  • Offline
  • Sustaining Member
  • Posts: 2808
  • Thank you received: 377
Yep same part # as many other bikes including the 1980 KZ750E1  as Martin said.

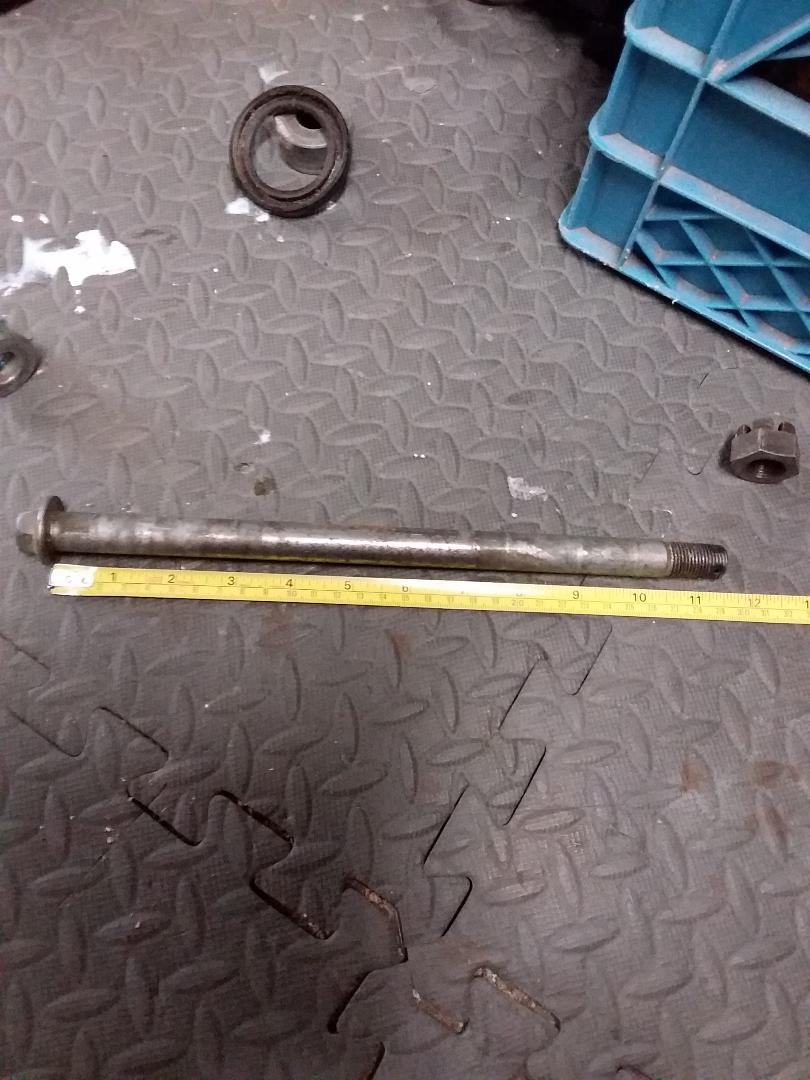

The shaft part of the bolt measures 29cm (or 11.5 inches). 30cm if you include the bolt head

There are a number of kz750 rear axles on ebay,com at the moment. When searching you only want the axle from 4 cylinder models


1980 kz750E1, Delkevic exhaust
Attachments:
The following user(s) said Thank You: martin_csr
