Kz650b3 to dual disc 10 Nov 2021 01:17 #857749

  • Aaronmx63
  • Aaronmx63's Avatar Topic Author
  • Offline
  • User
  • Posts: 3
  • Thank you received: 0
No eBay APP ID and/or Cert ID defined in Kunena configurationHi,

I’m trying to convert my kz650b3 with the rear facing brake callipers to dual disc brakes on the front, I managed to source some unittrack gpz750 callipers which bolt up. I just need to figure out what discs fit? Am I correct in saying it’s the kz1000 from 1978-80 4 bolt ones that do? In the smaller thickness for example this one 710-127635-2958-0

I will source a 5/8 master cylinder too.

cheers
aaron

Please Log in or Create an account to join the conversation.

Kz650b3 to dual disc 10 Nov 2021 04:08 #857750

  • DOHC
  • DOHC's Avatar
  • Offline
  • Sustaining Member
  • Those Doe-Hawks really go!
  • Posts: 1229
  • Thank you received: 494
'78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100

Please Log in or Create an account to join the conversation.

Kz650b3 to dual disc 13 Nov 2021 07:42 #857875

  • Aaronmx63
  • Aaronmx63's Avatar Topic Author
  • Offline
  • User
  • Posts: 3
  • Thank you received: 0
Hi dohc, I have already seen that thread, I have a b3 with the forks facing backwards. i have put up the gpz callipers and they do not fit the standard single 296mm disc. So a z1 disc will not fit either.

i am thinking z1 callipers will fit along with z1 discs of 296mm


Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by Aaronmx63.

Kz650b3 to dual disc 13 Nov 2021 09:08 #857878

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4879
  • Thank you received: 1843
Looking up your fork on Partzilla yours are the same as all of the 650b, and the kz1000a models. Don’t try to reinvent the wheel. I’d source kz1000 parts. Kz650 c might work also
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

Kz650b3 to dual disc 13 Nov 2021 09:45 #857881

  • DOHC
  • DOHC's Avatar
  • Offline
  • Sustaining Member
  • Those Doe-Hawks really go!
  • Posts: 1229
  • Thank you received: 494

Hi dohc, I have already seen that thread, I have a b3 with the forks facing backwards. i have put up the gpz callipers and they do not fit the standard single 296mm disc. So a z1 disc will not fit either.

i am thinking z1 callipers will fit along with z1 discs of 296mm

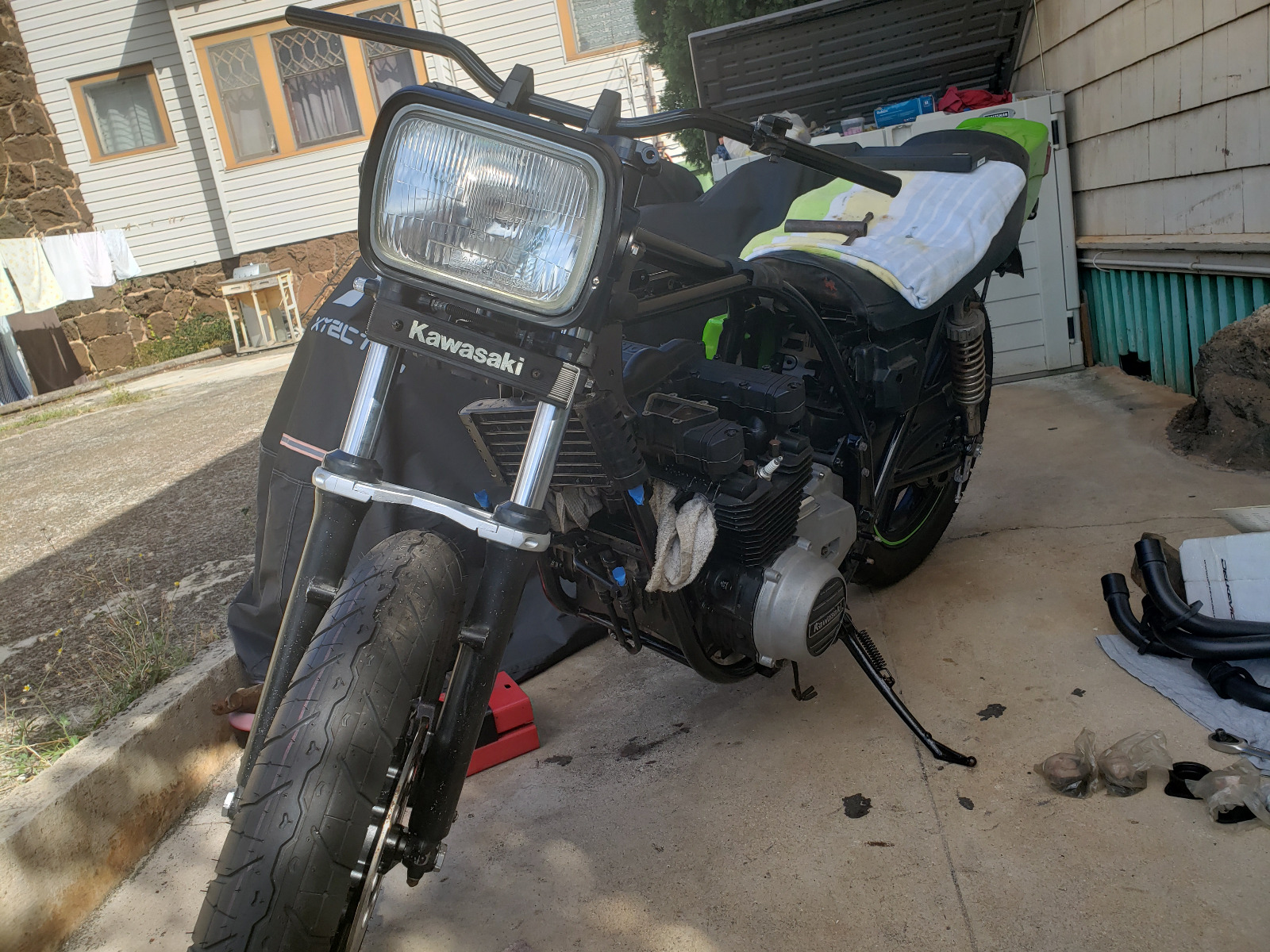

First off, I think those calipers are not compatible with your fork lowers.  Are both mounting bolts threaded in place in the photo you posted?  If that caliper is mounted, it does not sit at the correct angle.  A smaller disk will just move more of the brake pad surface outside the radius of the disk.

I think you want to find calipers from a dual-disk setup 78-80 KZ1000 or KZ650 (and maybe the KZ750?).  They all use basically the same calipers, but there are two different sized pistons, 38mm and 42mm.  The stock KZ650B3 left side caliper should use the larger 42mm piston, so finding a right side caliper to match, that is also 42mm, seems like it would make sense.

This is what I did on my KZ650-B3.

As for disks, the 77-80 KZ650 & KZ1000 (and maybe the KZ750?) use 4 bolts and any one should bolt on to the KZ650.  As you mention, the single-disk disks are thicker.  Using two single-disks together would add a lot of extra weight to the front wheel, which is not good.

I believe if you found a set of the thinner KZ1000 dual-disks, these would line up with the stock KZ650-B3 caliper (and a similar one for the right side).

As mentioned in the thread I linked, the dual-disk KZ650 (C and D) used smaller diameter disks.  The calipers were the same, but the fork lowers were different.  The mounting points on the KZ650 C and D fork lowers are closer to the wheel.  Using KZ650 C and D disks on KZ650B3 requires changing the fork lowers.  I did this on my KZ650B3, and it works if you can find the parts.

I liked the dual-disk setup with the smaller disks on my KZ650-B3.  They worked really well.

If you can't find a right-side caliper that matches your stock left side, you could look at the early 80s calipers.  I have heard that the 81 to maybe 83? or so calipers will fit on the earlier forks, but I haven't tried it myself.  With these, the caliper body is very similar to those GPz calipers you have, but the mounting bracket is much different.  It doesn't have the speed holes that you see on the GPz bracket.  Maybe it would mount at the same angle as the 78-80 KZ caliper?

'78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100
The following user(s) said Thank You: katit

Please Log in or Create an account to join the conversation.

Kz650b3 to dual disc 13 Nov 2021 11:03 #857885

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4879
  • Thank you received: 1843
DOHC, the caliper he needs says 1 11/16 on it correct. That’s the larger piston
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

Kz650b3 to dual disc 13 Nov 2021 12:47 #857890

  • DOHC
  • DOHC's Avatar
  • Offline
  • Sustaining Member
  • Those Doe-Hawks really go!
  • Posts: 1229
  • Thank you received: 494

DOHC, the caliper he needs says 1 11/16 on it correct. That’s the larger piston
Yes, that's right.  1 11/16 is 42.8mm, which I'm assuming is the actual piston size.

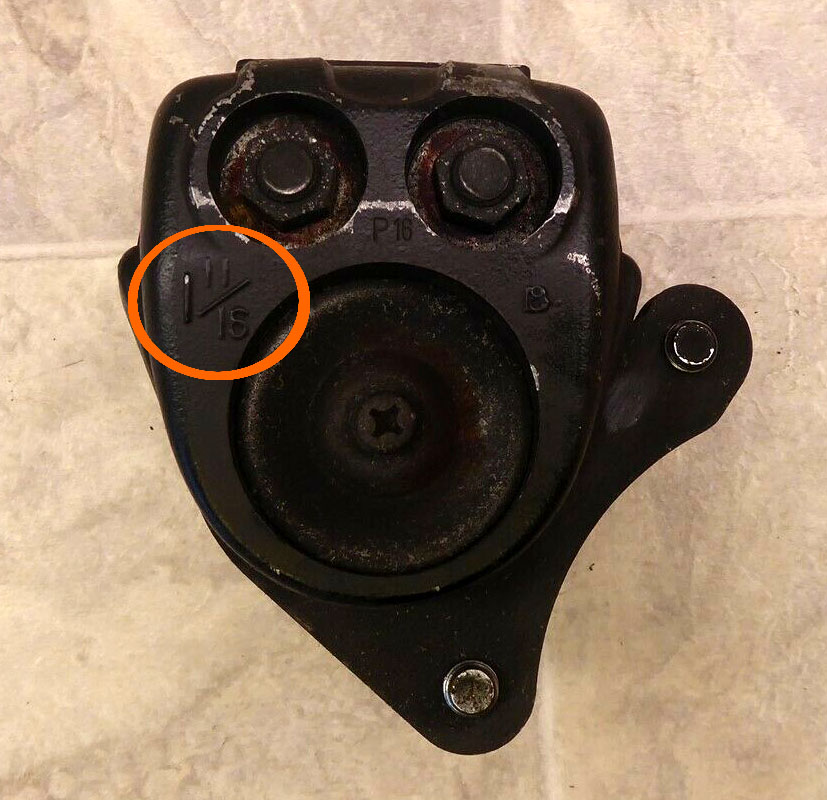

The "1 11/16" text is cast into the caliper body on the back side.  Here is a picture.

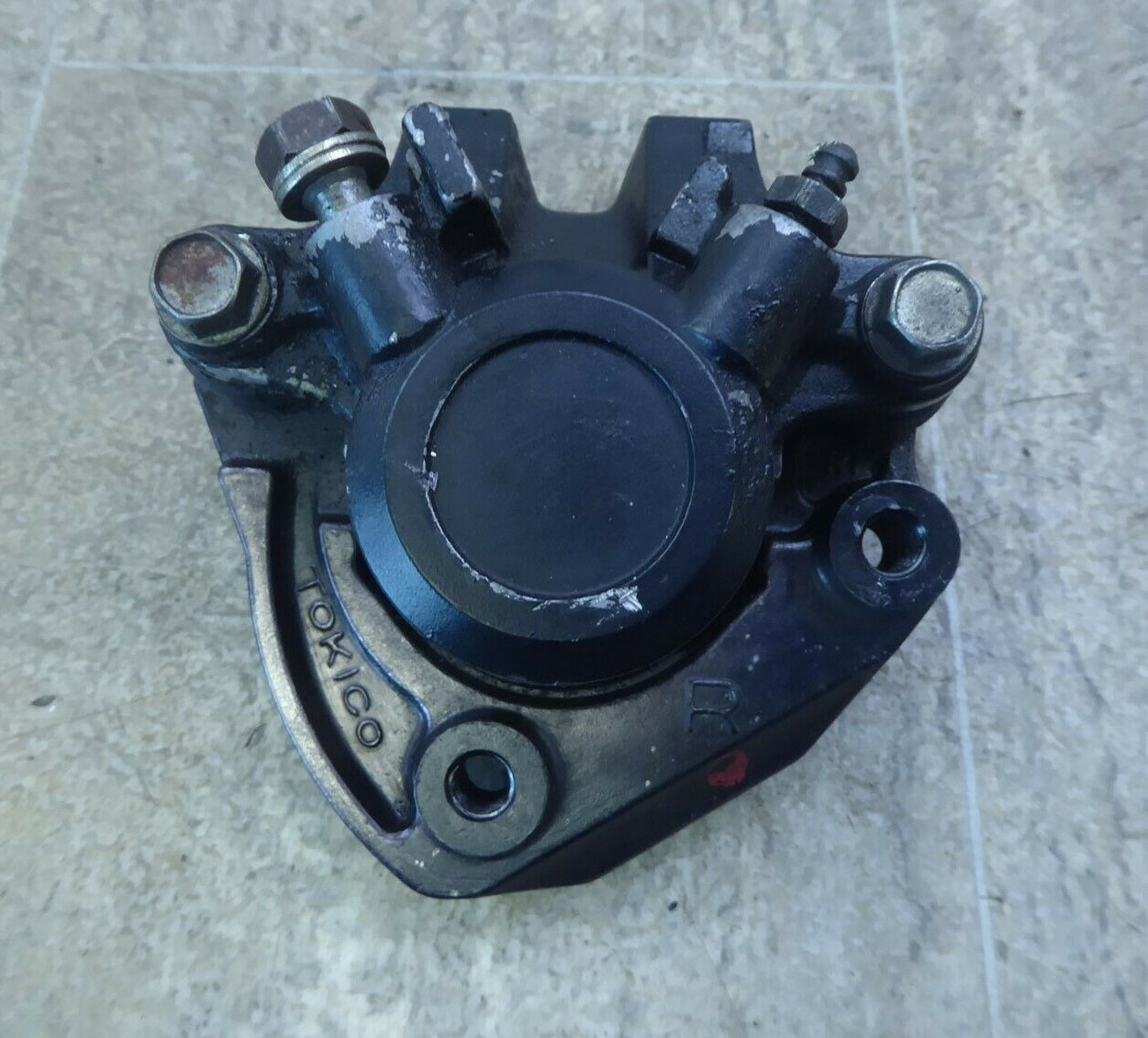

Also, here is a picture of the '81 style calipers that maybe could work?


'78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100
Attachments:

Please Log in or Create an account to join the conversation.

Kz650b3 to dual disc 13 Nov 2021 16:26 #857900

  • Ojisan rider
  • Ojisan rider's Avatar
  • Offline
  • Sustaining Member
  • Posts: 359
  • Thank you received: 63

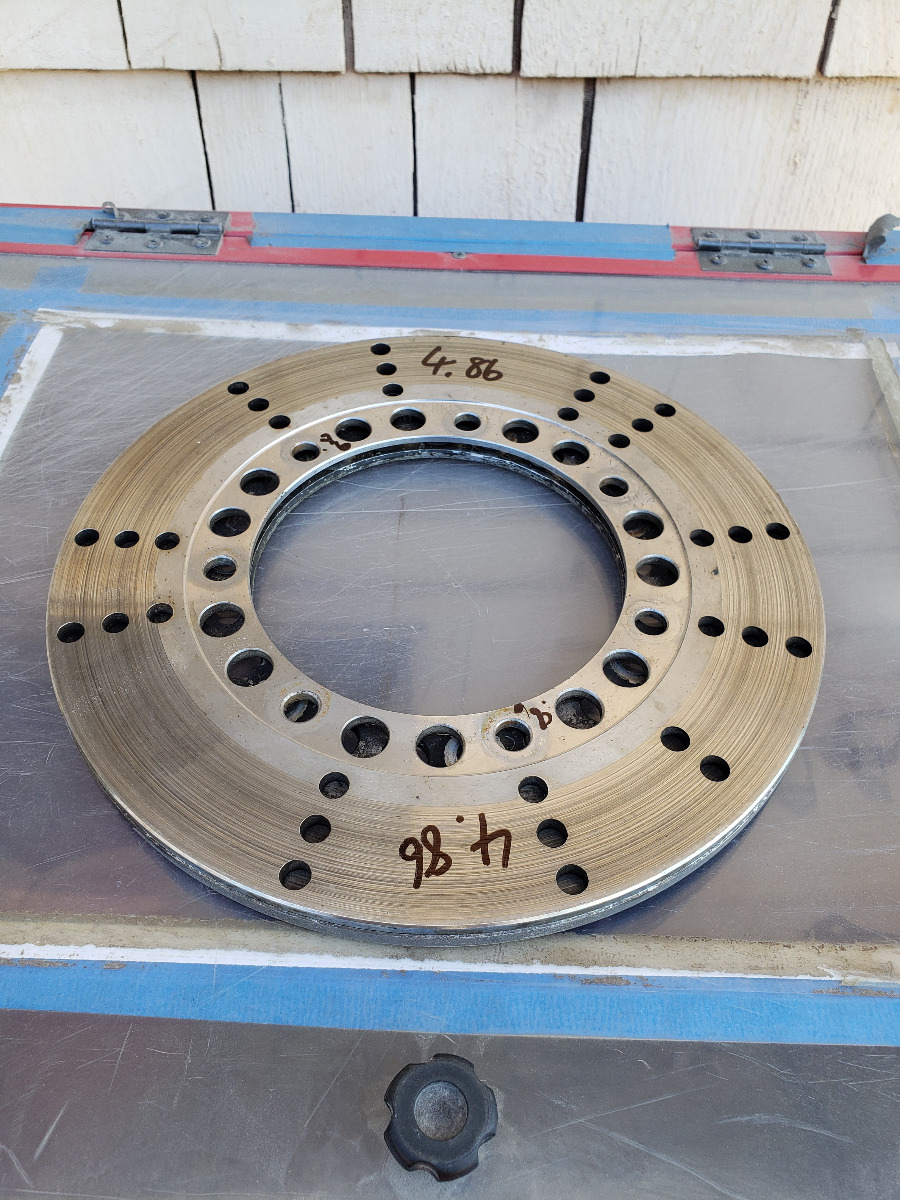

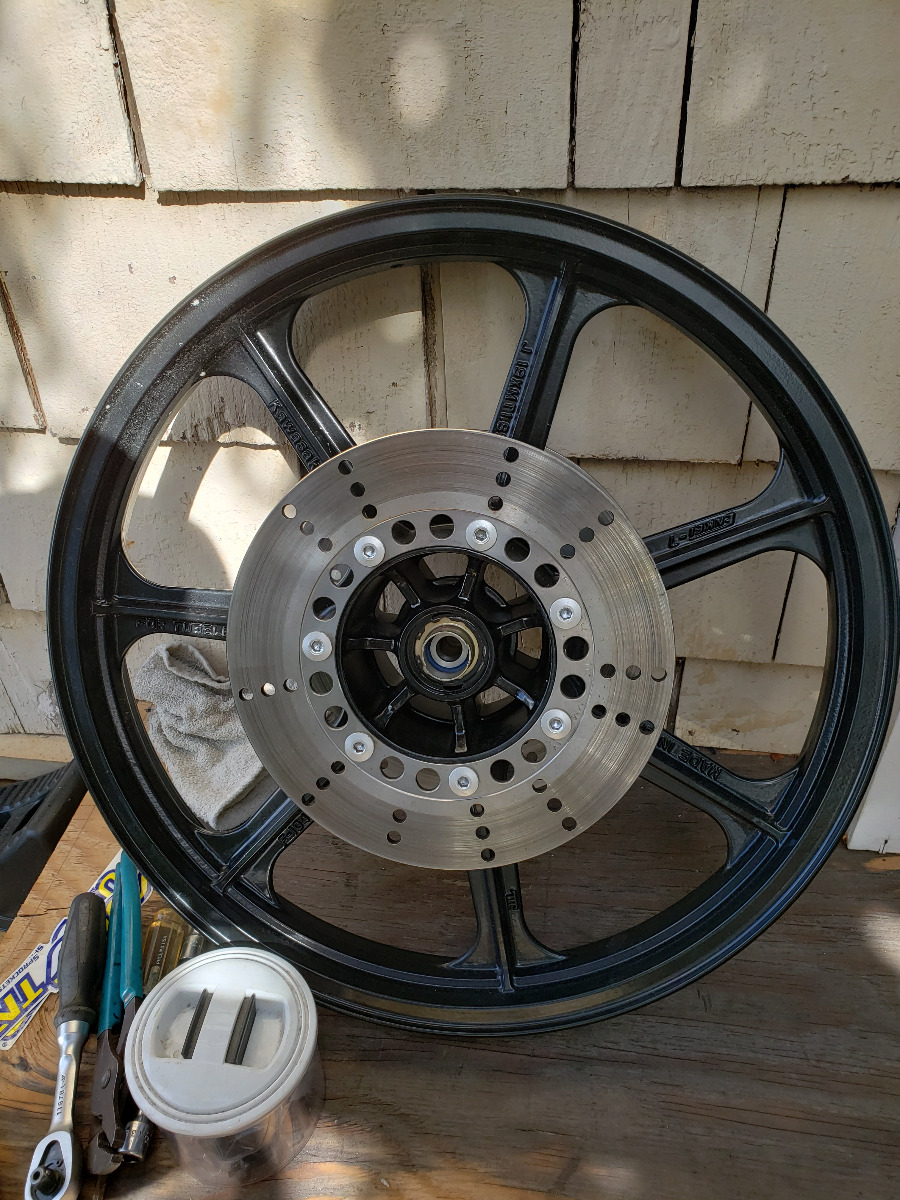

Before you jump the gun, I just wanted to point out that earlier KZ's have offset disks, while later KZ like mine is straight disk. Caliper itself will bolt on from my experience, but bought the 650 fork from evilbay, so although seller said it's from 650 who knows what it came from.

I did not have the both disks back then, so I have no idea if it'll fit with the caliper on. At that time, I just needed a fork to mock up my bike as my original front was too far gone and leaking really bad, along with too far gone fork tube (rust pitted). I got a set of correct fork since then and properly rebuilded (I hope).
82' KZ750-R1 cafe racer style. Clip-on, Rear set, Fork-Brace, Mikuni Flat-slide (forgot the size), Kerker.
84' GPz750 (basket case). everything are in pieces.
89' ZX750-H1 (ZX-7 Ninja). Resurrection project are on going with my KZ750. Everything is stock.
Attachments:

Please Log in or Create an account to join the conversation.

Kz650b3 to dual disc 13 Nov 2021 18:26 #857901

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4879
  • Thank you received: 1843
Appears the problem is the mounting points of either the caliper or the fork lower are not the correct. The caliper is not on the same axis as the rotor. Size nor offset will fix the. I see the lower mount needs to come away from the axis and the upper move closer.
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

Kz650b3 to dual disc 14 Nov 2021 19:01 #857948

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4879
  • Thank you received: 1843
This might be an option. Been list a long time, maybe you can work a deal

www.facebook.com/marketplace/item/358431995840254/
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

Kz650b3 to dual disc 23 Nov 2021 09:45 #858243

  • Aaronmx63
  • Aaronmx63's Avatar Topic Author
  • Offline
  • User
  • Posts: 3
  • Thank you received: 0
Thanks for that however I am in the UK so shipping that wouldn't be very cost effective!

I've managed to source two 5mm z1000 4 bolt front discs, and a 11/16 right hand caliper, however now need to try find a right hand bracket that fits my forks as it is one from a z1300 and does not fit. Might end up getting one lazer cut to match the otherside but mirrored.

The C-C spacing on my forks is 71.5mm.

Please Log in or Create an account to join the conversation.
