Anyone with a Z1r sandcast headlight bracket that can help.

  • kzstreetfighter71
  • Topic Author
  • Offline
  • User
  • Atlantic West Coast
More
29 Aug 2021 00:40 #854493 by kzstreetfighter71

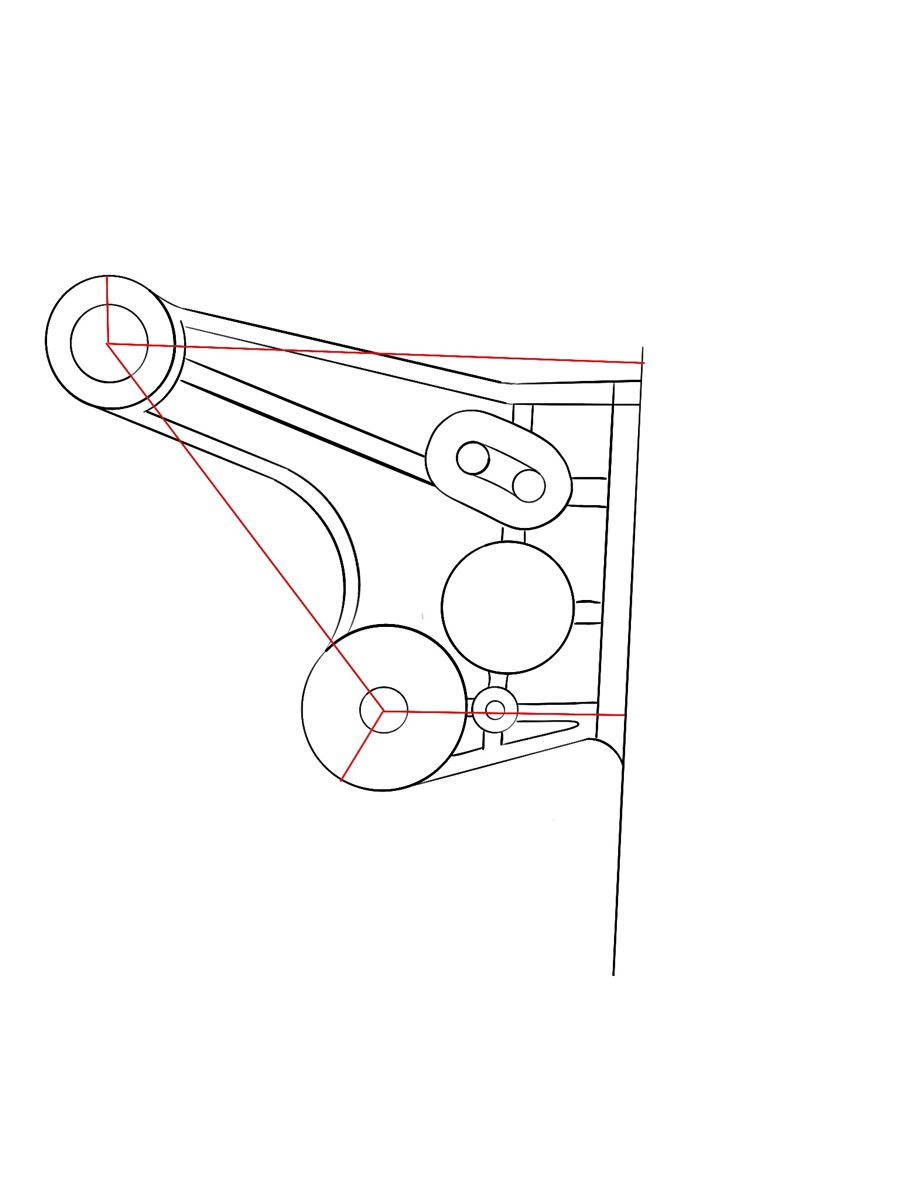

I’m going to try and recreate in lazar cut a version of the sandcast original headlight bracket. If anyone has access to one that could scribe me a few measurements it would help a lot below is a digital drawing with some of the measurements needed, as always any help is thanked in advance!

06 Gsf 1200 bandit, 08 Triumph tiger 1010
05 Yam xv1700 , 02 Hon shadow 1100
1975 Z1 (currently working on)
1977 Z1000 ( running and in storage)
1978 Z1000 (currently working on)
1978 Z1r "skinny tank" (currently working on)
1978 Z1r "fat tank (gathering parts)
1979 z1000st (currently working on)
  • Please Log in or Create an account to join the conversation.

    • DOHC
    • Offline
    • Sustaining Member
    • Those Doe-Hawks really go!
    More
    29 Aug 2021 07:04 #854506 by DOHC
    I should be able to help you out, but I need to dig around in some boxes for the part.

    Are those the only dimensions your need? Are you just going to reproduce those two holes?  Do you need any details about the difference between the left and right?

    '78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
    My dad's '74 Z1
    '00 ZRX1100

    Please Log in or Create an account to join the conversation.

    • kzstreetfighter71
    • Topic Author
    • Offline
    • User
    • Atlantic West Coast
    More
    29 Aug 2021 07:50 #854507 by kzstreetfighter71
    Replied by kzstreetfighter71 on topic Anyone with a Z1r sandcast headlight bracket that can help.
    Thank you DOHC! to start with i was going to just model the basic part in 3d and then add the differences, i didnt want to push my luck and ask for too much all at once..It will be cut from 5mm mild steel with the aim to keep the weight to a minimum and weld to a 46mm sleeve, i would gladly cut a spare set and send them to you for your help.

    06 Gsf 1200 bandit, 08 Triumph tiger 1010
    05 Yam xv1700 , 02 Hon shadow 1100
    1975 Z1 (currently working on)
    1977 Z1000 ( running and in storage)
    1978 Z1000 (currently working on)
    1978 Z1r "skinny tank" (currently working on)
    1978 Z1r "fat tank (gathering parts)
    1979 z1000st (currently working on)

    Please Log in or Create an account to join the conversation.

    More
    29 Aug 2021 14:59 #854535 by 750 R1
    Hi KZ, I'd like a set of those too mate, if possible. I'm using 45mm forks, so I'll have to think about how to mount them ....  Could they be made from Aluminium ?

    Please Log in or Create an account to join the conversation.

    • kzstreetfighter71
    • Topic Author
    • Offline
    • User
    • Atlantic West Coast
    More
    29 Aug 2021 15:10 #854537 by kzstreetfighter71
    Replied by kzstreetfighter71 on topic Anyone with a Z1r sandcast headlight bracket that can help.

    Hi KZ, I'd like a set of those too mate, if possible. I'm using 45mm forks, so I'll have to think about how to mount them ....  Could they be made from Aluminium ?

    I’m sure they could, I’m only using mild steel cause I have tube stock got in 46mm id  for  the forks and I can weld up the parts my self then powder coat. I’ll be making a generic set for my Z1000 A2 also..to go on 46mm forks. I can send you the file even if you want.


    06 Gsf 1200 bandit, 08 Triumph tiger 1010
    05 Yam xv1700 , 02 Hon shadow 1100
    1975 Z1 (currently working on)
    1977 Z1000 ( running and in storage)
    1978 Z1000 (currently working on)
    1978 Z1r "skinny tank" (currently working on)
    1978 Z1r "fat tank (gathering parts)
    1979 z1000st (currently working on)

    Please Log in or Create an account to join the conversation.

    More
    29 Aug 2021 15:34 - 29 Aug 2021 15:35 #854542 by 750 R1
    I know a guy that  makes aluminium parts for the aerospace industry, i'll have a chat to him, this sort of stuff would be pretty basic for him I'd imagine...
    I'll get back to you...
    Last edit: 29 Aug 2021 15:35 by 750 R1.

    Please Log in or Create an account to join the conversation.

    • DOHC
    • Offline
    • Sustaining Member
    • Those Doe-Hawks really go!
    More
    29 Aug 2021 20:01 #854553 by DOHC
    I found one of my brackets.  It's a left side, but it seems like the dimensions you're asking for should be the same on both sides.  It turns out it's actually pretty hard to get accurate dimensions from this specific piece with just a set of calipers.  I did my best.

    I measured from the outside surface of the tube that covers the fork tube.  I did my best to eyeball the center of the hole, and to make sure my measurement was at right angle to the fork tube.



    Any interest in this one?  It was in my pile of things to get rid of.  :)



    '78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
    My dad's '74 Z1
    '00 ZRX1100
  • Please Log in or Create an account to join the conversation.

    • kzstreetfighter71
    • Topic Author
    • Offline
    • User
    • Atlantic West Coast
    More
    30 Aug 2021 00:46 #854558 by kzstreetfighter71
    Replied by kzstreetfighter71 on topic Anyone with a Z1r sandcast headlight bracket that can help.
    Ah DOHC you are a gentleman and thank you for the offer! I think with these measurements i can figure the rest and  ill draw it on in 1:1 and print out the piece in the same. I may need the dimensions of the top part of the bracket (the turn signal part) but these things are getting rare so either evilbay it or keep it safe as another member would kill for this one day. My Z1r ( like all my bikes) is going to be pieced together from frame up and forks will be the showa forks from a cbr900rr so the bracket would not fit.
    750R1 ill draw it out and i can have the pieces cut out and i can send them on no problems in either alum or steel, ill stick them in a padded envelope and fire them your way.

    06 Gsf 1200 bandit, 08 Triumph tiger 1010
    05 Yam xv1700 , 02 Hon shadow 1100
    1975 Z1 (currently working on)
    1977 Z1000 ( running and in storage)
    1978 Z1000 (currently working on)
    1978 Z1r "skinny tank" (currently working on)
    1978 Z1r "fat tank (gathering parts)
    1979 z1000st (currently working on)

    Please Log in or Create an account to join the conversation.

    • kzstreetfighter71
    • Topic Author
    • Offline
    • User
    • Atlantic West Coast
    More
    30 Aug 2021 01:25 #854560 by kzstreetfighter71
    Replied by kzstreetfighter71 on topic Anyone with a Z1r sandcast headlight bracket that can help.

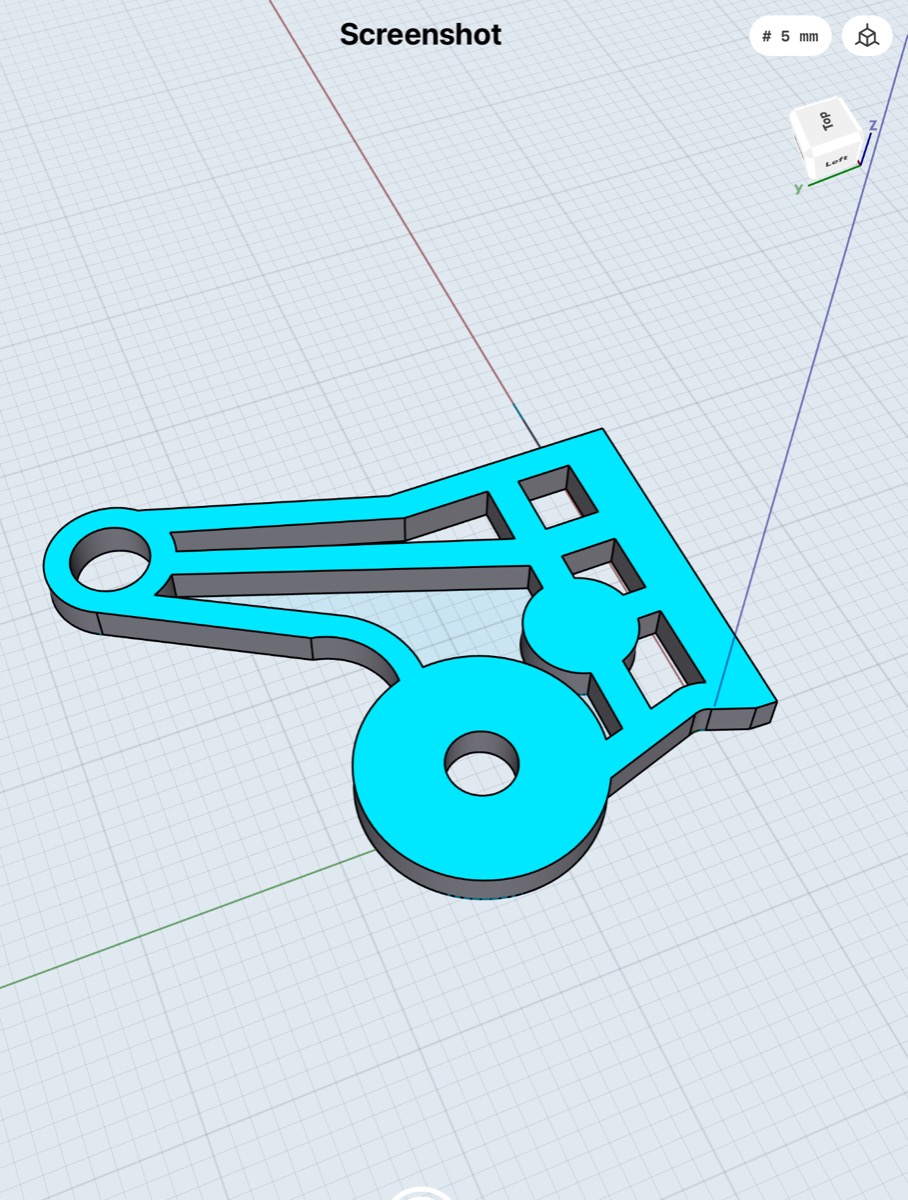

    This is kinda what I’m aiming for and I do it properly, when I have more measurements and I’m not drawing it in 15 min drinking my coffee before I go to work..But you get the idea.

    06 Gsf 1200 bandit, 08 Triumph tiger 1010
    05 Yam xv1700 , 02 Hon shadow 1100
    1975 Z1 (currently working on)
    1977 Z1000 ( running and in storage)
    1978 Z1000 (currently working on)
    1978 Z1r "skinny tank" (currently working on)
    1978 Z1r "fat tank (gathering parts)
    1979 z1000st (currently working on)
  • Please Log in or Create an account to join the conversation.

    • kzstreetfighter71
    • Topic Author
    • Offline
    • User
    • Atlantic West Coast
    More
    15 Sep 2021 06:12 #855292 by kzstreetfighter71
    Replied by kzstreetfighter71 on topic Anyone with a Z1r sandcast headlight bracket that can help.

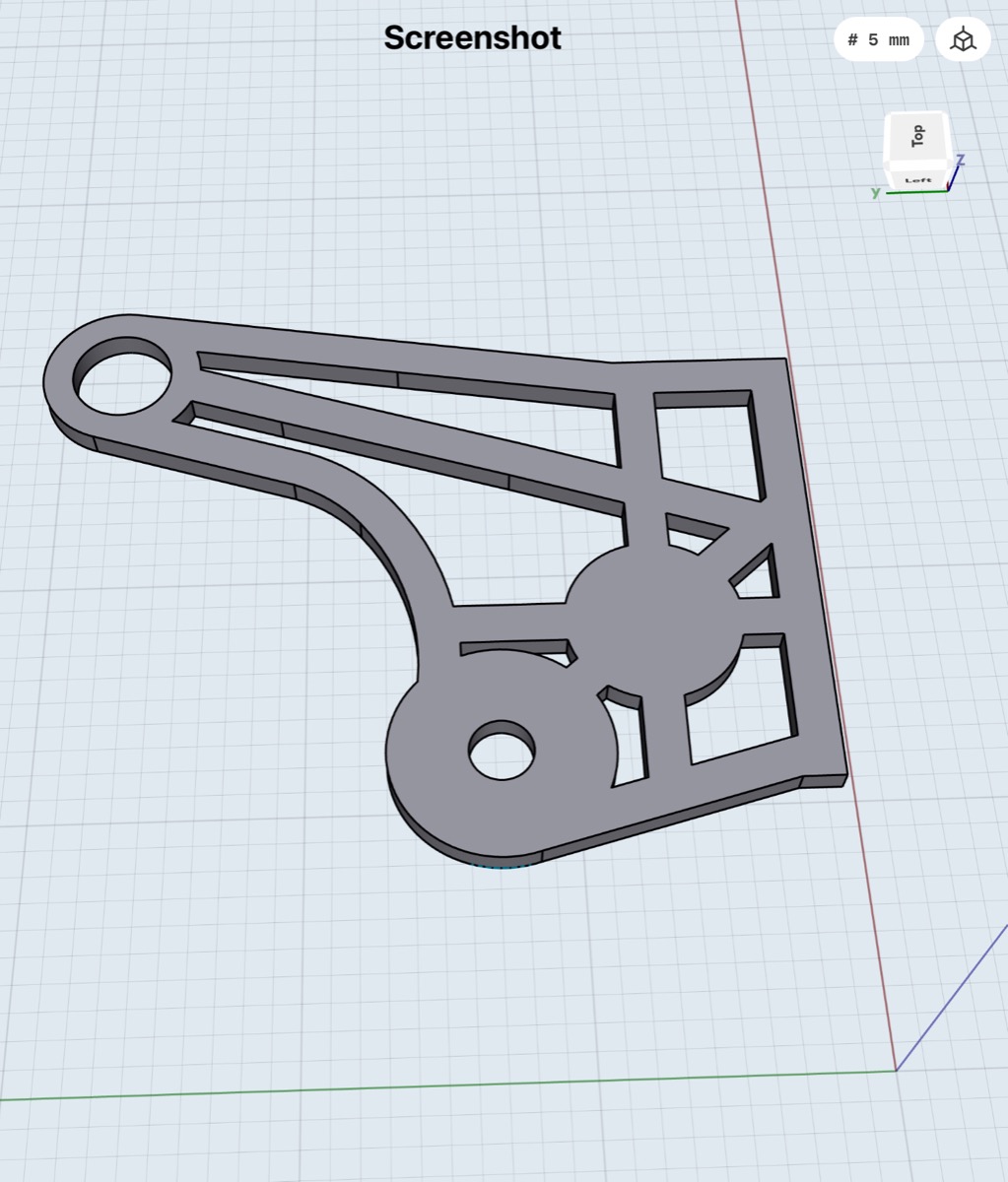

    Well I have the drawing done with the measurements kindly donated DOHC and it is just the template. I was wondering if anyone can tell me the function of the highlighted areas, seeing I’m going to be using handlebar brake and clutch are they used for the cowl mounting in any way? Thanks in advance

    06 Gsf 1200 bandit, 08 Triumph tiger 1010
    05 Yam xv1700 , 02 Hon shadow 1100
    1975 Z1 (currently working on)
    1977 Z1000 ( running and in storage)
    1978 Z1000 (currently working on)
    1978 Z1r "skinny tank" (currently working on)
    1978 Z1r "fat tank (gathering parts)
    1979 z1000st (currently working on)
  • Please Log in or Create an account to join the conversation.

    • DOHC
    • Offline
    • Sustaining Member
    • Those Doe-Hawks really go!
    More
    15 Sep 2021 07:47 #855295 by DOHC
    No eBay APP ID and/or Cert ID defined in Kunena configurationNo eBay APP ID and/or Cert ID defined in Kunena configuration

    Well I have the drawing done with the measurements kindly donated DOHC and it is just the template. I was wondering if anyone can tell me the function of the highlighted areas, seeing I’m going to be using handlebar brake and clutch are they used for the cowl mounting in any way? Thanks in advance
    The three threaded holes on the left side (you circled two) are where the front master cylinder reservoir mounts.  The two threaded holes on the right side are for mounting the self-canceling turn signal control box.  The curved slot is for the aiming the headlight up-down.  The headlight bucket on the Z1R has a little arm that lines up with that slot.

    Here are some pictures:



    One other thought I had.  Are you going to use a Z1R style bracket to mount the gauges?  Or are they just going to be mounted to the top clamp?  I ask because the hole in your drawing that reaches way out from the fork leg is used to mount the gauge bracket.  If you're not using a similar bracket, you may not need that hole.  That hole doesn't have anything to do with the fairing mounts.

    I can take pictures of my bike if you need to see how anything fits together.  I labeled the mount points...


    '78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
    My dad's '74 Z1
    '00 ZRX1100
  • The following user(s) said Thank You: kzstreetfighter71

    Please Log in or Create an account to join the conversation.

    • kzstreetfighter71
    • Topic Author
    • Offline
    • User
    • Atlantic West Coast
    More
    15 Sep 2021 08:16 #855296 by kzstreetfighter71
    Replied by kzstreetfighter71 on topic Anyone with a Z1r sandcast headlight bracket that can help.

    Once agin DOHC  thank you, I’m going to have to live without the headlight adjustment and won’t need the signal cancellation or master cylinder. As for the gauges I am hunting actual Z1r ones as I’m going to try and reproduce the cockpit as close as I can and any info on that would be a godsend mate.


    06 Gsf 1200 bandit, 08 Triumph tiger 1010
    05 Yam xv1700 , 02 Hon shadow 1100
    1975 Z1 (currently working on)
    1977 Z1000 ( running and in storage)
    1978 Z1000 (currently working on)
    1978 Z1r "skinny tank" (currently working on)
    1978 Z1r "fat tank (gathering parts)
    1979 z1000st (currently working on)

    Please Log in or Create an account to join the conversation.
