stem and head issues 05 Aug 2021 14:46 #853218

  • kdoggin
  • kdoggin's Avatar Topic Author
  • Offline
  • User
  • Posts: 27
  • Thank you received: 0

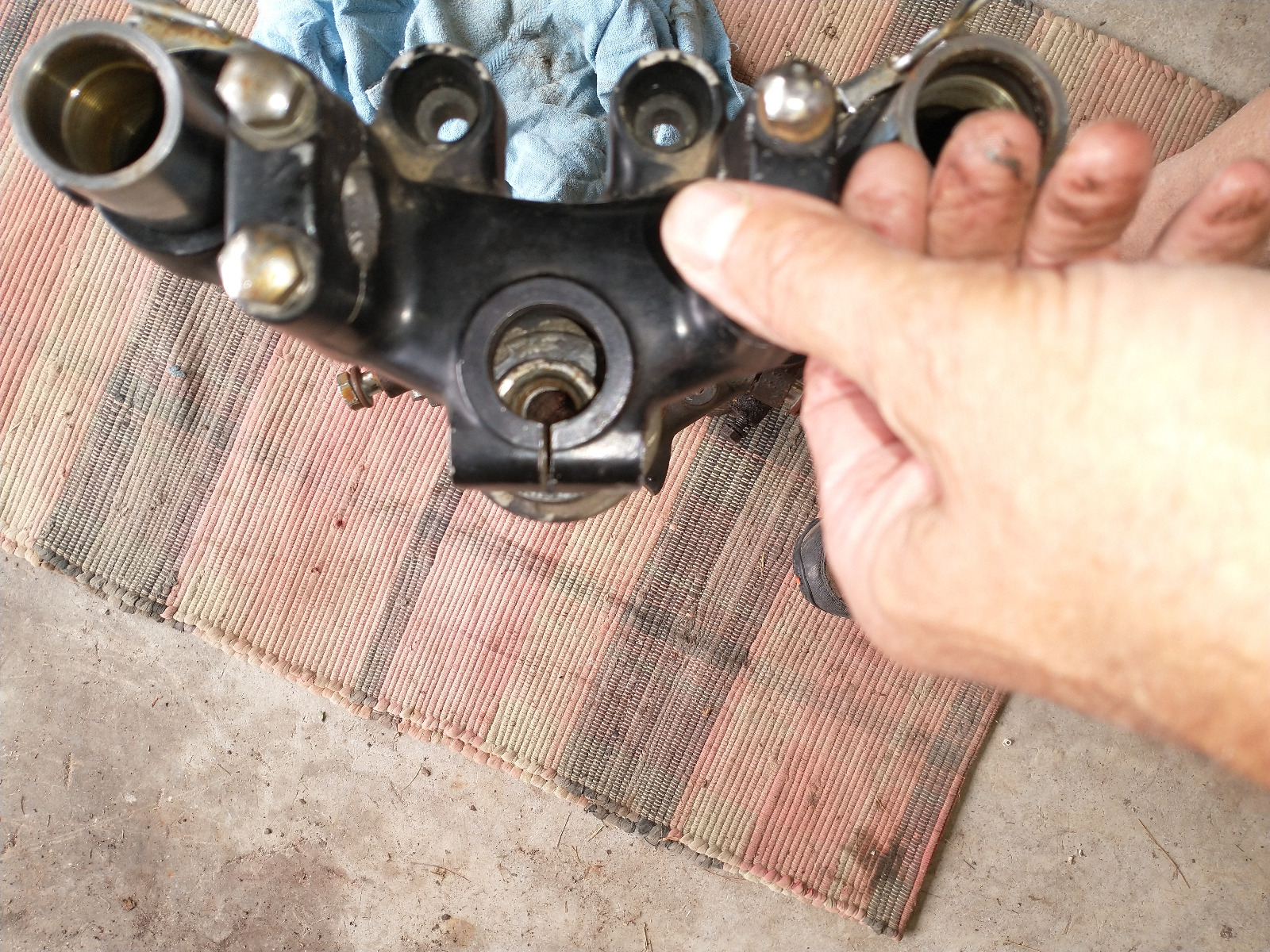

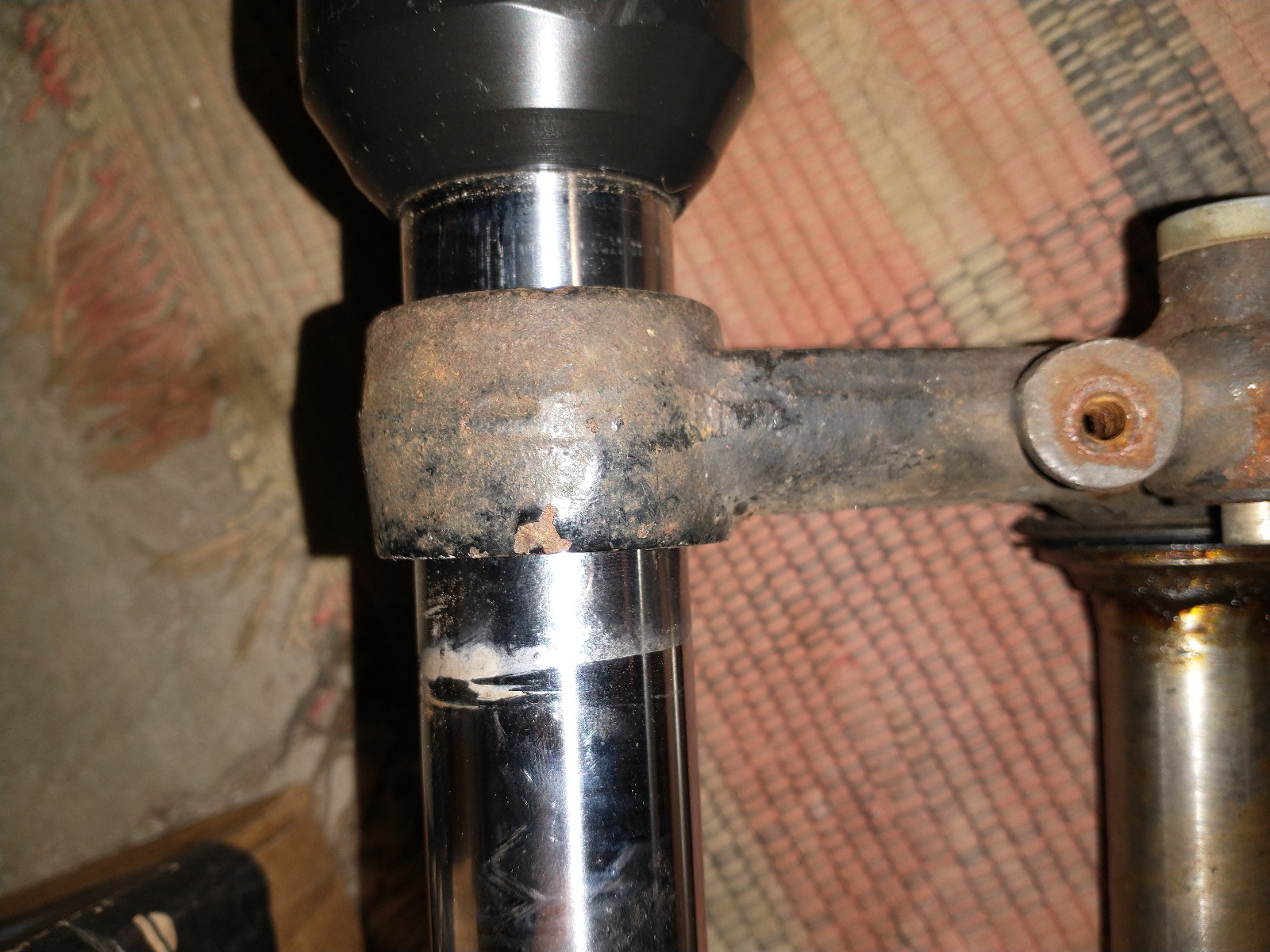

just got a kz 900 stem and it is the same as mine on my bike, forks slide into both but the stem center and head center are way off, please help anyone!
Attachments:

Please Log in or Create an account to join the conversation.

stem and head issues 05 Aug 2021 15:03 #853220

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3926
  • Thank you received: 1899
Looks like your stem of the lower triple tree or fork legs are bend in a front collison.
Bent fork legs have a dent in the clamping area below the lower triple tree.
Loose the clamps, turn the fork legs and check if the stem center position to the upper triple center change.

Please Log in or Create an account to join the conversation.

Last edit: by Scirocco.

stem and head issues 05 Aug 2021 19:09 #853235

  • kdoggin
  • kdoggin's Avatar Topic Author
  • Offline
  • User
  • Posts: 27
  • Thank you received: 0
it is possible, but I have  one same as  this one , 10.5 cm vs. 11 cm, steering center to fork center, I got a 1976 kz 900 head from old kawman,,has the 76 kz dash board rubber damped holes pn 44037-098

Please Log in or Create an account to join the conversation.

stem and head issues 05 Aug 2021 19:11 #853236

  • kdoggin
  • kdoggin's Avatar Topic Author
  • Offline
  • User
  • Posts: 27
  • Thank you received: 0
I think i may have 2 bent heads, I will be sending back the latest,ouch

Please Log in or Create an account to join the conversation.

stem and head issues 05 Aug 2021 19:12 #853237

  • kdoggin
  • kdoggin's Avatar Topic Author
  • Offline
  • User
  • Posts: 27
  • Thank you received: 0
sorry, stems

Please Log in or Create an account to join the conversation.

stem and head issues 06 Aug 2021 19:52 #853310

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • 10 22 2014
  • Posts: 22430
  • Thank you received: 2621

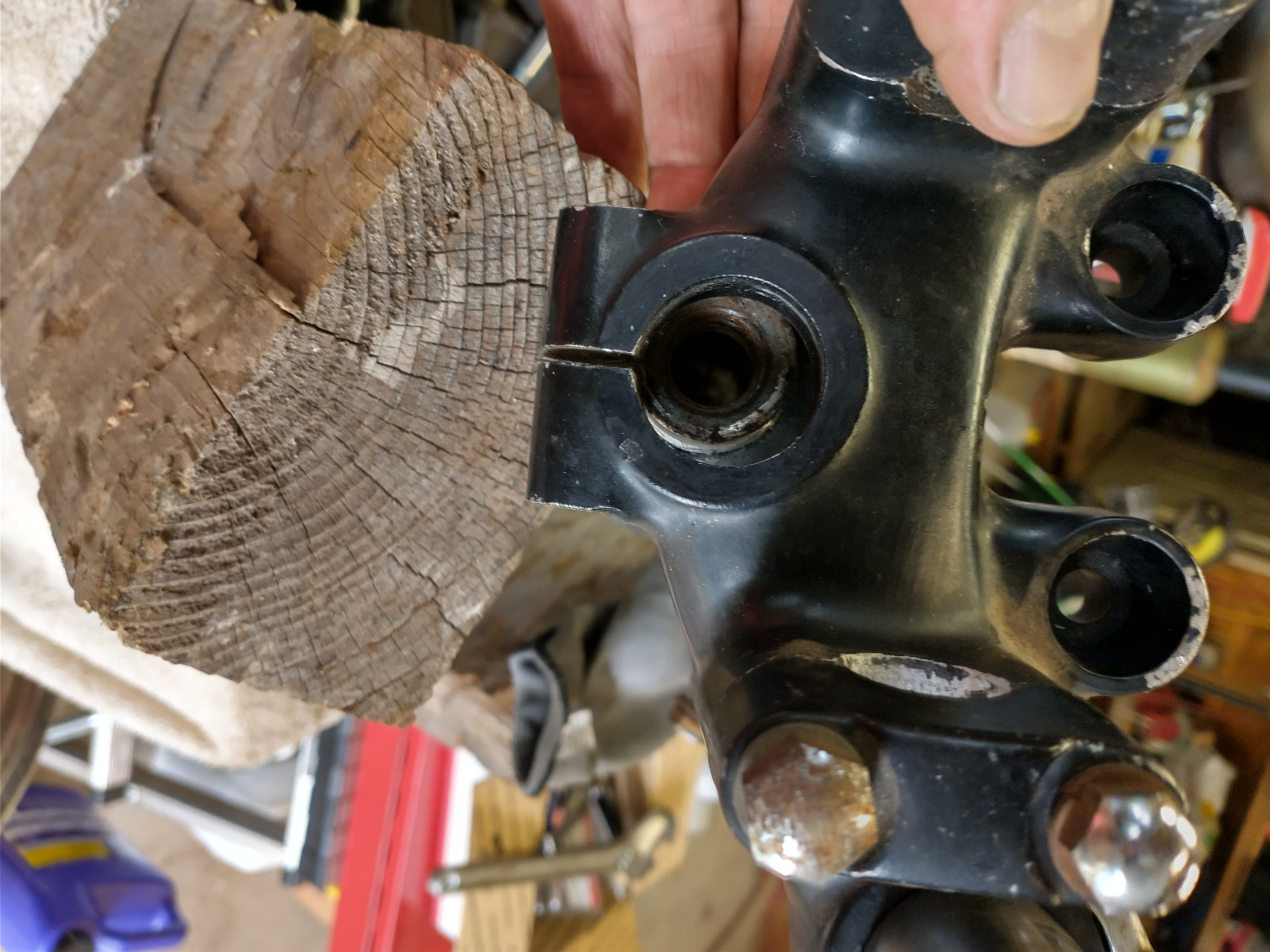

There's a upper and lower triple clamp. The steering stem is on the lower clamp. As suggested the forks may be bent or the lower clamp. Hold the lower clamp on a table and see if the two holes are flat then see if the stem is square to the table.
Steve

Please Log in or Create an account to join the conversation.

stem and head issues 07 Aug 2021 03:01 #853318

  • kdoggin
  • kdoggin's Avatar Topic Author
  • Offline
  • User
  • Posts: 27
  • Thank you received: 0
nothing is bent.The center to of stem to center of fork is different as i measured. they are diff by half a cm. I have been informed that it is an early Z1 stem,  which makes sense because it had Z1 gauges  on it. the one from ebay is also a z1 stem , it was advertised as a 76-78 stem. Trying to return it.












i

Please Log in or Create an account to join the conversation.

stem and head issues 07 Aug 2021 04:54 #853323

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Posts: 2926
  • Thank you received: 1022
As far as I know the offset on all Z1 models and on the KZ900 was the same.  Same rake, same trail, same offset.  Just different mount for the dash on the KZ900.  I believe the offset on KZ1000 models was also the same.  If you have a mismatched upper and lower triple tree then one of them is not from a Z1.  From memory, a Z1 offset is 60 mm.
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.

Please Log in or Create an account to join the conversation.

stem and head issues 07 Aug 2021 06:34 #853329

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • 10 22 2014
  • Posts: 22430
  • Thank you received: 2621

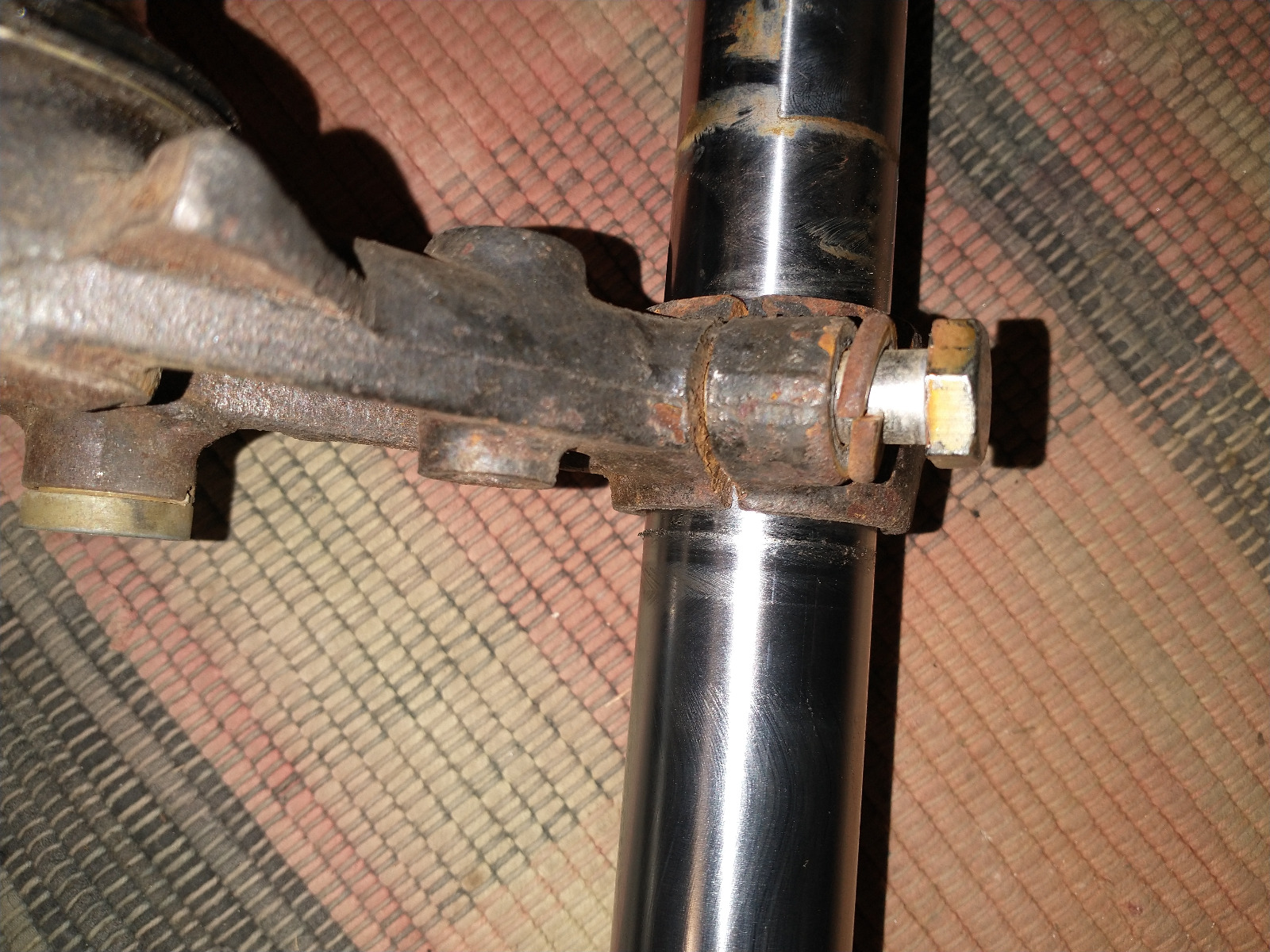

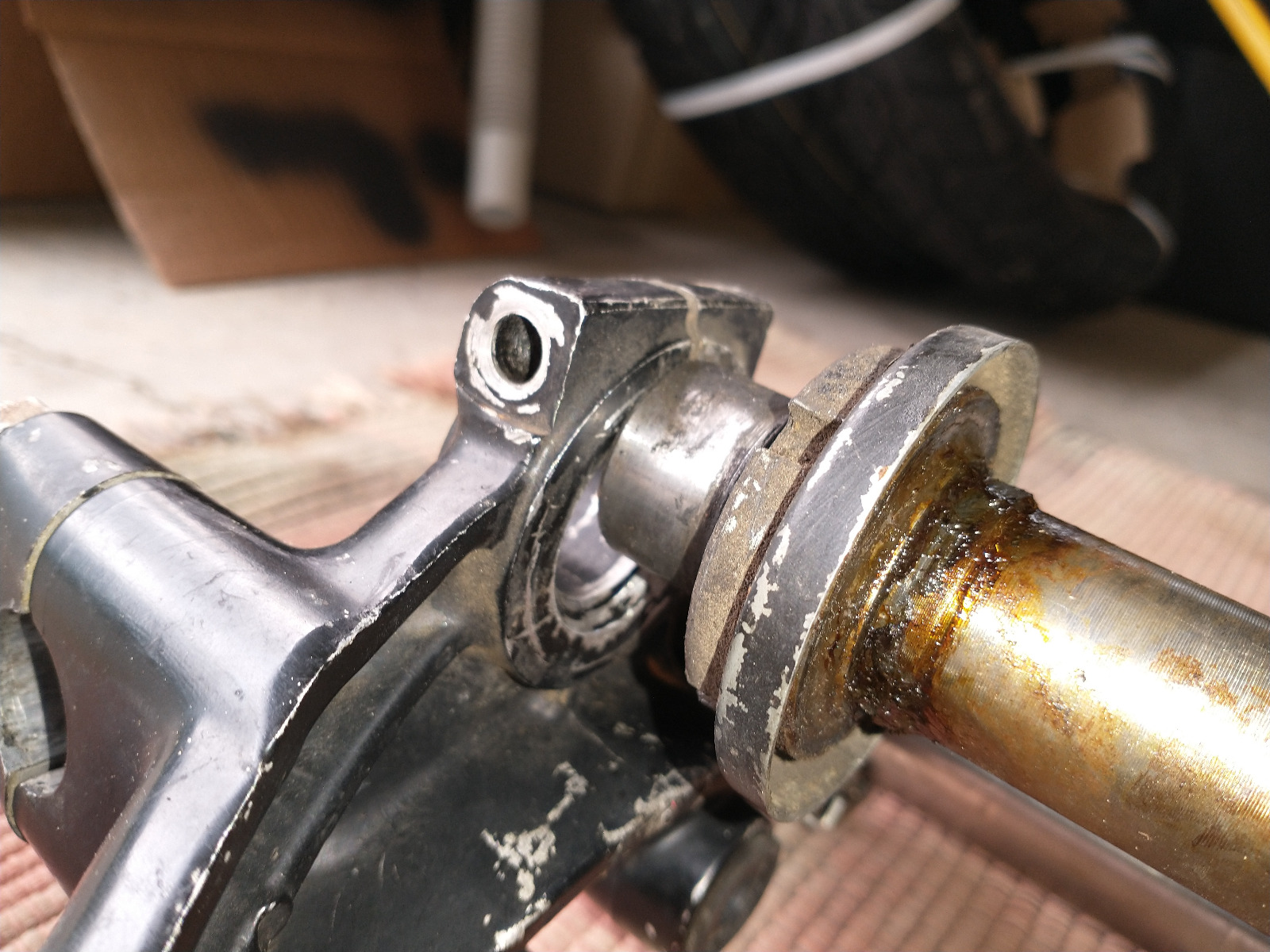

I'd like to see the lower clamp. The Z1 has a hole where a steering damper connects to the lower tree.
Steve

Please Log in or Create an account to join the conversation.

stem and head issues 07 Aug 2021 17:07 #853380

  • kdoggin
  • kdoggin's Avatar Topic Author
  • Offline
  • User
  • Posts: 27
  • Thank you received: 0
Attachments:

Please Log in or Create an account to join the conversation.

stem and head issues 07 Aug 2021 17:35 #853381

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4897
  • Thank you received: 1858
Is it possible you have an upper tree, (head) from a kz650. The meter mount the same, Partzilla says the 650 only fits the 650. Maybe the offset is different.
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
The following user(s) said Thank You: kdoggin

Please Log in or Create an account to join the conversation.

stem and head issues 07 Aug 2021 18:46 #853386

  • 750 R1
  • 750 R1's Avatar
  • Offline
  • User
  • Posts: 1215
  • Thank you received: 394

Is it possible you have an upper tree, (head) from a kz650. The meter mount the same, Partzilla says the 650 only fits the 650. Maybe the offset is different.
 You are correct, the 650 clamp has less offset, the 650 triple clamps were a common modification on the 900's for racing, my friend has 650 clamps on his 900...
