Lower fork tube assembly 07 Jun 2021 04:52 #849721

  • Pattenrd
  • Pattenrd's Avatar Topic Author
  • Offline
  • User
  • Posts: 65
  • Thank you received: 2
Took forks apart to powder coat lowers noticed arrows on bottom of forks what are they for

Please Log in or Create an account to join the conversation.

Lower fork tube assembly 07 Jun 2021 06:11 #849731

  • krazee1
  • krazee1's Avatar
  • Offline
  • User
  • Posts: 365
  • Thank you received: 196
The arrows on the bottom of the fork clamps go forward.  The front nut is also tightened/torqued before the rear nut.

Mike
Former M.E. at Kawasaki Motors Manufacturing, Lincoln, NE
1966 W1 (the Z1 of 1966-50H.P. and 100mph!)
1974 Z1
1978 KZ1000 LTD
1976 KZ900B pile O parts
1980 KZ750E
1980 Honda XL250S (I know, wrong flavor!)
The following user(s) said Thank You: Pattenrd

Please Log in or Create an account to join the conversation.

Lower fork tube assembly 07 Jun 2021 07:59 #849741

  • 650ed
  • 650ed's Avatar
  • Offline
  • User
  • Posts: 15344
  • Thank you received: 2828

The arrows on the bottom of the fork clamps go forward.  The front nut is also tightened/torqued before the rear nut.

Mike

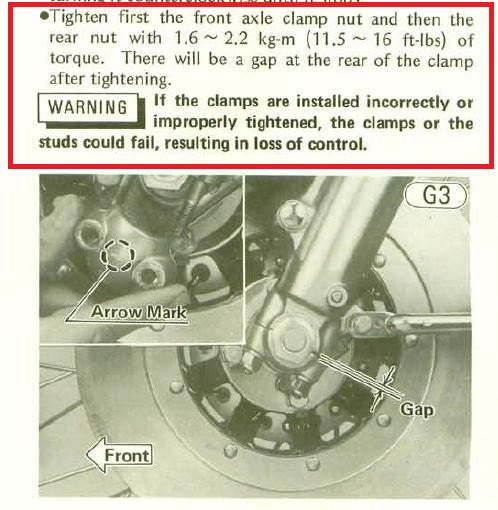

Exactly!  I see so many images of KZ bikes that have the clamps installed wrong even though the Kawasaki Service Manual and the Kawasaki Owners Manual are VERY clear about how to install the clamps.  I guess folks either don't bother reading the manuals or somehow don't believe the manuals are correct?  Ed




1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Attachments:

Please Log in or Create an account to join the conversation.

Lower fork tube assembly 07 Jun 2021 09:14 #849745

  • Pattenrd
  • Pattenrd's Avatar Topic Author
  • Offline
  • User
  • Posts: 65
  • Thank you received: 2
Just finished 1974 z1a  don't remember seeing them thanks for the info have to get a newer manual

Please Log in or Create an account to join the conversation.

Lower fork tube assembly 07 Jun 2021 09:33 #849746

  • Rockranch
  • Rockranch's Avatar
  • Offline
  • User
  • Posts: 434
  • Thank you received: 23
T'would be quite sad for a front wheel to fall off mid-wheelie!
(2)-1976 KZ900B-LTD's
1-all stock low mileage...
1 modified
1977 KZ1000 (awaiting resurrection!) :)
...and an old school Honda CB750 Chopper is next on my bucket list!

Oh...and a Pocket Rocket lol!!!

Please Log in or Create an account to join the conversation.

Lower fork tube assembly 07 Jun 2021 10:08 #849747

  • z1kzonly
  • z1kzonly's Avatar
  • Offline
  • User
  • Sustaining Member
  • Posts: 2861
  • Thank you received: 512

Just finished 1974 z1a  don't remember seeing them thanks for the info have to get a newer manual Z1 lowers did not have arrows. Started on76 KZ900’s.
just tighten front nut 1st. Rear will have a small gap

Livin in "CheektaVegas, NY
Went thru 25 of these in 40 yrs.
I SOLD OUT! THE KAW BARN IS EMPTY.
More room for The Old Girl, Harley 75 FLH Electra Glide,
Old faithful! Points ign. Bendix Orig. carb.
Starts everytime!

Please Log in or Create an account to join the conversation.

Lower fork tube assembly 07 Jun 2021 10:31 #849751

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4879
  • Thank you received: 1843

Just finished 1974 z1a  don't remember seeing them thanks for the info have to get a newer manual Z1 lowers did not have arrows. Started on76 KZ900’s.
just tighten front nut 1st. Rear will have a small gap


I smell a fact check!
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

Lower fork tube assembly 07 Jun 2021 13:09 #849772

  • krazee1
  • krazee1's Avatar
  • Offline
  • User
  • Posts: 365
  • Thank you received: 196
I checked my Z1A fork clamps,  they are the only Pre-KZ forks I have, no arrows! All the other forks I have are 1976 and newer.  I believe Marty is correct!  IDK if that counts as a "fact check" or not?

Mike
Former M.E. at Kawasaki Motors Manufacturing, Lincoln, NE
1966 W1 (the Z1 of 1966-50H.P. and 100mph!)
1974 Z1
1978 KZ1000 LTD
1976 KZ900B pile O parts
1980 KZ750E
1980 Honda XL250S (I know, wrong flavor!)

Please Log in or Create an account to join the conversation.

Lower fork tube assembly 07 Jun 2021 15:53 #849783

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4879
  • Thank you received: 1843
Good enough for me.

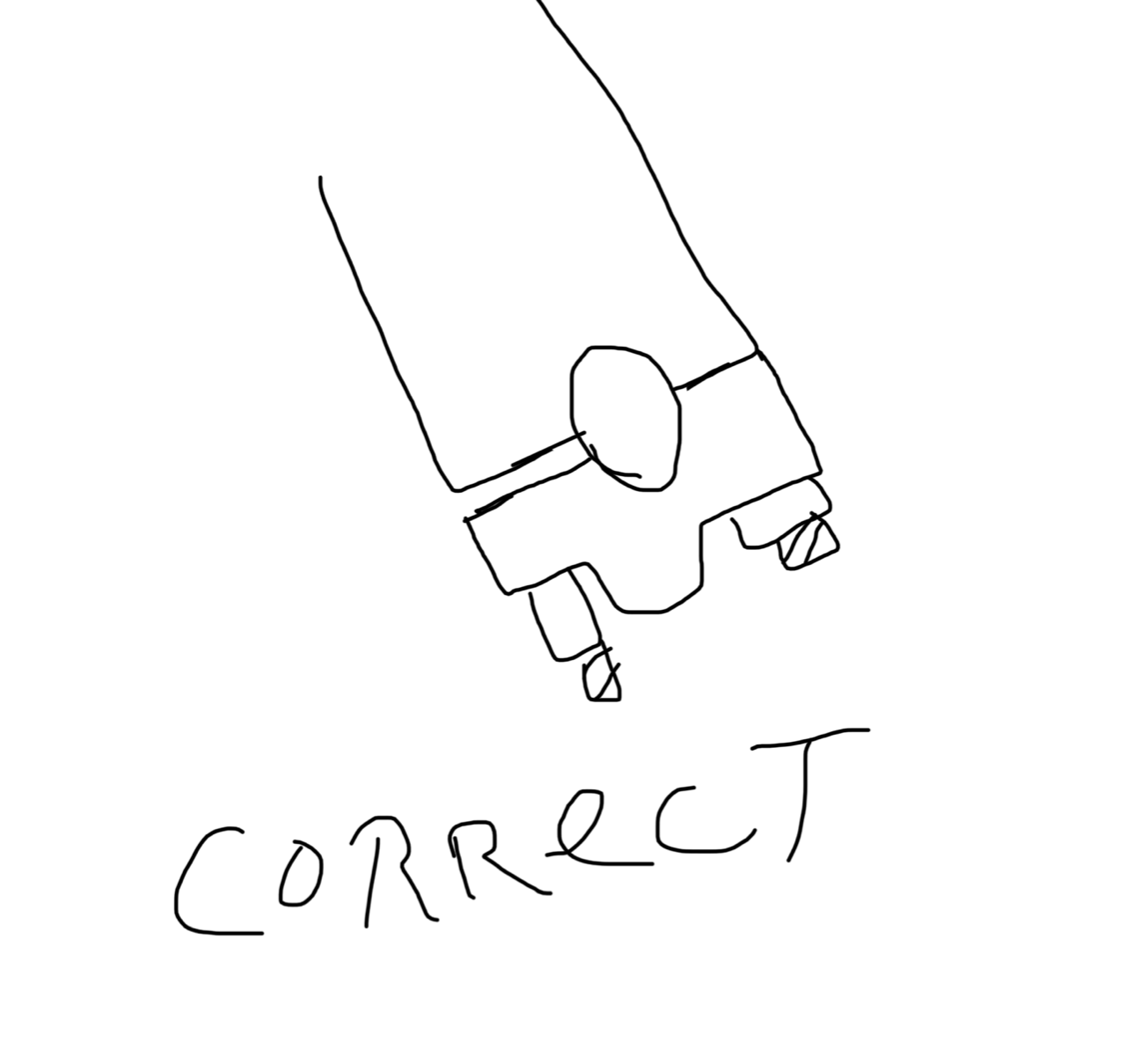

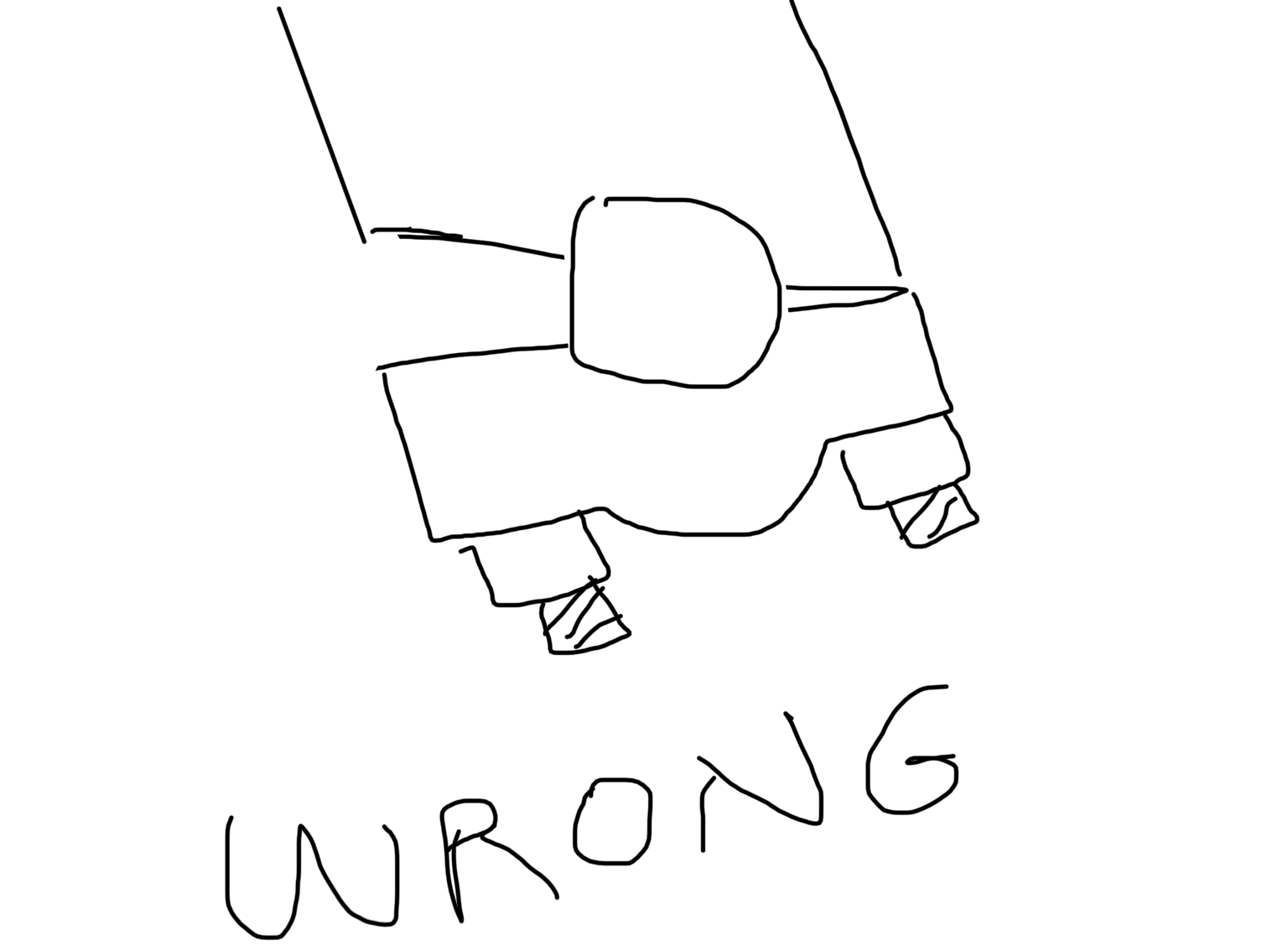

the manual states there is a front and a back, only determined once clamped down. If it’s on backwards the gap to the rear will be a wedge shape. If it’s installed correctly the rear gap will show both surfaces parallel. But there is nothing about an arrow.

Simon does drrrrawings!!!




1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Attachments:

Please Log in or Create an account to join the conversation.

Lower fork tube assembly 08 Jun 2021 04:57 #849809

  • slmjim+Z1BEBE
  • slmjim+Z1BEBE's Avatar
  • Offline
  • User
  • Enjoy Life! IT HAS AN EXPIRATION DATE!
  • Posts: 1105
  • Thank you received: 583
There are no arrows on Z1 clamps.
To build on Mikaw's illustration, the flats on the clamp that meet the fork legs are two slightly different heights, or planes.  The taller side goes in front.  If you place a clamp on a flat surface with the flats facing down the difference in heights can be easily seen.

Good Ridin'
slmjim & Z1BEBE
A biker looks at your engine and chrome.
A Rider looks at your odometer and tags.

1972 Z1 x2
1974 Z1-A x2
1975 Z1-B x2
1993 CB 750 Nighthawk x2
2009 ST1300A

www.kawasaki-z-classik.com
An enthusiast's forum focused exclusively
on all things Z1, Z2 and KZ900.

The following user(s) said Thank You: Mikaw, Rick H.

Please Log in or Create an account to join the conversation.

Lower fork tube assembly 08 Jun 2021 08:45 #849820

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4879
  • Thank you received: 1843
Slmjim, might be stretching it a little identifying them as Illustrations. But thank you. You guys have to remember Mike Meyers on SNL as simon in the bathtub doing drawings. Youall missed it.

1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

Lower fork tube assembly 08 Jun 2021 17:06 #849853

  • hardrockminer
  • hardrockminer's Avatar
  • Away
  • Sustaining Member
  • Posts: 2908
  • Thank you received: 1008
Not to upset the apple cart here, but a lot of Z1 owners turned their forks around.
