Unitrak revision - need advice
- kawural
- Topic Author
- Offline
- User
- never touch a running system
Less
More
26 Apr 2020 07:51 #824306
by kawural
Unitrak revision - need advice was created by kawural
Hi all,
I am planning to replace the rear suspension unit on my GPZ 750 Unitrak model by a Wilbers or alike.
At this opportunity I would also like to examine, grease and, if needed, renew the various needle bearings constituting the Unitrak system.
While for the most UT components and levers it is pretty obvious on how to dismantle them, I am though not sure how to dismount the 22mm wrench size bolt that connects the rockerarm to the frame.
I dont seem to have an idea on how to pull this darn 10-15 cm long bolt as the centre stand gets in this way.
There is only around 10mm room to maneuvre. by far not sufficient to pull off the bolt. See picture.
One may think to just fold up or remove the centre stand which would sure provide enough clearance but since the rear wheel has to be removed first before disjointing the suspension I need the centre stand folded down to keep the machine standing upright. Hmm, bit of a drama ...
In a professional workshop they may have other supports availiable to keep the machine in a firm position but in my humble garage I dont.
Now I ve been pondering hard on a plan on how to overcome the issue before I'd start the work.
Here is my point:
I was wondering if anyone has ever dismantled the Unitrak swing arm and suspension system including the rocker arm and may have a hint. May be there is a trick I dont see?
Ideas appreciated
Thx in advance !!!!
I am planning to replace the rear suspension unit on my GPZ 750 Unitrak model by a Wilbers or alike.
At this opportunity I would also like to examine, grease and, if needed, renew the various needle bearings constituting the Unitrak system.
While for the most UT components and levers it is pretty obvious on how to dismantle them, I am though not sure how to dismount the 22mm wrench size bolt that connects the rockerarm to the frame.
I dont seem to have an idea on how to pull this darn 10-15 cm long bolt as the centre stand gets in this way.
There is only around 10mm room to maneuvre. by far not sufficient to pull off the bolt. See picture.
One may think to just fold up or remove the centre stand which would sure provide enough clearance but since the rear wheel has to be removed first before disjointing the suspension I need the centre stand folded down to keep the machine standing upright. Hmm, bit of a drama ...
In a professional workshop they may have other supports availiable to keep the machine in a firm position but in my humble garage I dont.
Now I ve been pondering hard on a plan on how to overcome the issue before I'd start the work.
Here is my point:
I was wondering if anyone has ever dismantled the Unitrak swing arm and suspension system including the rocker arm and may have a hint. May be there is a trick I dont see?
Ideas appreciated
Thx in advance !!!!
Please Log in or Create an account to join the conversation.
- M_a_t_t
- Offline
- Sustaining Member
Less
More
- Posts: 254
- Thank you received: 41
26 Apr 2020 20:33 #824373
by M_a_t_t
83 KZ1100A (shaft)
17 Versys X 300 abs
81 kz650h1
81 kz750e2
90 Honda CBR600F (brother's)
Replied by M_a_t_t on topic Unitrak revision - need advice
I don't have any direct experience with this, but what I would do is block the front wheel and use my engine hoist to pick the back of the bike up. I know not everyone has one, but maybe you know someone who has one you can borrow for a little bit?
83 KZ1100A (shaft)
17 Versys X 300 abs
81 kz650h1
81 kz750e2
90 Honda CBR600F (brother's)
Please Log in or Create an account to join the conversation.
- kawural
- Topic Author
- Offline
- User
- never touch a running system
Less
More
- Posts: 27
- Thank you received: 2
27 Apr 2020 00:17 #824377
by kawural
Replied by kawural on topic Unitrak revision - need advice
Indeed a hoist would be ideal. May be a jack underneath the engine would do the trick somehow. Might be a bid shaky though. I ll have to keep thinking
Please Log in or Create an account to join the conversation.
- Kidkawie
- Offline
- User
- I bleed premix
Less
More
- Posts: 1913
- Thank you received: 243
27 Apr 2020 02:26 #824379
by Kidkawie
1975 Z1 900
1994 KX250 Supermoto
2004 KX125
Replied by Kidkawie on topic Unitrak revision - need advice
Run a pipe through your subframe and put jack stands on either side holding the bike up.
1975 Z1 900
1994 KX250 Supermoto
2004 KX125
Please Log in or Create an account to join the conversation.
- riturbo
- Offline
- Sustaining Member
Less
More
- Posts: 745
- Thank you received: 278
27 Apr 2020 14:23 - 27 Apr 2020 14:36 #824431
by riturbo
Gpz 750 turbo The one I ride
Gpz 750 turbo Not finished
Gpz 750 turbo Not started
Gpz 550 1981
Gpz 550 1983
Bunch of other junk
Replied by riturbo on topic Unitrak revision - need advice
When I do my turbo I use a ratchet strap and hang it from the rafters . If you pull the seat you can run it thru the frame . I use two . Not sure how your garage is Set up . If you dont have rafters just find a floor joist and install something to hook them too . Basically you just need something solid to hang it from .Its easier if you loosen all the bolts before you lift it . Pull the swingarm to while you are at it .Those always need servicing too .I usually pull the swingarm bolt and pull the whole thing out in one piece .Then its easy to work on as its out of the bike .
Gpz 750 turbo The one I ride
Gpz 750 turbo Not finished
Gpz 750 turbo Not started
Gpz 550 1981
Gpz 550 1983
Bunch of other junk
Last edit: 27 Apr 2020 14:36 by riturbo.
Please Log in or Create an account to join the conversation.
- kawural
- Topic Author
- Offline
- User
- never touch a running system
Less
More
- Posts: 27
- Thank you received: 2
27 Apr 2020 23:03 #824471
by kawural
Replied by kawural on topic Unitrak revision - need advice
Great advices! I ll consider.
Thx riturbo and Kidkawie
Thx riturbo and Kidkawie
Please Log in or Create an account to join the conversation.
- Mikaw
- Offline
- Sustaining Member
Less
More
- Posts: 4831
- Thank you received: 1847
27 Apr 2020 23:05 #824472
by Mikaw

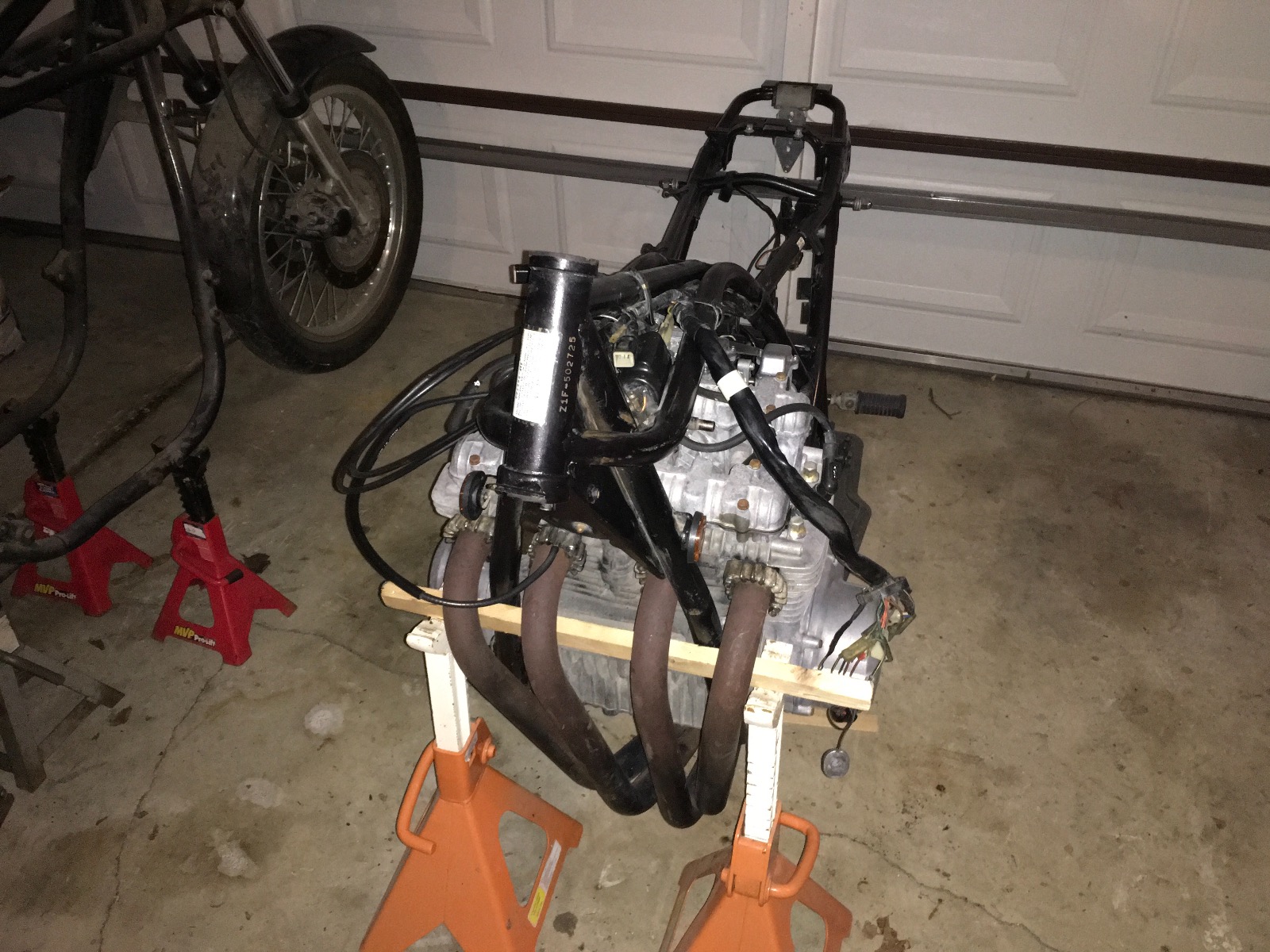

I’ve used the technique before. This is of my 1976 A4 during tear down. Which BTW is about to get put back together. Should be starting a rebuild post soon.
