1976 KZ900 fork disassembly

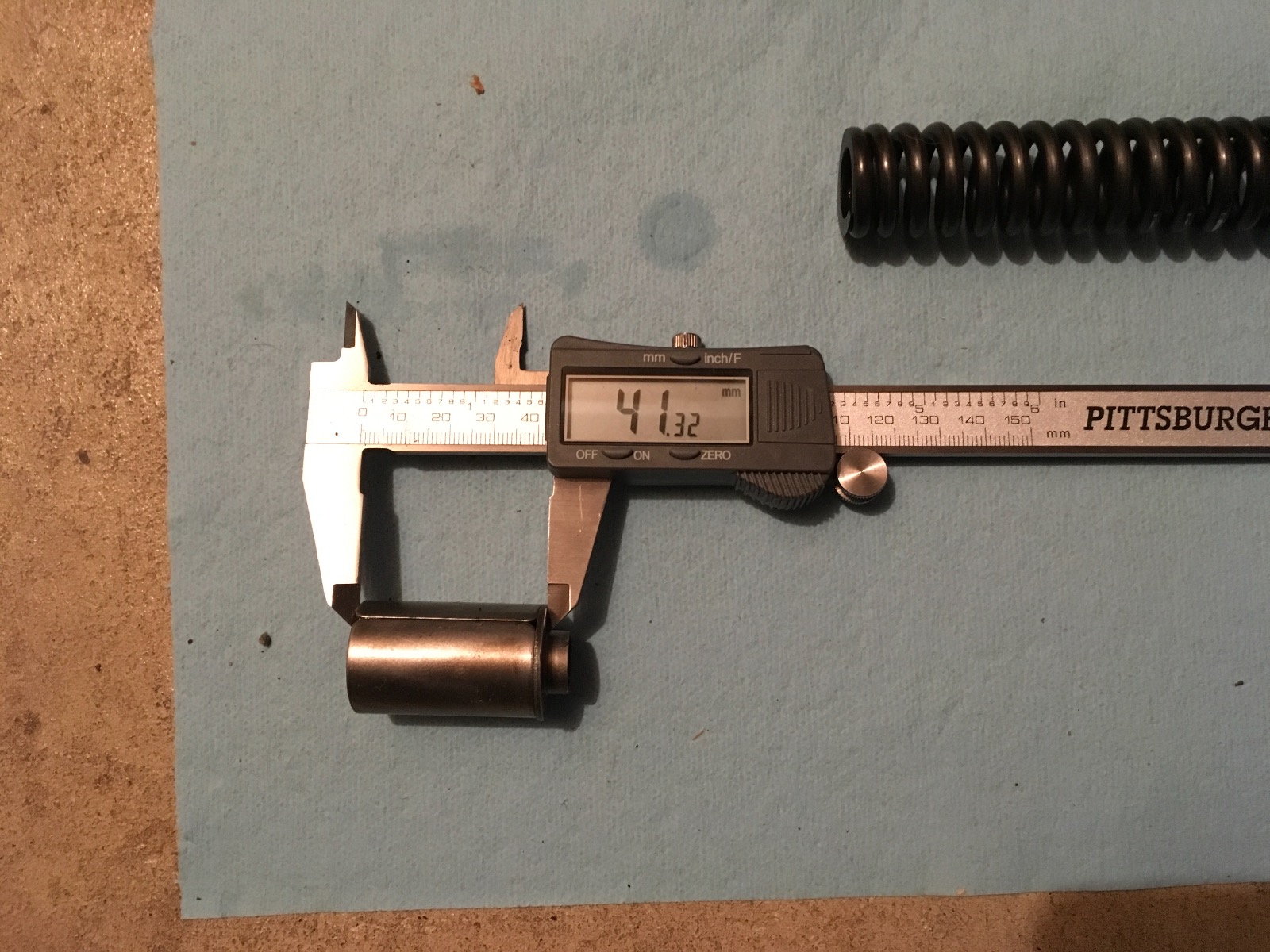

Spacer with spring seat is 41mm

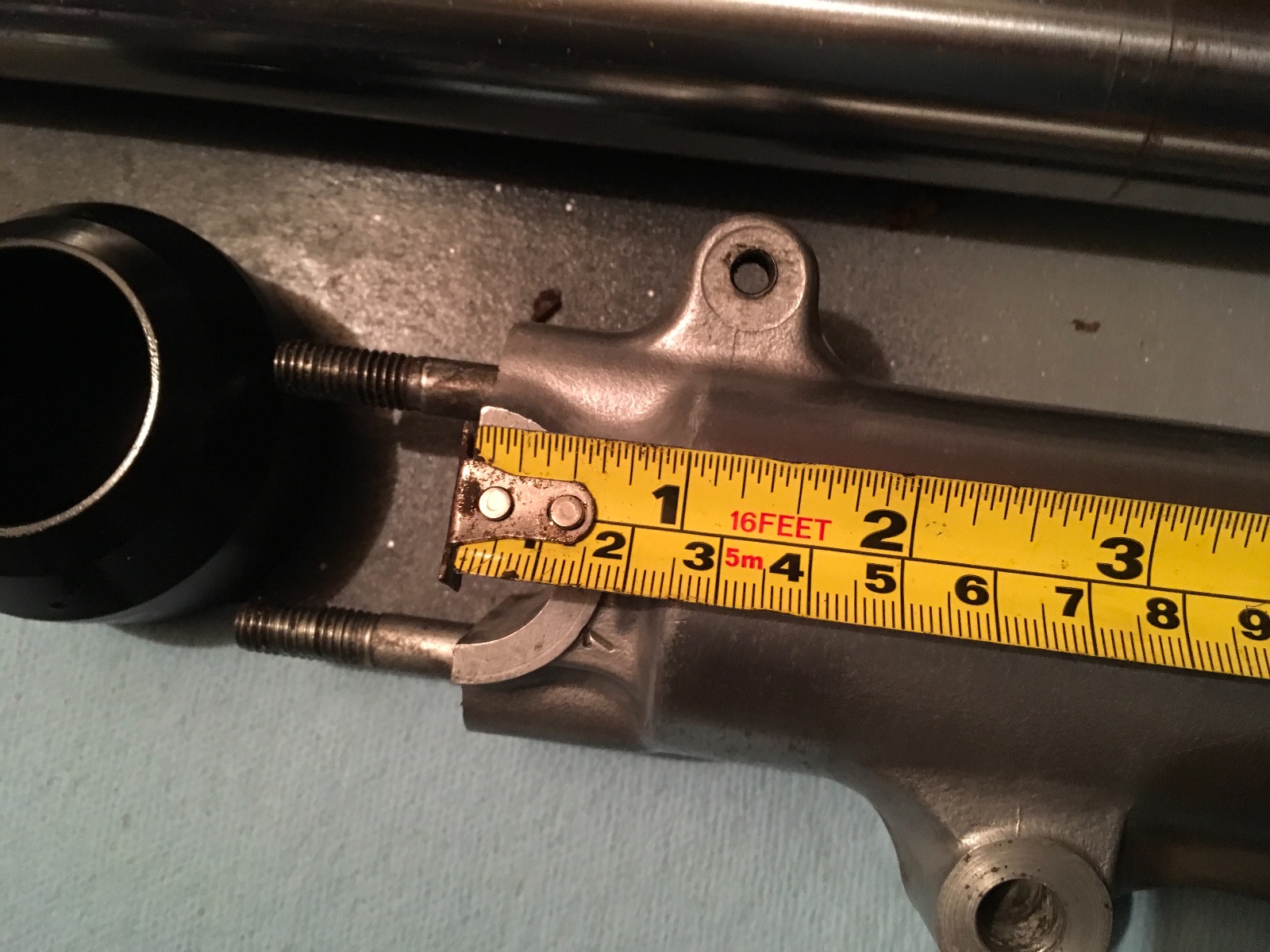

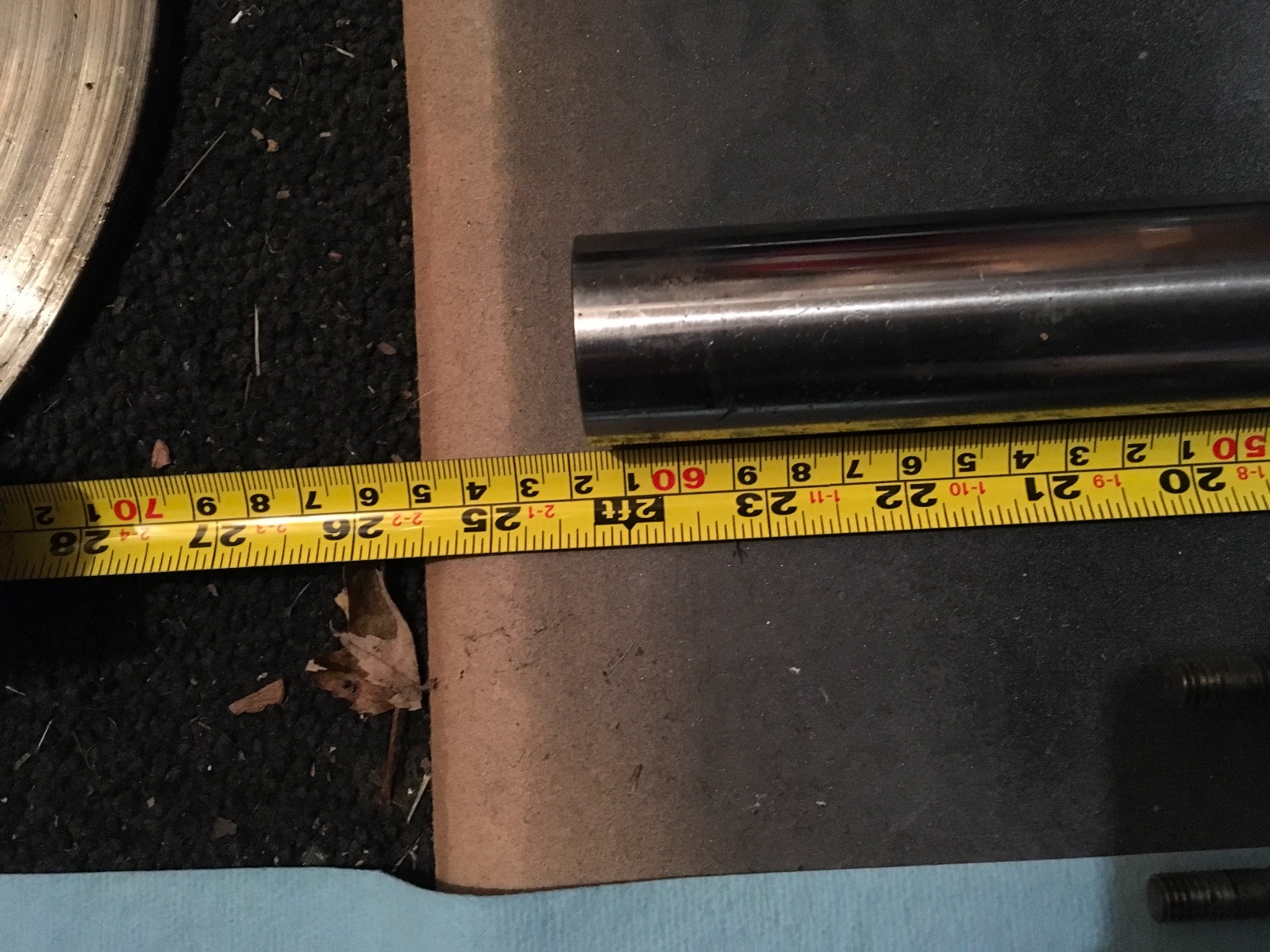

Upper tube length is 615mm overall

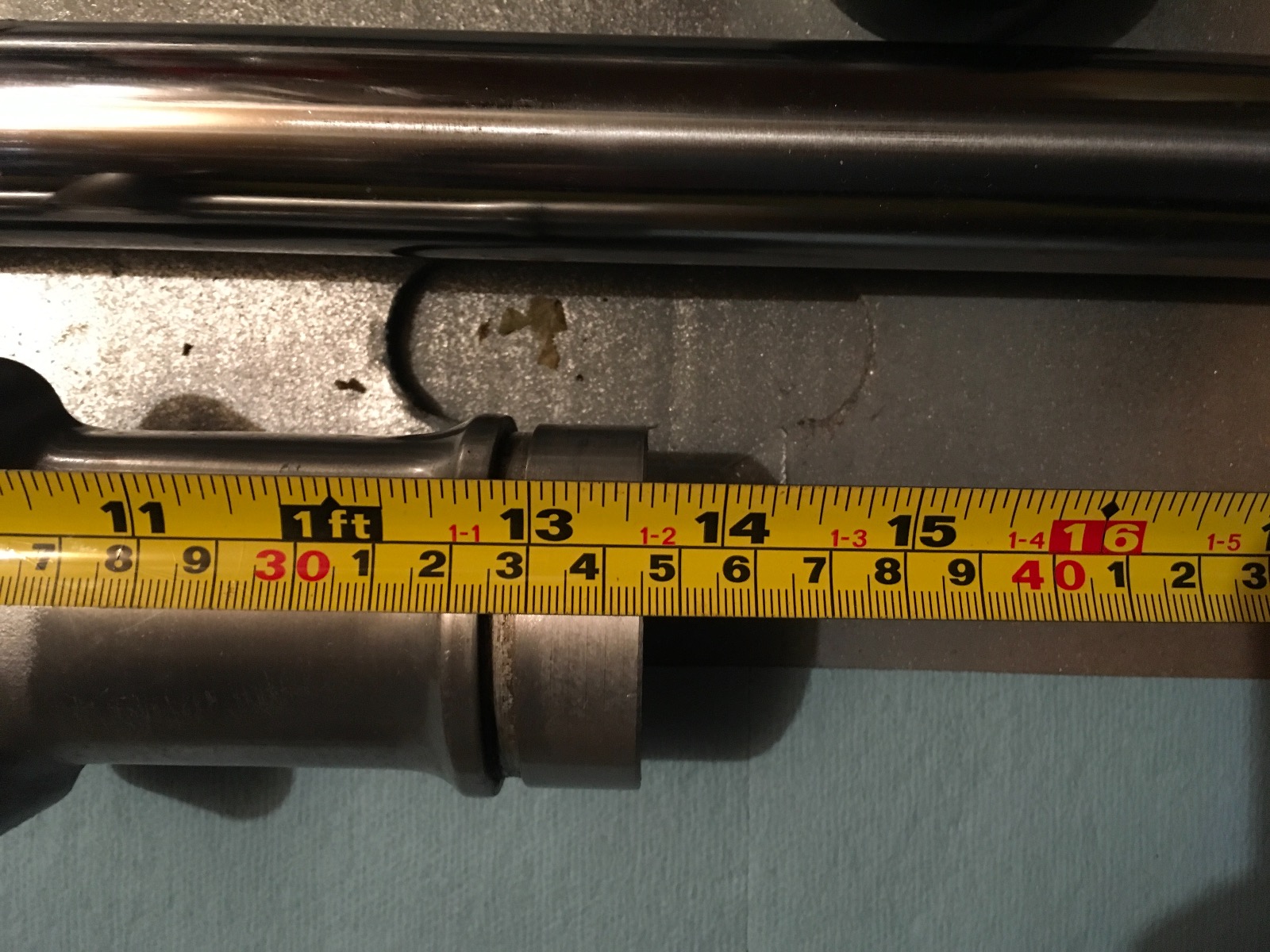

Lower from axle cap split is 345mm

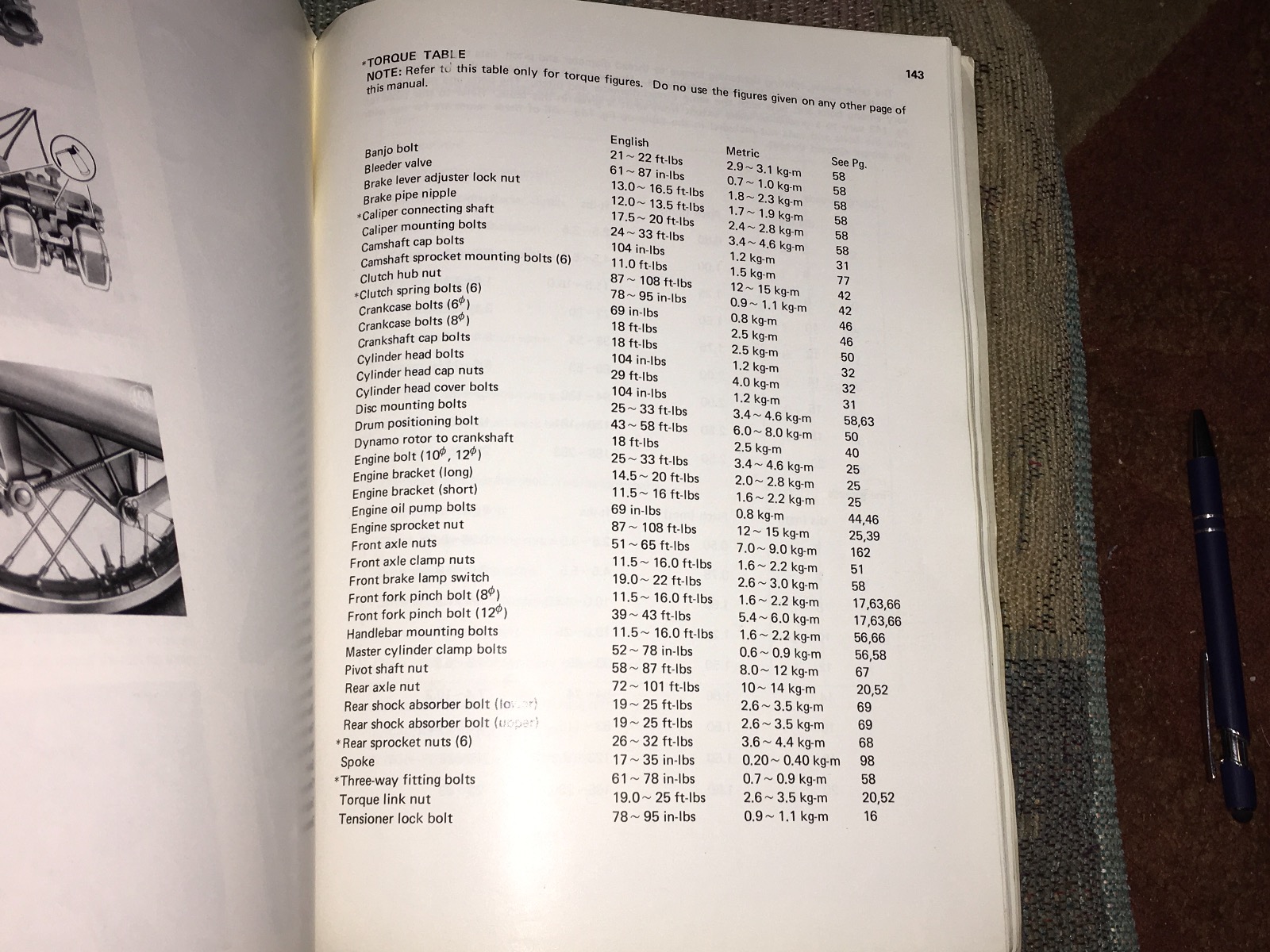

Found this torque spec page in the kz manual. The Allen isn’t called out

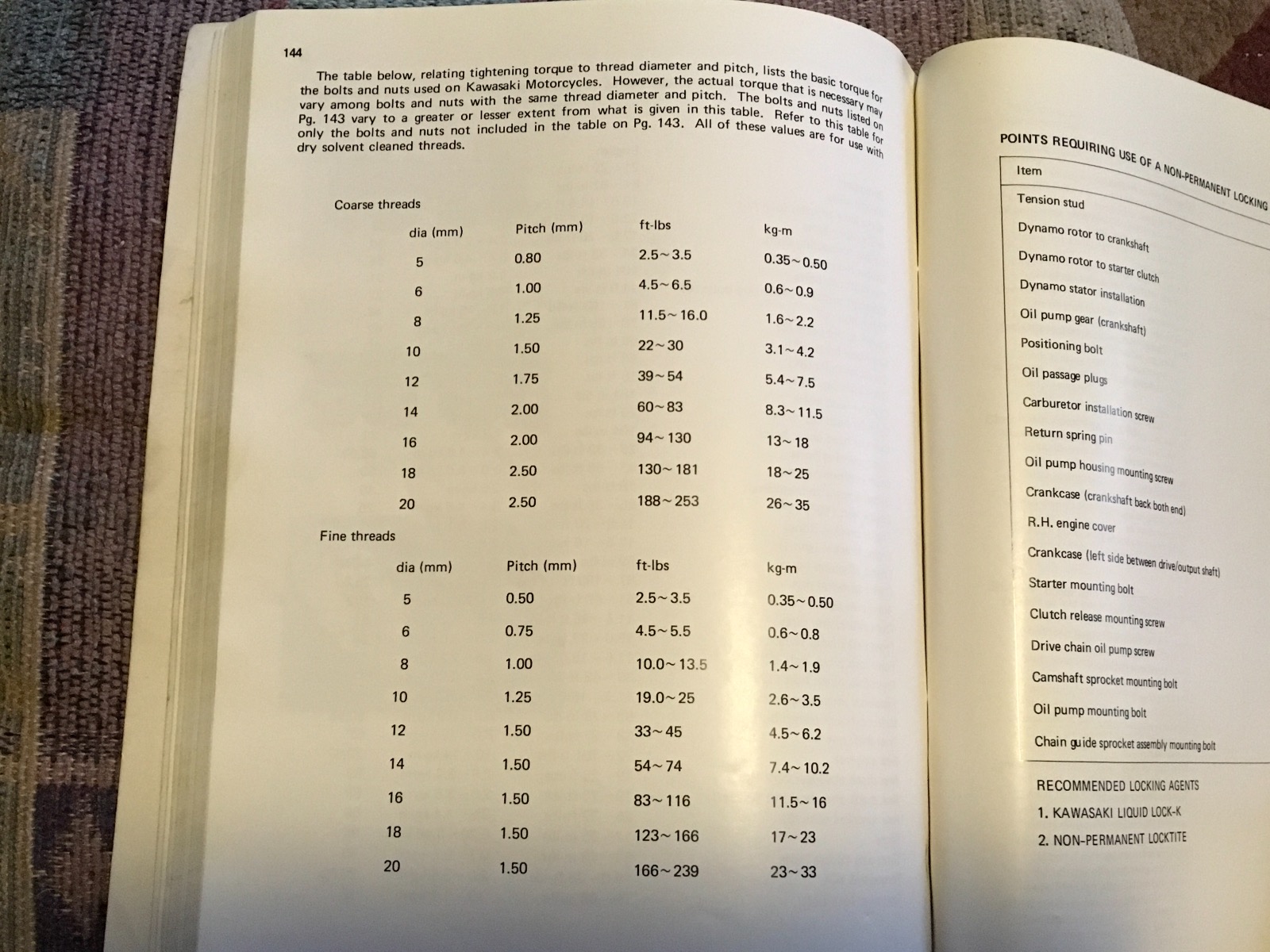

The next page in the manual has generic torque per bolt size and pitch. Top paragraph states to only use this if the specific bolt is not covered in the previous page.

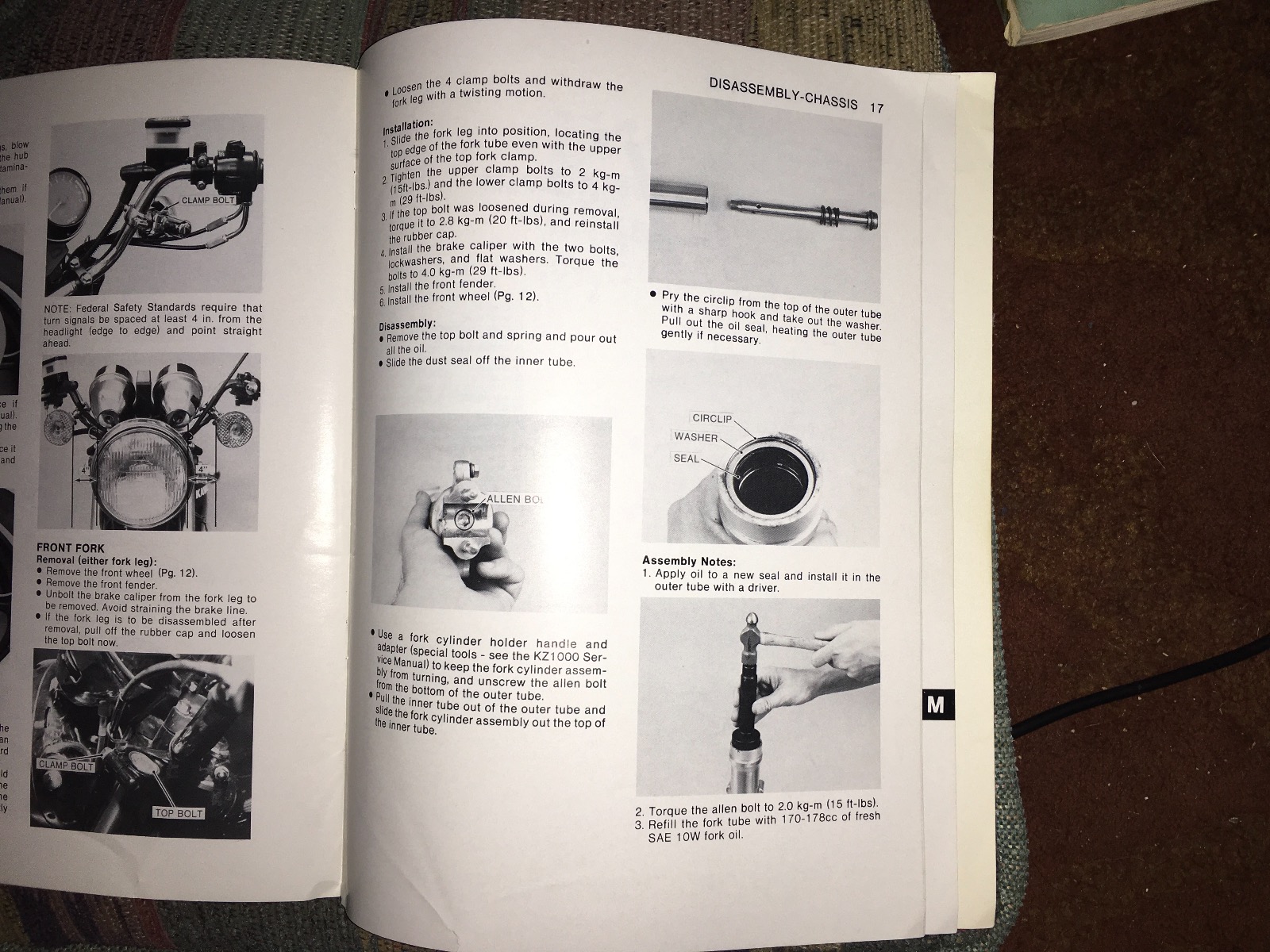

It’s a 10mm bolt but I don’t have thread pitch gauge. Then I used this spec for my ‘78 B2 rebuild I did this past fall...

I’m sure I’d be safe at the 14.5-19 ft lbs that Ed’s chart calls out. Basing that on the B2 spec and the general diameter/pitch chart

Sorry for the overwhelming photos. Posting them for others that might find themselves in the same dilemma.

...and don´t forget to use a new copper washer under the Allen head bolt or you have to do your work twice!!!

Scirocco wrote: ...and don´t forget to use a new copper washer under the Allen head bolt or you have to do your work twice!!!

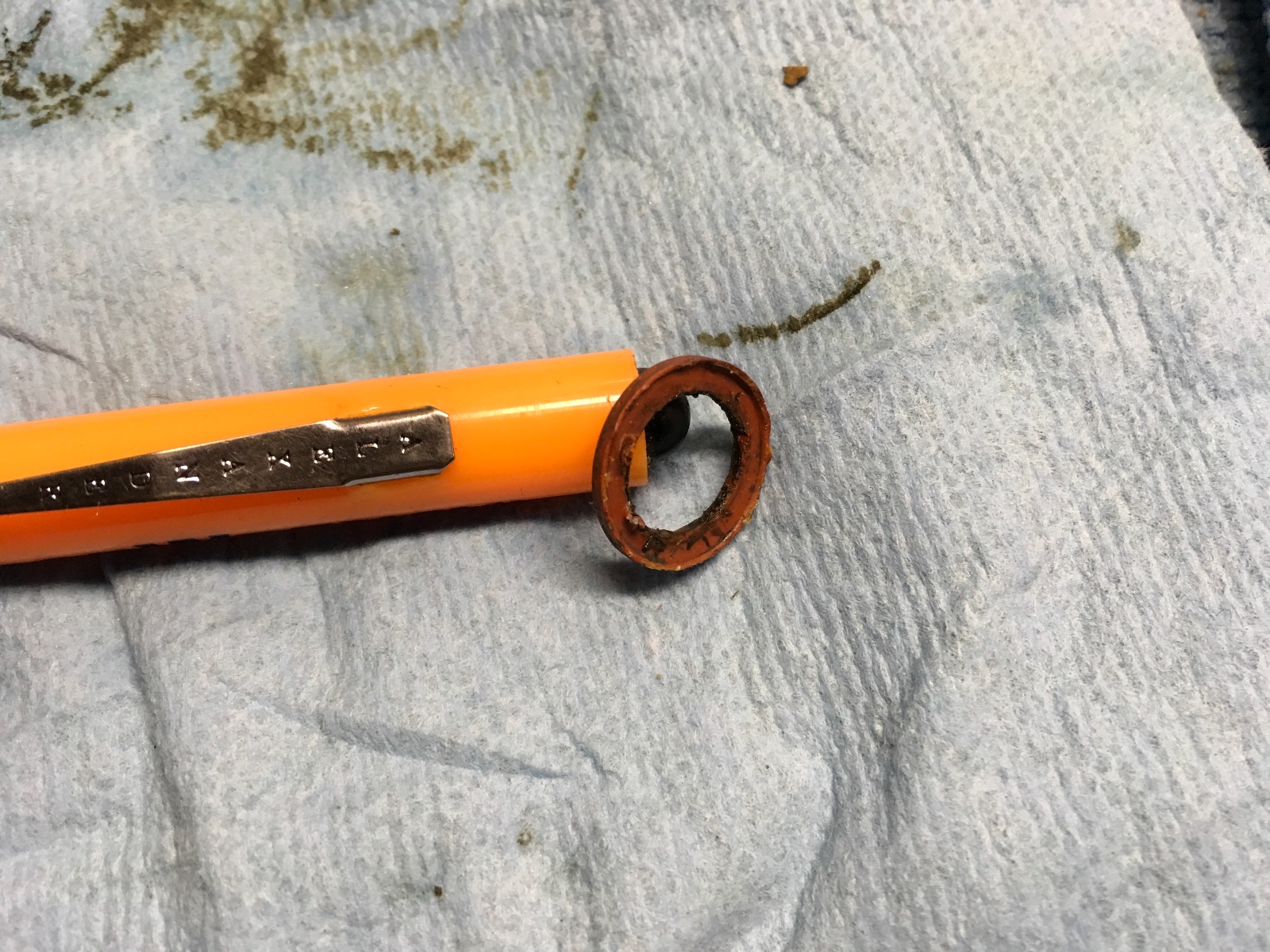

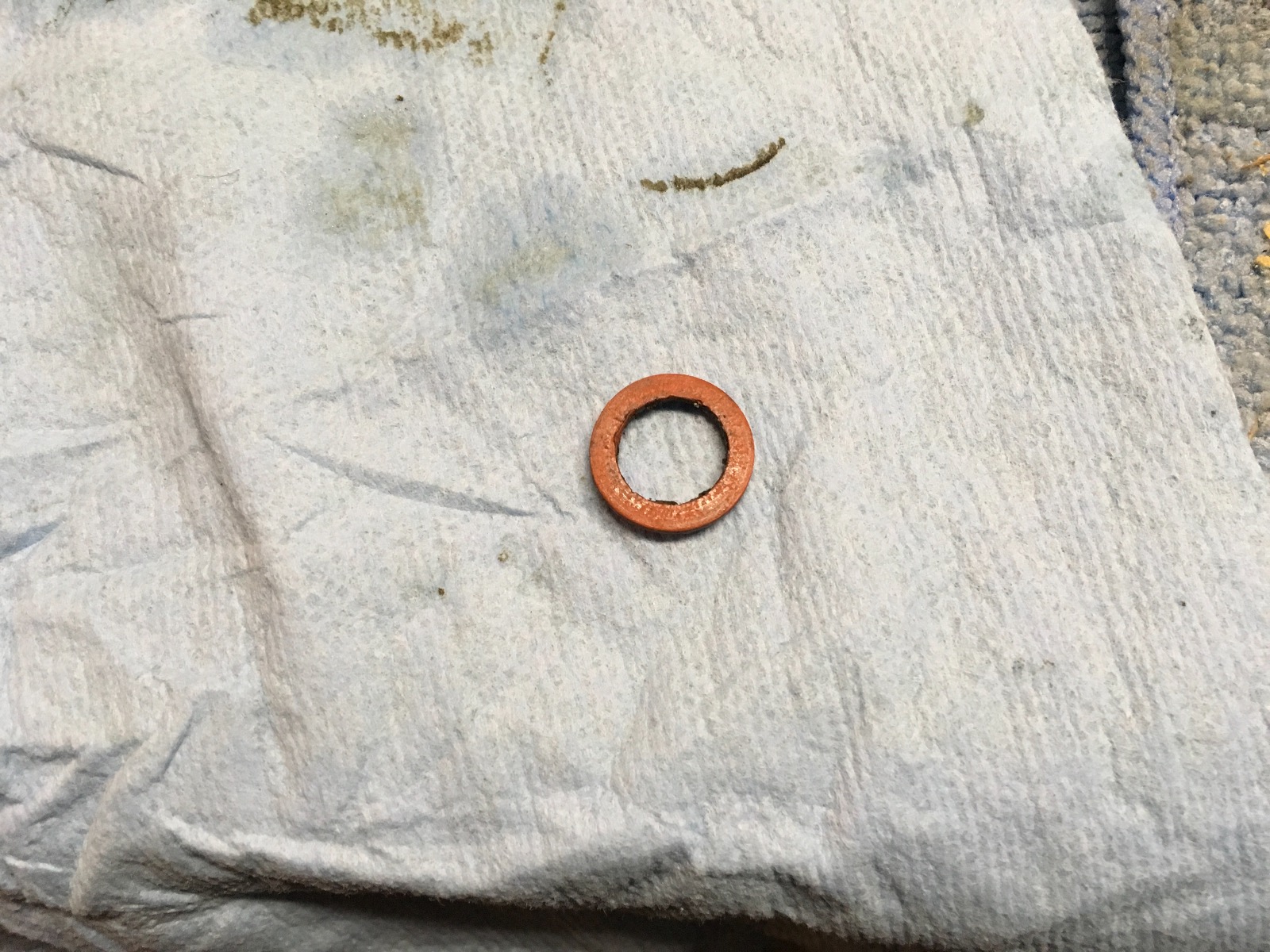

Thank you... I pulled out what looked like a fiber or plastic washer.... I used copper on my ‘78... no leak yet... is the fiber original?

On all fork i have done a copper was used and never ever found any fiber washer.

Scirocco, thank you!!!

Don’t want to leave out any contributors.... Thanks Everyone

My 1977 KZ650-C1 uses copper too. Ed

When I rebuilt my Z1 forks I found fiber. But if you order OEM as I did you will get copper.
