Kz750 what do you call this part?

  • Oldjeep
  • Oldjeep's Avatar Topic Author
  • Offline
  • User
  • Posts: 111
  • Thanks: 31

Kz750 what do you call this part?

07 Apr 2019 13:15 - 07 Apr 2019 13:15
#801716

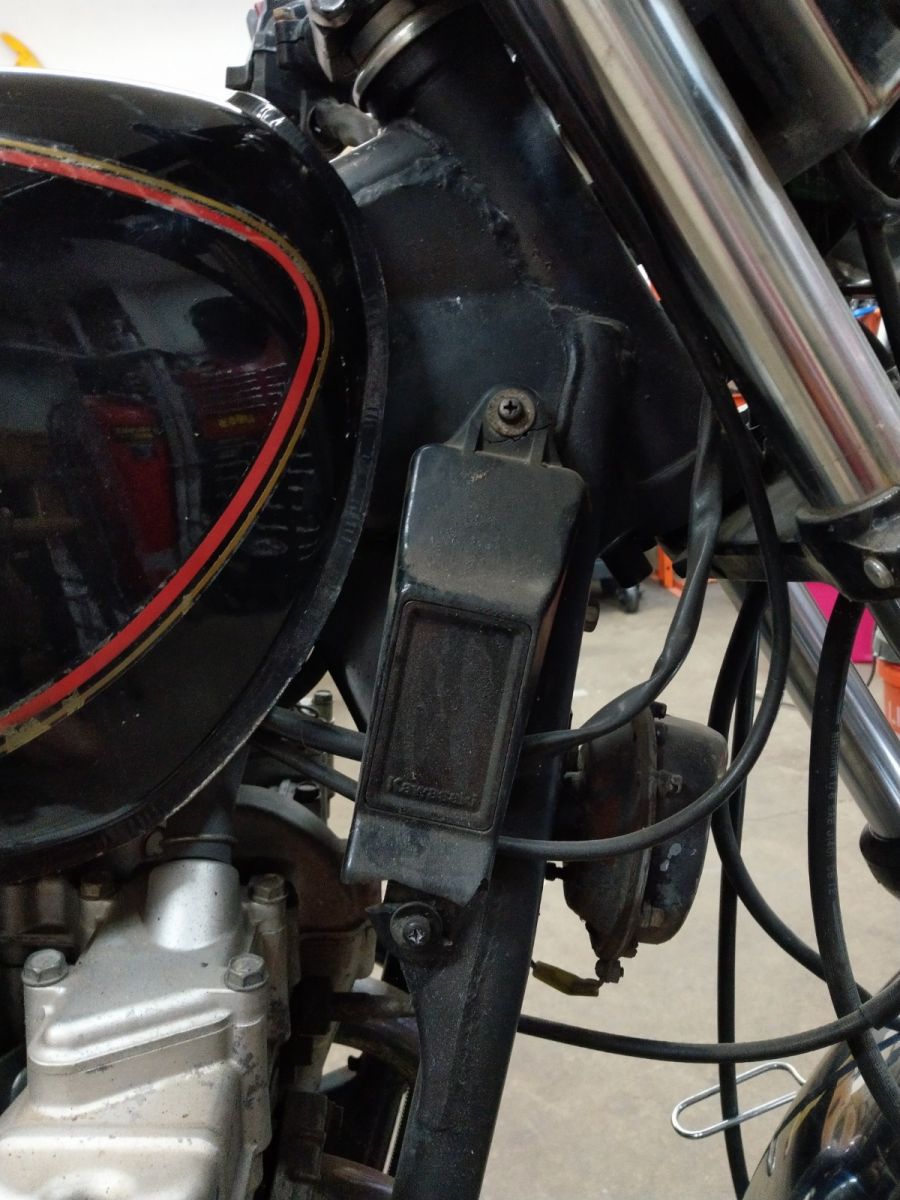

Looking for a pair of these for my 750ltd project. What are they called? Cable holders?
Chuck
81 KZ750 LTD
03 FZ1
www.oldjeep.com

Attachments:

Last edit: 07 Apr 2019 13:15 by Oldjeep.

Please Log in or Create an account to join the conversation.

  • Nessism
  • Nessism's Avatar
  • Away
  • Sustaining Member
  • Posts: 7532
  • Thanks: 2892

Re: Kz750 what do you call this part?

07 Apr 2019 13:23 - 07 Apr 2019 13:25
#801720
REFLECTOR ASSY, FRONT
28001-1015

Several on ebay...
Ed
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0

www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know

1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
Last edit: 07 Apr 2019 13:25 by Nessism.
The following user(s) said Thank You: Oldjeep

Please Log in or Create an account to join the conversation.

  • Oldjeep
  • Oldjeep's Avatar Topic Author
  • Offline
  • User
  • Posts: 111
  • Thanks: 31

Re: Kz750 what do you call this part?

07 Apr 2019 13:31
#801723
Thanks. Never would have guessed that name. I guess the kid I bought the bike from must have pried the reflectors off of the black pieces.
Chuck
81 KZ750 LTD
03 FZ1
www.oldjeep.com

Please Log in or Create an account to join the conversation.

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • Posts: 8019
  • Thanks: 1645

Re: Kz750 what do you call this part?

08 Apr 2019 06:25
#801768
The kid may not have done anything. Some models didn't have the reflectors there, just the black base plate, because Kawasaki relocated the reflectors to a fancier headlight bracket that mimics the fork ears found on the 70s KZs. Here's a pic of the HL bracket >> if your bike has this type, then the reflectors would be on the bracket instead of at the frame.

reflectors removed while refurbishing.
[img

...
1981 KZ650 Competition Sports and Road
The following user(s) said Thank You: Oldjeep

Please Log in or Create an account to join the conversation.

  • Oldjeep
  • Oldjeep's Avatar Topic Author
  • Offline
  • User
  • Posts: 111
  • Thanks: 31

Re: Kz750 what do you call this part?

08 Apr 2019 06:33
#801769
I don't think mine has that. After looking at the cost of those plastic reflector/non reflector pieces on ebay. I'm thinking that I'll just create some new pieces there out of some HDPE to keep the wires in place and not worry about the reflectors.
Chuck
81 KZ750 LTD
03 FZ1
www.oldjeep.com

Please Log in or Create an account to join the conversation.

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • Posts: 8019
  • Thanks: 1645

Re: Kz750 what do you call this part?

08 Apr 2019 06:45 - 08 Apr 2019 07:52
#801771
I don't think the wire harnesses or anything are supposed to be routed there. They're usually routed along the top frame tube to keep them away from the hot engine.

You might be able to find some used frame reflectors on EB, but they aren't absolutely necessary unless you keep your wires there.

....
1981 KZ650 Competition Sports and Road
Last edit: 08 Apr 2019 07:52 by martin_csr.

Please Log in or Create an account to join the conversation.

  • Oldjeep
  • Oldjeep's Avatar Topic Author
  • Offline
  • User
  • Posts: 111
  • Thanks: 31

Re: Kz750 what do you call this part?

08 Apr 2019 06:47 - 08 Apr 2019 06:48
#801772
I'll have to look. I know for sure that there are 2 cables behind the right side one. One is wiring and the other is the throttle cable I think. Don't recall if there is anything on the left side. Even with nothing there I think I'll install something to cover up the terrible looking factory booger welds where the tubes and gusset come together there ;)
Chuck
81 KZ750 LTD
03 FZ1
www.oldjeep.com
Last edit: 08 Apr 2019 06:48 by Oldjeep.

Please Log in or Create an account to join the conversation.

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • Posts: 8019
  • Thanks: 1645

Re: Kz750 what do you call this part?

08 Apr 2019 06:51 - 08 Apr 2019 06:53
#801774
No eBay APP ID and/or Cert ID defined in Kunena configurationWell, I'm pretty sure everything should be higher up & routed along the upper frame tube, and not behind the reflectors. otherwise, something might get melted.

Here's a pair of used frame reflectors. about $15T. The KZ750H Ltd & KZ650-CSR models share a number of parts, including those reflectors.
1981 KZ650 Competition Sports and Road
Last edit: 08 Apr 2019 06:53 by martin_csr.

Please Log in or Create an account to join the conversation.

  • Oldjeep
  • Oldjeep's Avatar Topic Author
  • Offline
  • User
  • Posts: 111
  • Thanks: 31

Re: Kz750 what do you call this part?

08 Apr 2019 06:53
#801775
OK. I'll have to see if I can find some pictures of another persons project so I can see where it is all supposed to be. No big deal to pull the tank off and relocate them if they are supposed to be under the tank.

Thanks
Chuck
81 KZ750 LTD
03 FZ1
www.oldjeep.com

Please Log in or Create an account to join the conversation.

  • Oldjeep
  • Oldjeep's Avatar Topic Author
  • Offline
  • User
  • Posts: 111
  • Thanks: 31

Re: Kz750 what do you call this part?

08 Apr 2019 06:57
#801776
Just a thought. I'm wondering if the previous owner relocated them there when he put the flat bars on. Seems like all the handlebar wiring and throttle cable would have been too long at that point.
Chuck
81 KZ750 LTD
03 FZ1
www.oldjeep.com

Please Log in or Create an account to join the conversation.

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • Posts: 8019
  • Thanks: 1645

Re: Kz750 what do you call this part?

08 Apr 2019 07:05 - 08 Apr 2019 07:15
#801777
Yes, that's probably what he did. You may need to get shorter throttle cables.
Also, he may have gotten rid of the stock headlight bracket w reflectors.

I found the part number for your "frame reflector" & it's actually a Housing Label, 13227-1001 (but you can use the reflector assy above).
Notice the word Kawasaki on yours >> that's a separate part used in place of a reflector >> 56030-1006, Label.

...
1981 KZ650 Competition Sports and Road
Last edit: 08 Apr 2019 07:15 by martin_csr.

Please Log in or Create an account to join the conversation.

  • Oldjeep
  • Oldjeep's Avatar Topic Author
  • Offline
  • User
  • Posts: 111
  • Thanks: 31

Re: Kz750 what do you call this part?

08 Apr 2019 07:40
#801782
He certainly could have gotten rid of the headlight reflectors. The bike had some cheap plastic bullet lights for all 4 turn signals and the tail lamp when I got it. The front ones are still on until I find a better replacement. The rears were replaced with a single unit tail/signal LED. I'm not worried at all about originality, the ultimate goal once the mechanical stuff is good is to convert it to a café(ish) styling
Chuck
81 KZ750 LTD
03 FZ1
www.oldjeep.com
