Fork issues
- hawkrider
- Topic Author
- Offline
- User
Less
More
18 Mar 2017 19:12 #757068
by hawkrider
Greg
1981 KZ750E (Work in progress)
1998 VTR1000F
2004 CBR1000RR
2014 Ninja 650 ABS
Fork issues was created by hawkrider
Hey guys, I'm fixing up an '81 KZ750E2. Working on the frame I discovered that I have one bent fork tube. So I hit up eBay and was able to find some NOS OEM inner fork tubes. The part number is 44013-1076. They came with the lower bushings, which is good because the old ones were worn to almost metal.
So here's the problem. When I pulled the old inner tubes out the bushings and fork seals stayed in the outer tubes. I'm not used to that but was like, oh well, that must be the way these old forks are.
I started assembling them and discovered that the inner tube bushing is slightly larger diameter than the old one, and big enough that they wont fit past the outer tube bushings. That outer tube bushing is pressed in and I can't seem to get it out without destroying it. I'm now reading that you have to replace the whole outer tube if that bushing wears out. I find this hard to believe, but damn I can't figure out how to get them out.
Here's my thoughts, but I'll need some mechanical engineering help here: The outer is aluminum and the bushing is steel. To aid in removal of this outer tube bushing, should I heat the assembly or cool it? The expansion coefficient is different for the two metals but I'm not sure which way to go.
Has anyone ever successfully removed and replaced these bushings?
So here's the problem. When I pulled the old inner tubes out the bushings and fork seals stayed in the outer tubes. I'm not used to that but was like, oh well, that must be the way these old forks are.
I started assembling them and discovered that the inner tube bushing is slightly larger diameter than the old one, and big enough that they wont fit past the outer tube bushings. That outer tube bushing is pressed in and I can't seem to get it out without destroying it. I'm now reading that you have to replace the whole outer tube if that bushing wears out. I find this hard to believe, but damn I can't figure out how to get them out.
Here's my thoughts, but I'll need some mechanical engineering help here: The outer is aluminum and the bushing is steel. To aid in removal of this outer tube bushing, should I heat the assembly or cool it? The expansion coefficient is different for the two metals but I'm not sure which way to go.
Has anyone ever successfully removed and replaced these bushings?
Greg
1981 KZ750E (Work in progress)
1998 VTR1000F
2004 CBR1000RR
2014 Ninja 650 ABS
Please Log in or Create an account to join the conversation.
- hawkrider
- Topic Author
- Offline
- User
Less
More
- Posts: 11
- Thank you received: 2
18 Mar 2017 19:18 #757069
by hawkrider
Greg
1981 KZ750E (Work in progress)
1998 VTR1000F
2004 CBR1000RR
2014 Ninja 650 ABS
Replied by hawkrider on topic Fork issues

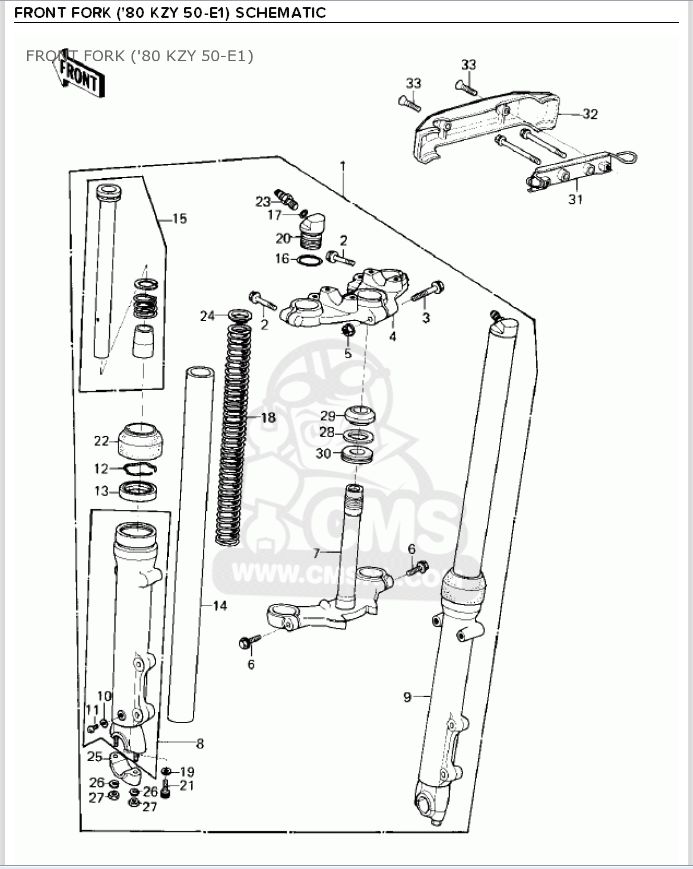

One more thing, does anyone have a parts fiche diagram and listing for the '81 KZ750E, specifically for the forks?
Greg
1981 KZ750E (Work in progress)
1998 VTR1000F
2004 CBR1000RR
2014 Ninja 650 ABS
Please Log in or Create an account to join the conversation.
- Scirocco
- Offline
- Premium Member
- Never change a running system
Less
More
- Posts: 4210
- Thank you received: 2080
19 Mar 2017 03:41 #757093
by Scirocco
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Replied by Scirocco on topic Fork issues
Hello hawkrider
Take a look here
www.cmsnl.com/kawasaki-kz750e2-1981-usa-...odel15511/partslist/
www.cmsnl.com/kawasaki-kz750e2-1981-usa-...st/9509.html#results
Michael
Take a look here
www.cmsnl.com/kawasaki-kz750e2-1981-usa-...odel15511/partslist/
www.cmsnl.com/kawasaki-kz750e2-1981-usa-...st/9509.html#results
Michael
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
The following user(s) said Thank You: GPz550D1
Please Log in or Create an account to join the conversation.
- hawkrider
- Topic Author
- Offline
- User
Less
More
- Posts: 11
- Thank you received: 2
19 Mar 2017 09:07 #757127
by hawkrider
Greg
1981 KZ750E (Work in progress)
1998 VTR1000F
2004 CBR1000RR
2014 Ninja 650 ABS
Replied by hawkrider on topic Fork issues
Thanks for the links, Michael. I've been to both websites and others but they don't have a diagram for the '81, only a parts list. The part numbers differ between '80 and '81.
There are TWO part numbers for the inner fork pipe, 39093-1067 and 44013-1076. What's the difference? Apparently the diameter of the lower bushing!
There are TWO part numbers for the inner fork pipe, 39093-1067 and 44013-1076. What's the difference? Apparently the diameter of the lower bushing!
Greg
1981 KZ750E (Work in progress)
1998 VTR1000F
2004 CBR1000RR
2014 Ninja 650 ABS
Please Log in or Create an account to join the conversation.
- Mcdroid
- Offline
- User
- Gone Kwackers
Less
More
- Posts: 6641
- Thank you received: 323
19 Mar 2017 10:46 #757135
by Mcdroid
Michael
Victoria, Texas
1982 GPz750
1977 KZ1000A
1978 KZ1000A
1982 GPz1100
1975 Z2A
Replied by Mcdroid on topic Fork issues
I have looked up your numbers for the inner fork tubes (39039-1067 and 44013-1076) in the Kawasaki Model Application Guide for US parts and the 39039-1067 is not listed...which means that the fork tubes with that number were for non-US models (although the Guide does include some Canadian models). You do not say where you are located in your avatar.
Not sure why the diagrams for the Kawasaki KZ750-E2 are incomplete.
Not sure why the diagrams for the Kawasaki KZ750-E2 are incomplete.
Michael
Victoria, Texas
1982 GPz750
1977 KZ1000A
1978 KZ1000A
1982 GPz1100
1975 Z2A
The following user(s) said Thank You: GPz550D1
Please Log in or Create an account to join the conversation.
- hawkrider
- Topic Author
- Offline
- User
Less
More
- Posts: 11
- Thank you received: 2
19 Mar 2017 12:27 #757145
by hawkrider
Greg
1981 KZ750E (Work in progress)
1998 VTR1000F
2004 CBR1000RR
2014 Ninja 650 ABS
Replied by hawkrider on topic Fork issues
I have a US KZ750E, located in MO.
Greg
1981 KZ750E (Work in progress)
1998 VTR1000F
2004 CBR1000RR
2014 Ninja 650 ABS
Please Log in or Create an account to join the conversation.
- hawkrider
- Topic Author
- Offline
- User
Less
More
- Posts: 11
- Thank you received: 2
22 Mar 2017 16:19 #757414
by hawkrider
Greg
1981 KZ750E (Work in progress)
1998 VTR1000F
2004 CBR1000RR
2014 Ninja 650 ABS
Replied by hawkrider on topic Fork issues
I can have the fork tube straightened but I need to know what the part number is for the lower (inner) bushing. Does anyone know the correct part number for this?
Or does anyone here have the correct bushings laying in the garage? Correct dimensions are 1.400" OD, 1.335" ID, 0.777" width.
Or does anyone here have the correct bushings laying in the garage? Correct dimensions are 1.400" OD, 1.335" ID, 0.777" width.
Greg
1981 KZ750E (Work in progress)
1998 VTR1000F
2004 CBR1000RR
2014 Ninja 650 ABS
Please Log in or Create an account to join the conversation.
- Scirocco
- Offline
- Premium Member
- Never change a running system
Less
More
- Posts: 4210
- Thank you received: 2080
23 Mar 2017 00:39 - 23 Mar 2017 00:40 #757447
by Scirocco
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Replied by Scirocco on topic Fork issues

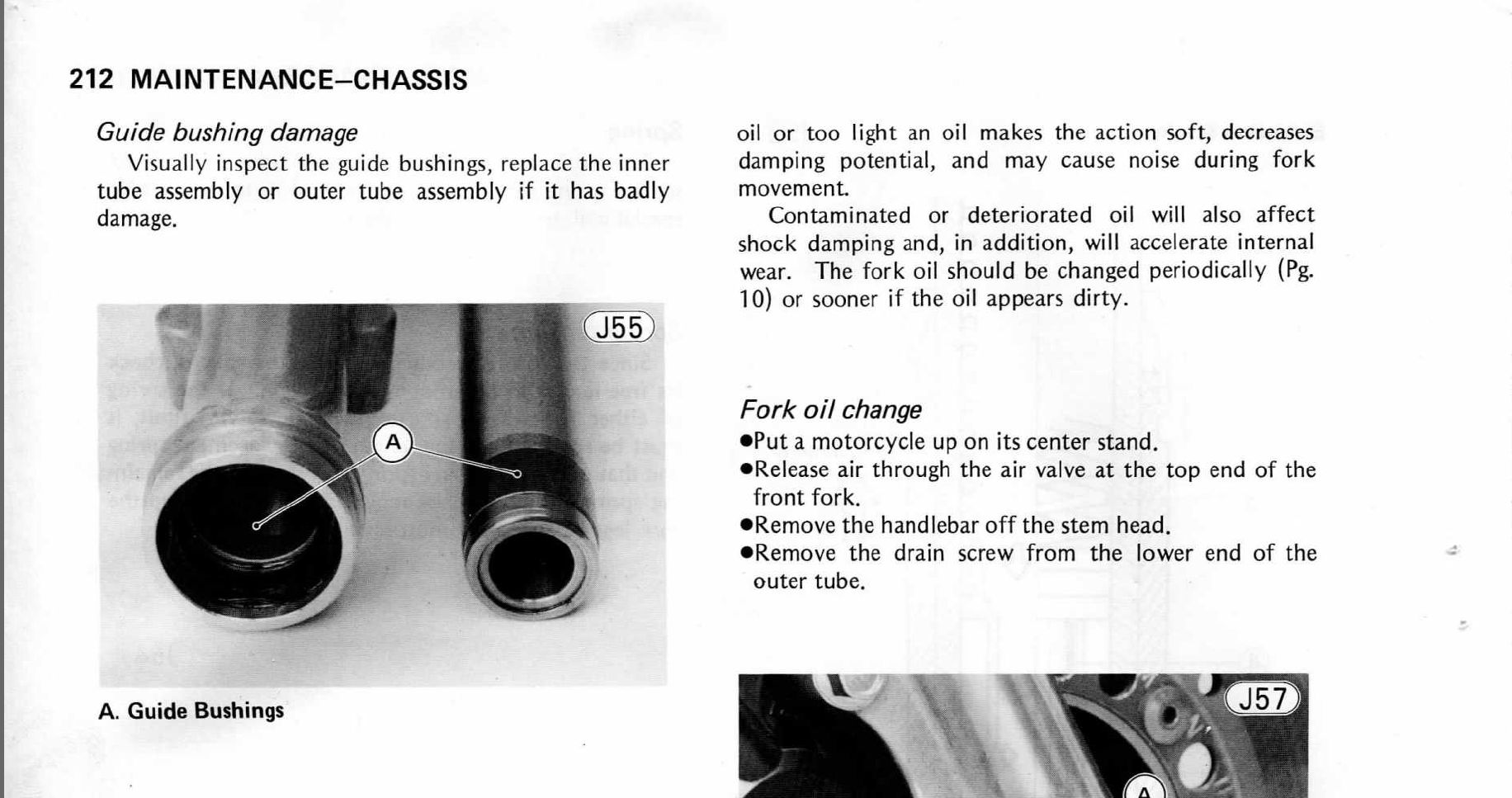

I am maybe wrong with my translation but the service manual says, if the inner and outer bushing are damaged you have to
replace the inner and outer tube assembly (as a unit). The bushings are not sold separately???
replace the inner and outer tube assembly (as a unit). The bushings are not sold separately???
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Last edit: 23 Mar 2017 00:40 by Scirocco.
The following user(s) said Thank You: GPz550D1
Please Log in or Create an account to join the conversation.
- hawkrider
- Topic Author
- Offline
- User
Less
More
- Posts: 11
- Thank you received: 2
23 Mar 2017 18:11 - 23 Mar 2017 18:11 #757498
by hawkrider
Greg
1981 KZ750E (Work in progress)
1998 VTR1000F
2004 CBR1000RR
2014 Ninja 650 ABS
Replied by hawkrider on topic Fork issues
I agree it states this in the manual, but then why would there be parts listed for one of the bushings? And that part number is only listed on the '81, not the '80. The '81 listings don't have a parts diagram to go with the parts list so I don't know if it's the upper or lower bushing! This is so frustrating!!!
Greg
1981 KZ750E (Work in progress)
1998 VTR1000F
2004 CBR1000RR
2014 Ninja 650 ABS
Last edit: 23 Mar 2017 18:11 by hawkrider.
The following user(s) said Thank You: GPz550D1
Please Log in or Create an account to join the conversation.
- slmjim+Z1BEBE
- Offline
- User
- Enjoy Life! IT HAS AN EXPIRATION DATE!
Less
More
- Posts: 1233
- Thank you received: 727
24 Mar 2017 08:17 #757550
by slmjim+Z1BEBE
A biker looks at your engine and chrome.
A Rider looks at your odometer and tags.
1973 ('72 builds) Z1 x2
1974 Z1-A x2
1975 Z1-B x2
1993 CB 750 Nighthawk x2
2009 ST1300A
www.kawasaki-z-classik.com
An enthusiast's forum focused exclusively
on all things Z1, Z2 and KZ900.
Replied by slmjim+Z1BEBE on topic Fork issues
Hi hawkrider,
Try contacting Forking by Frank. They may be able to help with parts / advice.
franksforks.com/
Good Ridin'
slmjim & Z1BEBE
Try contacting Forking by Frank. They may be able to help with parts / advice.
franksforks.com/
Good Ridin'
slmjim & Z1BEBE
A biker looks at your engine and chrome.
A Rider looks at your odometer and tags.
1973 ('72 builds) Z1 x2
1974 Z1-A x2
1975 Z1-B x2
1993 CB 750 Nighthawk x2
2009 ST1300A
www.kawasaki-z-classik.com
An enthusiast's forum focused exclusively
on all things Z1, Z2 and KZ900.
The following user(s) said Thank You: GPz550D1
Please Log in or Create an account to join the conversation.
- 80B4
- Offline
- User
Less
More
- Posts: 447
- Thank you received: 105
25 Mar 2017 22:47 #757711
by 80B4
1980B4 1000
1978 Z1R
1978 B3 750
Replied by 80B4 on topic Fork issues
Call Race Tech, they have the best quality fork bushings I've found. They will help you find the correct parts even if your bike is not listed on their sight.
1980B4 1000
1978 Z1R
1978 B3 750
The following user(s) said Thank You: GPz550D1
Please Log in or Create an account to join the conversation.
- hawkrider
- Topic Author
- Offline
- User
Less
More
- Posts: 11
- Thank you received: 2
12 Apr 2017 18:33 #759060
by hawkrider
Greg
1981 KZ750E (Work in progress)
1998 VTR1000F
2004 CBR1000RR
2014 Ninja 650 ABS
Replied by hawkrider on topic Fork issues
We ended up machining down the bearing surface of the two NOS fork tubes and carefully cutting down the diameter of its bushings to fit. They work great and the suspension feels pretty good (for what it is) using Repsol 10wt fork oil.
