first post... rear wheel stuck
- JR
-
- Offline
- Sustaining Member

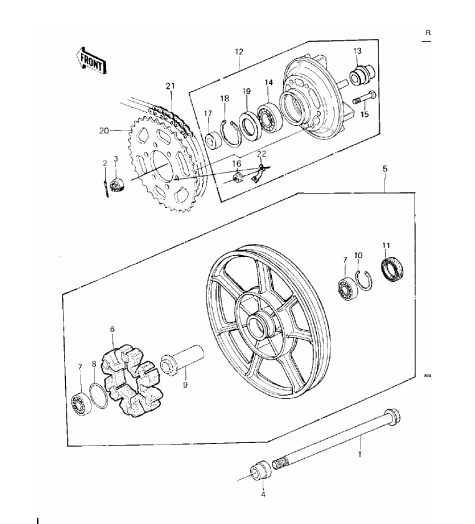

I have complete parts diagrams for the kz750ltd - h1 and here is the one for the rear hub.
In your second photo it looks like there is something between the collar #17 and the sprocket carrier. As far as I can remember the collar fits into the dust seal #19. Is it possible you have part #13 wrong way around or wrong side of the sprocket carrier (not sure of correct name for this part). ?
I think you were here some time ago under different name. Colorado ?
