Re: Front Wheel Assembly
18 Dec 2011 15:38
send a pm to patton
posting from deep under a non-descript barn in an undisclosed location southwest of Omaha.
Please Log in or Create an account to join the conversation.
- Patton
-
- Offline
- KZr Legend
- Posts: 18640
- Thanks: 2100
Re: Front Wheel Assembly
18 Dec 2011 17:05 - 18 Dec 2011 17:10badrhino wrote: Can someone please post a shot of the diagram for the front wheel assembly for an 1980 KZ1000 LTD or similar models. :whistle: Thanks!
Here's the 1980 KZ1000 LTD diagram from kawasaki.com, and the parts listing.
[Add checked items to Pick-List] REF NUMBER PART NUMBER DESCRIPTION QUANTITY US CA CN REMARKS
[Add to Picklist: 41069-033]
1 41069-033 COLLAR,FRONT AXLE 2
[Add to Picklist: 41078-008]
2 41078-008 GEAR BOX ASSY 1 KZ1000-B3, KZ1000-B4
[Add to Picklist: 41082-001]
3 41082-001 PIN,SPRING 1
[View Supersession]
[Add to Picklist: 41063-001]
4 41063-001 WASHER THRST SPD PINI 2
[Add to Picklist: 41060-017]
5 41060-017 PINION,SPEEDOMETER 1
[Add to Picklist: 92028-1066]
6 92028-1066 BUSHING,SPEEDOMET CBL 1 KZ1000-B4, KZ1000-B3
[Add to Picklist: 41059-026]
7 41059-026 GEAR,SPEEDOMETER 1
[Add to Picklist: 92049-1057]
8 92049-1057 OIL SEAL,BJN30427-C3 1
[Add to Picklist: 41068-049]
9 41068-049 AXLE,FRONT 1
[Add to Picklist: 92001-158]
10 92001-158 BOLT 8
[Add to Picklist: 92088-023]
11 92088-023 WASHER,LOCK 4
[Add to Picklist: 41042-014]
12 41042-014 DUST COVER 1
[Add to Picklist: 41064-013]
13 41064-013 RECEIVER,GEAR 1
[Add to Picklist: 601B6203ZZ]
14 601B6203ZZ BRG,BALL,#6203ZZC3 2
[Add to Picklist: 92027-1043]
15 92027-1043 COLLAR,FR HUB BEARING 1
[View Supersession]
[Add to Picklist: 92033-1040]
16 92033-1040 RING, SNAP,43.5M/M 1
[Add to Picklist: 654A254008]
17 654A254008 OIL SEAL 1
[Add to Picklist: 41042-015]
18 41042-015 DUST COVER 1
[Add to Picklist: 41069-032]
19 41069-032 COLLAR,FRONT AXLE 1
[View Supersession]
[Add to Picklist: 41021-071]
20 41021-071 TIRE-FRONT 1
[View Supersession]
[Add to Picklist: 41022-046]
21 41022-046 TUBE 350/375/410-19 1
[View Supersession]
[Add to Picklist: 41073-1040]
22 41073-1040 SOLID WHEEL ASSY,FRNT 1
[View Supersession]
[Add to Picklist: 41075-1011]
23 41075-1011 BALANCER-WHEEL,10G AR
[View Supersession]
[Add to Picklist: 41075-1012]
24 41075-1012 BALANCER-WHEEL,20G AR
[View Supersession]
[Add to Picklist: 41075-1013]
25 41075-1013 BALANCER-WHEEL,30G
AR
========================================================================
Only seeing the #16 snap ring, but wouldn't bet the farm based solely on this diagram.
Good Fortune!
1973 Z1
KZ900 LTD
KZ900 LTD
Last edit: 18 Dec 2011 17:10 by Patton.
Please Log in or Create an account to join the conversation.
- Patton
-
- Offline
- KZr Legend
- Posts: 18640
- Thanks: 2100
Re: Front Wheel Assembly
18 Dec 2011 17:08
If needed for help navigating the kawasaki.com site,
click > kzrider.com/index.php?option=com_kunena&...w&catid=13&id=376734
Good Fortune!
click > kzrider.com/index.php?option=com_kunena&...w&catid=13&id=376734
Good Fortune!
1973 Z1
KZ900 LTD
KZ900 LTD
Please Log in or Create an account to join the conversation.
- badrhino
-
Topic Author
- Offline
- User
- Posts: 554
- Thanks: 6
- Patton
-
- Offline
- KZr Legend
- Posts: 18640
- Thanks: 2100
Re: Front Wheel Assembly
18 Dec 2011 18:34
If it might be helpful, here's a copy from the FSM covering '77~79 KZ1000-A models, which all look very similar on the various kawasaki.com diagrams.
Good Fortune!
Good Fortune!
1973 Z1
KZ900 LTD
KZ900 LTD
Please Log in or Create an account to join the conversation.
- Patton
-
- Offline
- KZr Legend
- Posts: 18640
- Thanks: 2100
Please Log in or Create an account to join the conversation.
- badrhino
-
Topic Author
- Offline
- User
- Posts: 554
- Thanks: 6
- z1kzonly
-
- Offline
- User
- Sustaining Member
- Posts: 2824
- Thanks: 527
Re: Front Wheel Assembly
19 Dec 2011 02:45

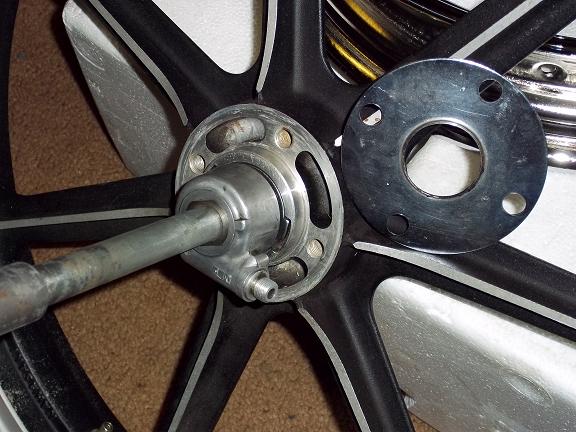

That's it. it just sits there under that 4 bolt hole, chrome cover that covers the disc.
The axle holds em in place.
The axle holds em in place.
Livin in "CheektaVegas, NY
Went thru 25 of these in 40 yrs.
I SOLD OUT! THE KAW BARN IS EMPTY.
More room for The Old Girl, Harley 75 FLH Electra Glide,
Old faithful! Points ign. Bendix Orig. carb.
Starts everytime!
Went thru 25 of these in 40 yrs.
I SOLD OUT! THE KAW BARN IS EMPTY.
More room for The Old Girl, Harley 75 FLH Electra Glide,
Old faithful! Points ign. Bendix Orig. carb.
Starts everytime!
Please Log in or Create an account to join the conversation.
- z1kzonly
-
- Offline
- User
- Sustaining Member
- Posts: 2824
- Thanks: 527
Re: Front Wheel Assembly
19 Dec 2011 02:49z1kzonly wrote: That's it. it just sits there under that 4 bolt hole, chrome cover that covers the disc.
The axle holds em in place.
I just sold a spoke wheel set up on ebay that was similar!
Here is the pics.
cgi.ebay.com/ws/eBayISAPI.dll?ViewItem&rd=1&item=110785659345
