Compare front and rear mastercylinders
- Patton
- Topic Author
- Offline
- KZr Legend
Less
More
15 Jun 2011 10:32 #457395
by Patton

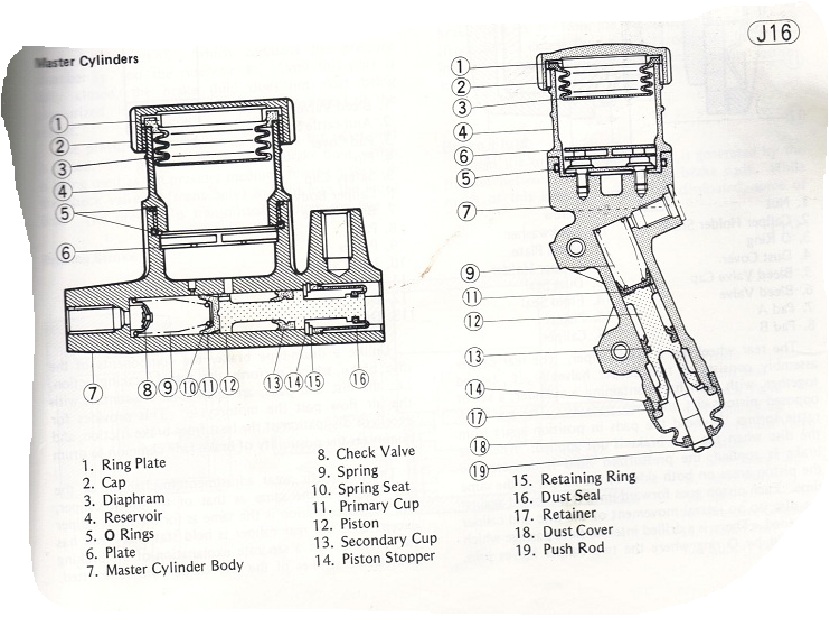

As understood, the two ports on the reservoir floor are the larger supply port and the smaller relief port, which ports supply brake fluid from the reservoir to the piston and relieve line pressure upon release of braking application.
The front master cylinder diagram makes sense.
And the principle of operation for the rear master cylinder is believed to be the same.
However, the rear master cylinder diagram fails to show how the fluid routes from the ports to the bore so as to interact with position of the piston as it moves forward during the braking stroke and backward during the release stroke.
Surely there must be passageways bored from the ports to the bore that aren't shown on the diagram.
Could anyone elaborate on this as to how the brake fluid in the rear master cylinder gets from the ports to the piston bore?
Thanks!
1973 Z1
KZ900 LTD
Compare front and rear mastercylinders was created by Patton
As understood, the two ports on the reservoir floor are the larger supply port and the smaller relief port, which ports supply brake fluid from the reservoir to the piston and relieve line pressure upon release of braking application.
The front master cylinder diagram makes sense.
And the principle of operation for the rear master cylinder is believed to be the same.
However, the rear master cylinder diagram fails to show how the fluid routes from the ports to the bore so as to interact with position of the piston as it moves forward during the braking stroke and backward during the release stroke.
Surely there must be passageways bored from the ports to the bore that aren't shown on the diagram.
Could anyone elaborate on this as to how the brake fluid in the rear master cylinder gets from the ports to the piston bore?
Thanks!
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
- 650ed
- Offline
- User
Less
More
- Posts: 15344
- Thank you received: 2829
15 Jun 2011 11:10 #457402
by 650ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Replied by 650ed on topic Compare front and rear mastercylinders
I checked my KZ650 FSM and even though the numbering is different the cutaway drawing is identical - no port between the reservoir and bore. Honerable draftsman made boo boo. :pinch:
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
