Brake lights gpz 1100a1

Oh i hate wiring! So ive got everything connected and working even the fuel gauge ive got a spark only thing left is the front brake switch cable needs shortning ( there’s a long cable on the brembo) so i cut it crimp some proper jap spec bullets on and check everything is working! No brake light from front or back brakes, the digital display is blank but everything else works, the bulbs haven’t blown either.

Stusco wrote:

Oh i hate wiring! So ive got everything connected and working even the fuel gauge ive got a spark only thing left is the front brake switch cable needs shortning ( there’s a long cable on the brembo) so i cut it crimp some proper jap spec bullets on and check everything is working! No brake light from front or back brakes, the digital display is blank but everything else works, the bulbs haven’t blown either.

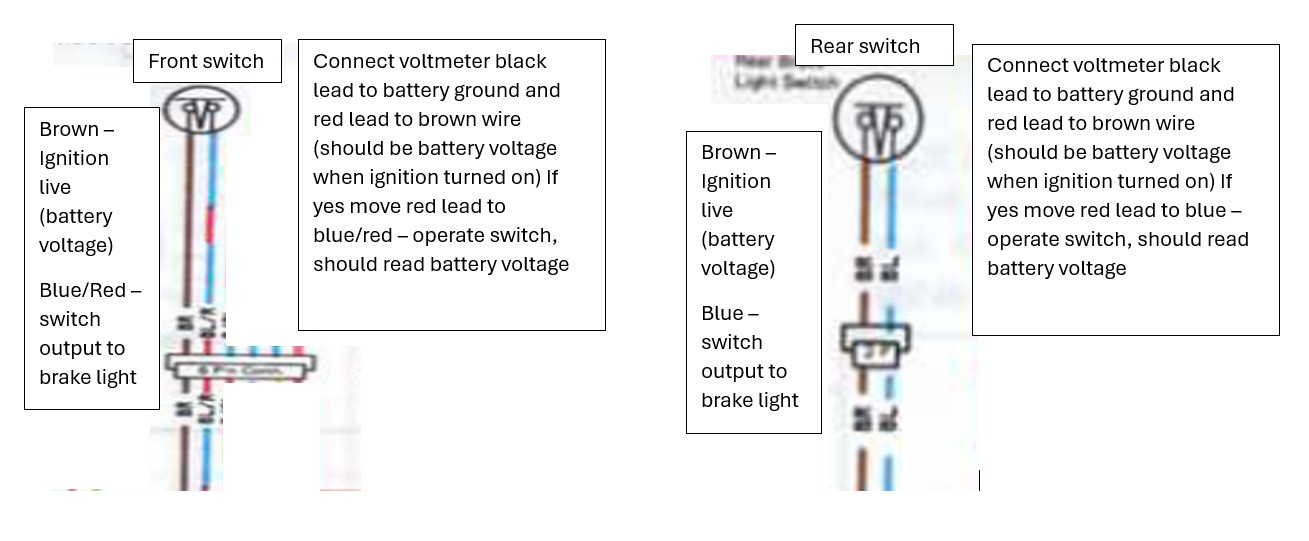

Which digital display (do you mean the one on the tank ?) see below for test procedure ref brake light switches

Yes i did mean the display on the tank , ive found the problem it was the horn fuse in the fuse box it was blown the strange thing is that the horn still works with the fuse blown !
thanks for your help again

So I thought i was finished with the wiring but I found another problem, i had checked everything except the front indicators I couldn’t see how there would be a problem since they are on a sub loom, but both front indicators are on constant they do flash when used but stay lit up when off ,the back are fine ,any ideas?

hi, not a problem, dual filament, running light and directional, wired with head and tail light,

jwfels wrote:

hi, not a problem, dual filament, running light and directional, wired with head and tail light,

this is a UK bike, Europe never had the running light option (illegal) orange light can only be displayed as a turn signal

How many wires on the turn signal ? Is the bike an import ?

My 81 650 is has dual filament in front, USA model haven’t looked lately, but diagram should show 2 wires and external 12v- gotta get book out

Pardon, wasn’t aware of user location

jwfels wrote:

Pardon, wasn’t aware of user location

No worries, lighting regs in Europe are a minefield:)

Stusco did you get this resolved (been kinda busy )
