Coil wires
- lovethemkzs
-
Topic Author
- Offline
- User
-

Registered
- Posts: 74
- Thanks: 16
Coil wires
27 Apr 2026 17:36
Last year when I took the wires off the coils I remember what color went on the top and what color went on the bottom. This year I'll be damned if I can remember lol.

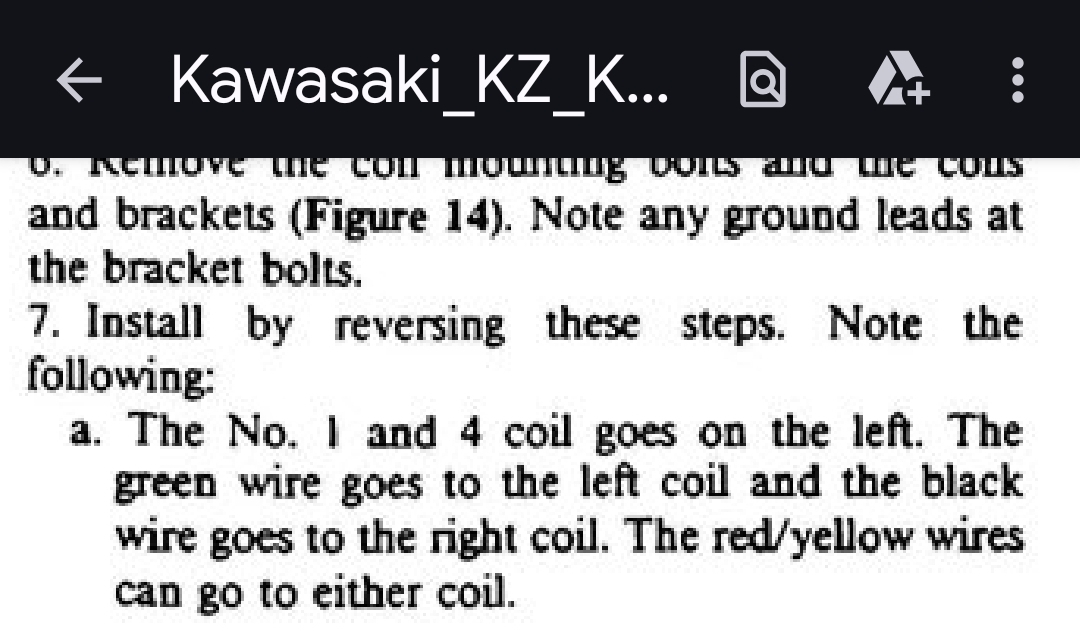

I was reading a couple different things some say don't matter because it was a dual plug or dual Spark I got a picture of what it said attached and it also said the yellow and green wires on the left side when I'm looking at my bike and it's on the right side so any suggestions on wiring my coils back upĀ

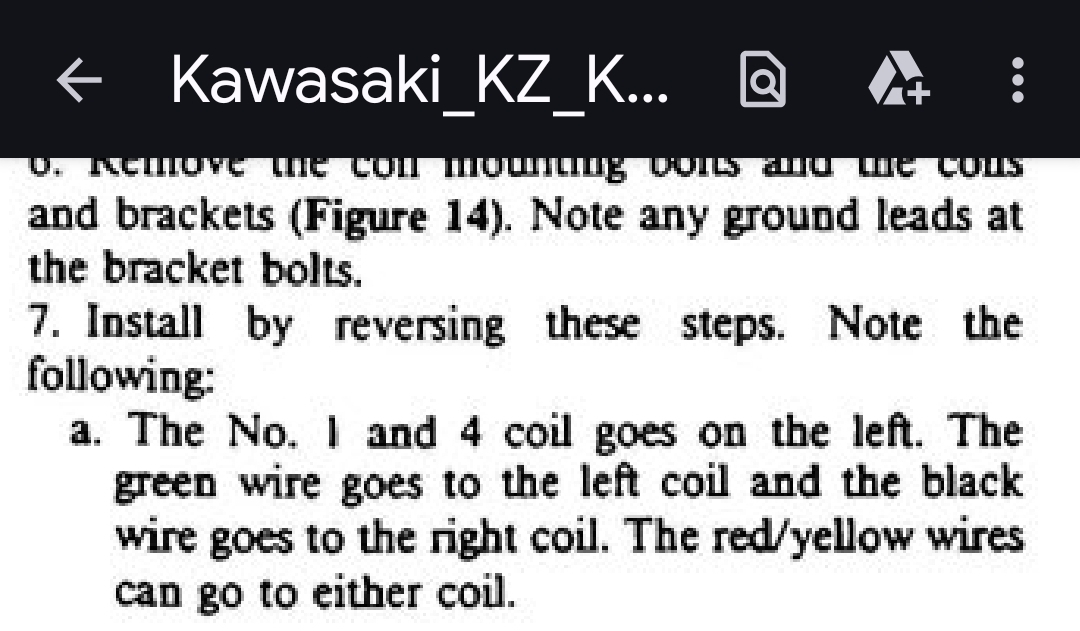

I was reading a couple different things some say don't matter because it was a dual plug or dual Spark I got a picture of what it said attached and it also said the yellow and green wires on the left side when I'm looking at my bike and it's on the right side so any suggestions on wiring my coils back upĀ
Please Log in or Create an account to join the conversation.
- kimchella
-
- Offline
- Sustaining Member
-

Registered
- Posts: 272
- Thanks: 269
Re: Coil wires
27 Apr 2026 22:52
Hi, the yellow/red leads are trigger (power) from the run/off handle bar control to the coils, the green wire goes to left coil (sitting on bike) and black to right coil. These are from points or electronic ignition.
Hope this helps,
Rich.
Hope this helps,
Rich.
KZ650B1 frame number 225
Please Log in or Create an account to join the conversation.
- lovethemkzs
-
Topic Author
- Offline
- User
-

Registered
- Posts: 74
- Thanks: 16
Re: Coil wires
27 Apr 2026 23:49
Well I'm trying to find out is it doesn't matter which wire in the group goes to the top or bottom I heard since it's a dual Spark that it doesn't matter but I want to make sure
Please Log in or Create an account to join the conversation.
- Wookie58
-
- Offline
- Moderator
-

Registered
- Posts: 6276
- Thanks: 3962
Re: Coil wires
27 Apr 2026 23:58
The coil primary isn't polarity sensitive so it doesn't matter which way round the wires are on each coil
1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
The following user(s) said Thank You: rickysnicker
Please Log in or Create an account to join the conversation.
- lovethemkzs
-
Topic Author
- Offline
- User
-

Registered
- Posts: 74
- Thanks: 16
Re: Coil wires
28 Apr 2026 03:59
I know I'm saying it wrong it was the polarity that I was concerned about and thank you again wookie I know you come through
The following user(s) said Thank You: Wookie58
Please Log in or Create an account to join the conversation.
Moderators: Street Fighter LTD
