KZ 900 generator wires
Yesterday 11:48

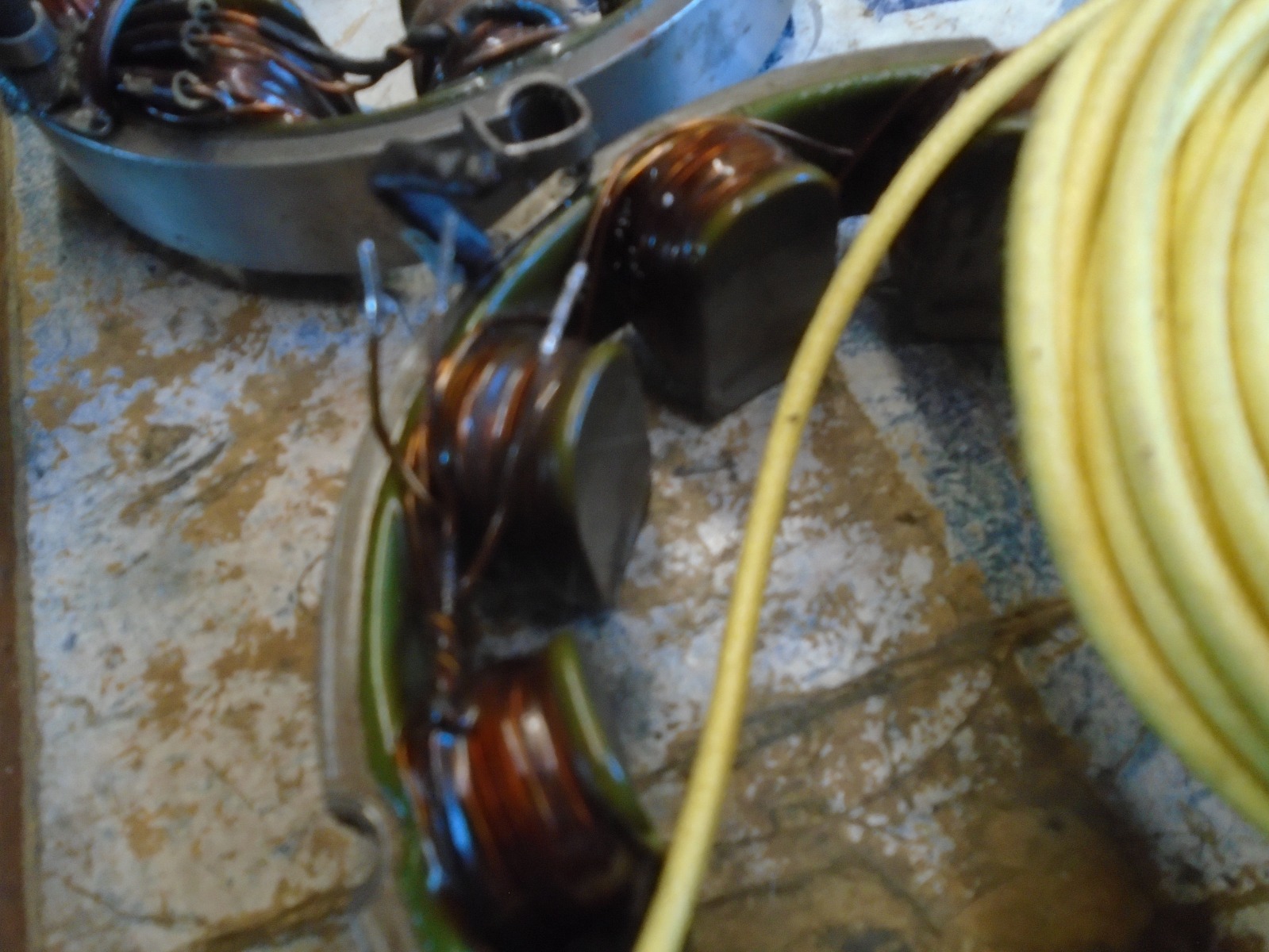

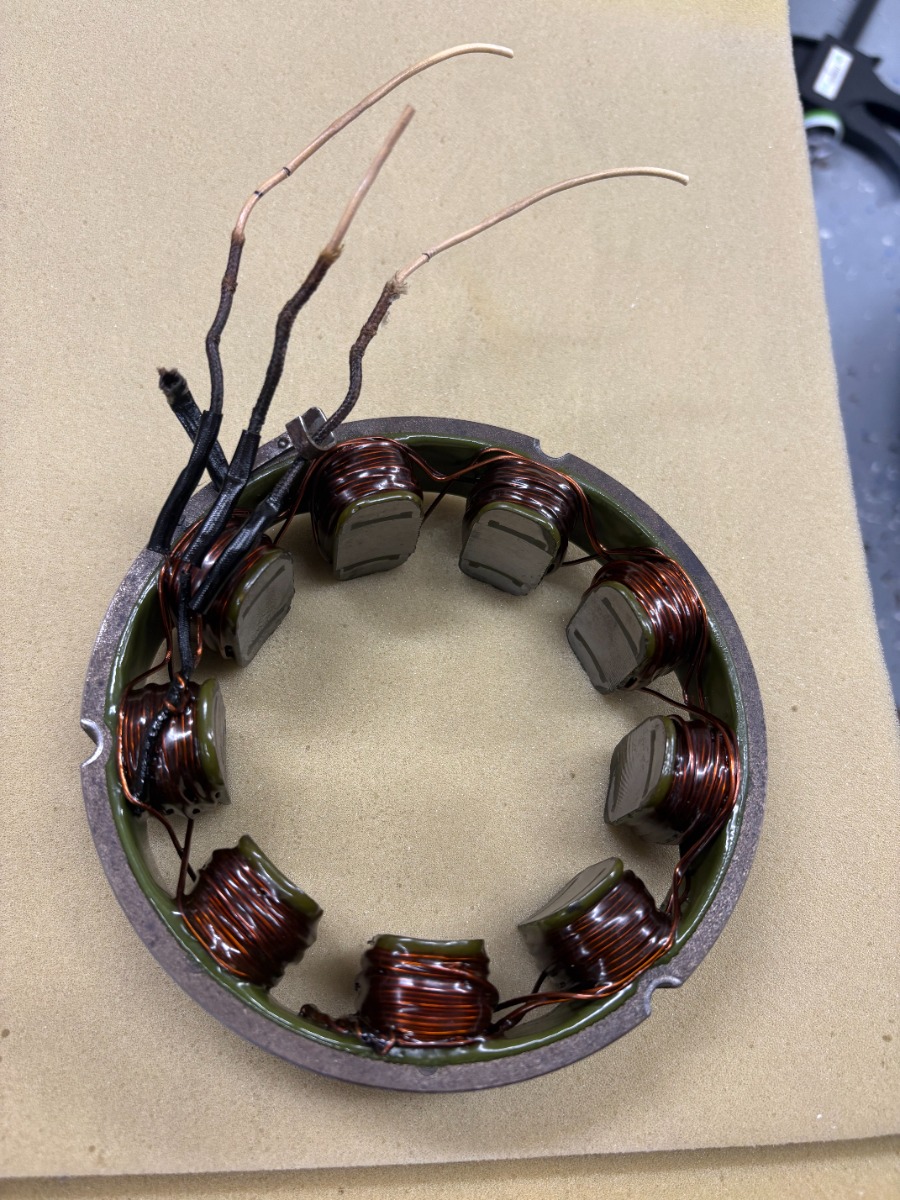

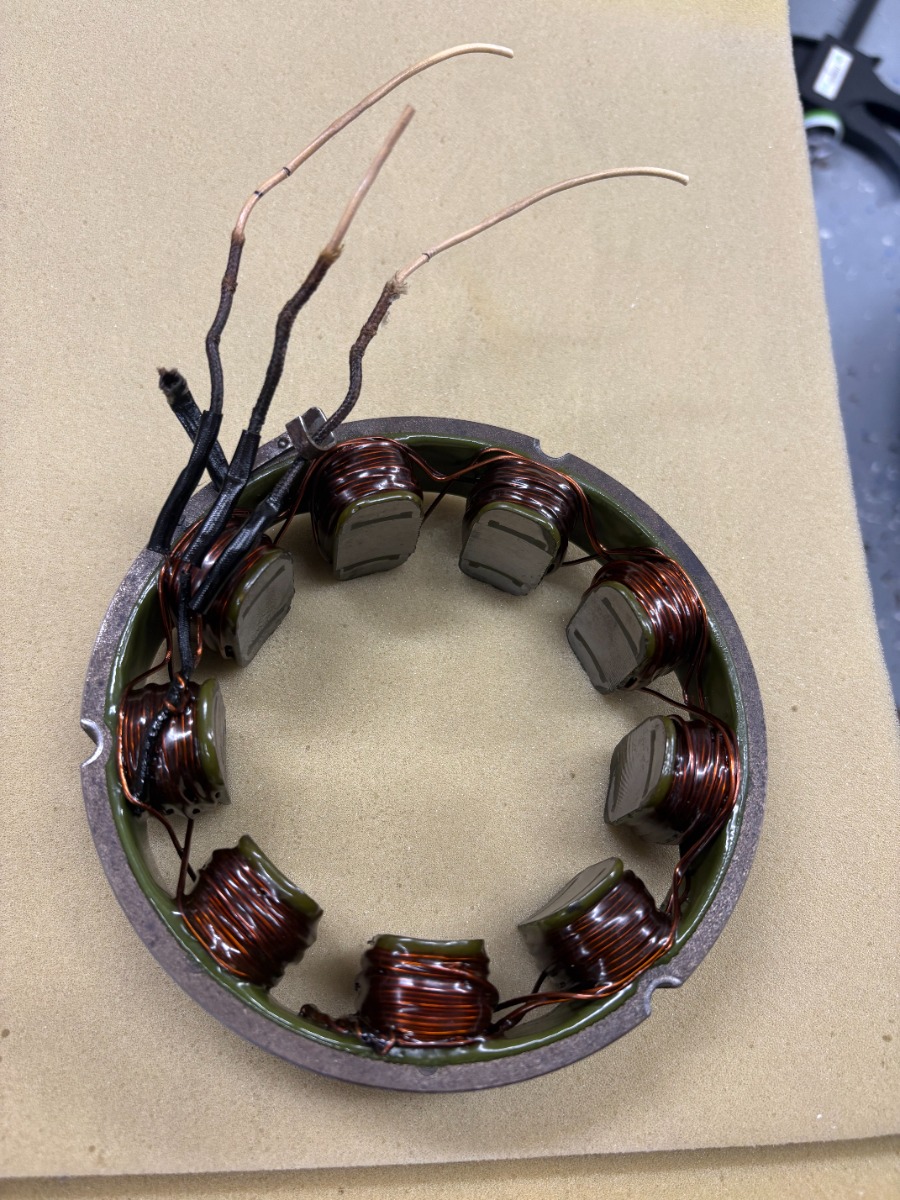

Hi All, i am repairing the oil leak into the generator case caused by the old rubber grommet on my 1976 KZ900 A4, took everything apart, cut the 3 wires coming from the stator and marked them for re-assembly, in cleaning around the area i mistakenly wiped the markings off the 3 wires coming from the windings, the cloth wrapping the wires are so soaked in oil i cannot identify the pink from the yellow from the sky blue !!!! under the cloth they all appear to be white plastic ? does it matter which wires connect back to the other side? and if so, is it possible to identify them? picture of stator attached and thank youÂ
Kawikid
Please Log in or Create an account to join the conversation.
- Wookie58
-
- Away
- Moderator
-
Registered
- Posts: 5353
- Thanks: 3284
Re: KZ 900 generator wires
Yesterday 11:57
To the best of my knowledge (unless someone knows different) it doesn't matter. It's a star configuration and they are all joined at the other end
1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
The following user(s) said Thank You: asphalt900
Please Log in or Create an account to join the conversation.
- asphalt900
-
- Offline
- User
-
Registered
- Posts: 1321
- Thanks: 823
Re: KZ 900 generator wires
Yesterday 12:02

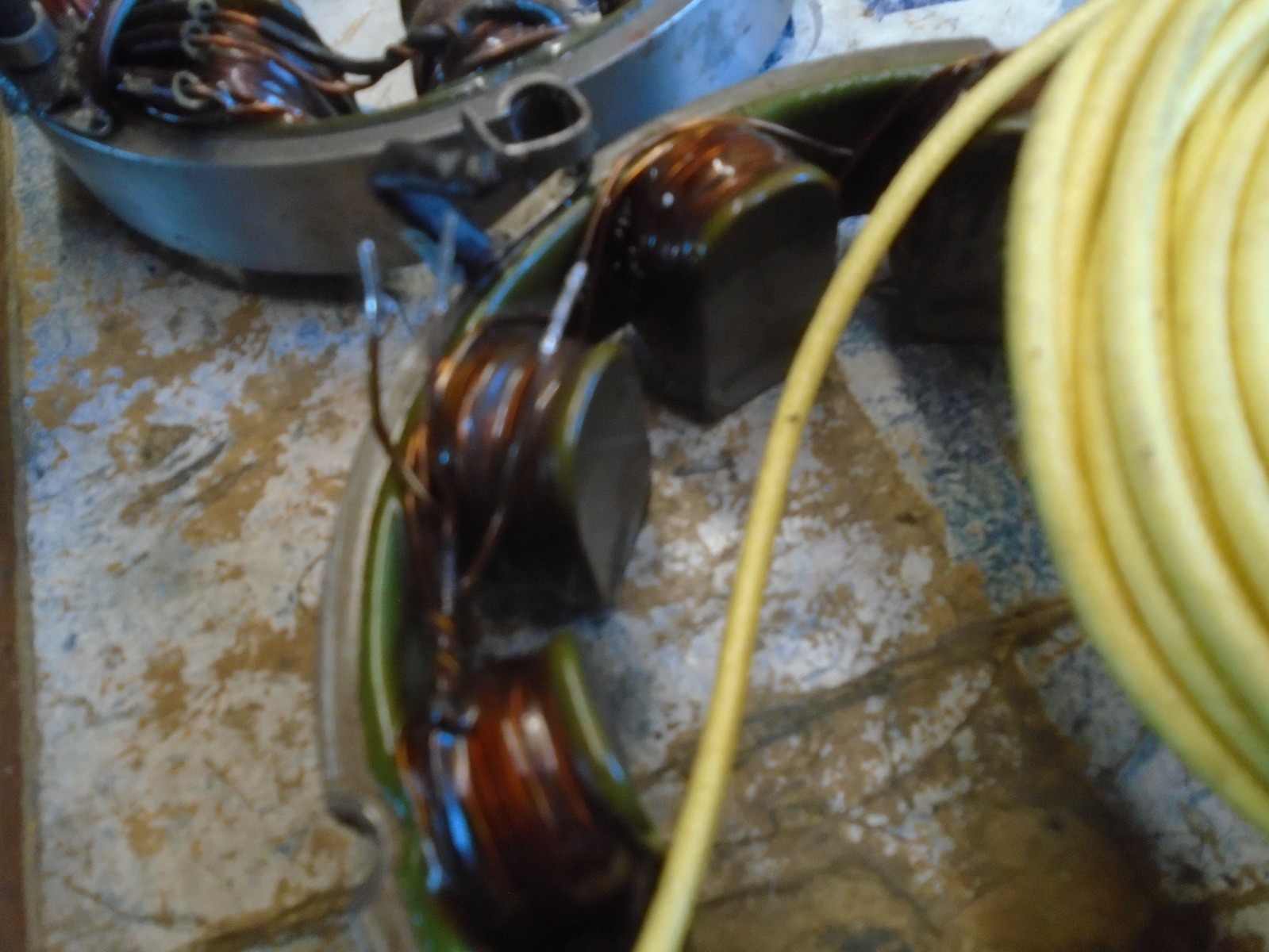

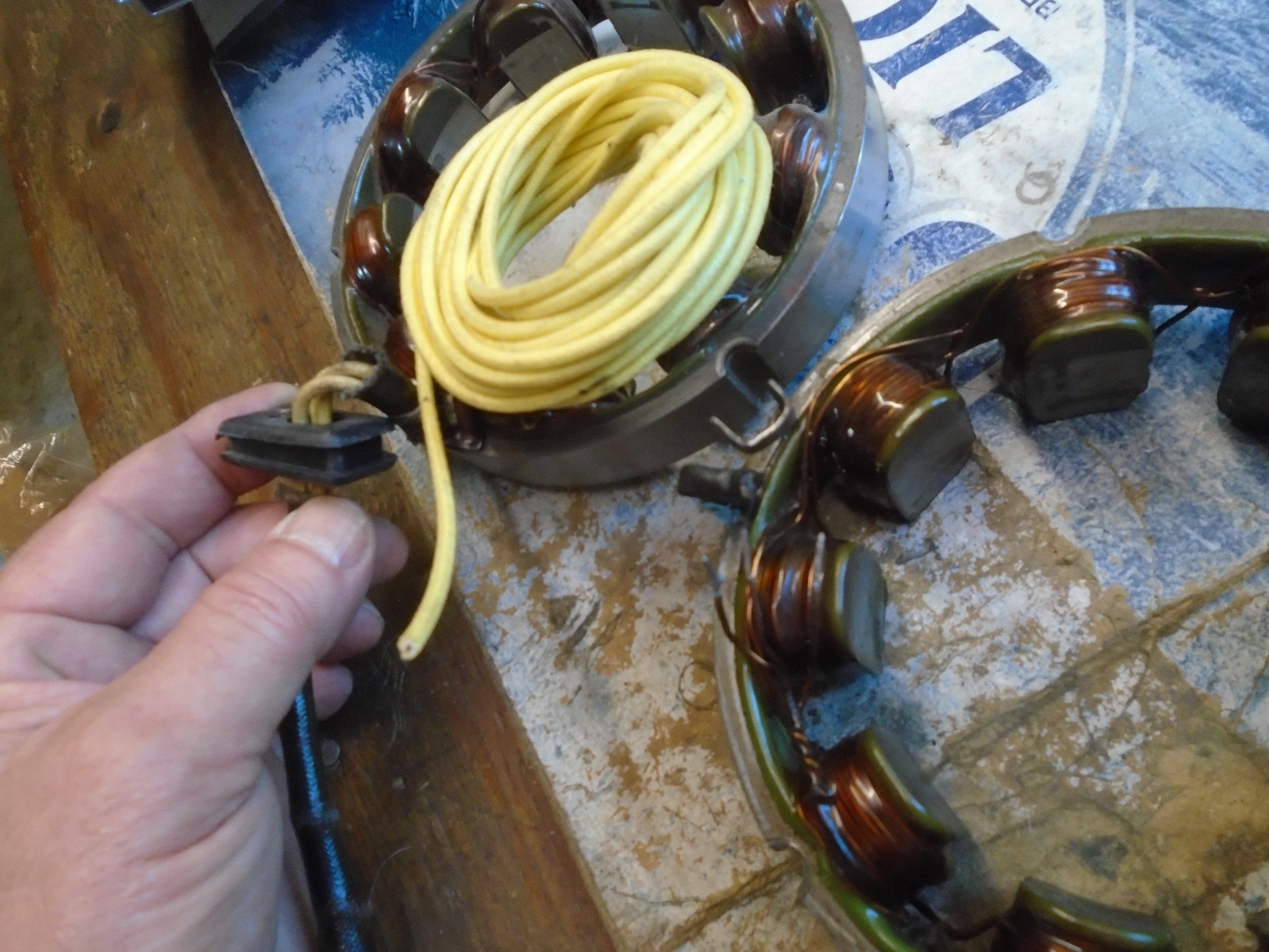

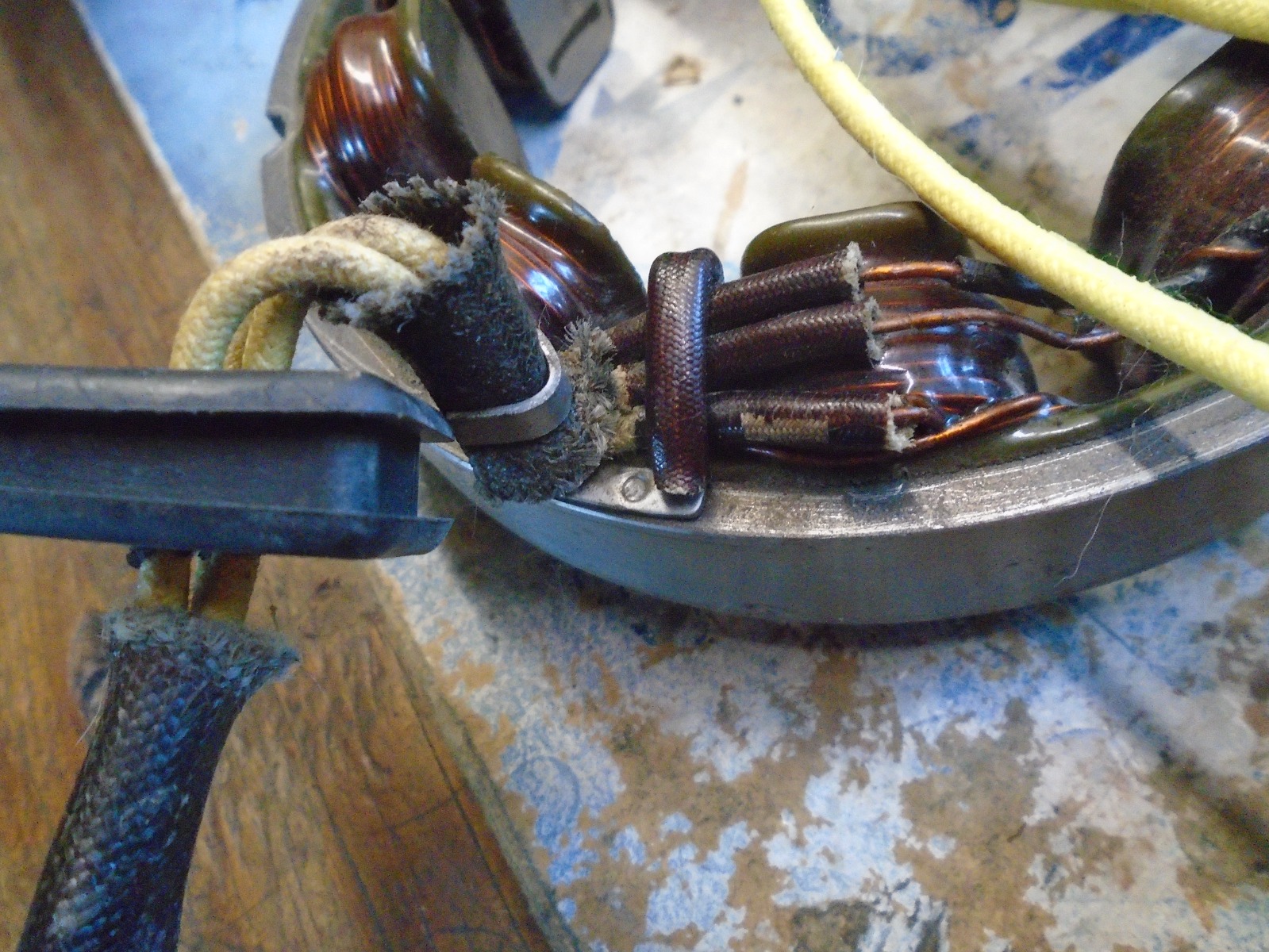

Like wookie said, orientation doesn't matter. Noteworthy though, do you have soldering skills? I always replace the Complete wire where those 3 have little cloth covers. They are originally soldered in a tube you'll see if you pull those little covers back. This way you will have clean insulation going thru the new grommet.
The following user(s) said Thank You: sf4t7, Wookie58
