Does hello Does Shindengen SH775 exist for a 1977 kz1000 ltd?

Gdizard
Topic Author
Offline
User
12/03/1954
Posts: 98
Thanks: 6

Does hello Does Shindengen SH775 exist for a 1977 kz1000 ltd?

31 Jan 2025 21:14

#908503

Does Shindengen SH775 exist for a 1977 kz 1000?
Thank you in advance sir !

Please Log in or Create an account to join the conversation.

hugo
Offline
Sustaining Member
'92 Zephyr 750
Posts: 284
Thanks: 74

Re: Does hello Does Shindengen SH775 exist for a 1977 kz1000 ltd?

01 Feb 2025 03:05 - 01 Feb 2025 03:14

#908508

Some one with an old KZ1000 may have done it already and will pitch in but.....in general;.

The Shindengen SH775 is an series integrated rectifier/regulator,..... all together, and I believe the KZ1000 of that vintage had separate rectifier and regulator,

....................still, the SH775 only needs a 3 phase alternator input, which I understand that KZ1K has( 3 wires). And the Output simply goes to Battery (2 wires).....and it should work, ........but you may have to sort out the wiring between old rectifier and regulator,....and/or remove. It just wouldn't be plug and play, as in newer models. The other issue will be the connectors, (plugs)..you may have to make them to match the SH775's

Last edit: 01 Feb 2025 03:14 by hugo.

The following user(s) said Thank You: Gdizard

Please Log in or Create an account to join the conversation.

Nessism
Offline
Sustaining Member
Posts: 7583
Thanks: 2954

Re: Does hello Does Shindengen SH775 exist for a 1977 kz1000 ltd?

01 Feb 2025 04:52 - 01 Feb 2025 07:59

#908511

This is how I do it. Bypass the factory wiring to the extent possible.

BTW, I buy, test, then resell used SH775's. There are a lot of fakes in the marketplace, so you gotta pay attention and get a proper one.

SH775 Install by nessism , on Flickr

Ed
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0

www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know

1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread

Last edit: 01 Feb 2025 07:59 by Nessism.

The following user(s) said Thank You: slmjim+Z1BEBE, sf4t7, Wookie58

Please Log in or Create an account to join the conversation.

Gdizard
Topic Author
Offline
User
12/03/1954
Posts: 98
Thanks: 6

Re: Does hello Does Shindengen SH775 exist for a 1977 kz1000 ltd?

01 Feb 2025 12:16 - 01 Feb 2025 12:17

#908521

Thank you Mister Nessism!
Do you have one for sale ?
Greg

Last edit: 01 Feb 2025 12:17 by Gdizard.

Please Log in or Create an account to join the conversation.

Nessism
Offline
Sustaining Member
Posts: 7583
Thanks: 2954

Re: Does hello Does Shindengen SH775 exist for a 1977 kz1000 ltd?

01 Feb 2025 12:36

#908526

Gdizard wrote:

Thank you Mister Nessism!
Do you have one for sale ?
Greg

Hi Greg,

I have two. One, looks near new, and the second, that has been bead blasted, because there was some corrosion. The second has a somewhat mottled appearance to the finish, where the corrosion was removed.

Clean unit is $55 and the blasted unit $45, + $10 shipping in the USA.

Message me at nessism - AT sbc global_DOT net for info

Ed
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0

www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know

1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread

The following user(s) said Thank You: kimchella

Please Log in or Create an account to join the conversation.

Gdizard
Topic Author
Offline
User
12/03/1954
Posts: 98
Thanks: 6

Re: Does hello Does Shindengen SH775 exist for a 1977 kz1000 ltd?

01 Feb 2025 12:58

#908527

I am un able to decipher your e mail

Please Log in or Create an account to join the conversation.

Gdizard
Topic Author
Offline
User
12/03/1954
Posts: 98
Thanks: 6

Re: Does hello Does Shindengen SH775 exist for a 1977 kz1000 ltd?

01 Feb 2025 13:02

#908528

please send to my address sir nessism

suitivel gmail

Please Log in or Create an account to join the conversation.

Nessism
Offline
Sustaining Member
Posts: 7583
Thanks: 2954

Re: Does hello Does Shindengen SH775 exist for a 1977 kz1000 ltd?

01 Feb 2025 13:11

#908530

sent

Ed
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0

www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know

1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread

Please Log in or Create an account to join the conversation.

rich67
Offline
User
Posts: 199
Thanks: 42

Re: Does hello Does Shindengen SH775 exist for a 1977 kz1000 ltd?

12 Mar 2025 11:32 - 12 Mar 2025 11:36

#909994

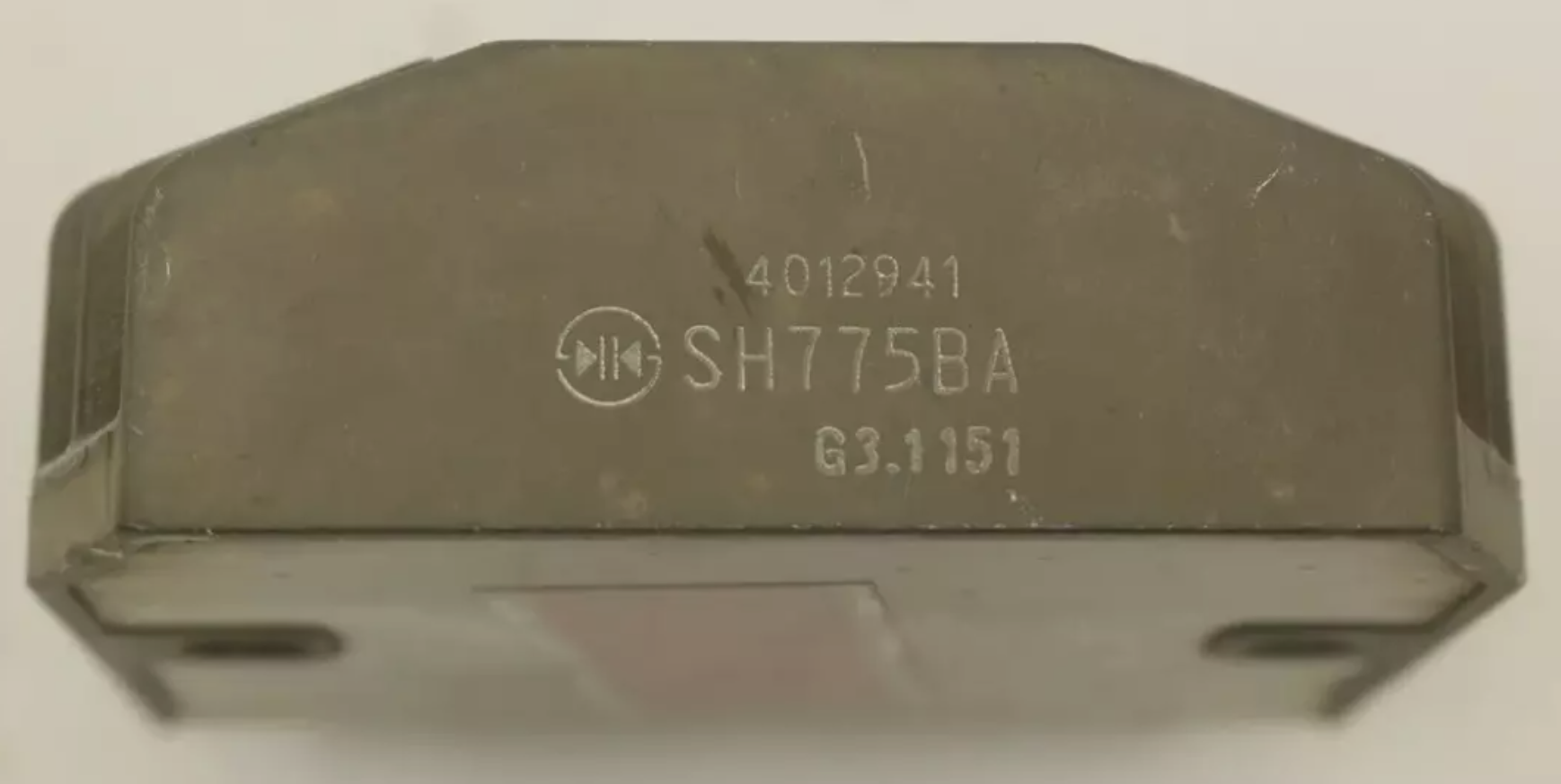

Have a question about this reg , I have installed one on my project bike a few weeks ago and did some testing today , From what I understand they are approx. 14.2 vdc +/- .5 volts, So far what I am getting is 13 vdc at idle and 13.2 at 4000 rpm . I have a new stator from electro sport listed as heavy duty, stator resistance is good at .9 ohms and voltage 50 vac at 4000 rpms , revving past 4000 keeps climbing vac. no shorts to ground . Harness is new so connectors new , What kind of voltages are you guys getting , The unit i have is the sh775 BA , according to what I've found online vdc should be around 14.2 +/- .5 .
IOne thing I was wondering I am running dyna 2000 not sure is that would have an effect as to load . Or bought it used maybe its got a problem , any way just curious to what voltage you guys are getting , Thanks

Last edit: 12 Mar 2025 11:36 by rich67.

The following user(s) said Thank You: Gdizard

Please Log in or Create an account to join the conversation.

Wookie58
Offline
Moderator
Posts: 4628
Thanks: 2751

Re: Does hello Does Shindengen SH775 exist for a 1977 kz1000 ltd?

12 Mar 2025 12:32 - 12 Mar 2025 16:32

#909997

You should have around 14.2 - 14.5v @ 4000 rpm. Yours looks like it isn't charging. I would check the ground (connect a voltmeter black lead to battery neg, red lead to black wire from reg. Anything more than 0.3v suggests a bad ground) if that's OK it looks like the R/R is faulty
PS: Also check voltage at the red wire coming out of the R/R (fault could be between the R/R and the battery)

1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca

Last edit: 12 Mar 2025 16:32 by Wookie58.

Please Log in or Create an account to join the conversation.

Nessism
Offline
Sustaining Member
Posts: 7583
Thanks: 2954

Re: Does hello Does Shindengen SH775 exist for a 1977 kz1000 ltd?

12 Mar 2025 16:26 - 12 Mar 2025 16:29

#910018

rich67 wrote:

Have a question about this reg , I have installed one on my project bike a few weeks ago and did some testing today , From what I understand they are approx. 14.2 vdc +/- .5 volts, So far what I am getting is 13 vdc at idle and 13.2 at 4000 rpm . I have a new stator from electro sport listed as heavy duty, stator resistance is good at .9 ohms and voltage 50 vac at 4000 rpms , revving past 4000 keeps climbing vac. no shorts to ground . Harness is new so connectors new , What kind of voltages are you guys getting , The unit i have is the sh775 BA , according to what I've found online vdc should be around 14.2 +/- .5 .
IOne thing I was wondering I am running dyna 2000 not sure is that would have an effect as to load . Or bought it used maybe its got a problem , any way just curious to what voltage you guys are getting , Thanks

Your output is too low. I've tested at least two dozen SH775's and if your stator is strong, the wiring good, and the battery properly charged, you should get 14.4-14.5 VDC across the battery at 5000 rpm. Interestingly, if the battery is discharged, the charging will be 14.0 VDC, not 14.5. I'm not sure why, though.

Note the comment about the wiring. Bypass the factory R/R hook up, and match my diagram above.

Oh, and I've never seen a bad SH775. I've seen some with broken plastic connectors. Aluminum back plates that fall off. But never one that didn't function properly. They are as robust as a stone outhouse.
