13 Jul 2024 18:54 #902067 by Lotus54
z1r electrics was created by Lotus54
I am looking for a high resolution scan of the wiring diagram (similar to above) supplement 313  KZ1000 D3.
I have one, but just not good enough scan to read well. It appears to match the closest.

thanks,
Mark

Please Log in or Create an account to join the conversation.

  • gd4now
  • Offline
  • User
  • Denco where did you go?
More
14 Jul 2024 08:36 #902091 by gd4now
Replied by gd4now on topic z1r electrics
Not sure if this will be of help but here are a couple of wiring diagrams for a D3.
1977 KZ650 B1
Pods and Denco header

OLD KAW OWNERS SMILE ALOT

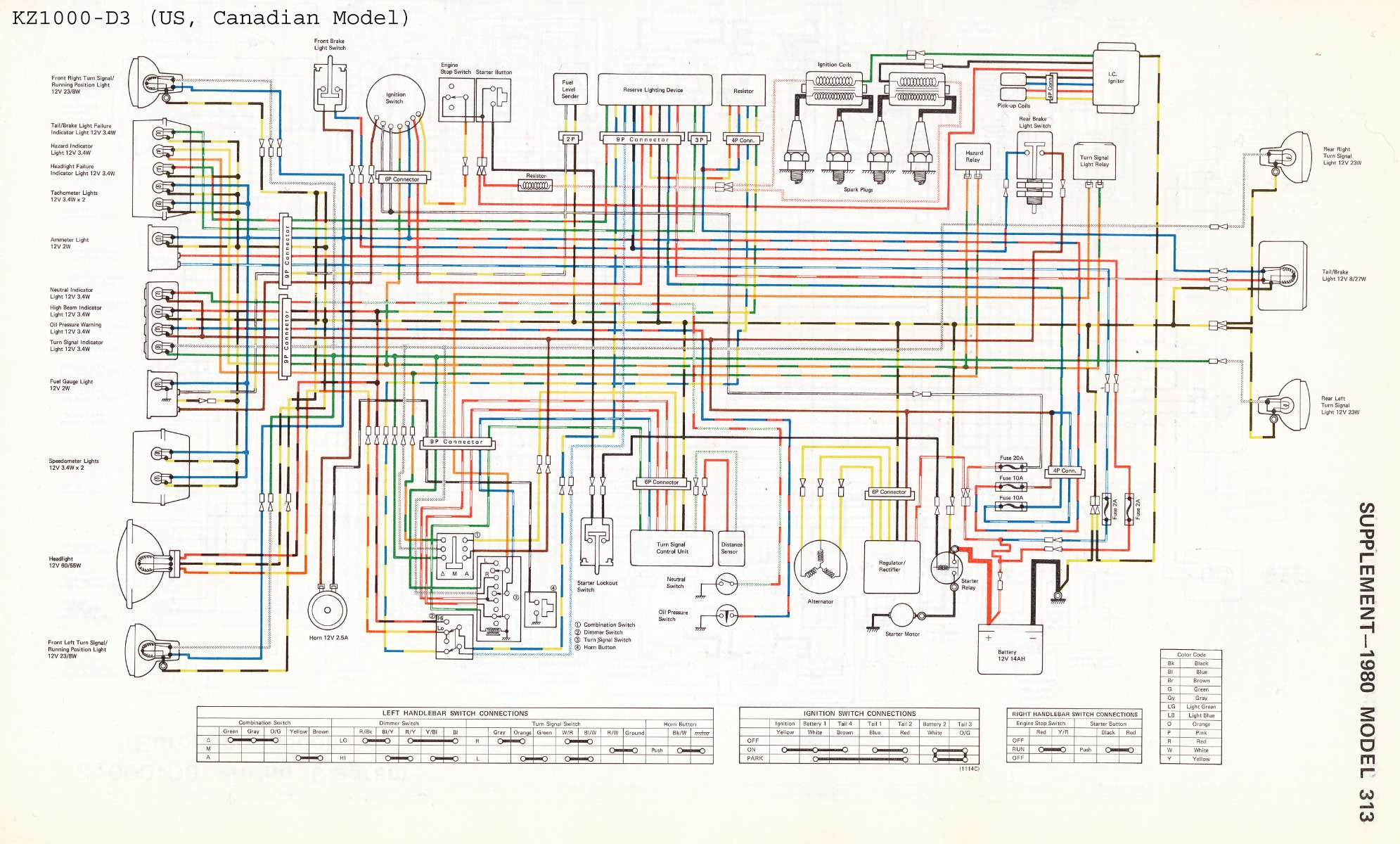

  • KZ1000 D3.jpeg

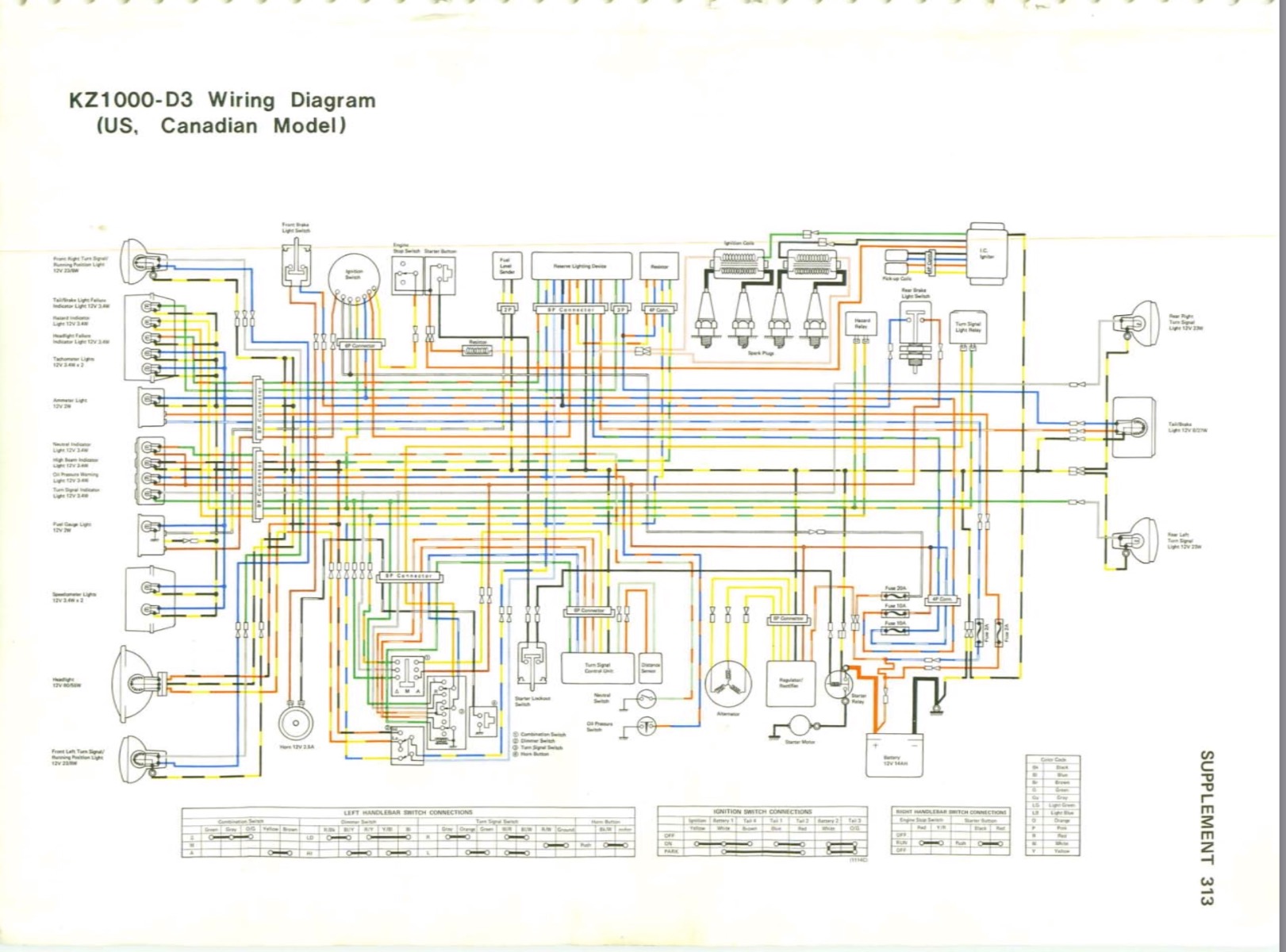

  • Z1R-1000D3-wiring-diagram-cmp.jpg
    • The following user(s) said Thank You: Lotus54

    Please Log in or Create an account to join the conversation.

    More
    14 Jul 2024 09:10 #902096 by Lotus54
    Replied by Lotus54 on topic z1r electrics
    Thanks! That second one is much easier to read than the others I have.
    I think that will do the trick. I just have a couple final things to sort. I bypassed the ‘Reserve lighting’.  A buddy that worked at a Kawasaki dealer as a mechanic back when there were new said they had a LOT of trouble with that system.

    Please Log in or Create an account to join the conversation.

    • DOHC
    • Offline
    • Sustaining Member
    • Those Doe-Hawks really go!
    More
    14 Jul 2024 09:55 #902100 by DOHC
    Replied by DOHC on topic z1r electrics
    This site automatically reduces the pixel size of images, or at least it did in the past.

    The best way I've found to post high resolution scans is to attach them as a PDF.

    If you'd like I can scan the manual at a high resolution and post a PDF.
    '78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
    My dad's '74 Z1
    '00 ZRX1100

    Please Log in or Create an account to join the conversation.

    • DOHC
    • Offline
    • Sustaining Member
    • Those Doe-Hawks really go!
    More
    14 Jul 2024 09:58 #902101 by DOHC
    Replied by DOHC on topic z1r electrics
    It turns out I already did that in the past:

    kzrider.com/forum/4-electrical/617292-19...hazard-issues#863729
    '78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
    My dad's '74 Z1
    '00 ZRX1100
    The following user(s) said Thank You: calum

    Please Log in or Create an account to join the conversation.

    • Scirocco
    • Offline
    • Premium Member
    • Never change a running system
    More
    14 Jul 2024 12:53 - 14 Jul 2024 12:58 #902105 by Scirocco
    Replied by Scirocco on topic z1r electrics

    This site automatically reduces the pixel size of images, or at least it did in the past.

    The best way I've found to post high resolution scans is to attach them as a PDF.

    If you'd like I can scan the manual at a high resolution and post a PDF.


    Put the pic(s) in a ZIP/RAR file, they won´t be re-sized by the site software.
    The ZIP/RAR container file protect the files against any kind of changes!
    Only the file size of 2 Mb is the limit.
    My 1975 Z 1 B 900 Project

    www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
    Last edit: 14 Jul 2024 12:58 by Scirocco.

    Please Log in or Create an account to join the conversation.

    • DOHC
    • Offline
    • Sustaining Member
    • Those Doe-Hawks really go!
    More
    14 Jul 2024 13:59 - 14 Jul 2024 14:00 #902106 by DOHC
    Replied by DOHC on topic z1r electrics

    ]Put the pic(s) in a ZIP/RAR file...

    This is true, but many web sites and services either block zip files or show a warning that the file "might be dangerous".

    I've never seen any site complain about a PDF.
    '78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
    My dad's '74 Z1
    '00 ZRX1100
    Last edit: 14 Jul 2024 14:00 by DOHC.

    Please Log in or Create an account to join the conversation.

    • Scirocco
    • Offline
    • Premium Member
    • Never change a running system
    More
    14 Jul 2024 14:26 #902108 by Scirocco
    Replied by Scirocco on topic z1r electrics
    KZR.com support/allow .ZIP/RAR upload attachments up to 2 mb, so why trouble around with pic to pdf converter apps.
    PDF files can also     include and execute dangerous codes/scripts.

    My 1975 Z 1 B 900 Project

    www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
