What is this wire (1981 KZ440 ltd)
- KZcott
-
Topic Author
- Offline
- User
- Posts: 3
- Thanks: 0
What is this wire (1981 KZ440 ltd)
01 Mar 2024 11:34 - 01 Mar 2024 18:24

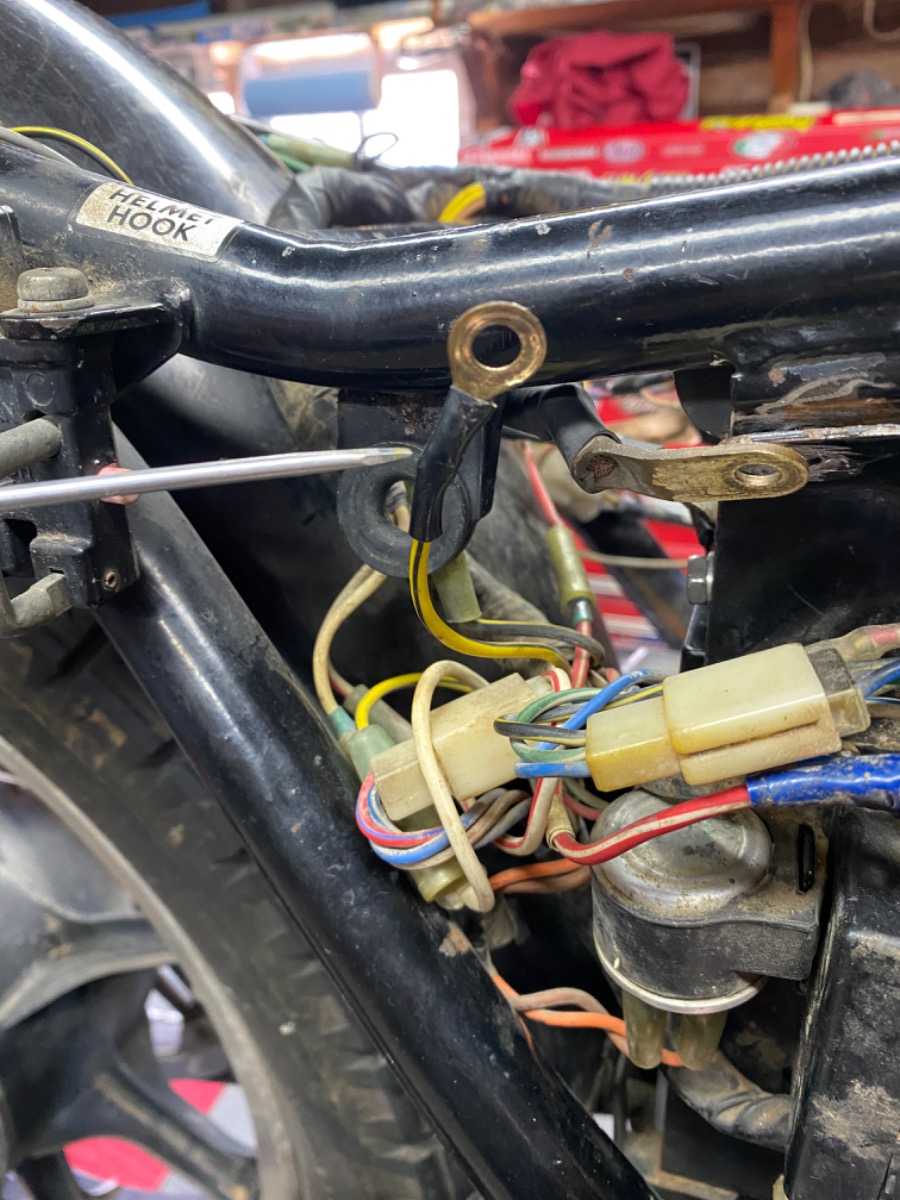

Purchased a little 1981 kz440 LTD for my goin to work bike, in the process of getting it running, while inspecting/cleaning/taking inventory of my purchase i found this wire not connected to anything & i cannot find it in the wiring diagram, does it need to be on the frame ground along with the battery ground cable? Any info is greatly appreciated. Tyson.
Last edit: 01 Mar 2024 18:24 by Street Fighter LTD.
Please Log in or Create an account to join the conversation.
- Street Fighter LTD
-
- Offline
- Moderator
- TURBO, Its Better to be Blown than Injected
- Posts: 4937
- Thanks: 2081
Re: What is this wire (1981 KZ440 ltd)
01 Mar 2024 18:26
Welcome to KZRider
I fixed your picture to be full size
Next time please click the insert all tab to complete the picture install
Dave
I fixed your picture to be full size
Next time please click the insert all tab to complete the picture install
Dave
Original owner 78 1000 LTD
Mr Turbo Race Kit, MTC 1075 Turbo pistons by PitStop Performance , Falicon Ultra Lite Super Crank, APE everything. Les Holt @ PDM's Billet Goodies . Frame by Chuck Kurzawa @ Logghe Chassis . Deep sump 5qt oil pan. RIP Bill Hahn
Please Log in or Create an account to join the conversation.
- JR
-
- Offline
- Sustaining Member
- Posts: 2939
- Thanks: 453
Re: What is this wire (1981 KZ440 ltd)
01 Mar 2024 19:34 - 01 Mar 2024 19:36
the big ring terminal on the right looks like battery negative . The yellow with black stripe is probably a ground . Black with a yellow stripe is usually maybe always ground on kawasakis. There is a black yellow stripe wire just behind that wire which would be ground. Perhaps the yellow black stripe was an extra ground installed by PO ? I see some blue tape in there so po may have been busy.
Check the Filebase here - theres a wiring diagram for 1980 440 ltd. Might be of use
Check the Filebase here - theres a wiring diagram for 1980 440 ltd. Might be of use
1980 kz750E1, Delkevic exhaust
Last edit: 01 Mar 2024 19:36 by JR.
Please Log in or Create an account to join the conversation.
- Wookie58
-
- Away
- Moderator
- Posts: 4465
- Thanks: 2614
Re: What is this wire (1981 KZ440 ltd)
01 Mar 2024 23:22 - 01 Mar 2024 23:49
DO NOT GROUND IT until you know where it goes, have you tried following it back to see where it goes? I have had a quick look at the diagram and can't see a yellow with black (maybe one of the 440 guys can clarify for you) the only thing I could see was the black/yellow in the below diagram
1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
Last edit: 01 Mar 2024 23:49 by Wookie58.
Please Log in or Create an account to join the conversation.
- TexasKZ
-
- Offline
- Platinum Member
- Posts: 7703
- Thanks: 2329
Re: What is this wire (1981 KZ440 ltd)
02 Mar 2024 05:29
On the black and white wiring diagrams, that is identified as Y/B, which is yellow with a black stripe and seems to be the negative side of the lighting system.
www.kzrider.com/filebase?task=download.send&id=175&catid=54&m=0
www.kzrider.com/filebase?task=download.send&id=175&catid=54&m=0
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
www.kzrider.com/11-projects/620336-anoth...uild-thread?start=24
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
www.kzrider.com/11-projects/620336-anoth...uild-thread?start=24
Please Log in or Create an account to join the conversation.
- jwfels
-
- Offline
- User
- Posts: 89
- Thanks: 33
Re: What is this wire (1981 KZ440 ltd)
02 Mar 2024 06:59
paired with white /blue, should be nearby in harness, for accessory circuit in headlamp area, white,blue is 12v+, yellow/bk is 12v-, shoul have another fuse container in back, near battery, colors pretty much serve same purpose between models
Z1A AND 81 650
Please Log in or Create an account to join the conversation.
- martin_csr
-
- Offline
- User
- Posts: 8019
- Thanks: 1645
Re: What is this wire (1981 KZ440 ltd)
02 Mar 2024 07:10 - 02 Mar 2024 07:13

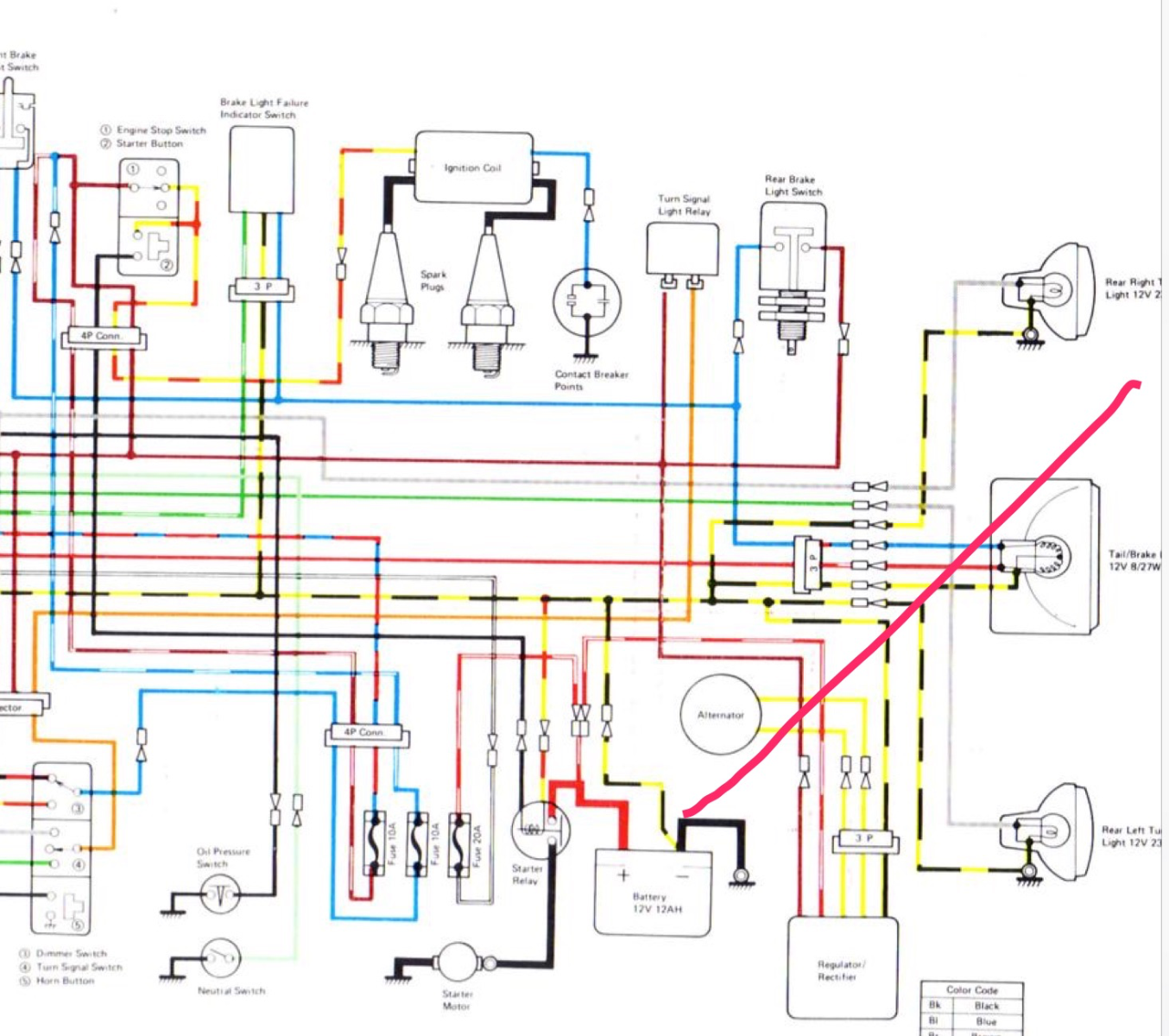

Wiring diagram from the KZ400.com site below.
Could be the accessory ground. one acc ground terminal w large terminal cover would be nearby and another would be at the headlight bucket.
www.kz400.com/KZ440%20Wiring%20diagrams/...0Manual_Page_279.jpg
warning: do not go into the forums there as doing so may harm your computer w malware and whatnot.
Could be the accessory ground. one acc ground terminal w large terminal cover would be nearby and another would be at the headlight bucket.
www.kz400.com/KZ440%20Wiring%20diagrams/...0Manual_Page_279.jpg
warning: do not go into the forums there as doing so may harm your computer w malware and whatnot.
Last edit: 02 Mar 2024 07:13 by martin_csr.
Please Log in or Create an account to join the conversation.
- KZcott
-
Topic Author
- Offline
- User
- Posts: 3
- Thanks: 0
Re: What is this wire (1981 KZ440 ltd)
02 Mar 2024 07:35
Going by that diagram it looks like there is a y/b wire that grounds to the frame along with the battery - cable
Please Log in or Create an account to join the conversation.
- martin_csr
-
- Offline
- User
- Posts: 8019
- Thanks: 1645
Re: What is this wire (1981 KZ440 ltd)
03 Mar 2024 04:55 - 03 Mar 2024 04:56
The ring terminal is probably grounded at the neg (-) battery terminal along with the fat neg battery cable. That's the way my 81 KZ650-CSR is, although the diagram is like yours. The other end of the fat neg battery cable is grounded at the engine.
Last edit: 03 Mar 2024 04:56 by martin_csr.
Please Log in or Create an account to join the conversation.
