1983 750 LTD IC Ignitor mounting location
- ericcer
- Topic Author
- Offline
- User
Less
More
13 Jun 2023 05:56 - 13 Jun 2023 07:57 #885935
by ericcer
1983 750 LTD IC Ignitor mounting location was created by ericcer

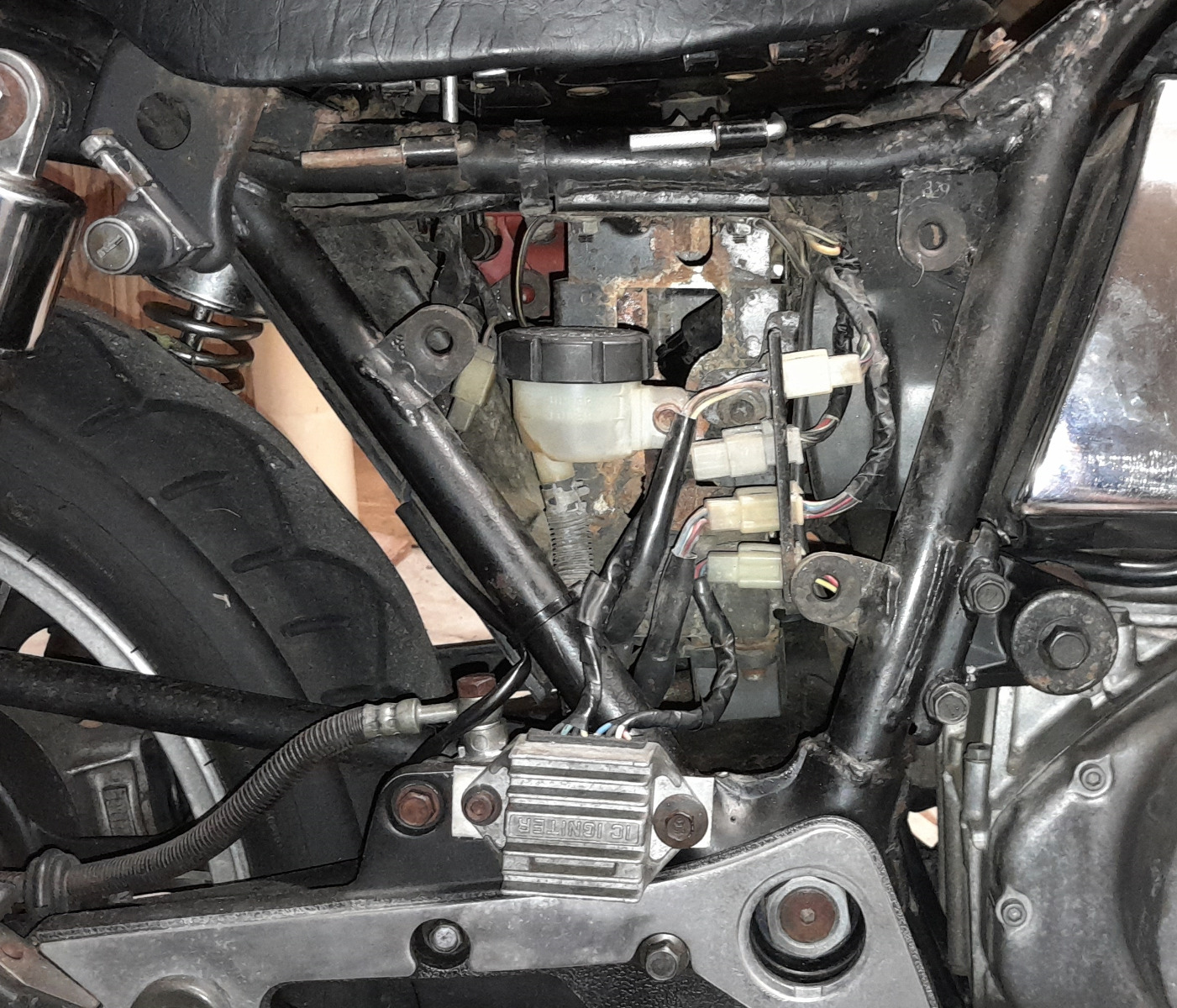

I recently purchased a 1983 Kawasaki 750 LTD Shaft and am trying to figure out where the IC Ignitor is supposed to mount. Seems like a bracket rusted out and was removed so that is why previous owner mounted this way. I cannot find any pictures in forum or Internet. Can someone provide one or some guidance?
