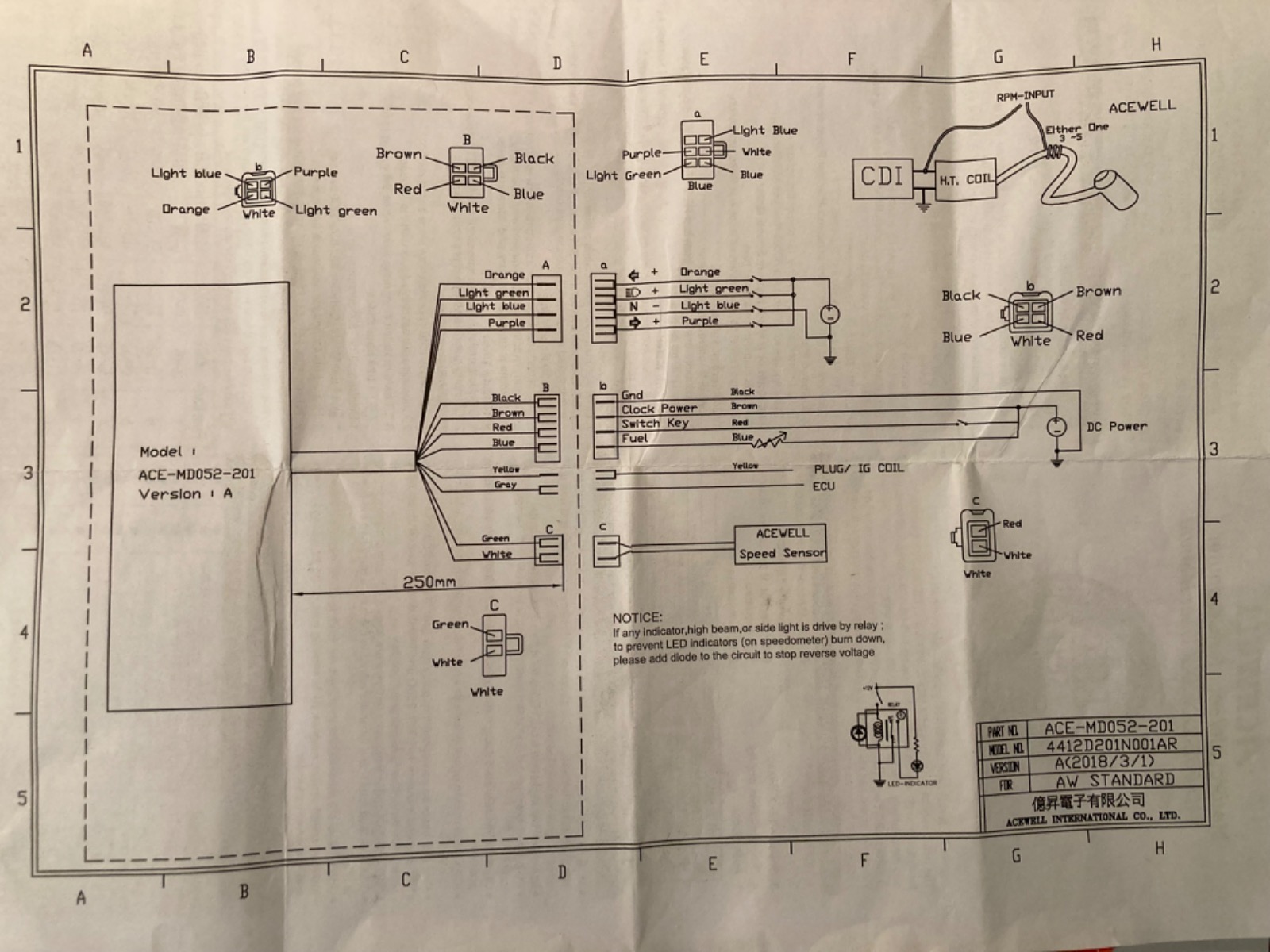

Hi guys, me again. I am connecting an Acewell digital gauge to my 73 Z1. The red wire in the schematic needs to be tapped into the “switch key”, which I assume to be the ignition. The ignition has four wires, red, blue, brown and white. What wire should I tap into?
