Z1000J routing of the main wires 17 Apr 2023 11:34 #883356

  • Jonas_Z1000j
  • Jonas_Z1000j's Avatar Topic Author
  • Offline
  • User
  • Posts: 94
  • Thank you received: 31
Hello!

Could someone share some pictures of the main harness routing on the J-models? Im assembling my bike after tear down and realize that I took too few pictures of it all (and im not sure it was correct before either).

One of the reasons im unsure is that I got quite alot of extra wiring all the way back.
More specific questions; 1: The alternator and starter wires, do they go above the back motor mount? 2: Is the cables going to the back/brake light and turn lights routed right of the air cleaner?

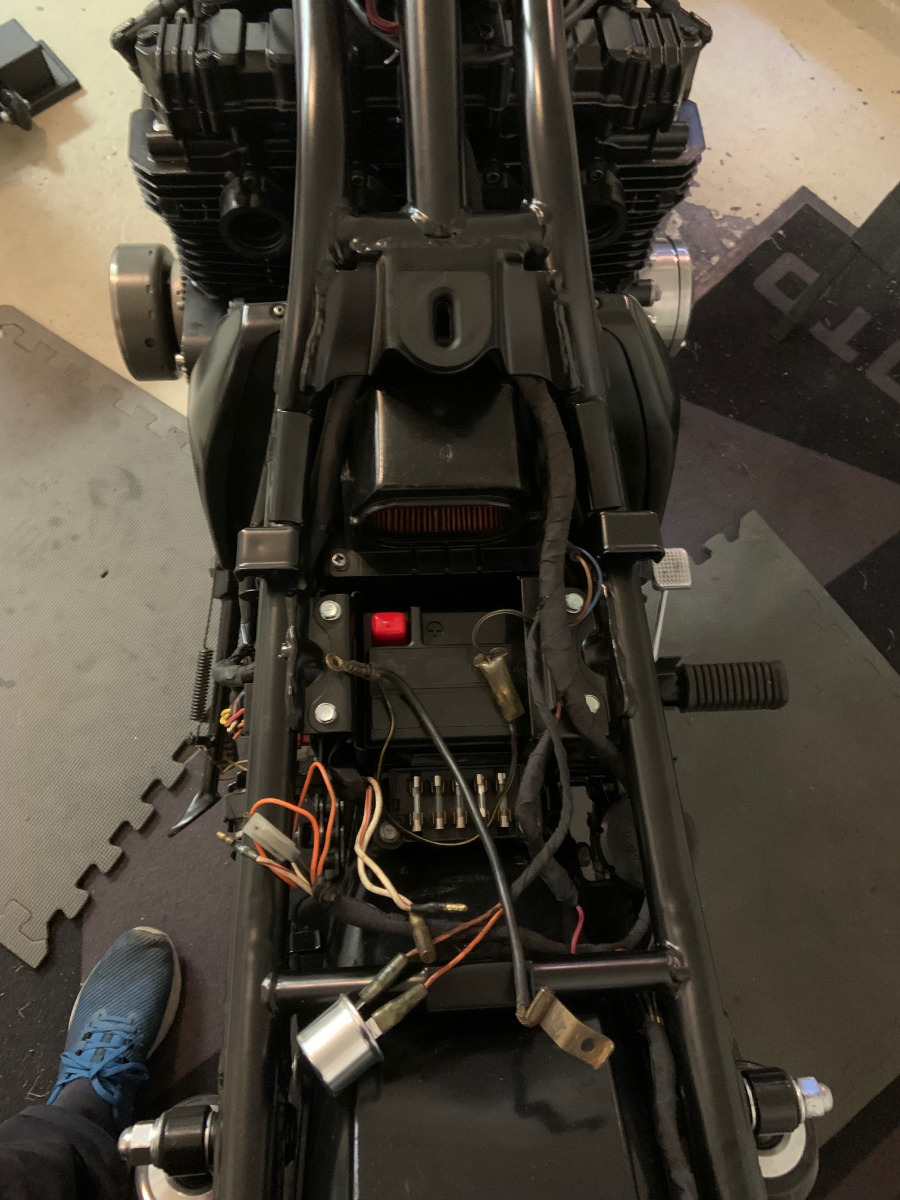

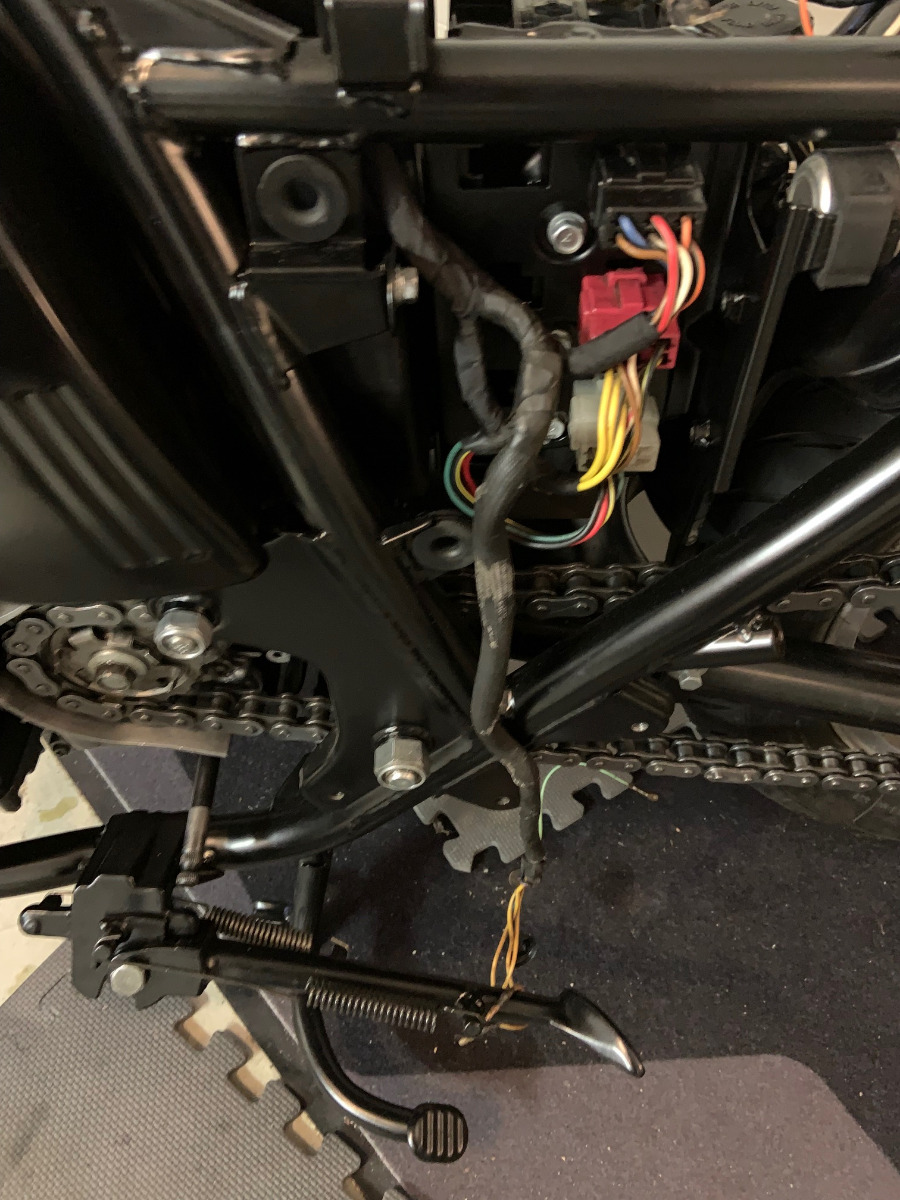

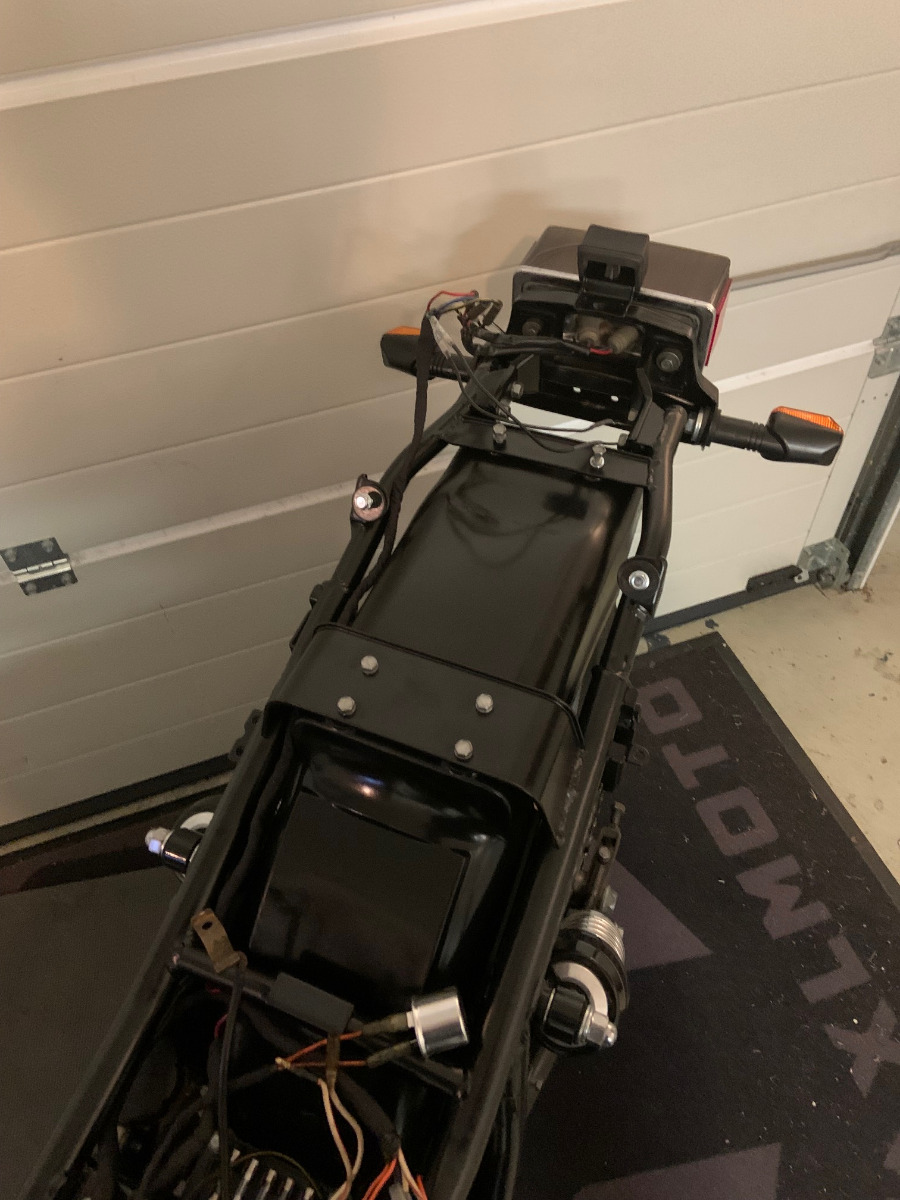

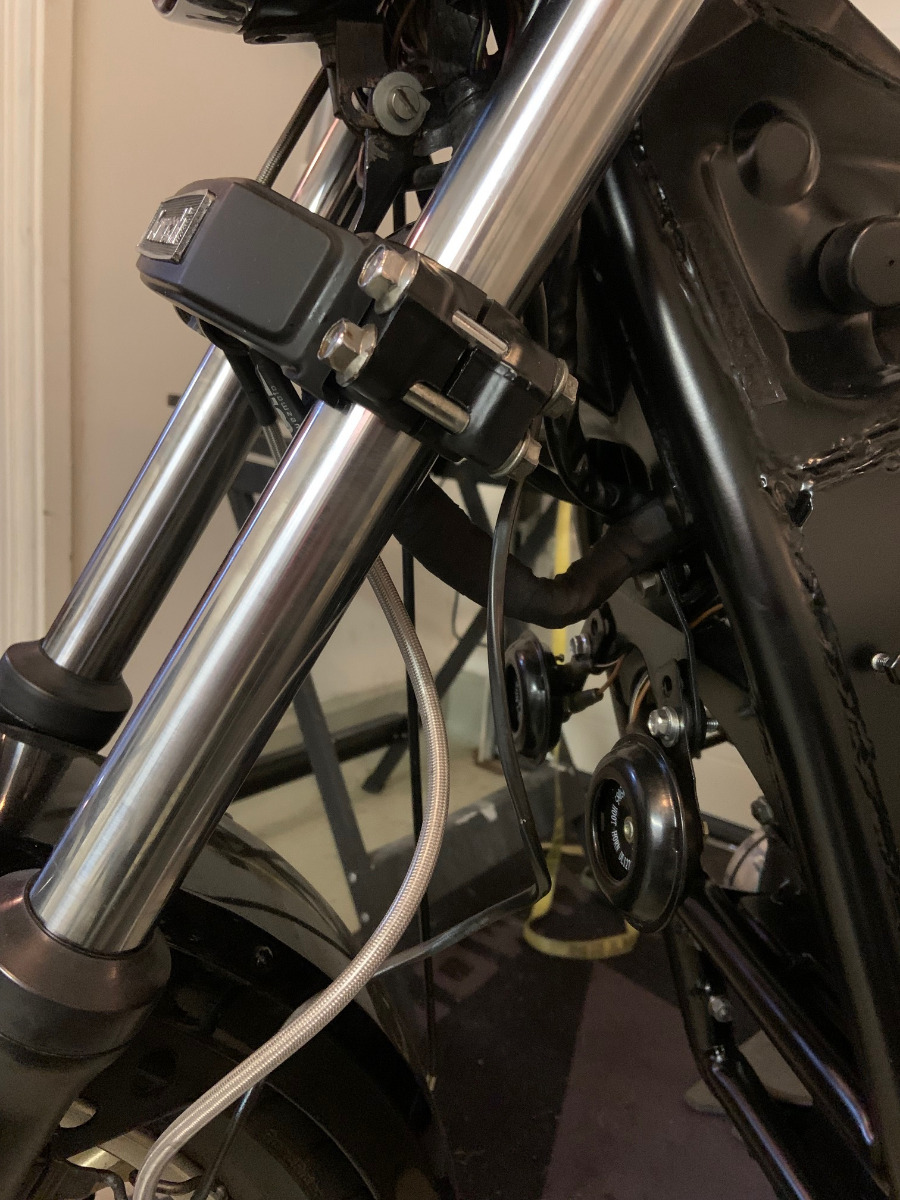

Here is some pictures (a bit dark), please comment!







thanks alot!
Z1000 J2 -82 not so running restoration object anymore
Z900RS -21 Green/Yellow
Attachments:

Please Log in or Create an account to join the conversation.

Z1000J routing of the main wires 17 Apr 2023 11:42 #883358

  • Warren3200gt
  • Warren3200gt's Avatar
  • Offline
  • User
  • Posts: 1472
  • Thank you received: 690
On my build I just went with what felt right, I wasn't that worried about factory correct as I've changed so many things it was pointless to worry about it.
If your going for factory correct study all the pictures for clues and info in the factory manual. You can pretty much find all you need to know in the picture back grounds regardless of the picture main topic.

Z1000J2 somewhat modified!

Please Log in or Create an account to join the conversation.

Z1000J routing of the main wires 20 Apr 2023 11:19 #883486

  • Jonas_Z1000j
  • Jonas_Z1000j's Avatar Topic Author
  • Offline
  • User
  • Posts: 94
  • Thank you received: 31
Fair enough, the pictures tell quite much but some of the routing is difficult to see. I will give it a go,

thanks!
Z1000 J2 -82 not so running restoration object anymore
Z900RS -21 Green/Yellow

Please Log in or Create an account to join the conversation.

Last edit: by Jonas_Z1000j.

Z1000J routing of the main wires 20 Apr 2023 13:06 #883493

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4932
  • Thank you received: 1889
Following. I recently bought a 1981 CRS 1000. I pulled the main harness thinking it was routed wrong. All my other big fours route the main harness along the steering stem into the back of the triples then into the back of the headlight bucket, the CRS had the main under the side frame tube where the tank is held, then down under the lower triple up behind the brake splitter logo cover, up parallel to the upper fork stantion, then up into the headlight bucket. Based on my big fours I thought it was wrong and pulled it all out. Oops, from other photos I’ve seen it was correct. Because I thought it was wrong I didn’t photo document the route. Id like to find the correct route also.

1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
