80 KZ 1000-B4 LTD Frame Ground
03 Apr 2023 14:57
I've obtained a 1980 KZ 1000-B4 LTD with the wiring harness in the box. I've got 95% of the wires identified, labeled, and hooked up. All I need now is to identify where the negative battery cable is grounded to the frame. Can anyone help? Pictures would be great.
1985 GPZ 750 ZX750-A3
1980 KZ 1000-B4
1980 KZ 1000-B4
Please Log in or Create an account to join the conversation.
- Warren3200gt
-
- Away
- User
- Posts: 1525
- Thanks: 731
Re: 80 KZ 1000-B4 LTD Frame Ground
03 Apr 2023 15:08 - 03 Apr 2023 15:15
The large earth strap from the battery negative earth's to the engine not the frame.
Normally there's a specific bolt hole for it above where the kick-start is (if your bike had one, not 100% re your model)
Normally there's a specific bolt hole for it above where the kick-start is (if your bike had one, not 100% re your model)
Last edit: 03 Apr 2023 15:15 by Warren3200gt.
The following user(s) said Thank You: Jasongpz
Please Log in or Create an account to join the conversation.
- Scirocco
-
- Away
- Premium Member
- Never change a running system
- Posts: 4289
- Thanks: 2135
Re: 80 KZ 1000-B4 LTD Frame Ground
03 Apr 2023 15:20
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
The following user(s) said Thank You: Mikaw, Jasongpz
Please Log in or Create an account to join the conversation.
- hardrockminer
-
- Offline
- Sustaining Member
- Posts: 2996
- Thanks: 1094
Re: 80 KZ 1000-B4 LTD Frame Ground
03 Apr 2023 17:59
As Warren says, the ground strap from the battery negative is bolted onto the side of the engine, in behind the kick starter. The hole takes a 6M by 14mm hex bolt. If you want to be absolutely correct the bolt has a #4 on it.
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
The following user(s) said Thank You: Warren3200gt
Please Log in or Create an account to join the conversation.
- Kelly E
-
- Offline
- User
- Never Give Up. Never Surrender
- Posts: 467
- Thanks: 351
Re: 80 KZ 1000-B4 LTD Frame Ground
03 Apr 2023 18:17

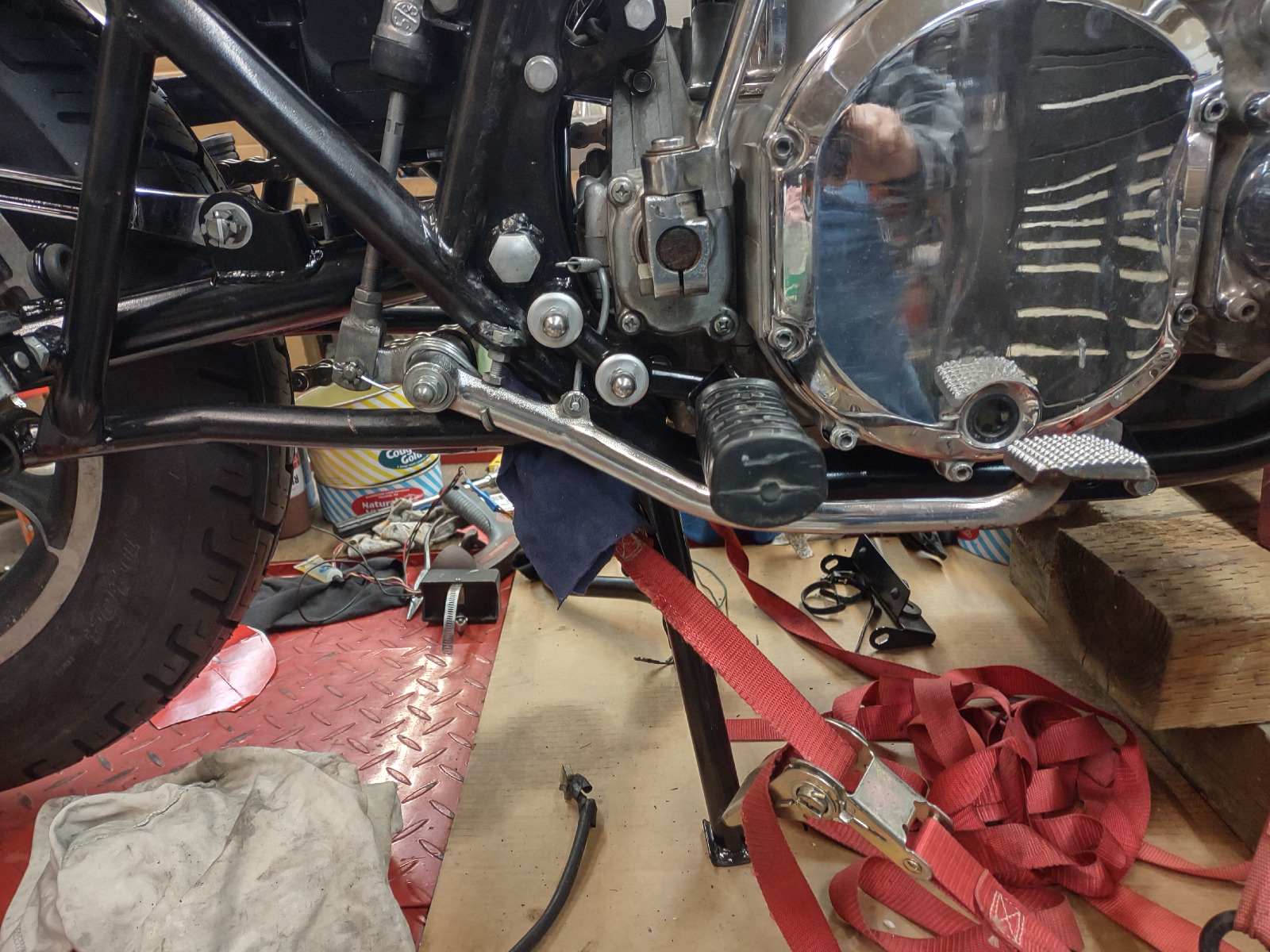

You can see the battery ground wire bolted to the engine case just below the motor mount. Never mind that it is a Honda bolt, it had a battery terminal bolt there when I got the bike. Every non-Honda bike we've resurrected has at least one Honda bolt on it somewhere.
