1979 Kawasaki Z1000 MK2 A3A electrical issues
- policebikes
- Topic Author
- Offline
- User
Less
More
10 Dec 2022 17:42 - 11 Dec 2022 05:35 #877705
by policebikes
1979 Kawasaki Z1000 MK2 A3A electrical issues was created by policebikes
Gents, and ladies if any frequent this forum, I'm stumped!
As noted in a previous post, I have all the idiot lights working, headlight, indicators and brake lights work, but I still can't get the horn, passing beam, or go button to work.
All wires are connected, except a black one from the left handlebar control which doesn't seem to have a home that I can find.

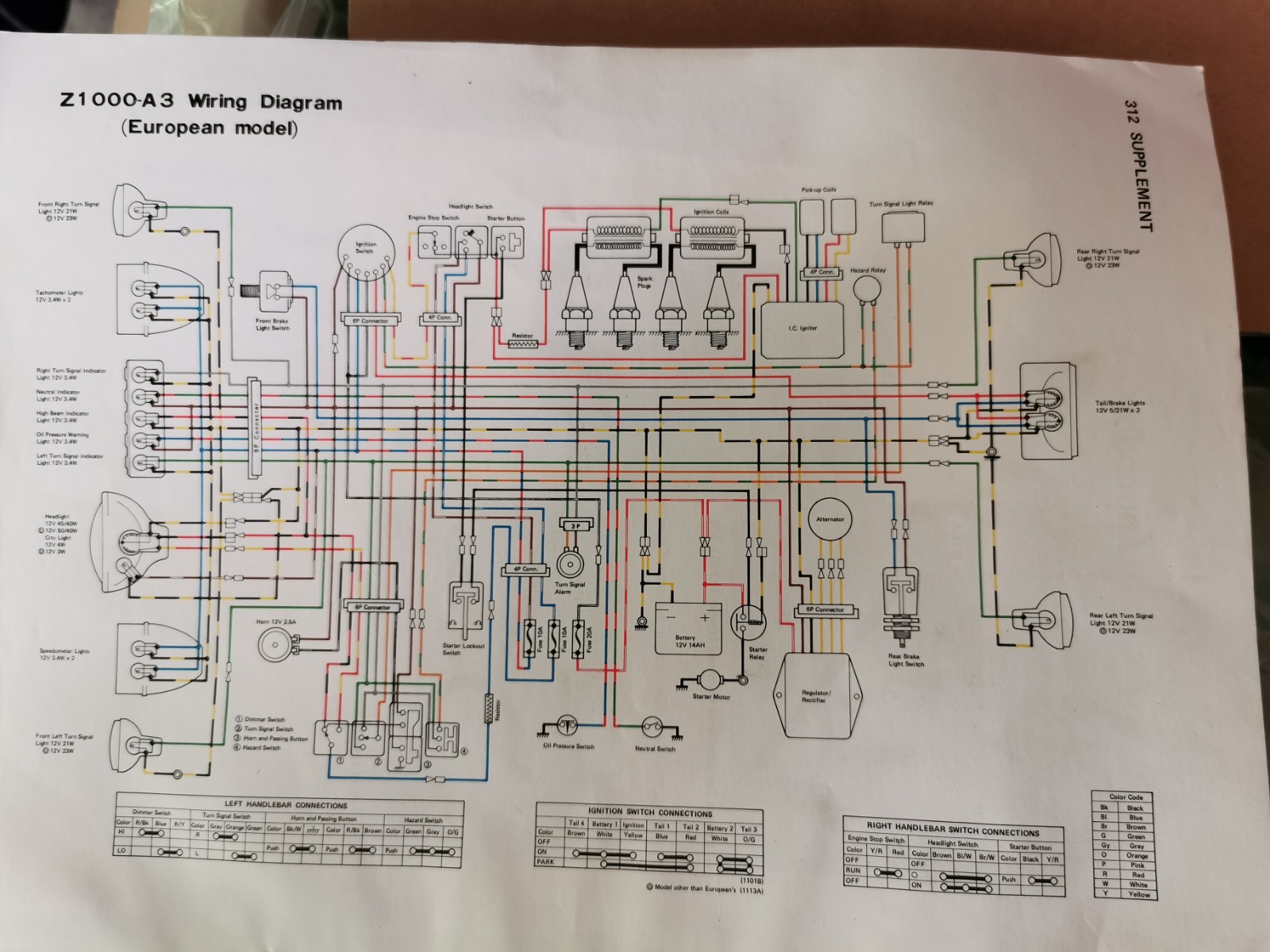

I'm using the A3 European spec wiring diagramme as shown in the photo, but can't seem to find out where I'm going wrong.
For context, the OEM wiring harness and handlebar controls are installed, the battery is both new and fully charged.
Any thoughts, hive mind?
As noted in a previous post, I have all the idiot lights working, headlight, indicators and brake lights work, but I still can't get the horn, passing beam, or go button to work.
All wires are connected, except a black one from the left handlebar control which doesn't seem to have a home that I can find.
I'm using the A3 European spec wiring diagramme as shown in the photo, but can't seem to find out where I'm going wrong.
For context, the OEM wiring harness and handlebar controls are installed, the battery is both new and fully charged.
Any thoughts, hive mind?
Last edit: 11 Dec 2022 05:35 by Street Fighter LTD.
Please Log in or Create an account to join the conversation.
- Mikaw
- Offline
- Sustaining Member
Less
More
- Posts: 5007
- Thank you received: 1918
11 Dec 2022 15:06 #877722
by Mikaw
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Replied by Mikaw on topic 1979 Kawasaki Z1000 MK2 A3A electrical issues
Are they OEM controls of emgo?
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Please Log in or Create an account to join the conversation.
- Scirocco
- Offline
- Premium Member
- Never change a running system
Less
More
- Posts: 4199
- Thank you received: 2068
11 Dec 2022 18:19 #877726
by Scirocco
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Replied by Scirocco on topic 1979 Kawasaki Z1000 MK2 A3A electrical issues
Missing ground to the controls and handle bar?
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Please Log in or Create an account to join the conversation.
- F64
- Offline
- User
- 81-KZ440D2
Less
More
- Posts: 1112
- Thank you received: 398
11 Dec 2022 19:19 #877727
by F64
81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY
Replied by F64 on topic 1979 Kawasaki Z1000 MK2 A3A electrical issues
Go button?
Do you have a meter?
Do you have a meter?
81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY
Please Log in or Create an account to join the conversation.
- gd4now
- Offline
- User
- Denco where did you go?
Less
More
- Posts: 1381
- Thank you received: 438
11 Dec 2022 20:19 #877728
by gd4now
1977 KZ650 B1
Pods and Denco header
OLD KAW OWNERS SMILE ALOT
Replied by gd4now on topic 1979 Kawasaki Z1000 MK2 A3A electrical issues
Not sure about go button either? Will say the horn button is the ground source for the horn. I would also ask what sort of end/connector is on the end of the black lead that appears to have nowhere to go?
1977 KZ650 B1
Pods and Denco header
OLD KAW OWNERS SMILE ALOT
Please Log in or Create an account to join the conversation.
- TexasKZ
- Offline
- Platinum Member
Less
More
- Posts: 7569
- Thank you received: 2235
12 Dec 2022 05:21 #877734
by TexasKZ
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
Replied by TexasKZ on topic 1979 Kawasaki Z1000 MK2 A3A electrical issues
By go button, I suspect he means the starter button.
If so, then a lack of ground through he bar seems likely. If the handlebar has recently been painted or is an aftermarket bar, then the switchgear may not be getting a proper ground connection through the bar as intended.
If so, then a lack of ground through he bar seems likely. If the handlebar has recently been painted or is an aftermarket bar, then the switchgear may not be getting a proper ground connection through the bar as intended.
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
Please Log in or Create an account to join the conversation.
- Wookie58
- Offline
- Moderator
Less
More
- Posts: 4097
- Thank you received: 2337
12 Dec 2022 05:50 - 12 Dec 2022 06:27 #877736
by Wookie58
Replied by Wookie58 on topic 1979 Kawasaki Z1000 MK2 A3A electrical issues

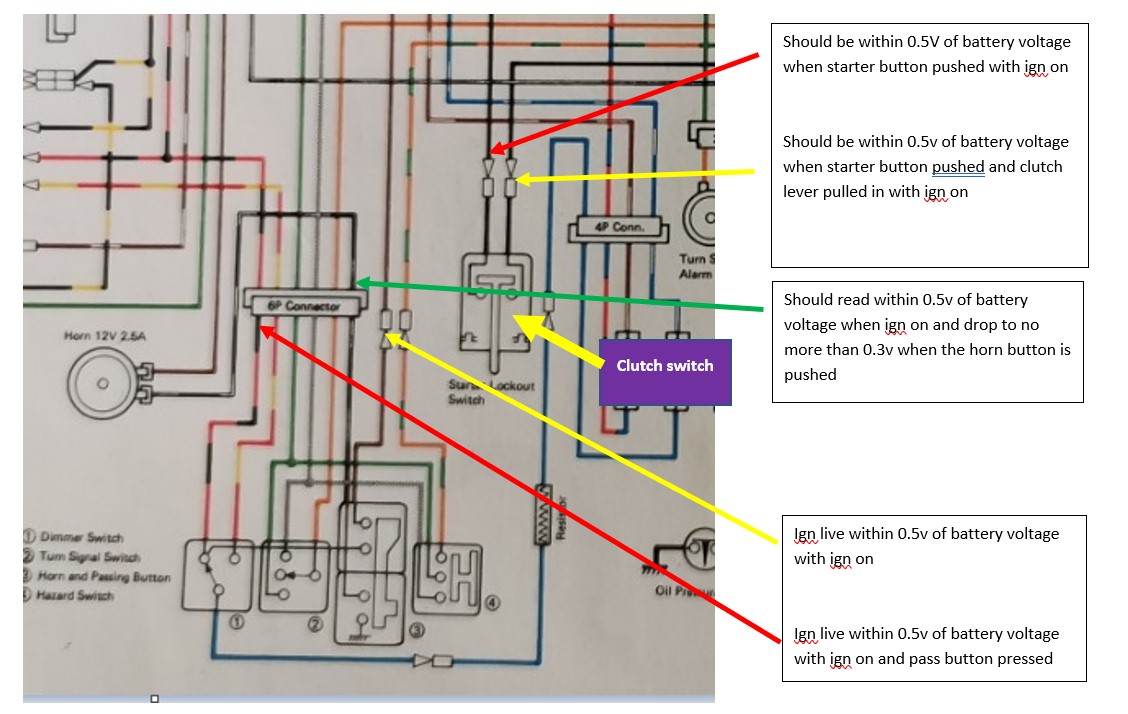

The only black wires from the left handlebar control are the two from the clutch switch. one should go to the black from the right handlebar switch and the other to the starter solenoid. If either is disconnected, then the "Go" button isn't going to work. The horn fault is the only "ground" relevant fault ref handlebar switch. Check voltages ref the below
Last edit: 12 Dec 2022 06:27 by Wookie58.
Please Log in or Create an account to join the conversation.
- policebikes
- Topic Author
- Offline
- User
Less
More
- Posts: 3
- Thank you received: 0
12 Dec 2022 22:05 #877756
by policebikes
Replied by policebikes on topic 1979 Kawasaki Z1000 MK2 A3A electrical issues
OEM
