Isn't the brown wire also a switched power source? its just switched on and off by the ignition switch rather than the killswitch + ignition.Use the yellow/red that powers the coils. It’s a “switched” power source.
@wookie58 - what does that entail?
Please Log in or Create an account to join the conversation.
- Scirocco
- Offline
- Premium Member
- Never change a running system
- Posts: 4199
- Thank you received: 2068
The wired george mod is to adding more load (voltage and current) to the original circuit and it would make sense to fit a by-pass relay to power the Dyna and the Coils!
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Please Log in or Create an account to join the conversation.
- Wookie58
- Offline
- Moderator
- Posts: 4097
- Thank you received: 2337

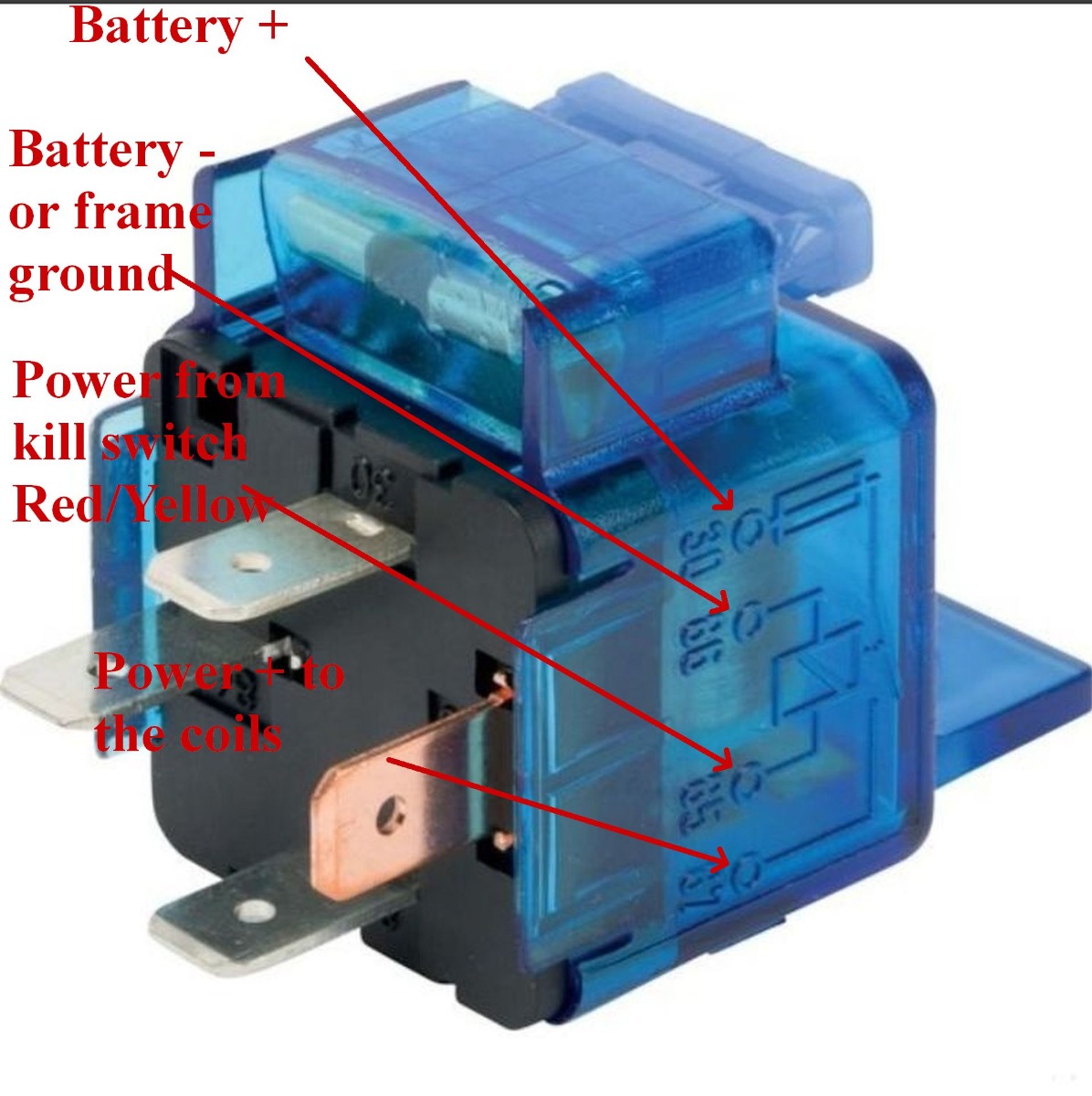

Switching the coils through the kill switch is a safety feature so if you were trapped under the bike in an accident you can kill the motor before the back wheel eats your leg, I would fit the By-pass relay and switch it with the yellow/red so it is still controlled by the kill switch but takes the load off the circuit
Isn't the brown wire also a switched power source? its just switched on and off by the ignition switch rather than the killswitch + ignition.Use the yellow/red that powers the coils. It’s a “switched” power source.
@wookie58 - what does that entail?
Please Log in or Create an account to join the conversation.
- Mikaw
- Offline
- Sustaining Member
- Posts: 5007
- Thank you received: 1918
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Please Log in or Create an account to join the conversation.
- Terror
- Topic Author
- Offline
- User
- Posts: 16
- Thank you received: 1

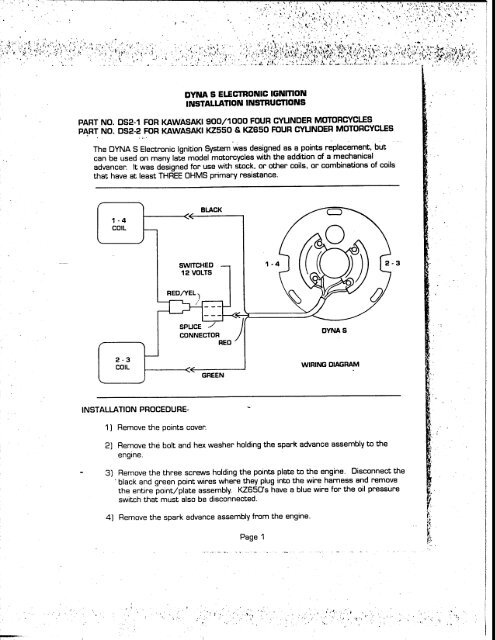

Could i get a link to a schematic of how to wire in the by-pass?Brown and yellow/red is switched power (ignition key on). The dyna has to be connect to yellow/red to be able to disconnect the power with the kill switch!
The wired george mod is to adding more load (voltage and current) to the original circuit and it would make sense to fit a by-pass relay to power the Dyna and the Coils!
Please Log in or Create an account to join the conversation.
- Mikaw
- Offline
- Sustaining Member
- Posts: 5007
- Thank you received: 1918
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Please Log in or Create an account to join the conversation.
- Terror
- Topic Author
- Offline
- User
- Posts: 16
- Thank you received: 1
I guess what i meant to say is where would you mount the bypass in order to keep the wiring neat and clean.Your just reposted it
