Z1 charging issues 18 Nov 2022 09:45 #876946

  • Wookie58
  • Wookie58's Avatar
  • Offline
  • Sustaining Member
  • Posts: 1467
  • Thank you received: 668

Seems to me you are using aftermarket components for something they weren't designed for and that's where your problem lies. The brown wire is the sensing wire that "triggers" the regulator into charging the battery whereas the SH775 doesn't have one and just meters the current going to the battery as the load changes. The Dyna takes a lot of power coupled with lighting taxes an already weak charging system. Back in the day I was running a Marshal 55w quartz.low beam and a 100w pencil beam that worked great out here but it taxed the rectifier to the point it melted the solder joints on the diodes. I replaced it with a GS 650 unit that is much larger than the stock one but little did I know it was taking it's toll on the wiring, regulator and battery. As the wiring overheated the resistance multiplied leaving less power going to the battery. The tip off was melted insulators and connectors. I wound up getting a sealed beam halogen headlight 35/55w and added a aftermarket regulator for just the battery and one for the lights. It kinda worked until I parked the bike in 98 until 2013 when I got it running again. I had bought a used Z1 regulator but it didn't work any better than what I already had. I bought a later model R/R from the Old Kaw Man but I was back to a weak charging system and slowly draining battery. I went through three stators and a Caltric R/R (Made in CHINA)   that fried my last stator. That's when I took Ed's advice and tried a used SH775 R/R and bought a used OEM stator. After making sure there wasn't any shorts in the stator I hooked it all up and now I have a working charging system but it could be better. Next will be a Rick's rotor and I should be able to run all the lights I want while still having my starter and accessories I use all the time.
Steve


Wouldn't disagree with any of what you say Steve, however in this case until the "resistance fault" fault is resolved causing a volt drop on the white output wire, whatever parts you fit aren't going to work correctly. In my experience you need to "box off" the basics first. I know I keep saying it but corrosion related resistance is the curse of these old bikes.
1982 KZ1000 Ltd
The following user(s) said Thank You: SWest, sleazy_rider

Please Log in or Create an account to join the conversation.

Z1 charging issues 18 Nov 2022 09:54 #876947

  • SWest
  • SWest's Avatar
  • Offline
  • Moderator
  • Posts: 21166
  • Thank you received: 2245
I agree. I got a new loom and added relays for the high power users bypassing the OEM connectors and switches all together. The carnage I found behind the mounting plate was nasty.
In this case I'll bet it's the wires.
Steve.
Z1b1000 1975 Z1b
Opinions expressed by me do not reflect those of the the staff or members
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
The following user(s) said Thank You: sleazy_rider, Wookie58

Please Log in or Create an account to join the conversation.

Z1 charging issues 18 Nov 2022 10:28 #876949

  • F64
  • F64's Avatar
  • Offline
  • User
  • 81-KZ440D2
  • Posts: 873
  • Thank you received: 255

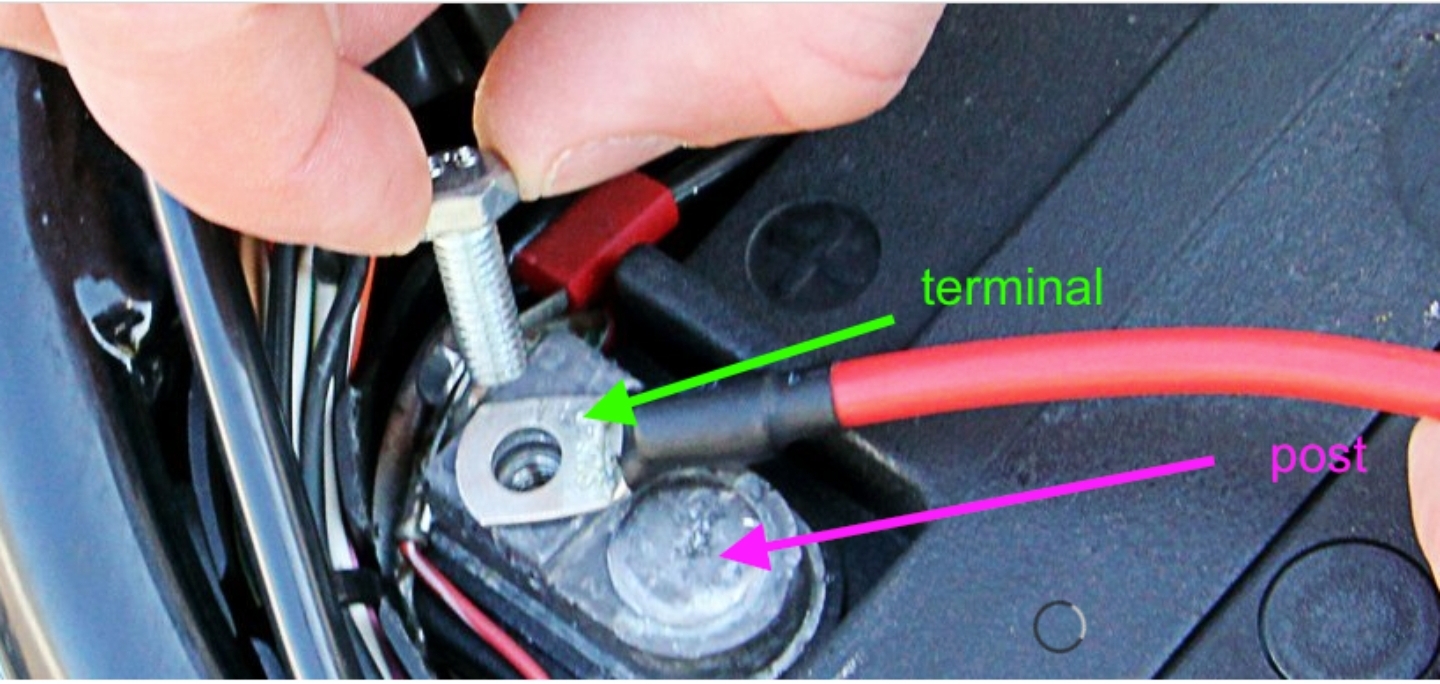

Ok, keeping the red probe on the positive battery post.
Move the black probe to the white wire terminal that attaches to the positive battery post.
What is your voltage?

When you test this the terminal has to remain connected to the battery.

The probes will be very close together but this will tell us how good the connection to the battery is.



81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY
Attachments:
The following user(s) said Thank You: sleazy_rider

Please Log in or Create an account to join the conversation.

Last edit: by F64.
