1977 KZ750 Stator Magnet
- brauenbuehler
- Topic Author
- Offline
- User
Less
More
05 Oct 2022 18:05 #875134
by brauenbuehler
1977 KZ750 Stator Magnet was created by brauenbuehler
Not a motorcycle mechanic by any means. Just trying to fix up a '77 KZ750 in my free time.
Charging system isn't putting out anything. Stator windings test fine per some youtube videos I've watched.

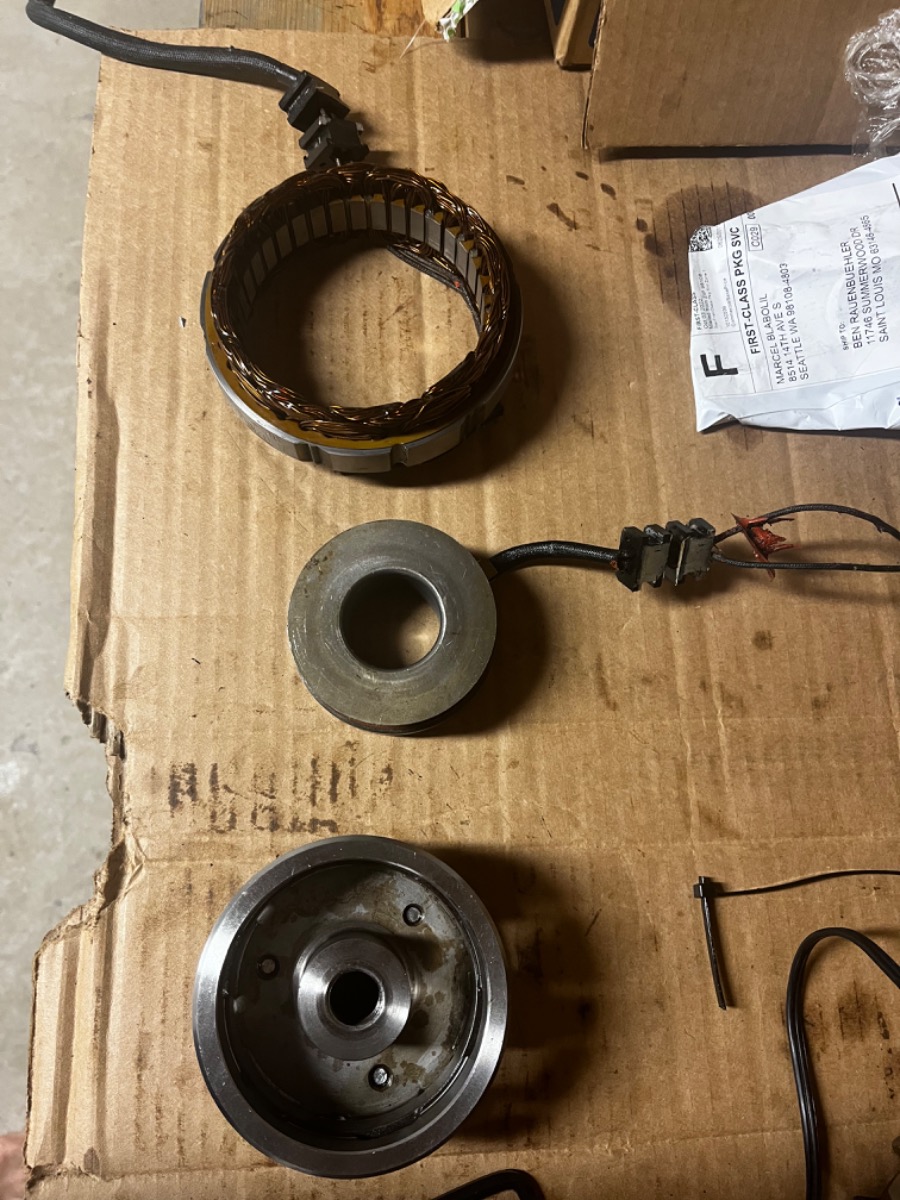

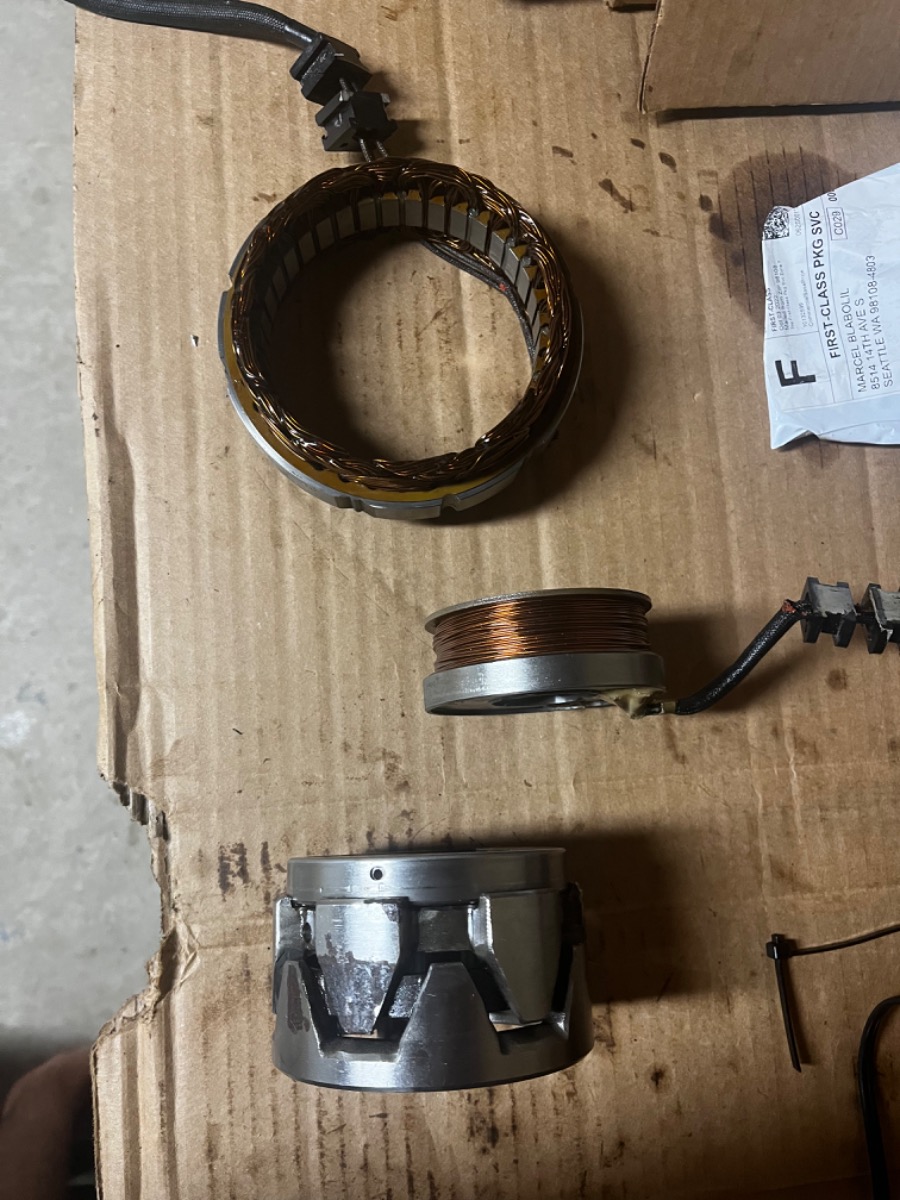

I expect to feel some kind of magnet on the flywheel/starter clutch/rotor assembly that spins between the stator and coil. I don't feel magnetic force anywhere.
Can somebody tell me if/where the magnet is at or explain the concept of how the inner coil and outer stator works as a charging system on these bikes? Maybe link me to a video? Everything I find is 1 rotor and 1 stator. My bike has 1 "rotor", 1 Stator and an inner coil winding.
Bike runs well while the battery is charged up!
Charging system isn't putting out anything. Stator windings test fine per some youtube videos I've watched.
I expect to feel some kind of magnet on the flywheel/starter clutch/rotor assembly that spins between the stator and coil. I don't feel magnetic force anywhere.
Can somebody tell me if/where the magnet is at or explain the concept of how the inner coil and outer stator works as a charging system on these bikes? Maybe link me to a video? Everything I find is 1 rotor and 1 stator. My bike has 1 "rotor", 1 Stator and an inner coil winding.
Bike runs well while the battery is charged up!
Please Log in or Create an account to join the conversation.
- Wookie58
- Offline
- Moderator
Less
More
- Posts: 4097
- Thank you received: 2337
06 Oct 2022 06:28 #875155
by Wookie58
Replied by Wookie58 on topic 1977 KZ750 Stator Magnet
This is a "dynamo" type system (used on some early models) the inner (field coil) is ignition fed via the regulator (voltage is varied by the regulator to regulate output voltage) and it is this "field coil" that generates an "electro magnetic field" during operation. It is the later stator (outer winding only) systems that use a permanent magnet
The following user(s) said Thank You: Nessism
Please Log in or Create an account to join the conversation.
- Scirocco
- Offline
- Premium Member
- Never change a running system
Less
More
- Posts: 4199
- Thank you received: 2068
06 Oct 2022 17:34 #875189
by Scirocco
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Replied by Scirocco on topic 1977 KZ750 Stator Magnet
1975 - 77 one phase charging system with field coil
1978 - 79 one phase charging system woth permanent magnet rotor
1978 - 79 one phase charging system woth permanent magnet rotor
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
The following user(s) said Thank You: Nessism
Please Log in or Create an account to join the conversation.
- gd4now
- Offline
- User
- Denco where did you go?
Less
More
- Posts: 1381
- Thank you received: 438
07 Oct 2022 12:55 #875226
by gd4now
1977 KZ650 B1
Pods and Denco header
OLD KAW OWNERS SMILE ALOT
Replied by gd4now on topic 1977 KZ750 Stator Magnet
Not sure if this will be of any help or not. Here is a wiring diagram for the 1977 KZ750 B2,
1977 KZ650 B1
Pods and Denco header
OLD KAW OWNERS SMILE ALOT
Please Log in or Create an account to join the conversation.
- brauenbuehler
- Topic Author
- Offline
- User
Less
More
- Posts: 3
- Thank you received: 0
10 Oct 2022 17:27 #875406
by brauenbuehler
Replied by brauenbuehler on topic 1977 KZ750 Stator Magnet
Thanks!

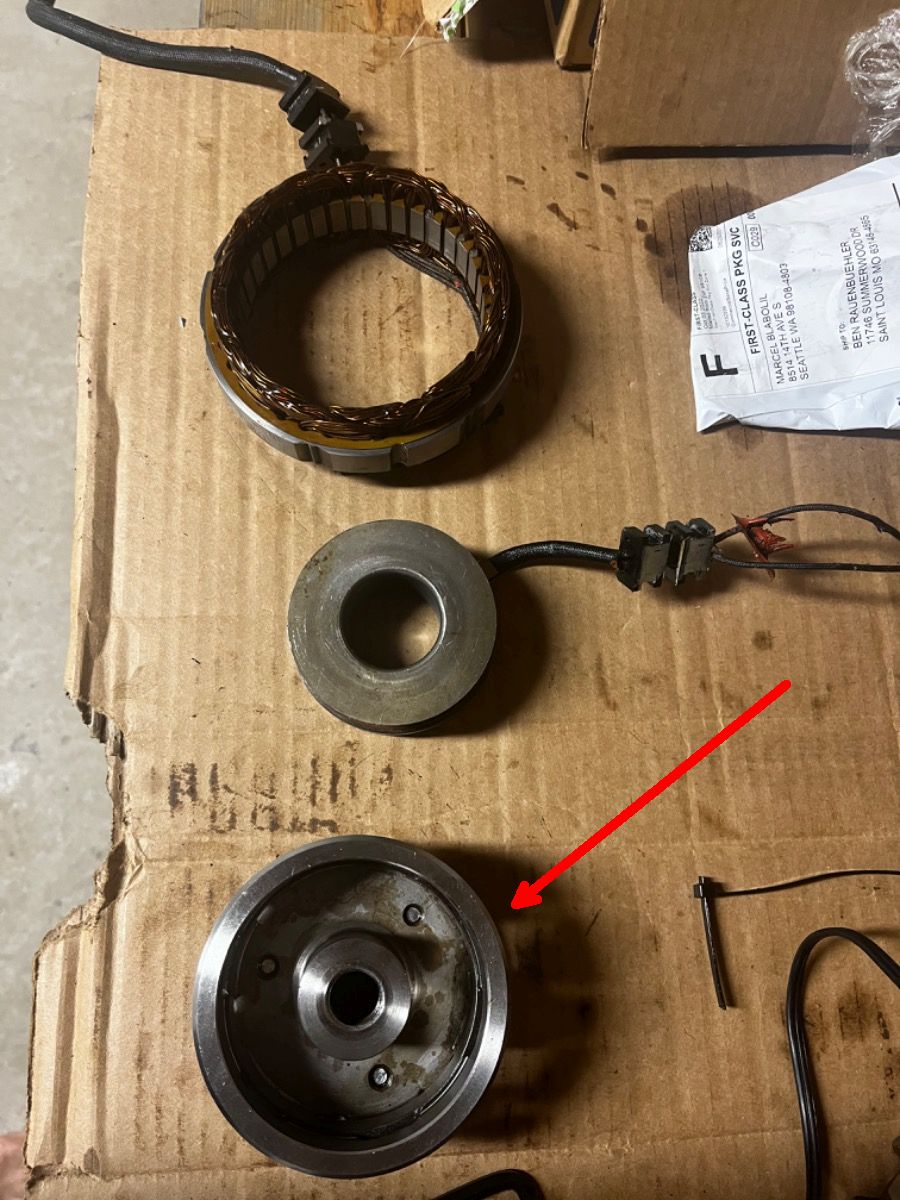

There should be a permanent magnet on the “dynamo rotor” then, correct?
And it should be strong enough that I can feel it with a nail or something magnetic?
There should be a permanent magnet on the “dynamo rotor” then, correct?
And it should be strong enough that I can feel it with a nail or something magnetic?
Please Log in or Create an account to join the conversation.
- brauenbuehler
- Topic Author
- Offline
- User
Less
More
- Posts: 3
- Thank you received: 0
10 Oct 2022 17:34 - 10 Oct 2022 18:30 #875407
by brauenbuehler
Replied by brauenbuehler on topic 1977 KZ750 Stator Magnet
Last edit: 10 Oct 2022 18:30 by Street Fighter LTD.
Please Log in or Create an account to join the conversation.
- TexasKZ
- Offline
- Platinum Member
Less
More
- Posts: 7569
- Thank you received: 2235
10 Oct 2022 18:52 #875409
by TexasKZ
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
Replied by TexasKZ on topic 1977 KZ750 Stator Magnet
No magnet, that is the field coil system.
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
The following user(s) said Thank You: Nessism
Please Log in or Create an account to join the conversation.
- Scirocco
- Offline
- Premium Member
- Never change a running system
Less
More
- Posts: 4199
- Thank you received: 2068
10 Oct 2022 22:55 #875413
by Scirocco
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Replied by Scirocco on topic 1977 KZ750 Stator Magnet
This permanent magnetic rotor needs a different stator and regulator and is not comptible to your field coil charging system.

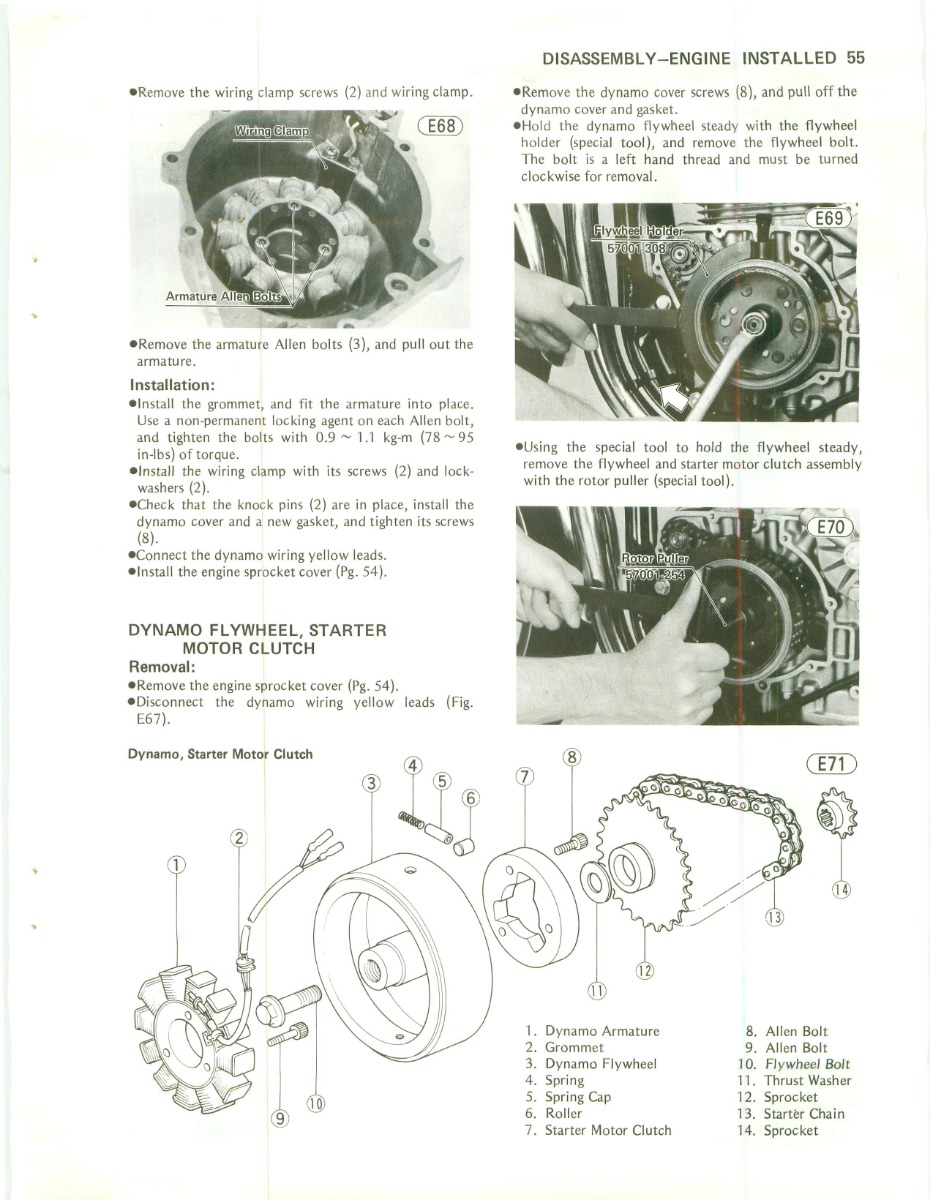

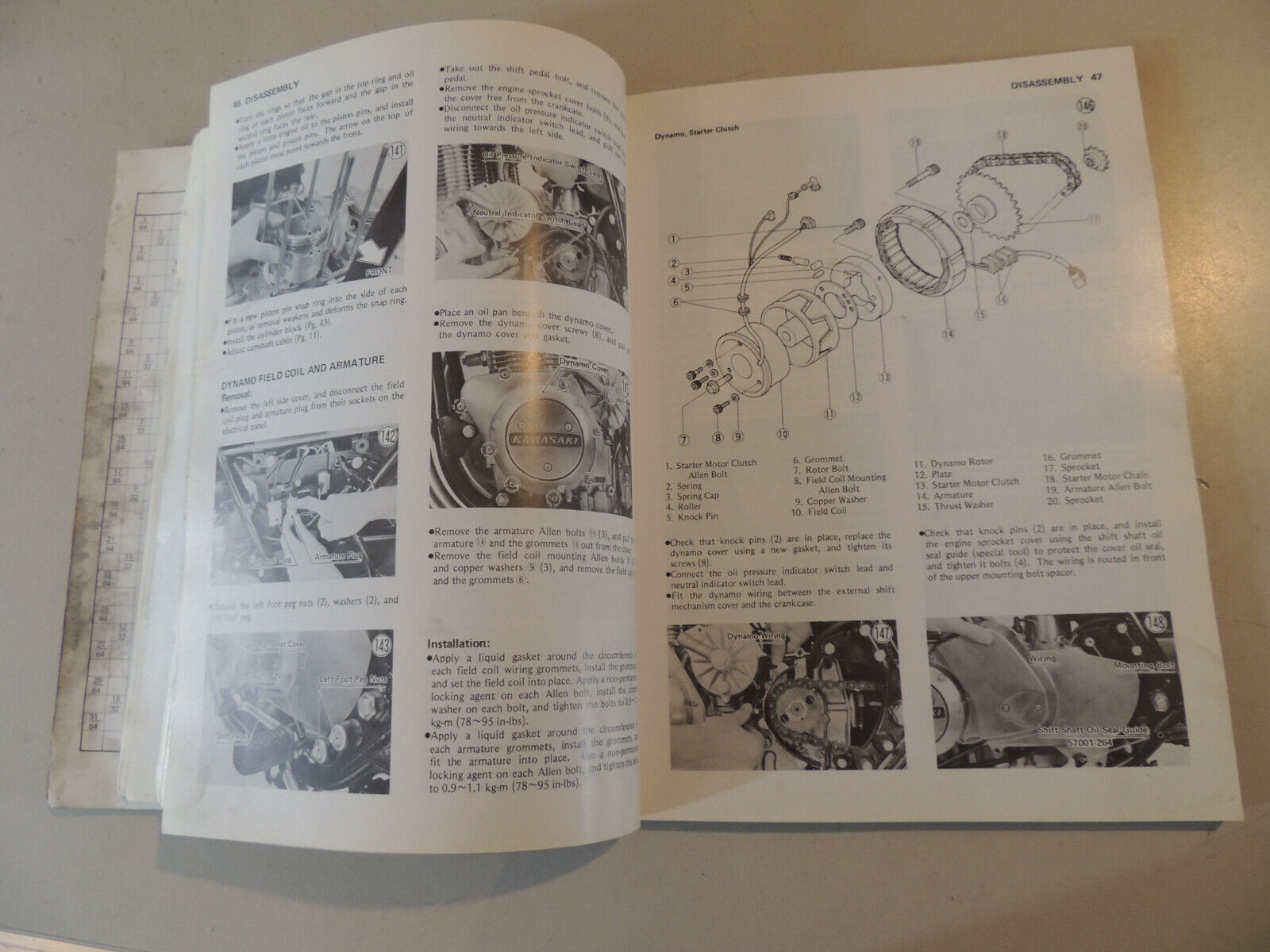

See the photos in my last post.
See the photos in my last post.
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Please Log in or Create an account to join the conversation.
- Nessism
- Offline
- Sustaining Member
Less
More
- Posts: 7512
- Thank you received: 2827
11 Oct 2022 05:11 - 11 Oct 2022 05:13 #875419
by Nessism
Replied by Nessism on topic 1977 KZ750 Stator Magnet
www.kzrider.com/modules/ServiceManuals/K...l%20KZ750%20Twin.pdf
The Kawasaki factory service manual for your bike provides correct information, not watching youtube.
The field coil charging system was very advanced. It is also complicated and expensive to work on if you need new parts because everything is specialized. As mentioned by others, there are no magnets in this system.
The Kawasaki factory service manual for your bike provides correct information, not watching youtube.
The field coil charging system was very advanced. It is also complicated and expensive to work on if you need new parts because everything is specialized. As mentioned by others, there are no magnets in this system.
Last edit: 11 Oct 2022 05:13 by Nessism.
Please Log in or Create an account to join the conversation.
- Wookie58
- Offline
- Moderator
Less
More
- Posts: 4097
- Thank you received: 2337
11 Oct 2022 05:56 #875423
by Wookie58
Replied by Wookie58 on topic 1977 KZ750 Stator Magnet
As mentioned previously, the field coil generates an "electro-magnet field" when energised (this provides your magnet)No magnet, that is the field coil system.
